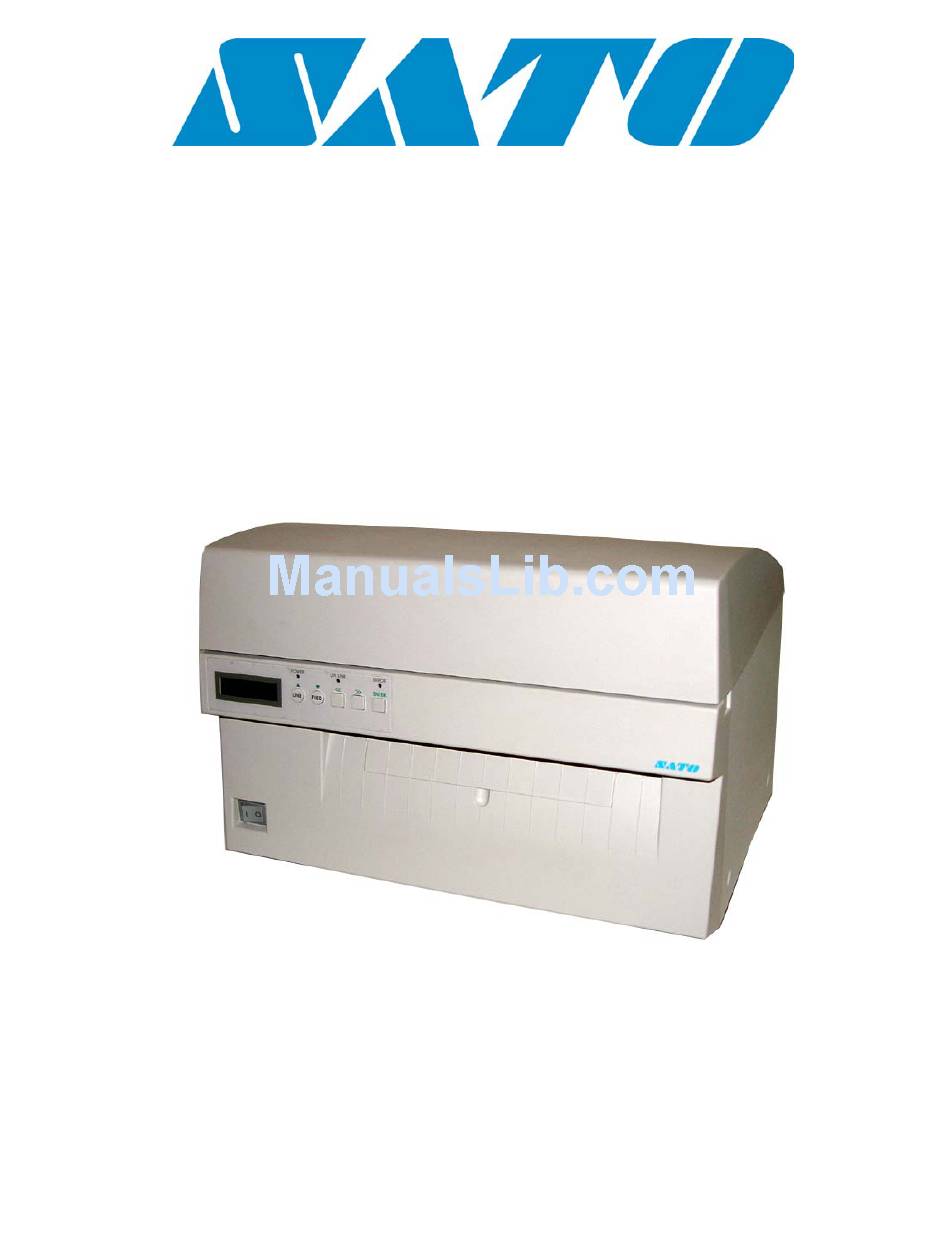

M-10e TT/DT
Thermal Transfer
Printer

Parts List

PN 9001099
Rev. A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M10e and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SATO M10e

Summary of Contents for SATO M10e

  • Page 1: Parts List

    M-10e TT/DT Thermal Transfer Printer Parts List PN 9001099 Rev. A...

  • Page 2: Table Of Contents

    Stacker Assembly (Option) ...38 Interface Board Assembly...40 NOTE: The parts information in this document is accurate at the time of publication and is subject to change without notice. PN 9001099 Rev. A Table of Contents SATO M-10e TT/DT Printers Parts List Page...

  • Page 3: Bottom Assembly

    RH1A60200 POW1 CORD SET RH1A60300 POW2 CORD SET MD4300622 PAN HEAD SCREW RH1A60010 AC CORD SET MD3300822 PAN HEAD SCREW MD0400622 PAN HEAD SCREW NB2040022 LOCK WASHER P03036000 COVER SATO M-10e TT/DT Printers Parts List DESCRIPTION PN 9001099 Rev. A...

  • Page 4: Bottom Assembly

    Bottom Assembly PN 9001099 SATO M-10e TT/DT Printers Parts List Rev. A...

  • Page 5: Side Frame Rh Assembly

    PA3A60200 RIBBON BRACKET(RL) MD0300422 PAN HEAD SCREW PA1A60100 SUPPORTER CLAMP(B) MJ9300322 THIN HEAD SCREW PA3A60800 PLATE(ESCAPE) PC2A60000 SPRING(FEED ROLLER) PB0A60202 SHAFT(SPRING) P00669000 SPRING (FEED ROLLER) MD4301422 PAN HEAD SCREW SATO M-10e TT/DT Printers Parts List DESCRIPTION PN 9001099 Rev. A...
  • Page 6 Side Frame RH Assembly PN 9001099 SATO M-10e TT/DT Printers Parts List Rev. A...

  • Page 7: Side Frame Lh Assembly

    P03042000 MD4401022 ND0060030 PT9A60100 PA1A60100 MJ9300322 PA3A60300 PC2A60100 PB0A60202 P00669000 MD4301422 SATO M-10e TT/DT Printers Parts List DESCRIPTION SIDE FRAME(L) PAN HEAD SCREW PCB BRACKET(BOTTOM) PAN HEAD SCREW PCB BRACKET(TOP) PAN HEAD SCREW POST(COVER) PAN HEAD SCREW RIBBON SHAFT(FF) PAN HEAD SCREW...
  • Page 8 Side Frame LH Assembly PN 9001099 SATO M-10e TT/DT Printers Parts List Rev. A...

  • Page 9: Main Pcba Assembly

    Main PCBA Assembly ITEM CODE DESCRIPTION R01077002 MAIN PCBA MD4300622 PAN HEAD SCREW MA2300622 BIND SCREW SATO M-10e TT/DT Printers Parts List PN 9001099 Rev. A...

  • Page 10: Ribbon Pcb Assembly

    Ribbon PCB Assembly ITEM CODE RJ1A60500 RIBBON PCBA KE900711A CARD SPACER RH1A61101 RIBBON CABLE ASSY PN 9001099 Rev. A DESCRIPTION SATO M-10e TT/DT Printers Parts List...

  • Page 11: Frame C Assembly

    MD4300622 PAN HEAD SCREW PR3A60201 GUIDE PLATE(BOTTOM) PA3A61800 GUIDE PLATE(RACK) NA1030022 WASHER NB0030022 WASHER MT1300522 HEX NUT NA1030022 NA1030022 SATO M-10e TT/DT Printers Parts List CODE DESCRIPTION GUIDE COLLAR(STACKER) CABLE SENSOR (TOP) SENSOR BRACKET AUTO LOAD SENSOR COLLAR LABEL SENSOR (BOTTOM)
  • Page 12 Frame C Assembly PN 9001099 SATO M-10e TT/DT Printers Parts List Rev. A...

  • Page 13: Frame E Assembly

    PA3A61910 FRAME(E) MD4300822 PAN HEAD SCREW PA3A62010 SLIDE GUIDE MD4300622 PAN HEAD SCREW PA3A62101 GUIDE PLATE(TOP) PT9A60200 HAND SCREW PT9A60500 ANTI STATIC BRUSH PA3A66410 BEAM MD4300622 PAN HEAD SCREW SATO M-10e TT/DT Printers Parts List DESCRIPTION PN 9001099 Rev. A...
  • Page 14 Frame E Assembly PN 9001099 SATO M-10e TT/DT Printers Parts List Rev. A...

  • Page 15: Stay Assembly

    Stay Assembly CODE PD1A60000 STAY MD4401022 PAN HEAD SCREW PA2A60500 PROTECTOR MD4300622 PAN HEAD SCREW SATO M-10e TT/DT Printers Parts List DESCRIPTION PN 9001099 Rev. A...

  • Page 16: Head Lock Assembly

    Head Lock Assembly CODE PR3A60300 HEAD LOCK SHAFT ND0060030 E-SNAP RING PR3A60401 HEAD LOCK LEVER MJ1400524 W-POINT SET PE6A60400 COVER(HEAD LOCK LEVER) MH0250621 P-TIGHT SCREW PC0A60000 HEAD LOCK SPRING PN 9001099 Rev. A NAME SATO M-10e TT/DT Printers Parts List...

  • Page 17: Pressure Roller Assembly

    Pressure Roller Assembly CODE PB0A60510 SHAFT(PRESSURE ROLLER) PB3A60000 ROLLER ND0070030 E-SNAP RING SATO M-10e TT/DT Printers Parts List DESCRIPTION PN 9001099 Rev. A...

  • Page 18: Platen Roller Assembly

    Platen Roller Assembly CODE DESCRIPTION RC1A60100 PLATEN ROLLER ASSY PN 9001099 SATO M-10e TT/DT Printers Parts List Rev. A...

  • Page 19: Feed Roller Assembly

    Feed Roller Assembly RC1A60301 FEED ROLLER ASSY MD4300621 PAN HEAD SCREW SATO M-10e TT/DT Printers Parts List NAME PN 9001099 Rev. A...

  • Page 20: Guide Plate Top Assembly

    Guide Plate Top Assembly CODE DESCRIPTION R01150000 GUIDE PLATE(TOP) PN 9001099 SATO M-10e TT/DT Printers Parts List Rev. A...

  • Page 21: Head Assembly

    ND0030030 E-SNAP RING P03038000 MD4300622 PAN HEAD SCREW PC1A60000 HEAD SPRING PB0A61001 HEAD ADJUST SHAFT PB5A60100 HEAD ADJUST CAM MA0301422 PAN HEAD SCREW ND0050030 E-SNAP RING SATO M-10e TT/DT Printers Parts List NAME ADJUST COLLAR CABLE GUIDE PN 9001099 Rev. A...
  • Page 22 ND0030030 E-SNAP RING PR1A60110 ADJUST PLATE(HEAD) MD4301022 PAN HEAD SCREW PR7A60101 THERMAL HEAD P02551000 POST(HEAD) RH1A60401 HDP CORD SET RH1A60610 HDS CORD SET MD4300822 PAN HEAD SCREW NA1030022 WASHER PN 9001099 Rev. A DESCRIPTION SATO M-10e TT/DT Printers Parts List...
  • Page 23 Head Assembly PN 9001099 SATO M-10e TT/DT Printers Parts List Rev. A...
  • Page 24 Head Assembly (Cont) PN 9001099 SATO M-10e TT/DT Printers Parts List Rev. A...

  • Page 25: Ribbon Unwind Assembly

    PA3A63500 PT9A60400 PC2A60201 PB0A61200 NG2201430 PE2A60000 PT2A60300 PA3A60200 RJ1A60601 MA2300422 MD0300422 RH1A61300 SATO M-10e TT/DT Printers Parts List DESCRIPTION RIBBON BOBBIN E-SNAP RING RIBBON BOBBIN(TORQUE) E-SNAP RING SPRING(BOBBIN) BEAR FIGHT SLACK PLATE(L) TORQUE LIMITTER TORSION SPRING RIBBON SHAFT(TORQUE) PARALLEL PIN...
  • Page 26 Ribbon Unwind Assembly PN 9001099 SATO M-10e TT/DT Printers Parts List Rev. A...

  • Page 27: Ribbon Rewind Assembly

    P00005000 TORQUE LIMITER NG2201430 PARALLEL PIN PE2A60000 ENCODER PLATE PA3A63800 RIBBON BRACKET(L) MD4300622 PAN HEAD SCREW PE6A60201 MOTOR COVER MH9300822 P-TIGHT SCREW MD4300622 PAN HEAD SCREW MD4300622 PAN HEAD SCREW SATO M-10e TT/DT Printers Parts List DESCRIPTION PN 9001099 Rev. A...
  • Page 28 Ribbon Rewind Assembly PN 9001099 SATO M-10e TT/DT Printers Parts List Rev. A...

  • Page 29: Cover Assembly

    PA3A64800 HINGE PLATE(L) PA3A64900 HINGE PLATE(R) MA2300622 BIND SCREW PB0A61500 RELEASE SHAFT PC1A60201 SPRING ND0030030 E-SNAP RING PE6A21900 MICRO DRIVER JG100551A CK CLAMP SATO M-10e TT/DT Printers Parts List CODE DESCRIPTION FRONT COVER POWER SWITCH CABLE ASSY PN 9001099 Rev. A...
  • Page 30 Cover Assembly PN 9001099 SATO M-10e TT/DT Printers Parts List Rev. A...
  • Page 31 Cover Assembly PN 9001099 SATO M-10e TT/DT Printers Parts List Rev. A...

  • Page 32: Keyboard Assembly

    Keyboard Assembly PN 9001099 Rev. A CODE PR7A61110 KB PCB SET MH0300821 P-TIGHT SCREW RH1A60700 KB CABLE ASSY PC9730100 SPRING(LOCK) RH1A60800 LCD CABLE ASSY SATO M-10e TT/DT Printers Parts List DESCRIPTION...

  • Page 33: Tear Off Cutter Assembly

    Tear Off Cutter Assembly SATO M-10e TT/DT Printers Parts List CODE DESCRIPTION PA3A64500 TEAR OFF CUTTER MD4300622 PAN HEAD SCREW PA3A64100 CUTTER GUIDE(A) PA3A66000 CUTTER GUIDE(C) MD4300622 PAN HEAD SCREW PA3A64600 TEAR OFF CUTTER GUIDE PR4A60400 CUTTER GUIDE UNDER(B) MD4300622 PAN HEAD SCREW...

  • Page 34: Cutter Assembly (Option)

    CUTTER SENSOR CABLE ASSY PAN HEAD SCREW CUTTER BRACKET(C) PAN HEAD SCREW CUTTER GUIDE TOP(D) PAN HEAD SCREW GUIDE SCREW CT GUIDE SHEET B PAN HEAD SCREW CUTTER SWITCH CABLE ASSY P TIGHT SCREW SATO M-10e TT/DT Printers Parts List...
  • Page 35 Cutter Assembly (Option) PN 9001099 SATO M-10e TT/DT Printers Parts List Rev. A...

  • Page 36: Unwind Assembly (Option)

    MD4401022 PAN HEAD SCREW PB0A61901 SHAFT PB3A60510 ROLL CORE(1.5) NG2401030 PARALLEL PIN PB2A60101 COLLAR NG3403530 SPRING PIN PA2A60401 ROLL GUIDE PB1A60000 HANDLE MA1400822 SCREW PE4080200 GUIDE STOPPER PA1210400 SPRING PB4A60001 ROLL CORE(3) PV0600100 HAND SCREW PR1A60610 SHAFT SATO M-10e TT/DT Printers Parts List...
  • Page 37 Unwind Assembly (Option) PN 9001099 SATO M-10e TT/DT Printers Parts List Rev. A...

  • Page 38: Stacker Assembly (Option)

    BASE FRAME RUBBER FOOT PAN HEAD SCREW CENTER FRAME BIND SCREW ST.GUIDE SET PAN HEAD SCREW WASHER GUIDE BRACKET SCREW WASHER HEX NUT COLLAR SCREW SLIDE(POST) COLLAR WASHER SPRING(BELT) PAN HEAD SCREW POLY SLIDER SATO M-10e TT/DT Printers Parts List...
  • Page 39 Stacker Assembly (Option) PN 9001099 SATO M-10e TT/DT Printers Parts List Rev. A...

  • Page 40: Interface Board Assembly

    Interface Board Assembly CODE MD3300622 WCL404070 WCL404060 WCL404051 11S000158 11S000136 11S000162 PN 9001099 Rev. A DESCRIPTION PAN HEAD SCREW PARALLEL INTERFACE INTERFACE HIGH SPEED SERIAL INTERFACE 10/100 ETHERNET INTERFACE (CX/TX INTERFACE) WIRELESS RF INTERFACE SATO M-10e TT/DT Printers Parts List...
