CT400/CT410
Printers

PARTS LIST

PN 9001072B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CT400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SATO CT400

Summary of Contents for SATO CT400

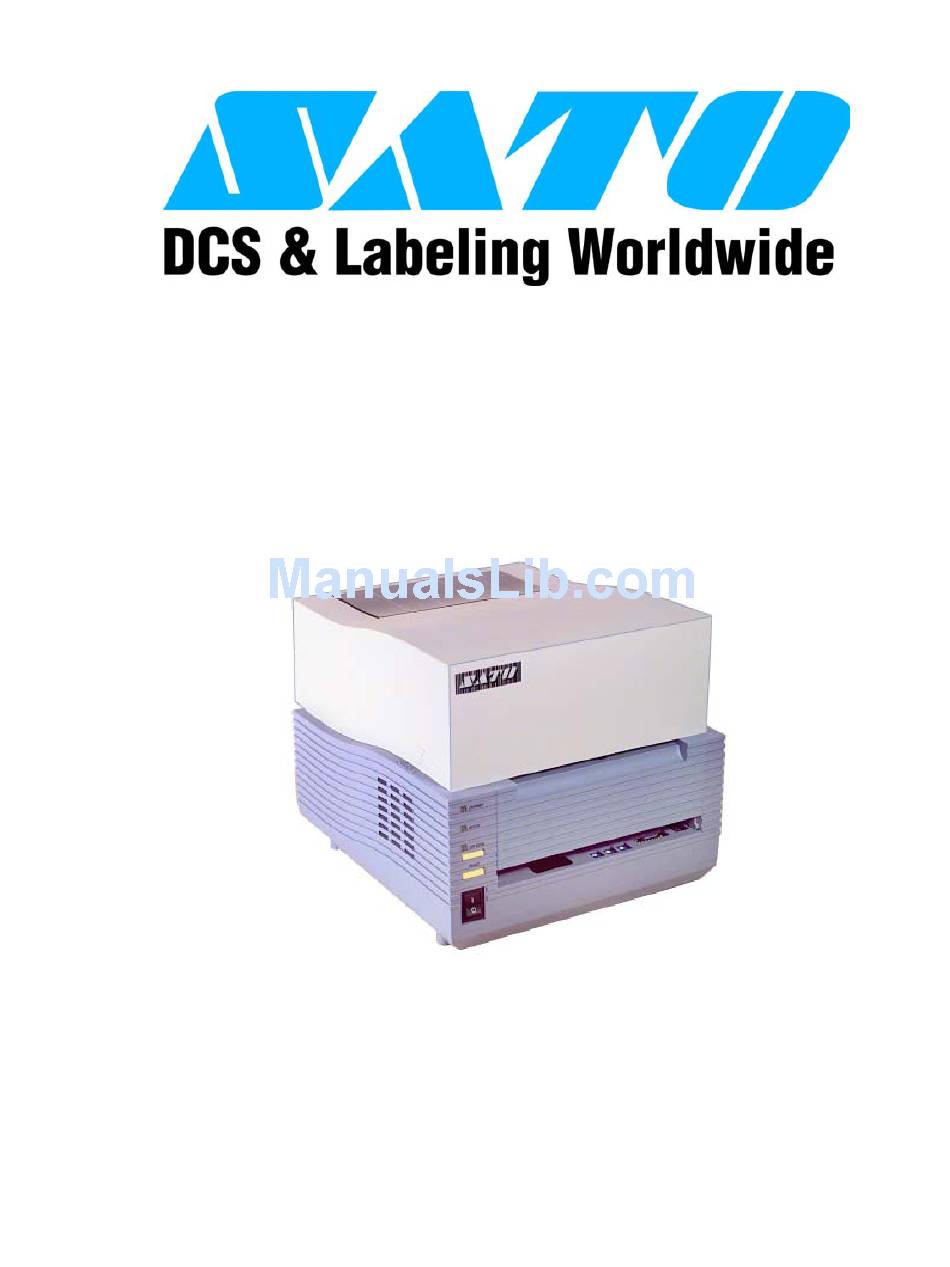

  • Page 1: Parts List

    CT400/CT410 Printers PARTS LIST PN 9001072B...
  • Page 2 SATO America, Inc. 10350A Nations Ford Road Charlotte, NC 28273 Main Phone: (704) 644-1650 Technical Support Hotline: (704) 644-1660 Technical Support Fax: (704) 644-1661 E-Mail: satosales@satoamerica.com www.satoamerica.com...

  • Page 3: Table Of Contents

    CONTENTS CT400 (Serial Number 5C000000 and above) CT410 (Serial Number 5B000001 and above) Cover Page Base Assembly Print Assembly Ribbon Assembly Frame Assembly Accessories Interface Option Cutter Option Dispenser Option CT400 (Serial Number 5B000000 and below) CT410 (Serial Number 5A999999 and below)
  • Page 4 CT400 PRINTERS (SERIAL NUMBERS 5C000000 AND ABOVE) CT410 PRINTERS (SERIAL NUMBERS 5B000001 AND ABOVE) SATO CT400-410 Parts List PN 9001072B Page 1...

  • Page 5: Base Assembly

    BASE ASSEMBLY Figure PL1a, Base Assembly SATO CT400-410 Parts List PN 9001072B Page 2...
  • Page 6 Figure PL1b, Base Assembly SATO CT400-410 Parts List PN 9001072B Page 3...
  • Page 7 Figure PL1c, Base Assembly SATO CT400-410 Parts List PN 9001072B Page 4...

  • Page 8: Cover

    PRINT HEAD CABLE ASSEMBLY RC1A20004 PLATEN ROLLER SUB-ASSEMBLY PR0A20102 PLATEN ROLLER PB2A20100 COLLAR PA3A20003 DISPENSER BAR PJ0A20201 PLATEN GEAR ND0040022 SNAP RING, TYPE E PC2A20201 HEAD OPEN SPRING SATO CT400-410 Parts List BASE ASSEMBLY (PL1) PART DESCRIPTION PN 9001072B Page 5...
  • Page 9 BOTTOM CASE PE0A20000 FOOT P10730100 INTERFACE ACCESS COVER MH0301221 PAN HEAD SCREW, P-TIGHT PE6A20301 DIP SWITCH COVER PH0A21510 FRONT PANEL QC6A23310 SWITCH TABLE LABEL RA0A21400 TOP COVER SATO CT400-410 Parts List BASE ASSEMBLY (PL1) PART DESCRIPTION PN 9001072B Page 6...

  • Page 10: Print Assembly

    PRINT ASSEMBLY Figure PL2, Print Head Assembly SATO CT400-410 Parts List PN 9001072B Page 7...
  • Page 11 PB0A21800 HEAD SHAFT ND0040022 SNAP RING, TYPE E PR1A20501 HEAD HINGE MD4300622 PAN HEAD SCREW RC0A20302 PRINT HEAD (CT400 ONLY) QD8570100 KAPTON TAPE RC0A20402 PRINT HEAD (CT410 ONLY) SATO CT400-410 Parts List PRINT ASSEMBLY (PL2) PART DESCRIPTION PN 9001072B Page 8...

  • Page 12: Ribbon Assembly

    RIBBON ASSEMBLY Figure PL3, Ribbon Assembly SATO CT400-410 Parts List PN 9001072B Page 9...
  • Page 13 RIBBON GUIDE SUB-ASSEMBLY PE6A20100 SLIDE WASHER (G) PE5A20500 WINDING KNOB PE5A20006 RIBBON CORE MH0250821 PAN HEAD SCREW, P-TIGHT QC6A20200 PUSH LABEL MD4300822 PAN HEAD SCREW PE5A22000 RELEASE LABEL SATO CT400-410 Parts List RIBBON ASSEMBLY (PL3) PART DESCRIPTION PN 9001072B Page 10...
  • Page 14 ITEM PART NUMBER MC0300622 PAN HEAD SCREW NB2030022 TOOTHED LOCK WASHER SATO CT400-410 Parts List RIBBON ASSEMBLY (PL3) PART DESCRIPTION PN 9001072B Page 11...

  • Page 15: Frame Assembly

    FRAME ASSEMBLY (CT400) Figure PL4a, CT400 Frame Assembly SATO CT400-410 Parts List PN 9001072B Page 12...
  • Page 16 FRAME ASSEMBLY (CT410) Figure PL4b, CT410 Frame Assembly SATO CT400-410 Parts List PN 9001072B Page 13...
  • Page 17 HEAD LATCH SPRING PR1A20002 MOTOR PLATE PJ0A20401 IDLE GEAR ND0020030 SNAP RING, TYPE E PJ0A20301 DOUBLE GEAR (8), (CT400 only) ND0030022 SNAP RING, TYPE E PJ0A20101 DOUBLE GEAR, 12, (CT410 only) ND0020030 SNAP RING, TYPE E P02367000 HEAD CONDUCTION PAD...

  • Page 18: Accessories

    ACCESSORIES ITEM PART NUMBER JH000441A POWER CORD, 115 VOLT JH000451A POWER CORD, 220 VOLT KA600081A AC ADAPTER Q00844010 PACKING SET SATO CT400-410 Parts List Figure PL5, Accessories ATTACHMENTS (PL5) PART DESCRIPTION PN 9001072B Page 15...

  • Page 19: Interface Option

    INTERFACE OPTION ITEM PART NUMBER WCT400026 PARALLEL INTERFACE (CT400 THERMAL TRANSFER ONLY) WCT400027 PARALLEL INTERFACE (CT400 DIRECT THERMAL ONLY) WCT410026 PARALLEL INTERFACE (CT410 THERMAL TRANSFER ONLY) WCT410027 PARALLEL INTERFACE (CT410 DIRECT THERMAL ONLY) WCT405660 IEEE1284 HIGH-SPEED PARALLEL INTERFACE WCT405620 USB INTERFACE...

  • Page 20: Cutter Option

    CUTTER OPTION Figure PL7, Cutter Option SATO CT400-410 Parts List PN 9001072B Page 17...
  • Page 21 PAN HEAD SCREW MD3300422 PAN HEAD SCREW W/SPRING & NARROW FLAT WASHERS JG100511A MINI CLAMP MA0300422 PAN HEAD SCREW PA3A20801 SLIDE PLATE PC0A20300 SPRING SATO CT400-410 Parts List CUTTER OPTION (PL7) PART DESCRIPTION FLAT HEAD SCREW PN 9001072B Page 18...

  • Page 22: Dispenser Option

    DISPENSER OPTION Figure PL8a, Dispenser Option SATO CT400-410 Parts List PN 9001072B Page 19...
  • Page 23 Figure PL8b, Dispenser Option SATO CT400-410 Parts List PN 9001072B Page 20...
  • Page 24 BASE BRACKET ASSEMBLY PA2A20310 GUIDE PLATE PC0A20101 SPRING MD3300822 PAN HEAD SCREW JG100531A MINI CLAMP PE6A20400 FRONT PANEL SHEET RA0A22300 DISPENSER BAR RB6A20500 DISPENSER PT9A22100 SPACER PT9A22200 SPACER SATO CT400-410 Parts List DISPENSER OPTION (PL8) PART DESCRIPTION PN 9001072B Page 21...
  • Page 25 CT400 PRINTERS (SERIAL NUMBERS 5B000000 AND BELOW) CT410 PRINTERS (SERIAL NUMBERS 5A999999 AND BELOW) SATO CT400-410 Parts List PN 9001072B Page 22...

  • Page 26: Base Assembly

    BASE ASSEMBLY Figure PL9a, Base Assembly SATO CT400-410 Parts List PN 9001072B Page 23...
  • Page 27 Figure PL9b, Base Assembly SATO CT400-410 Parts List PN 9001072B Page 24...
  • Page 28 Figure PL9c, Base Assembly SATO CT400-410 Parts List PN 9001072B Page 25...
  • Page 29 PLATEN SUB-ASSEMBLY PR0A20102 PLATEN ASSEMBLY PB2A20100 COLLAR PA3A20002 PLATEN FRAME PJ0A20201 PLATEN GEAR ND0040022 SNAP RING, TYPE E PC2A20201 SPRING PE5A21700 KNOB MD3300622 SCREW PT9A20500 TORQUE LIMITER SATO CT400-410 Parts List BASE ASSEMBLY (PL9) PART DESCRIPTION PN 9001072B Page 26...
  • Page 30 BOTTOM CASE SUB-ASSEMBLY PE0A20000 FOOT MH0301221 SCREW PE6A20301 COVER PR4A20101 CONNECTOR COVER PH0A20301 FRONT PANEL QC6A21800 LABEL RA0A21400 TOP COVER PC2A20402 SPRING, OPEN PB2A20600 COLLAR MJ9300622 SCREW SATO CT400-410 Parts List BASE ASSEMBLY (PL9) PART DESCRIPTION PN 9001072B Page 27...

  • Page 31: Print Assembly

    PRINT ASSEMBLY Figure PL10, Print Head Assembly SATO CT400-410 Parts List PN 9001072B Page 28...
  • Page 32 PE5A20800 SHAFT LOCK PB3A20000 RIBBON ROLLER PB0A21800 SHAFT ND0040022 SNAP RING, TYPE E PR1A20501 HINGE MD4300622 SCREW RC0A20302 PRINT HEAD (CT400 ONLY) RC0A20402 PRINT HEAD (CT410 ONLY) SATO CT400-410 Parts List PRINT ASSEMBLY (PL10) PART DESCRIPTION PN 9001072B Page 29...

  • Page 33: Frame Assembly

    FRAME ASSEMBLY Figure PL11, Frame Assembly SATO CT400-410 Parts List PN 9001072B Page 30...
  • Page 34 SNAP RING, TYPE E PJ0A20101 GEAR (CT410 ONLY) ND0020030 SNAP RING, TYPE E KB200501A STEPPER MOTOR PA3A20300 BRACKET MD3300622 SCREW PG1A20000 SILICON SHEET PA1A20000 HEAT PLATE MD3300622 SCREW PV9800900 SHIELD SATO CT400-410 Parts List FRAME ASSEMBLY (PL11) PART DESCRIPTION PN 9001072B Page 31...

  • Page 35: Ribbon Assembly

    RIBBON ASSEMBLY Figure PL12, Ribbon Assembly SATO CT400-410 Parts List PN 9001072B Page 32...
  • Page 36 TURN PLATE PC2A20001 SPRING LEVER NA1030022 WASHER MH0300521 SCREW PE6A20100 WASHER PE5A20500 KNOB PE5A20006 RIBBON BOSS MH0250821 P-TIGHT SCREW QC6A20200 PUSH LABEL MD4300822 SCREW PE5A22000 RELEASE LEVER SATO CT400-410 Parts List RIBBON ASSEMBLY (PL12) PART DESCRIPTION PN 9001072B Page 33...

  • Page 37: Accessories

    ACCESSORIES ITEM PART NUMBER JH000441A POWER CORD, 110V JH000451A POWER CORD, 220V KA600061A POWER SUPPLY TRANSFORMER, 110V KA600041A POWER SUPPLY TRANSFORMER, 220V SATO CT400-410 Parts List Figure PL13, Accessories ACCESSORIES (PL13) PART DESCRIPTION PN 9001072B Page 34...

  • Page 38: Cutter Unit (Option)

    CUTTER UNIT (OPTION) Figure PL14, Cutter Unit SATO CT400-410 Parts List PN 9001072B Page 35...
  • Page 39 QC6524100 CAUTION LABEL PE5A22101 LOCK PB2A20500 COLLAR MA1200622 SCREW PA3A20600 BRACKET PB7A20001 COLLAR NB8050030 WASHER MA0300622 SCREW MD3300422 SCREW JG100511A CLAMP MA0300422 SCREW PA3A20801 PLATE PC0A20300 SPRING SATO CT400-410 Parts List CUTTER UNIT (PL14) PART DESCRIPTION PN 9001072B Page 36...

  • Page 40: Dispenser Unit (Option)

    DISPENSER UNIT (OPTION) Figure PL15a, Dispenser Unit SATO CT400-410 Parts List PN 9001072B Page 37...
  • Page 41 Figure PL15b, Dispenser Unit SATO CT400-410 Parts List PN 9001072B Page 38...
  • Page 42 SCREW PB2A20300 COLLAR PC0A20200 SPRING PA6A20601 DISPENSER FRAME PA2A20301 GUIDE PLATE PC0A20101 SPRING MD3300822 SCREW JG100531A CLAMP PE6A20400 FRONT PANEL SHEET PA3A20901 PLATE PT9A22100 SPACER PT9A22200 SPACER SATO CT400-410 Parts List DISPENSER UNIT (PL15) PART DESCRIPTION PN 9001072B Page 39...

  • Page 43: Interface Option

    INTERFACE (OPTION) ITEM PART NUMBER WCT400011 PARALLEL INTERFACE (CT400 THERMAL TRANSFER ONLY) WCT400001 PARALLEL INTERFACE (CT400 DIRECT THERMAL ONLY) WCT410011 PARALLEL INTERFACE (CT410 THERMAL TRANSFER ONLY) WCT410001 PARALLEL INTERFACE (CT410 DIRECT THERMAL ONLY) WCT400502 RS232C HIGH SPEED SERIAL INTERFACE WCT400601...
