Sage the Citrus Press Pro SCP800 - Juicer 1300W Manual

Also See for the Citrus Press Pro SCP800:

Table of Contents

COMPONENTS

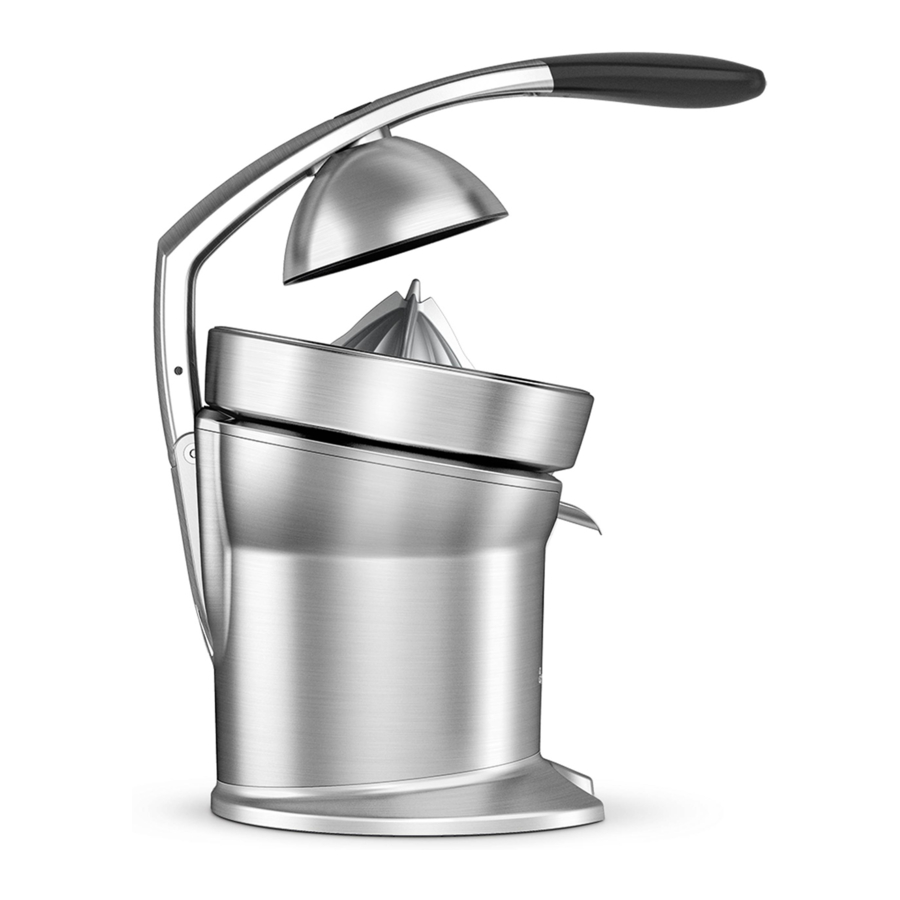

Device Overview

Pull the juice press arm up, away from the motor base, until fully extended.
Place the juice collector onto the drive shaft on top of the motor base, ensuring the juice spout fits into the semi-circular groove at the front of the motor base.
Insert the filter into the juice collector, aligning the indent with arrow in the bottom of the filter over the corresponding tab with arrow in the juice collector.
Place the juicing cone onto the drive shaft and press down lightly to lock the cone into position.
To insert the fruit dome, place it into the hole on the underside of the juice press arm. The fruit dome is magnetic and will stick into place.
Ensure the anti-drip juice spout is pushed down into the pouring position.

Always ensure that the juicer is turned OFF at the ON/OFF switch and the plug is removed from the power outlet before cleaning, disassembling, assembling and storing the appliance.
Follow these instructions to clean all surfaces or parts that come into contact with food during juicing.
For easy cleaning immediately after each use rinse removable parts under warm water to remove wet pulp. Allow parts to air dry before reassembling.
For thorough cleaning after disassembling the appliance, all removable parts should be washed in hot soapy water or on the top shelf of the dishwasher. The base and juice press arm should be wiped with a soft, damp cloth. All parts should be dried thoroughly before reassembling.
Store the cleaned and reassembled juicer in an upright position in a cool, dry place. Do not place any items on top of the juicer while stored.
Rinse or wash all removable parts immediately after use. Dried citrus pulp is difficult to remove and may stain. If any staining does occur, wipe the discoloured part(s) with undiluted dishwashing liquid, rinse and dry thoroughly.
Do not soak the filter or other removable parts in bleach. Never immerse the motor base in water or any other liquid. Do not use harsh abrasives.

POSSIBLE PROBLEM	EASY SOLUTION
Will not work	Switch not in the ON position. Juice press arm not lowered. Juicing cone or fruit dome not assembled properly. Filter not assembled properly. Motor overload protection may have operated (see below).
Motor Overload Protection	The juicer is fitted with an overload protector to prevent damage to the Motor. If the Motor suddenly stops working after heavy or long periods of use, turn OFF at the ON/OFF button, unplug from the wall and allow the unit to cool for 15 minutes. Once the unit is cooled you will be able to use the juicer again as normal. NOTE: The unit MUST be unplugged from the supply to allow the protector to reset. Despite this overload protector we suggest juicing in smaller batches in order to protect the Motor.
