en Installation instructions
Attach the appliance to the support frame using 2
2.
securing screws.
3.
Hook in the retaining clips and screw them in tightly.
Piping
Note: If you are using an aluminium pipe, smooth the
connection area beforehand.
We recommend the piping with an exhaust air pipe dia-
meter of 150 mm.
Establishing the exhaust air connection (exhaust air
pipe, 150 mm diameter)
Fit the exhaust air pipe directly to the air-pipe con-
▶
nector and seal the joint.
Establishing the exhaust air connection (exhaust air
pipe, 120 mm diameter)
Secure the reducing connector to the air-pipe con-
1.
nector.
Secure the exhaust air pipe to the reducing con-
2.
nector.
Seal the joints.
3.
14

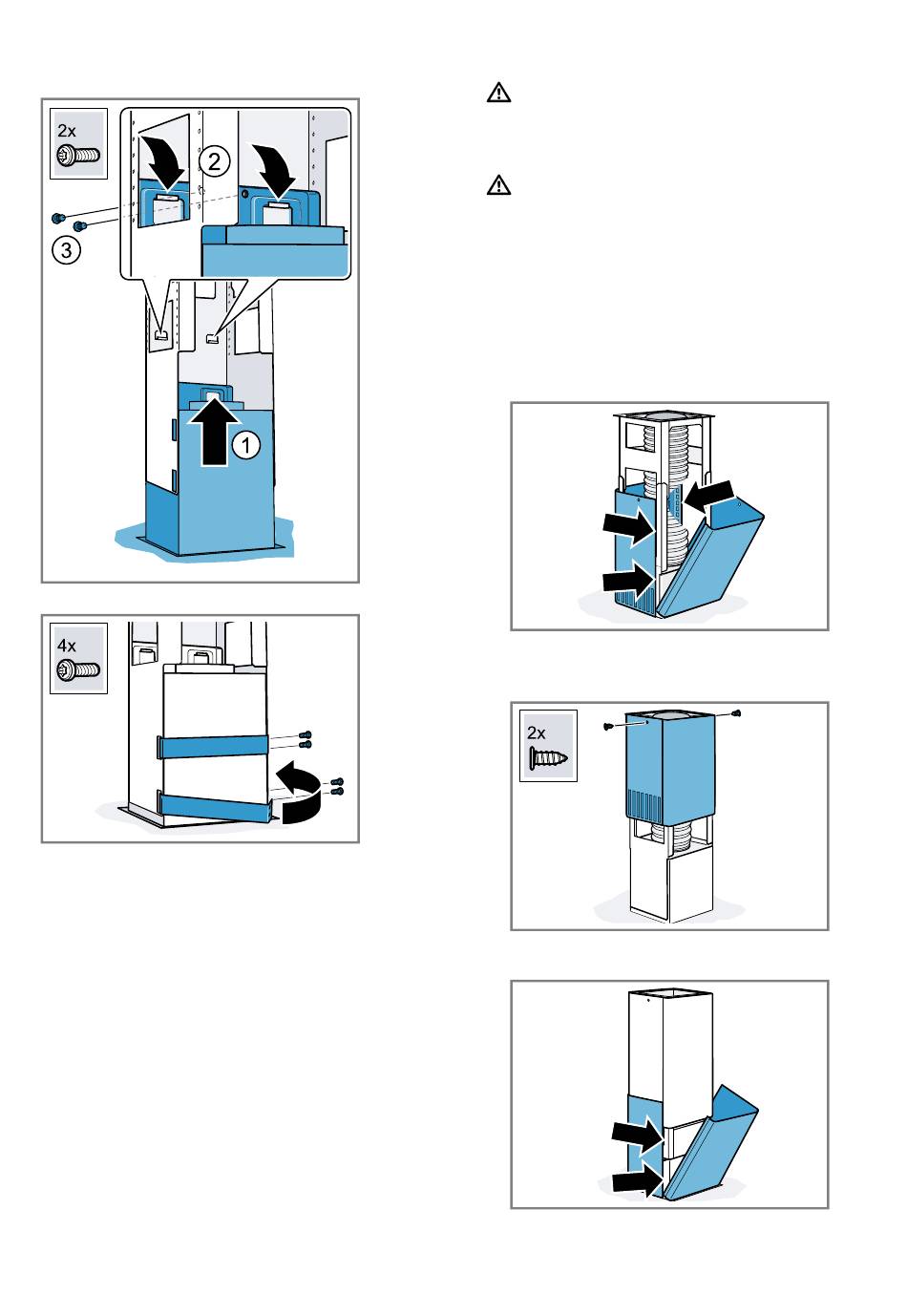

Installing the flue duct
WARNING ‒ Risk of injury!
Components inside the appliance may have sharp
edges.
Wear protective gloves.
▶
WARNING ‒ Risk of electric shock!
Sharp-edged components inside the appliance may
damage the connecting cable.
Do not kink or trap the connecting cable.
▶
To separate the flue ducts, remove the adhesive
1.
tape or the flue duct from the protective packaging.
Remove any protective foil from both flue ducts.
2.
Note: To prevent scratches, lay soft towels over the
3.
edges of the outer flue duct to protect the surface.
Place both parts of the upper flue duct on the appli-
ance so that they fit together.
Note: The slots on the flue duct point downwards.
Push the upper flue duct upwards and secure it us-
4.
ing 2 screws.
Place both parts of the lower flue duct on the appli-
5.
ance so that they fit together.
