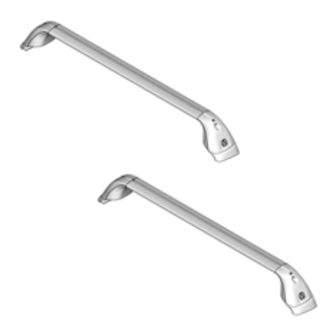

- Page 1 Roof Carrier User’s Information Manual...
- Page 2 Please read this manual carefully before using the roof carrier. Keep it in the glove box for future reference. This product is designed to be used exclusively on an Acura INTEGRA. Acura is not responsible if the product is used for anything other than its intended purpose.
-
Page 3: A Few Words About Safety
A Few Words About Safety Your safety, and the safety of others, For your safety and safety of others, pay special attention to all is very important. Operating your warning symbols. Failure to follow the warnings contained in this vehicle’s accessory safely is an manual can result in damage to your vehicle, serious injury, or important responsibility. -
Page 4: Parts List
Parts List Front roof carrier Rear roof carrier Right front cushion Left front cushion (Identifi cation mark: (Identifi cation mark: (Identifi cation mark: (Identifi cation mark: FRONT LEFT) REAR LEFT) FR-R) FR-L) Right rear cushion Left rear cushion Keys (2) Wrench (Identifi... -
Page 5: Installation
Installation • Overloading or improperly loading your vehicle can cause a crash in which you can be seriously hurt or killed. Follow all loading instructions in this document. • Always follow the weight limitations, installation instructions and loading guidance set forth in this manual. - Page 6 Installation • For 17" or 18" wheels, the maximum cargo weight capacity must not exceed 132 lbs (60 kg). The roof carrier can be loaded with up to two bicycles. • For 19" wheels, the maximum cargo weight capacity must not exceed 99 lbs (45 kg). The roof carrier can be loaded with only one bicycle.
- Page 7 Installation Remove the covers from the roof carriers. REAR ROOF CARRIER (Turn 90° counterclockwise 4 COVERS to unlock.) FRONT ROOF CARRIER © 2023 American Honda Motor Co., Inc. - All Rights Reserved.
- Page 8 Installation Install the roof carrier cushions. NOTE: Make sure to check the identifi cation mark before installation. REAR ROOF CARRIER LABEL (Identifi cation mark: REAR LEFT) RIGHT REAR CUSHION (Identifi cation mark: LEFT REAR CUSHION RR-R) (Identifi cation mark: CUSHION LABEL RR-L) (top surface)
-
Page 9: Slot Covers
Installation Install the slot covers. NOTE: Cut-off the excess slot cover material if needed. 2 SLOT COVERS REAR ROOF CARRIER Line up with the end of the roof carrier bar. FRONT ROOF CARRIER Cut-off the excess slot cover material if needed. Line up with the end of the roof carrier bar. - Page 10 Installation Loosen the socket bolts. Position the roof carriers onto the roof, and line up the outer clamp centers with the recessed marks on vehicle. NOTE: Make sure to check the label before installation. LABEL LABEL REAR ROOF CARRIER ROOF FRONT ROOF CARRIER ROOF...
- Page 11 Installation Loosely tighten the socket bolts. Secure the roof carriers. NOTE: • Make sure that there are no gaps between the roof and cushions. • Tighten the right and left socket bolts alternately to evenly distribute the pressure. • Tighten the left and right socket bolts until you hear a clicking sound. OUTER ROOF CLAMP...
- Page 12 Installation Ensure the roof carriers are fi rmly secured. NOTE: • Make sure that there are no gaps between the roof and cushions. • Rock the roof carriers in all directions to check if they are installed securely without play or rattle. •...
- Page 13 Installation Install the roof carrier covers. NOTE: Make sure to check the identifi cation mark before installation. COVER (Identifi cation mark COVER inside cover: RR-R) (Identifi cation mark inside cover: FR-R) COVER (Identifi cation mark inside cover: RR-L) COVER (Identifi cation mark inside cover: FR-L) (Turn 90°...
- Page 14 Installation 10. Confi rm the covers are locked. Turn 90° clockwise. NUMBERS NUMBERS (sideways) (upside down) Unlocked Locked Pull the cover back and forth to confi rm it is locked. © 2023 American Honda Motor Co., Inc. - All Rights Reserved.
- Page 15 Installation 11. Write down the key number. How to Remove the Roof Carriers Remove the roof carriers in the reverse order of installation. © 2023 American Honda Motor Co., Inc. - All Rights Reserved.
- Page 16 08L02-3S5-2010-80 © 2023 American Honda Motor Co., Inc. - All Rights Reserved. Printed in Belgium...
