Summary of Contents for Albrecht Audio DR 114

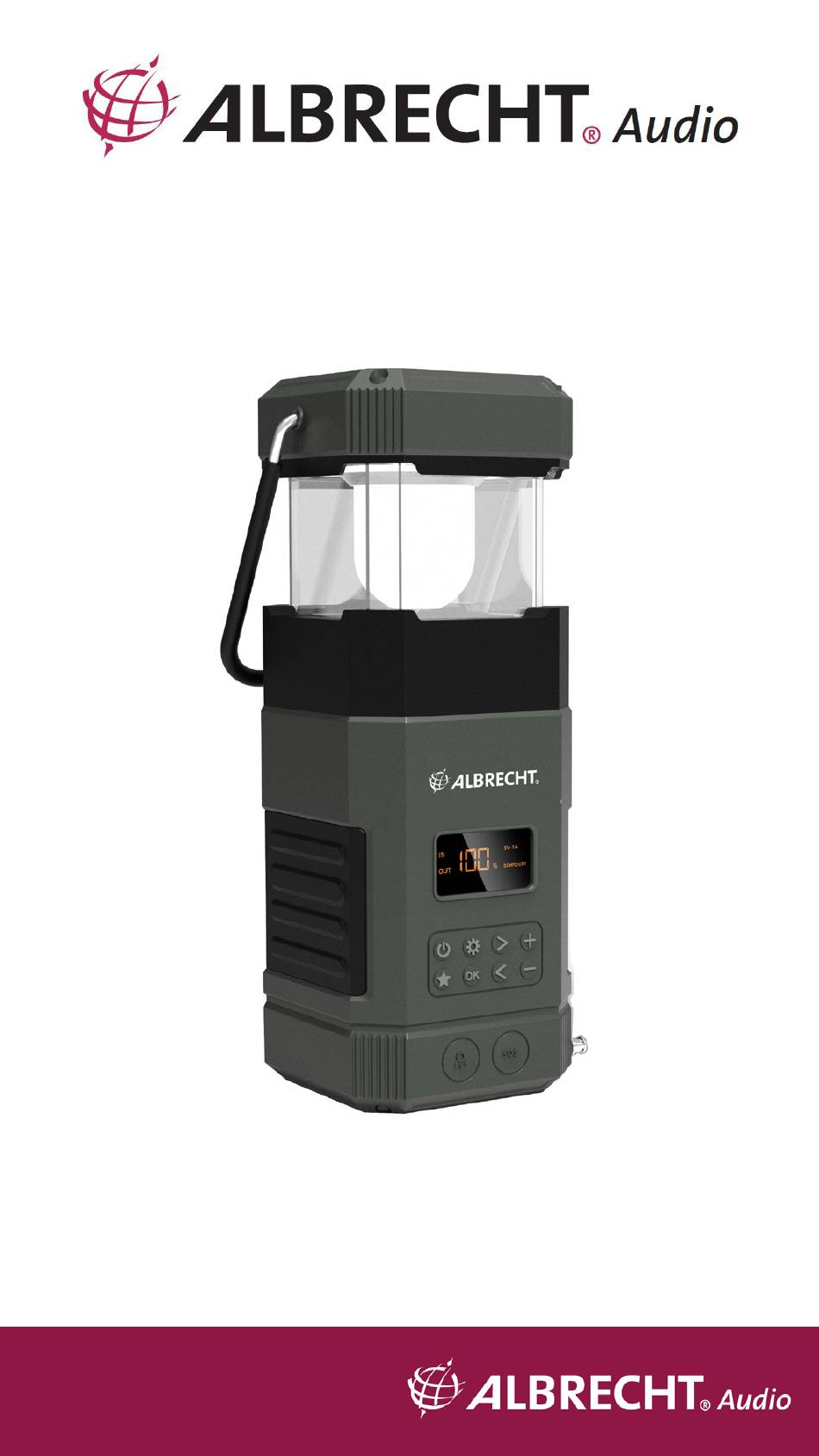

- Page 1 DAB+ Camping Radio DR 114 Manual English...
-
Page 2: Table Of Contents
Table of contents 1. First steps ....................... 17 2. Basic functions ....................17 3. Scope of delivery .................... 17 4. Radio controls....................18 5. Standby mode ....................21 6. Mode selection ....................21 7. DAB+ digital radio mode ................21 7.1. -
Page 3: First Steps
1. First steps Thanks for purchasing the Albrecht DR 114 emergency radio. Before you can start, you should fully charge the internal battery through the supplied USB-C charging cable. Connect it to any sufficient power source like a wall adapter, PC, laptop or similar. -
Page 4: Radio Controls
4. Radio controls... - Page 5 Description Function Lantern Extend the unit to use the lantern Handle You can use the handle to carry or hang the unit Display Shows information about the current station/song/artist Speaker Here are the two loudspeakers of the radio The following buttons for operating the radio are located Controls here: Short press: turn radio on / change mode (DAB / FM...
-
Page 7: Standby Mode
Twist hand crank to manually recharge the internal Hand crank battery Solar panel Face the solar panel to the sun to recharge the radio Torch / Bright torch to use during night time Emergency Light Emergency light flashes if SOS button is pushed Close the cover when the connectors are not in use to Connectors ensure protection against dirt and moisture... -
Page 8: Dab+ Station Search
7.1. DAB+ station search The radio automatically performs a full station search when you turn it on for the first time. If you would like to perform a full station scan again at a later time (e.g. after moving), press and hold down the OK button for approx. 2 seconds. 7.2. -
Page 9: Fm Menu
For this purpose, you need to activate the “Bluetooth” mode by pressing the mode button . Once this is done, search for “ALBRECHT DR 114” on your mobile device. For more details about operation of your mobile phone, please refer to the device’s manual. -
Page 10: Battery Charging
11. Battery charging During the charging process, the charging indicator blinks red. As soon as the radio is fully charged, the charging indicator turns solid red. Attention! Reception may be impaired during charging or when charging an external device via the USB-A output. 11.1. -
Page 11: Technical Data
14. Technical data Model number Albrecht DR 114 Description DAB+/FM radio Speaker power 2x 7 Watt 87.5 to 108.0 MHz DAB+ 174 – 240 MHz (Band III) Bluetooth Version 5.0 / range 10m Bluetooth frequency / power 2.402 – 2.480 GHz; 1 mW Charging input USB-C / 5.0 V;... -
Page 12: Safety Instructions
15. Safety instructions • Always make sure, the charging port cover is properly closed, to protect the device from moisture and humidity. Do not expose the device to water or other liquids while the charging ports are uncovered! Accidental penetration of liquids into the device can cause serious damage. Do not charge the device in wet environments! •... -
Page 13: Troubleshooting
16. Troubleshooting Problem Remedy The device does not switch on • Make sure the radio is charged, by connecting it to a power source and charging for at least 30 minutes. • If the radio is charged but still does not switch on, press the reset button under the charge cover with a small object. -
Page 14: Electronic Waste Law And Recycling
18. Electronic waste law and recycling European laws prohibit the disposal of defective or unusable devices in the household waste. If you want to dispose of your device, make sure you hand it over to one of the municipal collection points for recycling.
