AC/DC U S E R M A N U A L FUNCTION INDEX POWER AND INTRODUCTION Page 3 Page 4 CONTROLS AND CONNECTIONS Page 5 AUDIO SETUP Page 11 MISCELLANEA...
Page 3

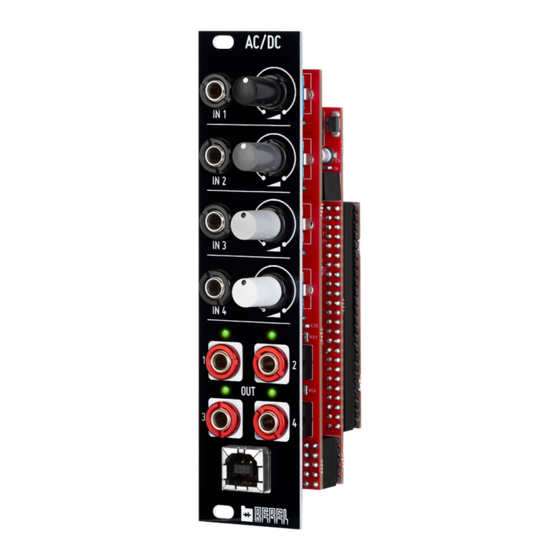

W H AT I S A C / D C ? AC/DC is a class-compliant DC coupled audio interface in Eurorack format. With its 6 HP it is perfect for live performance and travel Rigs. Based on Rebel Technology OWL platform, it allows sending and receiving both CV and Audio at 16 bits 48 KHz.
Page 4
Output LED Indicator Each output channel has a green level indicator LED. This will show the signal strength. USB type B connector This is the main communication port between AC/DC and our device. Signal data flows in both directions through it.
Page 5
Connect both ends of the supplied USB cable either to AC/DC and a free USB port of your computer. We strongly recommend to connect AC/DC directly to the computer and avoid devices as USB Hubs to ensure the proper operation and communication between the OS and the hardware.
Page 6
Here, you can manage the level of each Input and Output independently. At this point, you should be able to stream audio from your computer through AC/DC. By default, Outputs 1 and 2 works as the main stereo output of the system.
Page 7
By default, only Inputs and Outputs 1 and 2 are active as either In and Out Stereo pairs. You can active the rest of AC/DC ports on “Input/Output busses” section by pressing “Add Mono” and “Add Stereo” controls. You are ready to go, close this window and have fun! For further information about Bitwig Studio visit:...
Page 8
AUM by Kymatica (link a la app en la apple store), but the process is quite similar and straight forward on any other audio app. Let’s go for it: Connect both ends of the supplied USB cable either to AC/DC and your iOS device through the Camera Connection Kit.
Page 9
Tap over the Vu-Meter to open the drop down menu “Meter Sources” and go to Hardware Input. Here you should see all the Input ports of AC/DC listed as either Stereo and Mono busses with the name OWL-ACDC. Go back and now tap on Hardware Output to check the Outputs. This is the fastest way to check if all the ports of AC/DC are active and ready to use on AUM.
Page 10
Unfortunately Rebel technology does not provide yet a dedicated Windows driver. The best way to use AC/DC under Windows is with the help of third party drivers like ASIO4ALL. ASIO4ALL is a hardware independent low latency ASIO driver for WDM audio devices created by Michael Tippach www.asio4all.org...
Page 11
Martin Klang, the man behind Rebel technology. Latency: 20ms (Buffer size = 256 Samples) Befaco Rebel is the battle name we choose to bring you kick ass modules. Size: 6HP We could not be more thankful for this oportunity!
