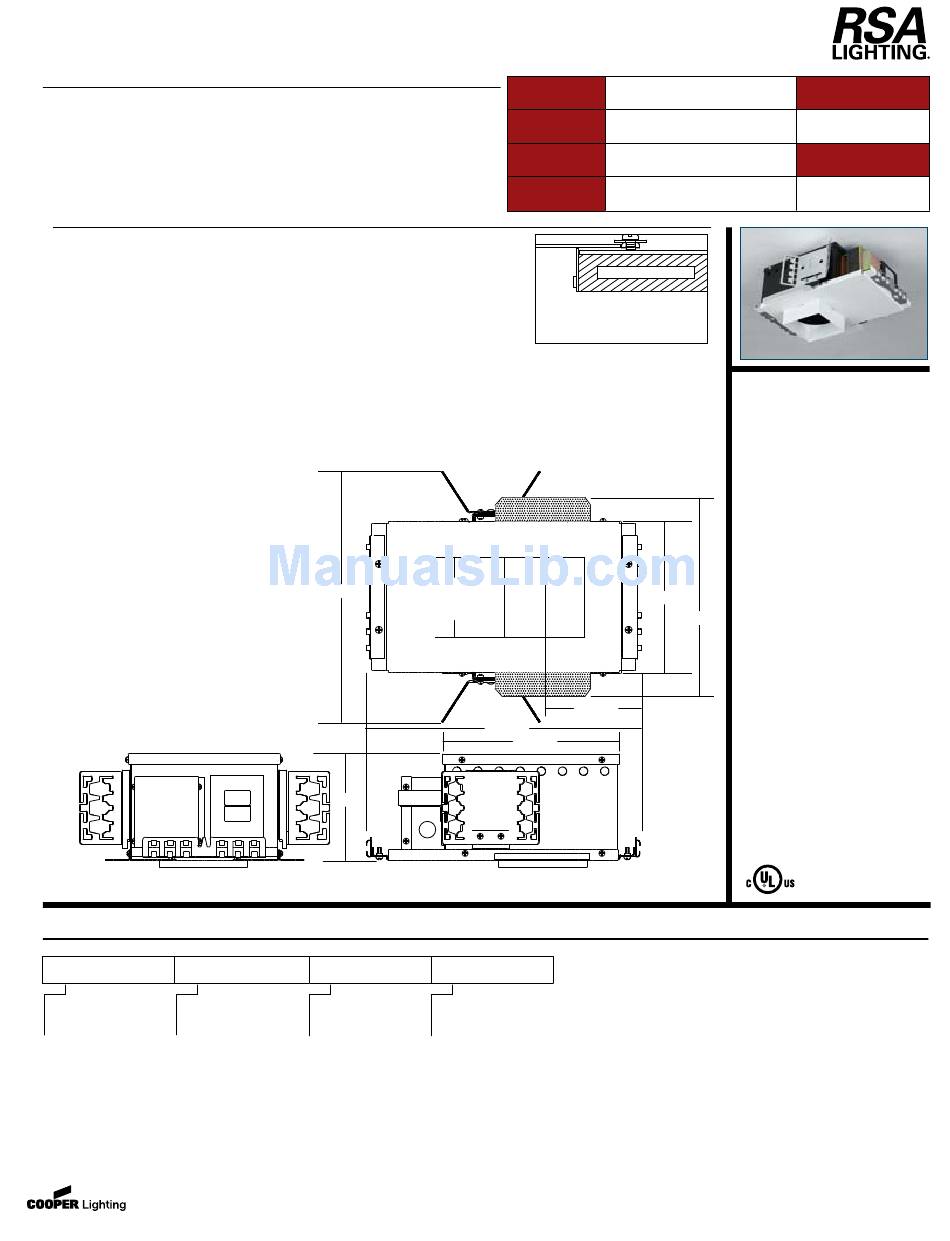

DESCRIPTION
Special ceiling housing for Quiet Ceiling square trimless fixtures. Includes
electronic metal halide ballast for use with 20W or 39W MR16 Metal Halide
lamp.
For installation in non-plaster/drywall ceiling materials such as wood,
marble or concrete. Insulation must be kept 3" from all sides and at least
1" above the housing.
SPECIFICATION FEATURES
A ...Housing
Housing and plaster frame: 18 gauge CRS
with flat black powder coated internal
finish. Aperture ring depth is factory
configured to accommodate specified
ceiling thickness.
B ...System Protection:
Thermal protection provided to guard
against overheating and misuse of
insulation over and around fixture.
Vent holes in housing provide cooler
operation.
C ...Electrical
Integral j-box and electronic metal halide
ballast. 120V/277V input. Junction box
is U.L. listed for through branch wiring.
Includes five 1/2 trade size knockouts.
D ...Lamp
MR16 metal halide lamp 20 or 39 watts.
GX10 TAL lamp socket included. Provides
360º rotation of trim and secures original
trim position after relamping.
E ...Mounting
Hanger Bars and Butterfly Brackets
included for residential and commercial
applications respectively.
Ceiling Cut-Out: 4.141" sq.
ORDERING INFORMATION
QCT907SPMH
Housing
Lamp Wattage
QCT907SPMH =
20
=
Quiet Ceiling
39
39 watts
=
Special Ceiling Housing
for Square Trim
w/Integral Metal Halide Ballast
www.cooperlighting.com
12.00"
4.63"
Voltage
20 watts
120
=
120 volts primary
277
=
277 volts primary
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031
Catalog #
Project
Comments
Prepared by
Cut-out in ceiling material must be
sized perfectly to the diameter of the
plasterframe collar for trimless effect.
Ceiling
Cut-Out
4.141"
4.63"
13.00"
8.18"
Ceiling Thickness
Specify - 2.25" max.
Ceiling Material
QUIET CEILING
QCT907SPMH
Special Ceiling
for Square Trim
7.25"
FOR METAL HALIDE MR16
9.75"
Type
Date
TRIMLESS
Metal Halide
Housing
20W or 39W
rev. 030108
