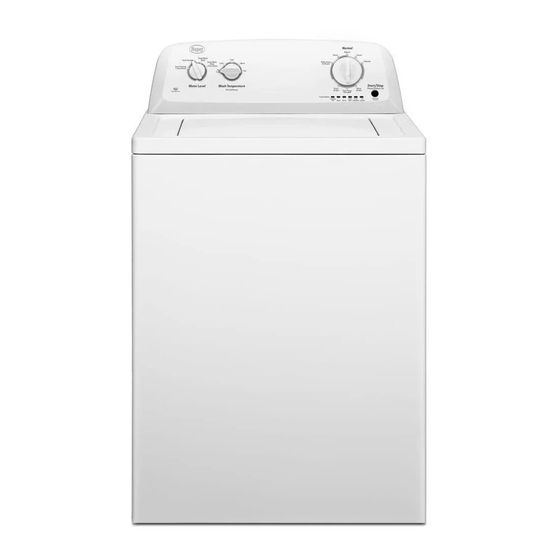

Roper RTW4000SW Dimension Manual

PRODUCT MODEL NUMBERS
RTW4000S RTW4305S
RTW4100S RTW4340S
RTW4300S RTW4400S
Electrical: 120 volt, 60 Hz, AC only,
15 or 20 amp electrical supply. A time-delay fuse
or circuit breaker and separate circuit is
recommended.
DRAIN SYSTEM OPTIONS
Standpipe drain system - wall or floor (view 1 & 2)
The standpipe drain requires a minimum diameter standpipe of
2" (5 cm). The minimum carry-away capacity can be no less
than 17 gal. (64 L) per minute.
The top of the standpipe must be at least 39" (99 cm) high and
no higher than 96" (244 cm) from the bottom of the washer.
(99 cm)
1
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
®
Automatic Washer
RECESSED AREA AND CLOSET INSTALLATION
For closet installation, with a door, the minimum ventilation openings in the top and
bottom of the door are required (view 2). Louvered doors with equivalent air ventilation
openings in the top and bottom are acceptable.
39"
2
"
" "
"
1
Front view
Laundry tub drain system (view 1)
The laundry tub needs a minimum
20 gal. (76 L) capacity. The top of the
laundry tub must be at least 39" (99 cm)
above the floor and no higher than
96" (244 cm) from the bottom of the
washer.
1
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
"
"
"
"
"
"
2
Side view Closet door with vents
Floor drain system (view 2)
The floor drain system requires a siphon
break that may be purchased separately.
The siphon break must be a minimum of
28" (71 cm) from the bottom of the
washer. Additional hoses might be
needed.
28"
(71 cm)
39"
(99 cm)
"
"
3
2
Ref. W10044800
10-01-07
