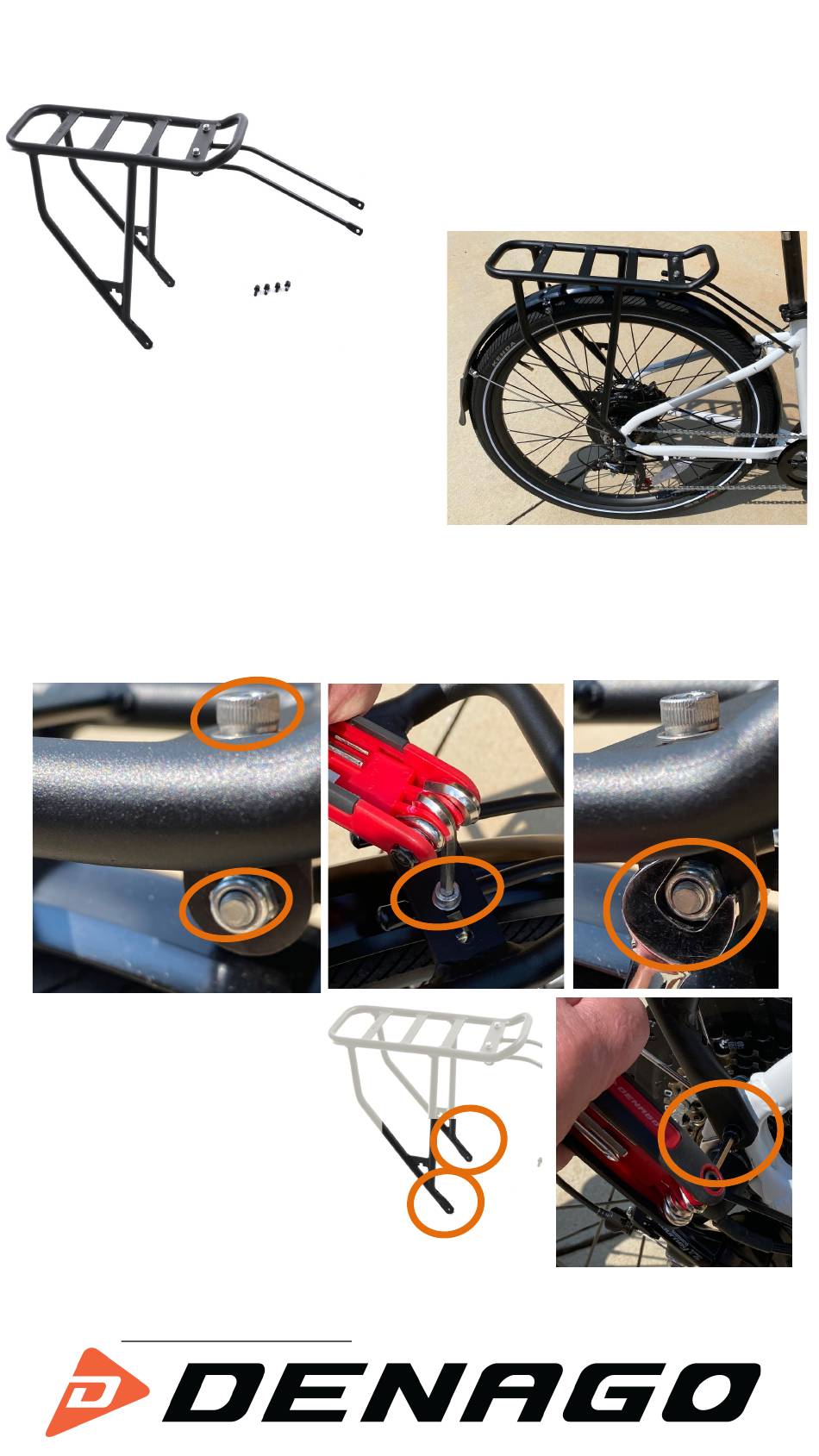

Rear Rack Assembly for CITY 1
Step 1- Unpack your rack and locate
the 4 bolts.
Step 2- Place rack on rear wheel with
2 bars pointing towards the front of
the bike
Step 3- Loosen but do not completely remove the nuts and bolts on the top
of your rack. FOUR (4) positions. Once loosen you should be able to move the
bars freely. For the top- USE your DENAGO folding tool 5mm Allen wrench.
For under the rack, you will need a 10mm or adjustable wrench. In loosing
these 4 areas this will allow you to adjust the rack in STEP 5.
Step 4- Take one of the
black bolts and pass thru
the hole on the bottom of
the rear rack and align with
the treaded portion on the
bottom of the bike frame-
Tighten but keep slight
loose. Now do the same on
the other side. You will
need the 4mm Allen wrench
CS@BIKE.com or 1-877-755-2453(BIKE)
Denago Rear Rack for the City 1.0-
The rack comes assembled along with
4 bolts to secure your rack.
Please follow the below assembly instructions
Advertisement
Table of Contents
Related Manuals for DENAGO CITY 1
Summary of Contents for DENAGO CITY 1
- Page 1 FOUR (4) positions. Once loosen you should be able to move the bars freely. For the top- USE your DENAGO folding tool 5mm Allen wrench. For under the rack, you will need a 10mm or adjustable wrench. In loosing these 4 areas this will allow you to adjust the rack in STEP 5.
- Page 2 Rear Rack Assembly for CITY 1 Step 5- You will need to remove the 2 SILVER BOLTS just below the seat clamp. Once REMOVED TILT your rack towards the front of the bike and align the open hole on the rack arms with the threaded part on the frame and secure the bolt.
