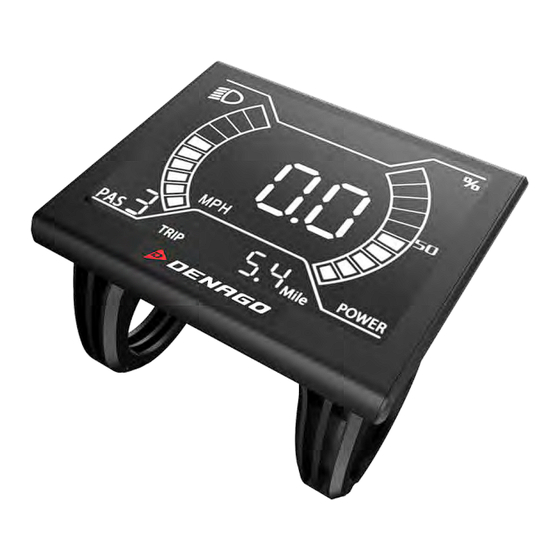

- Page 1 CITY MODEL 10 Monitor/Display made by King Meter (K5242) USERS GUIDE K5242 LCD...
-
Page 2: Table Of Contents
CITY MODEL 10 Monitor/Display made by King Meter (K5242) CONTENT Preface························································································································································· - 3 - 1. Appearance and Dimensions ··················································································································· - 4 - 1.1 Material and Color ..........................- 4 - 2. Function and Button Definition ··············································································································· - 5 - 2.1 Function description ......................... - 5 - 2.2 Normal Display Content ........................ -
Page 3: Preface
CITY MODEL 10 Monitor/Display made by King Meter (K5242) Preface Dear user, to ensure better performance of your e-bike, please read through the K5242-S product introduction carefully before using. We will use the most concise words to inform you of all the details (including the hardware installation, setting and normal operation use of the display) when using our display. -
Page 4: Appearance And Dimensions
CITY MODEL 10 Monitor/Display made by King Meter (K5242) 1. Appearance and Dimensions 1.1 Material and Color K5242 products are made of black and white PC. Under the temperature of -20 to 60℃, the shell material can ensure normal usage and good mechanical performance. Dimension（unit：mm）... -
Page 5: Function And Button Definition
CITY MODEL 10 Monitor/Display made by King Meter (K5242) 2. Function and Button Definition 2.1 Function description K5242 provides you with a variety of function modes, to meet your riding needs. Its functions are as follows: ◆Battery power indication ◆Speed indication ◆Distance (including single trip distance and ODO display) ◆Walk assist indication ◆Backlight setting... -
Page 6: Note For Users
CITY MODEL 10 Monitor/Display made by King Meter (K5242) 3. Note for Users Be care of the safety use. Don’t attempt to release the connector when battery is on power. Try to avoid hitting. Don’t split the waterproof sticker to avoid affecting the waterproof performance. Don’t modify system parameters to avoid parameters disorder. -
Page 7: User Interface
CITY MODEL 10 Monitor/Display made by King Meter (K5242) 5.2 User interface 5.3 Walk Assist Mode Press and hold the “DOWN” button for 2 seconds to enter the Walk assist mode. The E-bike will travel at a constant speed of 6km/h. - 7 -... -
Page 8: Pas Level Selection
CITY MODEL 10 Monitor/Display made by King Meter (K5242) Walk assist mode interface Walk Assist function can only be used as pushing the e-bike by hands. Please don’t use this function when riding. 5.4 PAS Level Selection Short press the "UP" or “DOWN” button to switch the PAS level in the main interface, the motor output power will be changed accordingly by the PAS level of E-bike. -
Page 9: Speed/Single Trip/Odometer
CITY MODEL 10 Monitor/Display made by King Meter (K5242) 0% Battery indicator 50% Battery indicator 100% Battery indicator 5.6 Speed/Single Trip/Odometer 5.6.1 Real time speed, Trip display interface When display is powered on, it shows the real-time speed and single trip mileage interface by default. When the speed is zero, long press "MODE"... -
Page 10: Max Speed, Odometer Display Interface
CITY MODEL 10 Monitor/Display made by King Meter (K5242) 5.6.2 Max Speed, Odometer display interface When display is powered on, short press "MODE" button in the normal interface to switch the Max speed and Odometer mileage data. The Max speed represents the maximum speed during this ride, and the Odometer mileage is the total mileage of the E-bike. -
Page 11: Error Code
CITY MODEL 10 Monitor/Display made by King Meter (K5242) 5.7 Error Code When the e-bike electronic control system fails, the display will automatically indicate the error code. For the definition of detailed error codes, see appendix 1. The fault can only exited when the fault is eliminated, and the E-bike cannot continue to drive after a fault occurs. -
Page 12: Wheel Size Setting
CITY MODEL 10 Monitor/Display made by King Meter (K5242) 6.1 Wheel Size Setting When enter the wheel size setting option. The settable values are: 16, 18, 20, 22, 24, 26, 700C, 27.5, and 28 inch. Select the corresponding wheel diameter of the E-bike through “UP” and “DOWN” button to ensure the accuracy of the speed display and mileage display. -
Page 13: Backlight Brightness Setting
CITY MODEL 10 Monitor/Display made by King Meter (K5242) 6.3 Backlight Brightness Setting Short press “MODE” button to enter the backlight brightness setting option. The setting options: 1, 2 and 3 indicates the backlight brightness, 1 is the darkest, 2 is standard brightness, 3 is the brightest. The default value is 3. -
Page 14: Preparation Before Startup
CITY MODEL 10 Monitor/Display made by King Meter (K5242) 7. Preparation Before Startup Please read the instruction carefully before using the display. 8. FAQ Q: Why can’t turn on the display? A: Please check whether the battery is turned on or the leakage lead wire is broken Q: How to deal with the error code display? A: Contact the e-bike maintenance station in time. -
Page 15: Appendix 1： Error Code Definition
CITY MODEL 10 Monitor/Display made by King Meter (K5242) Appendix 1： Error Code Definition Error Code Definition Solution Check whether the three phase wires of Current Abnormal the motor are short-circuited Check whether the throttle is restored to Throttle Abnormal the initial state Check whether the phase wires are in good condition;... - Page 16 CITY MODEL 10 Monitor/Display made by King Meter (K5242) CITY MODEL 10 Monitor/Display made by King Meter (K5242 - 16...
