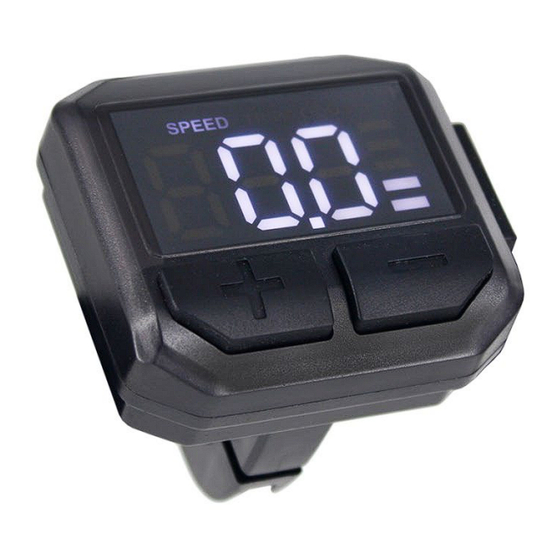

- Page 1 CRUISER Monito/Display Manual made by King Meter (KM3209) USERS GUIDE KM3209 LED...
- Page 2 Denago eBikes 3700 W Royal Lane #120 Irving, Texas 75063 www,denago.com...
-
Page 3: Table Of Contents
Denago eBikes 3700 W Royal Lane #120 Irving, Texas 75063 www,denago.com Content Preface ........................1 1.Appearance and Size .................... 2 1.1 Material and Color ..................2 2.Function Summary and Button Definition .............. 3 2.1 Function Summary ..................3 2.2 Normal Display Area ..................4 2.3 Button Definition ................... - Page 4 Denago eBikes 3700 W Royal Lane #120 Irving, Texas 75063 www,denago.com 8. Preparation before Power On ................13 9. General Settings ....................13 9.1 Speed Limit Setting ..................14 9.2 Wheel Size Setting ..................15 10.FAQ Answers ....................16 11.Quality Warranty And Coverage ................ 16 12.Version ......................
-
Page 5: Preface
Denago eBikes 3700 W Royal Lane #120 Irving, Texas 75063 www,denago.com Preface Dear users, To ensure better performance of your e-bike, please read through the KM3209 product introduction carefully before using it. We will use the brief words to inform you of all the details (including hardware installation, setting and normal use of the display) when using our display. -
Page 6: Appearance And Size
Denago eBikes 3700 W Royal Lane #120 Irving, Texas 75063 www,denago.com 1.Appearance and Size 1.1 Material and Color uses PC materials. Under the temperature of -20℃ to 60℃, the KM3209 housing material can ensure normal use and good mechanical performance of the product. -
Page 7: Function Summary And Button Definition
Denago eBikes 3700 W Royal Lane #120 Irving, Texas 75063 www,denago.com 2.Function Summary and Button Definition 2.1 Function Summary KM3209 offers plenty of functions and showing to meet your requirements. The indicated contents are as following: ◆Battery indication ◆Real time speed ◆Trip distance and ODO... -
Page 8: Normal Display Area
Denago eBikes 3700 W Royal Lane #120 Irving, Texas 75063 www,denago.com 2.2 Normal Display Area 2.3 Button Definition The display with three buttons, in the following introduction， is named as “+” button “ ” MODE, is named as UP, is named as DOWN. -
Page 9: Operation Cautions
Denago eBikes 3700 W Royal Lane #120 Irving, Texas 75063 www,denago.com 3. Operation Cautions Avoid collision. Pay attention to safety use, do not connect or disconnect the display when power is on. The housing of display is made of waterproof technology, please do not disassemble it, so as not to affect the waterproof performance. -
Page 10: User Setting
Denago eBikes 3700 W Royal Lane #120 Irving, Texas 75063 www,denago.com 5. User Setting 5.1 Power On/Off Hold MODE button to start the display and supply power to the controller. When at working state, press and hold MODE to shut off E-bike power. In the off state, the display no longer uses the battery's power supply;... -
Page 11: Speed/Trip/Odo
Denago eBikes 3700 W Royal Lane #120 Irving, Texas 75063 www,denago.com 5.3 Speed/Trip/ODO After turning on display, it shows real time speed.Press MODE to choose the display information. Displayed in sequence: real-time speed (SPEED) →single mileage (TRP) → accumulated mileage (ODO). -
Page 12: Walk Assist
Denago eBikes 3700 W Royal Lane #120 Irving, Texas 75063 www,denago.com 5.4 Walk Assist Hold DOWN for 3 seconds to start walk assist status. The bike will keep at an even speed output 6km/h,the screen shows PUS. The walk assist function can only be used when the user pushes the electric... -
Page 13: Turn On Headlight
Denago eBikes 3700 W Royal Lane #120 Irving, Texas 75063 www,denago.com 5.5 Turn On Headlight When the external light is insufficient, the headlight can be turned on. Hold UP for 3 seconds, the display notifies the controller to turn on headlight. -
Page 14: Pas Level Setting
Denago eBikes 3700 W Royal Lane #120 Irving, Texas 75063 www,denago.com 5.6 PAS Level Setting Press UP or DOWN to adjust the PAS levels and change output power of the motor. The default level range is 0-5, level 1 is the lowest power, level 5 is the... -
Page 15: Battery Indicator
Denago eBikes 3700 W Royal Lane #120 Irving, Texas 75063 www,denago.com 5.7 Battery Indicator When the battery voltage is high, the five-segment LCD is on. When the battery is low voltage, the last indicator flashes, indicating that the battery needs to be charged immediately. -
Page 16: Error Code
Denago eBikes 3700 W Royal Lane #120 Irving, Texas 75063 www,denago.com 6. Error Code When the electric vehicle electronic control system fails, the display will automatically display an error code. For the definition of the detailed error code, see Appendix 1. -
Page 17: Usb Charging Function
Denago eBikes 3700 W Royal Lane #120 Irving, Texas 75063 www,denago.com 7. USB Charging Function The display with USB interface provides charging power for the mobile phone, output 5VDC/500mA. When the display is turned off, please connect the data cable between the display and the phone, and then turn on the display to start to charge the phone. -
Page 18: Speed Limit Setting
Denago eBikes 3700 W Royal Lane #120 Irving, Texas 75063 www,denago.com 9.1 Speed Limit Setting The default maximum riding speed is 25Km/h. Change this value to set the maximum riding speed of the e-bike. When the electric motor exceeds the set value, the controller will stop supplying power to the motor to protect the rider's safety. -
Page 19: Wheel Size Setting
Denago eBikes 3700 W Royal Lane #120 Irving, Texas 75063 www,denago.com 9.2 Wheel Size Setting Available values are: 16inch, 18 inch, 20 inch, 22 inch, 24 inch, 26 inch, 700C, 28 inch. Use UP/DOWN to select the wheel size corresponding to the e-bike to ensure the accuracy of the speed display and mileage display. -
Page 20: Faq Answers
Denago eBikes 3700 W Royal Lane #120 Irving, Texas 75063 www,denago.com 10.FAQ Answers Q: Why can’t turn on the display? A: Check if the battery power is turned on, the outer leakage cable is broken or not. Q: What should I do if the display shows an error code? A: Timely repair at the e-bike repair shop. -
Page 21: Version
Denago eBikes 3700 W Royal Lane #120 Irving, Texas 75063 www,denago.com 12.Version This user manual is for general-purpose software (version V1.0). Some versions of the e-bike LCD may have slightly difference, which should depend on the actual use version. Appendix1: Error Code List... - Page 22 Denago eBikes 3700 W Royal Lane #120 Irving, Texas 75063 www,denago.com Appendix 2: PAS Settings Cruiser PAS1 PAS2 PAS3 PAS4 PAS5...
