Rolls Bellari VP129 Owner's Manual

SPECIFICATIONS
I/ O Connectors:
Input Sensitivity:
Input Impedance:
Output Impedance:
Max Output Level:
Equalization:
Rumble Filter:
THD
S/N Ratio:
PWR:
Size:
Weight:
Indicator:

LIMITED WARRANTY

This product is warranted to the original consumer purchaser to be free from
defects in materials and workmanship under normal installation, use and service for a period
of one (1) year from the date of purchase as shown on the purchaser's receipt.
The obligation of Rolls Corporation under this warranty shall be limited to repair
or replacement (at our option), during the warranty period of any part which proves
defective in material or workmanship under normal installation, use and service, provided the
product is returned to Rolls Corporation, TRANSPORTATION CHARGES PREPAID.
Products returned to us or to an authorized Service Center must be accompanied by a copy of
the purchase receipt. In the absence of such purchase receipt, the warranty period shall be
one (1) year from the date of manufacture.
This warranty shall be invalid if the product is damaged as a result of defacement,
misuse, abuse, neglect, accident, destruction or alteration of the serial number, improper
electrical voltages or currents, repair, alteration or maintenance by any person or party other
than our own service facility or an authorized Service Center, or any use violative of
instructions furnished by us.
This one-year warranty is in lieu of all expressed warranties, obligations or
liabilities. ANY IMPLIED WARRANTIES, OBLIGATIONS, OR LIABILITIES, INCLUDING
BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED IN DURATION TO THE
ONE YEAR DURATION OF THIS WRITTEN LIMITED WARRANTY. Some states do not
allow limitations on how long an implied warranty lasts, so the above limitation may not
apply to you.
IN NO EVENT SHALL WE BE LIABLE FOR ANY SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY,
EXPRESSED OR IMPLIED, WHATSOEVER. Some states do not allow the exclusion or
limitation of special, incidental or consequential damages so the above limitation or exclusion
may not apply to you. This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state.
Rolls Corporation
Salt Lake City, UT
4/02
RCA, 1/4" TRS Stereo
30 dB gain @ 1kHz, 47k Input Z
50k
8 Headphone, RCA
>10dB @ 1kHz at at .1% dist.
RIAA +/- 1.5 dB, 20Hz to 20kHz
20Hz
.02% @ 1KHz
>80 dB unweighted
12 - 18 VDC
6"w x 2.5"h x 5.4"d
1 lb
1 Power LED

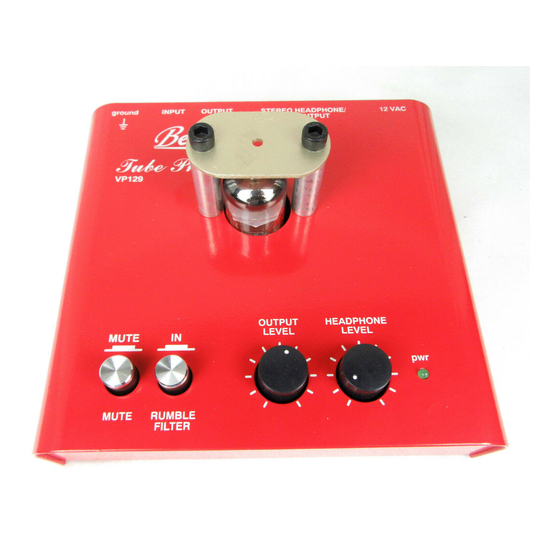

VP129
Tube Phono Preamp
INPUT OUTPUT
ground
VP129
MUTE IN
MUTE RUMBLE
FILTER
OWNERS MANUAL
12 VAC
STEREO HEADPHONE/
LINE OUTPUT
OUTPUT HEADPHONE
LEVEL LEVEL
pwr
