Summary of Contents for Rollei Prego da6

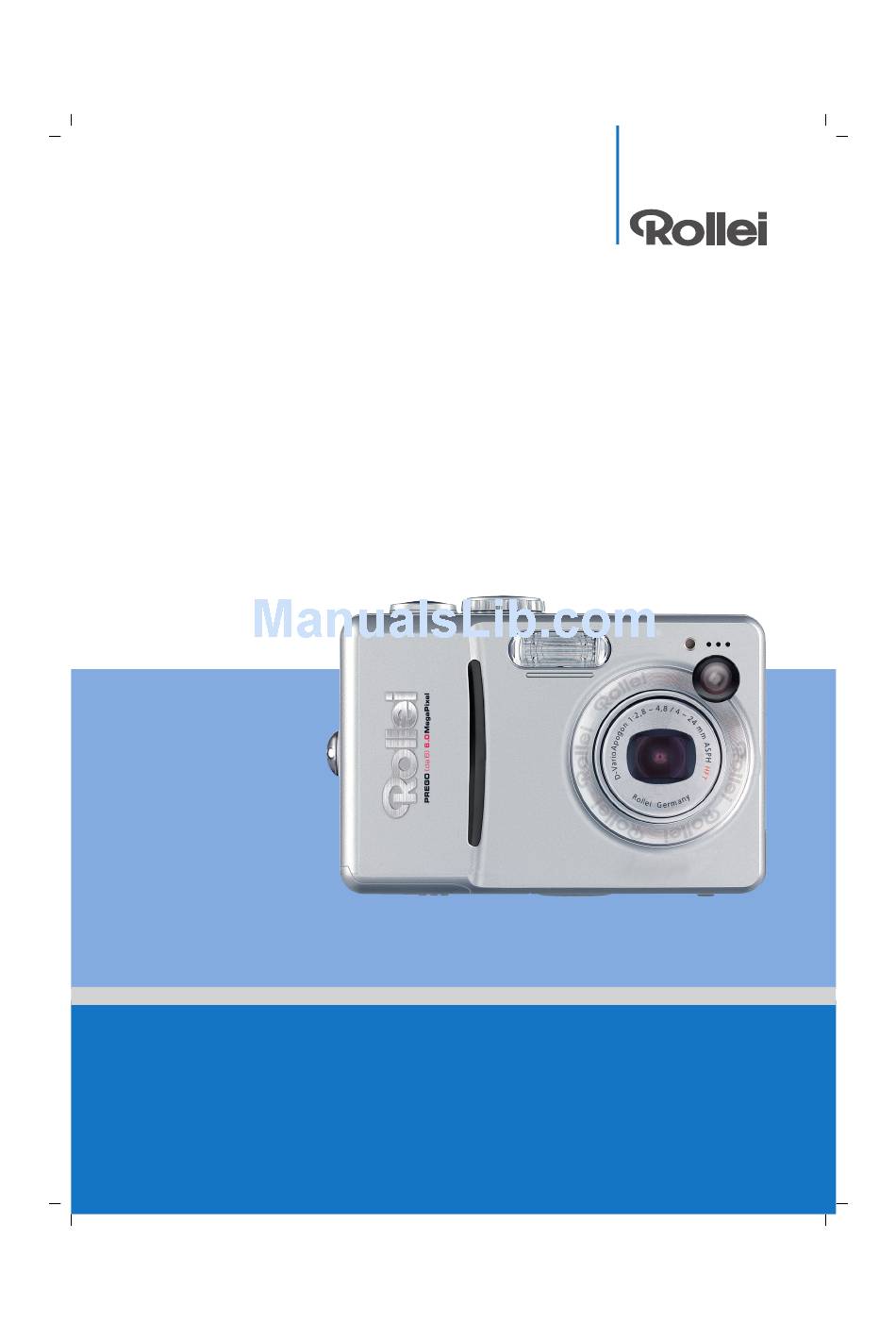

- Page 1 Gebrauchsanleitung Instruction Manual Rollei Prego da6...
- Page 2 This manual is designed to assist you in using this 6 Mega Pixels Digital Camera. Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change...
- Page 3 Declaration of Conformity This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: • This device may not cause harmful interference. • This device must accept any interference received, including interference that may cause undesired operation.
-
Page 4: Table Of Contents
Contents Unpack Your Camera... 1 Package Contents... 1 Optional Accessories ... 1 System Requirements... 1 Important Notes... 1 Getting Acquainted with Your Camera ... 2 Top & Front View... 2 Rear & Bottom View... 2 LCD Monitor Display ... 3 Mode Dial Selector... - Page 5 Setting the Single-loop/Endless-loop Slideshow ... 14 Playback on TV ... 15 Display Image Properties... 16 Rotating a Still Image ... 17 Deleting Images ... 18 Deleting Single Image in QuickView ... 18 Deleting Single Image in Playback ... 18 Deleting All Images ... 19 Formatting Memory Card or Internal Memory...
-
Page 6: Unpack Your Camera
Unpack Your Camera Package Contents Digital Camera Wrist Strap USB Cable AV Cable 2 AA Ni-MH Batteries Software CD containing -Camera Driver for Windows 98SE -Ulead Photo Explorer -Ulead Video Studio -Adobe Acrobat Reader -Owner’s Manual (PDF) Quick Start Guide Optional Accessories •... -
Page 7: Getting Acquainted With Your Camera

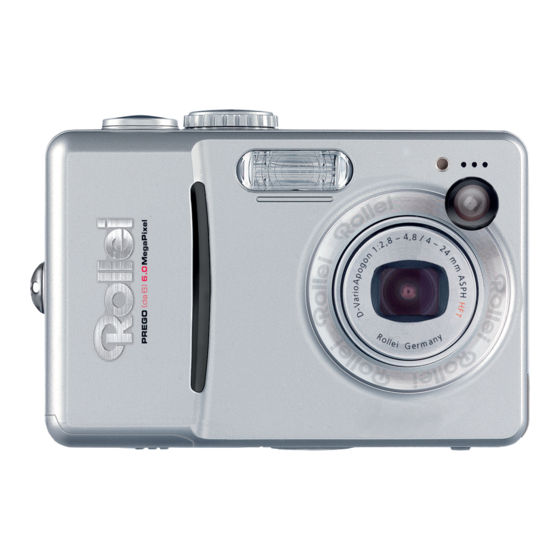

Getting Acquainted with Your Camera Congratulations on your purchase of this digital camera. Your digital camera has been designed with a 6 Mega Pixels CCD image sensor and 3X optical zoom lens, which allow you to quickly and easily take high quality digital pictures. -
Page 8: Lcd Monitor Display
LCD Monitor Display Auto-Exposure (AE) Metering Center-weighted Color Mode (no icon) Normal Vivid Black & White Sepia (P.25) Sharpness High (no icon) Medium (P.24) Flash Mode Auto Flash Off Flash Red-eye Reduction (P.21) Image Resolution 6M (2848x2136) 6M 3:2 (2848x1904) 4M (2272x1704) 2M (1600x1200) VGA (640x480) -
Page 9: Mode Dial Selector
Mode Dial Selector Icon SCENE LED Status SCENE SCENE FLASH FLASH ON/OFF Mode Camera power off. Full Auto Capture - Full Auto Mode Movie Capture - Movie mode. Portrait Capture - Portrait mode. Landscape Capture - Landscape mode. Close-up Capture – Macro mode. Scene More Scene modes available for Capture. -
Page 10: Navigation Switch
Navigation Switch Up-arrow ( ) for menu selection Self-timer On/Off switch Left-arrow ( ) for review playback images in backward direction. LCD Monitor On/Off control switch ( <Menu/OK> button to enter Menu mode and apply selected menu or function. Shutter Button Released position. -
Page 11: Getting The Camera Ready
Getting the Camera Ready Installing Memory SD/MMC Card and Battery Open the battery/memory card cover and slide the memory SD/MMC card (optional) and two new AA Ni-MH batteries or one CRV3 Lithium battery into compartments. Close cover securely until it clicks shut. Battery level is shown in 3 stages, Full Battery, Low Battery, and Insufficient Battery. -
Page 12: Setting The Language And Date & Time
Setting the Language and Date & Time The Language selection will display the first time you power on the camera. After selecting the language, the Date & Time Menu will bring up automatically. Setting Language Press Up or Down arrow ( / ) button to select the desired language. -
Page 13: Capturing Still Images
Capturing Still Images Full Auto Mode < > Recommend to use Full Auto Mode for beginners. While in Full Auto mode, you just shoot on your subject. Portrait Mode < > Use this mode to take a distinctive portrait with a blurred background. Landscape Mode <... -
Page 14: Shooting With Scene Mode
Shooting with Scene Modes In addition to Full Auto, Portrait, Landscape, Movie, Close-up mode on the Mode Dial, the camera offers more programmed scenes - Sports, Night Landscape, Night Portrait, Museum, Backlight, for pre-setting. Sports Mode < > Use this mode to take a frozen picture of fast moving objects. Note : Recommend to use Burst during Sports. -
Page 15: Recording Videos
Recording Videos Video mode allows you to shoot movie scenario. Switch the Mode Dial to Video Mode < > The Video icon < > is displayed on the LCD Monitor. Note : Flash and Digital Zoom cease to function in video mode. The Optical Zoom is also disabled during video recording. -
Page 16: Setting Self-Timer
Setting Self-Timer This camera provides 10 seconds ( In Capture mode, press Up-arrow/Self-timer button ( / The Self-timer screen will display on the LCD monitor for 3 seconds. To change the Self-timer mode, repeatedly press the Self-timer button ( The Self-timer icon ( >... -
Page 17: Playback Still Images
Playback Still Images Playback a Still Image Turn on camera and press Playback ( Press Left-arrow ( )or Right-arrow ( ) button to navigate images. The sequence of the image viewed and the number of total stored images are display on the right-bottom corner of LCD display. -
Page 18: Playback Video Images
Playback Video Images When you browse video images, the video will playback automatically. Turn on camera and press Playback ( Press Left-arrow ( ) or Right-arrow ( ) to select a video image. The video will start to playback. Press Playback ( ) button to return Capture mode. -
Page 19: Playback Images In Slideshow
Playback Images in Slideshow Follow Step 1-2 of “Playback a Still Image”. Press <Menu/OK> button to review Menu. Press the Up-arrow ( ) or Down-arrow ( ) button to select “SLIDESHOW” Press <Menu/OK> button to enter submenu. Select “START” and press <Menu/OK> button. The slideshow will start from the 1st image in the current image storage. -
Page 20: Playback On Tv
Playback on TV Turn On camera. Press <Menu/OK> button. Press the Up-arrow (▲) or Down-arrow (▼) button to select “SETUP” and press<Menu/OK> button. Press Up/Down arrow (▲/▼) button to select “VIDEO OUT” and press<Menu/OK> button. Set your video system format (NTSC or PAL). Note: For USA, Canada and Asian countries, please set to “NTSC”. -
Page 21: Display Image Properties
Display Image Properties This camera provides image property information, which includes: Image Quality & Resolution Image Filename Date & Time ISO Speed Shutter Speed Aperture Number Scene Mode EV Compensation Color Mode (if Vivid is applied) Sharpness Turn On camera. Press Playback ( Press <Menu/OK>... -
Page 22: Rotating A Still Image
Rotating a Still Image Turn On the camera. Press Playback ( Press <Menu/OK>button. Press Left/Right button ( / ) to select the image to be rotated. Press the Up-arrow ( ) or Down-arrow ( ) button to select “ROTATE”. Press Right-arrow ( ), Left-arrow ( ), Down-arrow ( ) or Up-arrow ( ) button to rotate the image in 90∘, 270∘, 180∘and original direction. -
Page 23: Deleting Images
Deleting Images Deleting Single Image in QuickView After a picture is taken, the image will have a QuickView. While the image is on display, press the Delete ( button. Press Down-arrow ( ) button to select “YES” and press <Menu/OK> button to delete image. Press “NO” if you want to keep the image. -
Page 24: Deleting All Images
Deleting All Images Press Playback ( ) button. Press <Menu/OK> button. Press Down-arrow ( ) or Up-arrow ( ) to select “DELETE “and press <Menu/OK> button to enter the DELETE submenu. Select “All IMAGES”. Press the <Menu/OK> button. Press UP/Down arrow ( / ) button to select “YES”... -
Page 25: Settings Capture Mode
Settings Capture Mode Switching LCD Off between Shots In Capture mode, press the LCD on/off button ( / the LCD monitor. To switch On the LCD, press the LCD on/off button ( / Note: The LCD will turn off automatically if camera inactivity for 1 minute. -
Page 26: Setting Flash Mode
Setting Flash Mode The camera offers four Flash modes - Auto ( ), Flash Off < >, Flash On < > and Red-eye Reduction < >. To select the Flash mode, repeatedly press the Flash ( ) button under Capture mode. The following diagram shows the Flash mode cycle: Setting Drive Mode The camera provides Burst Mode to capture the image with five shots when the Shutter... -
Page 27: Setting Auto Focus (Af) Selection
Setting Auto Focus (AF) Area Selection This camera provides Single-zone Auto Focus (AF) and multi-zone AF area function. In LiveView mode, repeatedly press the Right arrow ( ) button to select the AF Bracket from Center AF → Right AF →... -
Page 28: Setting Image Quality
Setting Image Quality This camera can set up the compression ration of JPG image. The best Image Quality is selected, the less image ratio is compressed but more image capacity will be occupied the memory. Three optional modes-- Best ( Press the <Menu/OK>... -
Page 29: Iso Speed
ISO Speed Press the <Menu/OK> button. Press Up/Down arrow ( / ) button to select “ISO SPEED”. Press the <Menu/OK> button to enter submenu. Select “Auto, ISO100/200/400”. Press <Menu/OK> button to setup. Setting Auto-Exposure (AE) Metering This camera provides three modes of AE metering- Average ( ), Center-weighted, Spot ( ) metering. -
Page 30: Setting Color Mode
Setting Color Mode This camera provides 4 levels of color mode- Normal, Vivid ( Sepia. Press <Menu/OK> button. Press Up/Down arrow ( / ) button to select the “COLOR”. Press <Menu/OK> button to enter submenu. Set up the Color level. Press <Menu/OK>... -
Page 31: Setting Dpof Print
Setting DPOF Print The DPOF (Digital Printer Order Format) settings allow you to select photo stores on a SD card. It is very convenient when you make a direct-print from a DPOF compatible printer. Set DPOF for Printing a Single Image Press Playback ( ) button. -
Page 32: Setting Protect Image
Setting Protect Image To prevent the stored images to be deleted by accident, you may protect the images stored in the memory card or internal memory by this Press Playback ( ) button. Press Down-arrow ( ) or Up-arrow ( ) button to highlight “PROTECT IMAGE” and press <Menu/OK>... -
Page 33: Move Images From Internal Memory To Card
Move Images from Internal Memory to Card The camera has a built-in 16MB internal memory. When a memory card is inserted into the camera, you may move the images from the internal memory into the card. Note : This feature is only function when the memory card is inserted. Press Playback ( ) button. -
Page 34: Camera Setup
Camera Setup Factory Default Settings: Function Pre-set Scene Self-timer Slide Show Interval Slide Show Loop Live View Flash Mode Drive Mode AF Area Selection Image Resolution Image Quality EV Compensation White Balance ISO Speed AE Metering Sharpness Color Camera Sound Volume Digital Zoom Date Stamp Factory Default Setting... -
Page 35: Reset Camera Settings
Reset Camera Setting Press <Menu/OK> button. Press Up/Down ( / ) arrow button to move highlight to “SETUP” Menu. Press <Menu/OK> button. Select “RESET SETTING”. Press <Menu/OK> button. Select “RESET” and press <Menu/OK> button to reset the parameters. Press “CANCEL” to keep your settings. Select “EXIT MENU”... -
Page 36: Setting Camera Sound Volume
Setting Camera Sound Volume The volume level of this camera can be set to High, Low and Off. Press <Menu/OK> button. Select “SETUP” Menu by pressing Up/Down ( / ) arrow button. Press <Menu/OK> button Press Up/Down ( / ) arrow button to select “CAMERA SOUNDS”. -
Page 37: Setting Date Stamp
Setting Date Stamp This camera can have a Date Stamp function on images. The Date Stamp can be set by Off, Y(Year)-M(Month)-D(Date), M(Month)-D(Date)-Y(Year), D(Date)-M(Month)-Y(Year). Press <Menu/OK> button. Move highlight to “SETUP” Menu by pressing Up/Down ( / ) arrow Press <Menu/OK> button. Press Up/Down ( / ) arrow button to select “DATE STAMP”. -
Page 38: Setting Customize
Setting Customize This camera can be set to your favorite personal camera Opening Screen. Press <Menu/OK> button. Move highlight to “SETUP” Menu by pressing Up/Down ( / ) arrow button. Press <Menu/OK> button. Press Up/Down ( / ) arrow button to select “CUSTOMIZE”. Press <Menu/OK>... -
Page 39: Software Installation
Software Installation Installation Software/Hardware Driver Insert the software CD into the CD-ROM drive. The CD should auto run and the installer menu will appear (see below). If the CD does not auto run; go to: Start → Run, and type in "D:\setup.exe" where D:\ is the CD-ROM drive. -
Page 40: Custom Installation
Custom Installation The custom installation allows individual selection of the software provided on the CD. From the previous Installer Menu select “Custom Installation” and click “Next”. The following screen will appear: Check the desired application(s) and click “Next” to continue the software installation. Follow the on-screen instructions to complete installing each software. -
Page 41: How To Dowload Pictures Via Ulead Photo Explorer
To download the files to your computer, highlight the files that you want to save, and choose one of the following way to move your files. a. Copy & Paste Right-click on the highlighted files with and select “Copy” from the resulting menu. Go to the target location on your computer and right-click on it again, and select “Paste”... -
Page 42: Troubleshooting
Troubleshooting Condition Camera cannot power on. Camera turns off automatically. LCD turns off automatically. Empty battery icon is displayed on LCD and turns off camera quickly. LCD display “The Card Requires Formatting”. LCD display “Card Full”. The card is locked. Insufficient memory space to complete request. -
Page 43: Specification
Specifications DESCRIPTION Image sensor Still image output resolution Still image file formats Movie mode resolution Movie file format Internal memory Memory card slot LCD monitor Aperture Zoom Focal length Focus range Viewfinder Date Stamp ISO equivalent Flash Shooting mode Preset Scene Tripod mount DPOF Exposure compensation...
