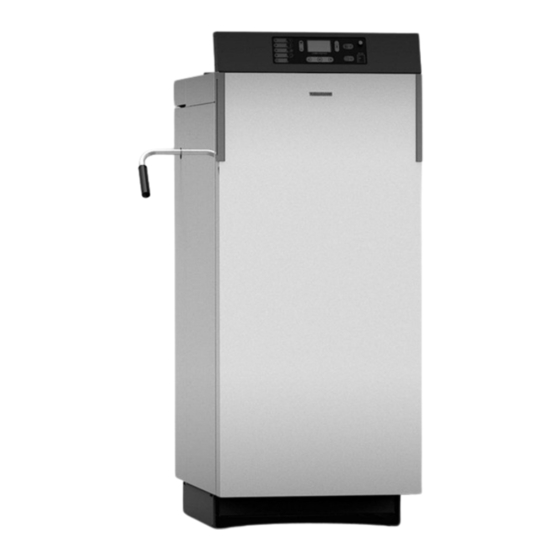

THERMOROSSI LAMBDA S29 EVO5 Installation, Use And Maintenance Manual
  1. Manuals
  2. Brands
  3. THERMOROSSI Manuals
  4. Boiler
  5. LAMBDA S29 EVO5
  6. Installation, use and maintenance manual

THERMOROSSI LAMBDA S29 EVO5 Installation, Use And Maintenance Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LAMBDA S29 – S35 – S46 EVO5
ITA - MANUALE DI INSTALLAZIONE, USO E MANUTENZIONE.
FRA - MANUEL D'INSTALLATION, D'UTILISATION ET D'ENTRETIEN.
ENG - INSTALLATION, USE AND MAINTENANCE GUIDE.
DEU - INSTALLATIONS-, BETRIEBS- UND WARTUNGSANLEITUNG.
ESP - MANUAL DE INSTALACIÓN, USO Y MANTENIMIENTO.
ITA - Informazioni importanti per la sicurezza ed il corretto funzionamento.
FRA - À lire impérativement ! Informations importantes pour la sécurité et le bon fonctionnement.
ENG - Must read! Important information for safety and correct operation.
DEU - Unbedingt lesen! Wichtige Informationen zur Sicherheit und zum sicheren Betrieb.
ESP - ¡Leer! Informaciones importantes para la seguridad y el correcto funcionamiento.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LAMBDA S29 EVO5 and is the answer not in the manual?

Questions and answers

Related Manuals for THERMOROSSI LAMBDA S29 EVO5

Summary of Contents for THERMOROSSI LAMBDA S29 EVO5

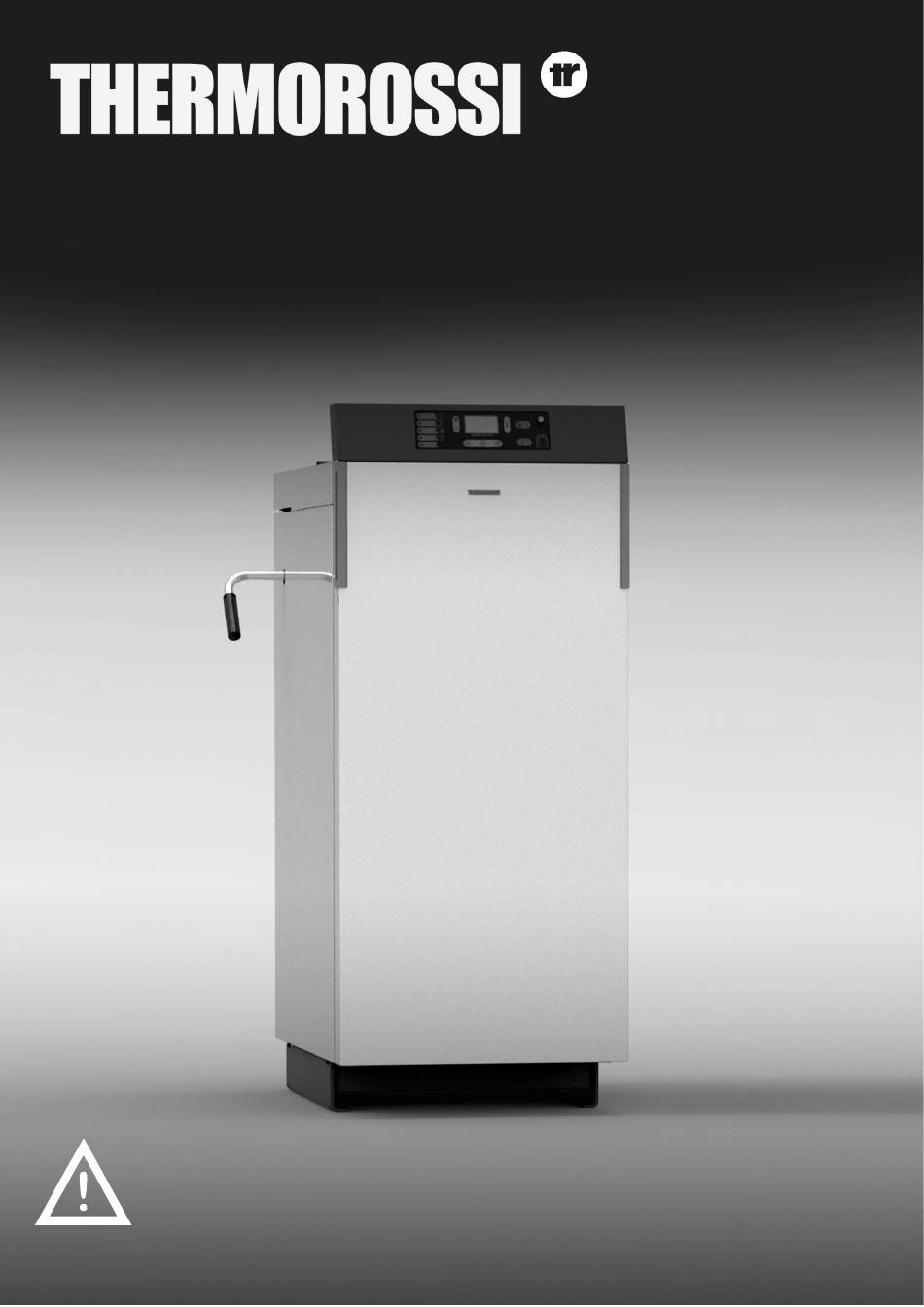

  • Page 1 LAMBDA S29 – S35 – S46 EVO5 ITA - MANUALE DI INSTALLAZIONE, USO E MANUTENZIONE. FRA - MANUEL D’INSTALLATION, D’UTILISATION ET D’ENTRETIEN. ENG - INSTALLATION, USE AND MAINTENANCE GUIDE. DEU - INSTALLATIONS-, BETRIEBS- UND WARTUNGSANLEITUNG. ESP - MANUAL DE INSTALACIÓN, USO Y MANTENIMIENTO. ITA - Informazioni importanti per la sicurezza ed il corretto funzionamento.
  • Page 2 Installation, use and maintenance guide LAMBDA S29 – S35 – S46 EVO5 Page 1...

  • Page 3: Table Of Contents

    Installation, use and maintenance guide LAMBDA S29 – S35 – S46 EVO5 INDEX 1 – INTRODUCTION..........................4 2 – TECHNICAL CHARACTERISTICS...................... 6 3 – GENERAL DESCRIPTION ........................8 4 – INSTALLATION ..........................10 5 – MOUNTING THE MOTOR-OPERATED ANTICONDENSATION UNIT ..........23 6 –...
  • Page 4 Wood logs boiler Trademark: THERMOROSSI S.P.A. Descrizione prodotto: Caldaia a legna Marchio: LAMBDA S29 EVO5 Models: LAMBDA S35 EVO5 Modelli: LAMBDA S46 EVO5 The object of the declaration described above is in conformity with the relevant Union harmonisation legislation: L'oggetto della dichiarazione di cui sopra è conforme alla pertinente normativa di armonizzazione dell'Unione: •...

  • Page 5: Introduction

    Furthermore, Thermorossi reserves the right to apply changes to the content of this manual anytime and without notice. Thermorossi S.p.A. retains copyright on this manual. These instructions may not be reproduced or communicated to third parties or used in any other way without the necessary authorisation.
  • Page 6 Installation, use and maintenance guide LAMBDA S29 – S35 – S46 EVO5 1.4 GENERAL GUIDELINES Attention: the appliance must be connected to a system provided with a PE conductor (in compliance with the specifications concerning low-voltage equipment). Before installing the appliance check the efficiency of the earth circuit of the power supply system.

  • Page 7: Technical Characteristics

    Installation, use and maintenance guide LAMBDA S29 – S35 – S46 EVO5 2 – TECHNICAL CHARACTERISTICS 1277 1068 Descrizione Autore Data The spiral tube scraper lever can be installed both on the right-hand and left-hand sides of the generator. Legenda lambda_2 caratteristiche tecniche Pozzetto ½’’...
  • Page 8 Installation, use and maintenance guide LAMBDA S29 – S35 – S46 EVO5 LAMBDA S29 LAMBDA S35 LAMBDA S46 M.U. EVO5 EVO5 EVO5 Height 1,543 1,543 1,543 Depth 1,277 1,277 1,277 Width Empty weight Firebox power * 33.4 34.9 45.3 Output to water * 29.6 30.9 39.9...

  • Page 9: General Description

    Installation, use and maintenance guide LAMBDA S29 – S35 – S46 EVO5 3 – GENERAL DESCRIPTION 3.1 OPERATING TECHNOLOGY Your generator has been built to fully satisfy all your heating and practical requirements. Top-grade components and functions managed with microprocessor technology guarantee high reliability and optimal performance. LAMBDA EVO5 uses reverse flame technology.
  • Page 10 Sensor pockets Safety heat exchanger fixing plate Delivery tube 1’’ ¼ Il presente disegno è di proprietà esclusiva di THERMOROSSI S.p.A.. La riproduzione totale e/o parziale e la divulgazione a terzi, senza nostro esplicito consenso sc Prodotto Descrizione Smoke suction unit...

  • Page 11: Installation

    Installation, use and maintenance guide LAMBDA S29 – S35 – S46 EVO5 4 – INSTALLATION 4.1 APPLIANCE LOCATION Follow the general guidelines set out in paragraph 1.1 to the letter. Keep in mind that the flooring of the room in which the appliance is to be installed must withstand the combined weight of the appliance, the fuel, and the water contained in the appliance.
  • Page 12 60007785 Dado ad alette M10 60004578 Rondella D.10 Il presente disegno è di proprietà esclusiva di THERMOROSSI S.p.A.. La riproduzione totale e/o parziale e la divulgazione a terzi, senza nostro esplicito consenso scritto, verrà perseguito secondo i termini di legge in vigore. Prodotto...
  • Page 13 Undo screw 60005227 completely and screw 60007780 only partially Il presente disegno è di proprietà esclusiva di THERMOROSSI S.p.A.. La riproduzione totale e/o parziale e la divulgazione a terzi, senza nostro esplicito consenso scritto, verrà perseguito secondo i termini di legge in vigore.
  • Page 14 Scambiatore termico di sicurezza Safety heat exchanger Il presente disegno è di proprietà esclusiva di THERMOROSSI S.p.A.. La riproduzione totale e/o parziale e la divulgazione a terzi, senza nostro esplicito consenso scritto, verrà perseguito secondo i termini di legge in vigore. Prodotto...
  • Page 15 Il presente disegno è di proprietà esclusiva di THERMOROSSI S.p.A.. La riproduzione totale e/o parziale e la divulgazione a terzi, senza nostro esplicito consenso scritto, verrà perseguito secondo i termini di legge in vigore...
  • Page 16 The nominal volume of the closed expansion tank must be sized in relation to the total volume of the water contained in the system. Thermorossi prescribes the size of the closed expansion tank as equal to 10% of the volume of water contained in the entire system.
  • Page 17 1.5 bar. Next load the system until it reaches a pressure of 1 bar. ATTENTION: The following genuine Thermorossi accessories are required to control this system: 2 thermocouples (code no. 60013656) to connect to the terminal block JP12 on pins 7 - 8 (upper puffer sensor) and on pins 9 - 10 (lower puffer sensor).
  • Page 18 Installation, use and maintenance guide LAMBDA S29 – S35 – S46 EVO5 1 motor-operated anticondensation unit 70030783 1 safety heat exchanger Code 60013727 1 thermal relief valve Code 60012922 With this type of system, you must activate the BOILER + PUFFER TANK configuration in the generator’s System Menu. (See the paragraph dedicated to software operation).
  • Page 19 Installation, use and maintenance guide LAMBDA S29 – S35 – S46 EVO5 - BOILER WITH PUFFER TANK AND AUXILIARY GENERATOR CONNECTED WITH A PLATE HEAT EXCHANGER Legenda RISCALDAMENTO A PAVIMENTO UNDERFLOOR HEATING RADIATORI RADIATORS Generatore liquido o gassoso Liquid or gas generator Sonda PUFFER BASSO JP12 pin 9 e 10 Sensor LOWER PUFFER JP12 pin 9 and 10 Sonda PUFFER ALTO JP12 pin 7 e 8...
  • Page 20 LAMBDA S29 – S35 – S46 EVO5 ATTENTION: The following genuine Thermorossi accessories are required to control this system: 2 thermocouples (code no. 60013656) to connect to the terminal block JP12 on pins 7 - 8 (upper puffer sensor) and on pins 9 - 10 (lower puffer sensor).
  • Page 21 1.5 bar. Next load the system until it reaches a pressure of 1 bar. ATTENTION: The following genuine Thermorossi accessories are required to control this system: 3 thermocouples (code no. 60013656) to connect to the terminal block JP12 on pins 7 - 8 (upper puffer sensor), pins 9 - 10 (lower puffer sensor) and pins 5 - 6 (domestic water boiler tube sensor) 1 mixing valve 55 °C 1”½...
  • Page 22 Installation, use and maintenance guide LAMBDA S29 – S35 – S46 EVO5 With this type of system, you must activate the BOILER + PUFFER TANK + BOILER TUBE configuration in the generator’s System Menu. (See the paragraph dedicated to software operation). ATTENTION: it is mandatory to earth the generator.
  • Page 23 Installation, use and maintenance guide LAMBDA S29 – S35 – S46 EVO5 - CONNECTION DIAGRAM OF SANFAST 50 ON THERMOPUFFER 1500 Legenda SANFAST 50 SANFAST 50 CALDAIA BOILER THERMOPUFFER 1500 THERMOPUFFER 1500 S – Gate valve S - Saracinesca CALDAIA THERMOPUFFER 1500 - Saracinesca COLLEGAMENTO FRA THERMOCELL 1500 E SANFAST...

  • Page 24: Mounting The Motor-Operated Anticondensation Unit

    Installation, use and maintenance guide LAMBDA S29 – S35 – S46 EVO5 5 – MOUNTING THE MOTOR-OPERATED ANTICONDENSATION UNIT 2 – Rotate the toothed element until its groove reaches the 1 – Insert the toothed element inside the valve body until it valve tooth indicated in the picture above.
  • Page 25 Installation, use and maintenance guide LAMBDA S29 – S35 – S46 EVO5 5 – Attach the motor to the valve using the Philips head 6 – Insert the cap removed until the end stop by pushing it screw provided. Always make sure the position of the rotor towards the motor.
  • Page 26 Installation, use and maintenance guide LAMBDA S29 – S35 – S46 EVO5 9 – Electrically connect the motor-operated anticondensation unit to the electronic board of the device following the diagram above. Finally, activate the Mixing Valve function from the display by turning the value to ON (see paragraph 6.2). Legenda POMPA 1 PUMP 1 HEATING...

  • Page 27: Use Of The Generator

    Installation, use and maintenance guide LAMBDA S29 – S35 – S46 EVO5 6 – USE OF THE GENERATOR The appliance, when in operation, is hot to the touch and the feed door is extremely hot: consequently, take care. Your appliance has obtained the CE marking. The product must not be used by children, by persons with physical or mental impairments, by persons who are not familiar with the instructions for use and maintenance of the product (the instructions are found in this booklet).
  • Page 28 Installation, use and maintenance guide LAMBDA S29 – S35 – S46 EVO5 Scroll buttons Use the + button to increase the preset value or to scroll upwards. Use the – button to decrease the preset value or scroll downwards. INFO button Press this button to display error messages.
  • Page 29 Installation, use and maintenance guide LAMBDA S29 – S35 – S46 EVO5 DATE AND TIME When you select DATE AND TIME the following dialogue box appears: Legenda Data--> 01 gennaio 20.. Date--> 01 January 20.. Ora --> 08:10 Time --> 08:10 The day of the month will blink, and to change it simply press the Scroll Buttons, then confirm by pressing the OK Button.
  • Page 30 Installation, use and maintenance guide LAMBDA S29 – S35 – S46 EVO5 When you press the OK Button a second confirm request appears: The new system that has been selected is:…… When the OK Button is pressed you return to the system menu and the selected system will have a black dot next to it on the right. TECHNICAL MENU Only an Authorised Service Centre can access this menu.
  • Page 31 Installation, use and maintenance guide LAMBDA S29 – S35 – S46 EVO5 Reset the appliance by unscrewing the plastic cover on the thermostat and press the reset button but only after you have verified and found a solution for the problems that led to the overtemperature (the temperature of the appliance must necessarily have dropped considerably).

  • Page 32: Cleaning And Maintenance

    Installation, use and maintenance guide LAMBDA S29 – S35 – S46 EVO5 7 – CLEANING AND MAINTENANCE 7.1 FOREWORD Before beginning any operation ensure that the appliance is off and unplugged from the electrical power socket. Your generator runs on solid fuel: consequently, it requires frequent control and general cleaning operations. This will guarantee regular operation and optimal output at all times.
  • Page 33 Installation, use and maintenance guide LAMBDA S29 – S35 – S46 EVO5 Legenda Figura Figure Paletta Rake blade Vite Screw Asta Aggancio Hook Connettore Connector Figura B lambda_6_2 pulizia Page 32...
  • Page 34 Dado Dado Rondella Rondella Leva Spina Legenda Il presente disegno è di proprietà esclusiva di THERMOROSSI S.p.A.. La riproduzione totale e/o parziale e la divulgazione a terzi, senza nostro esplicito consenso sc Figura D Figure D Prodotto Descrizione Tappo Plug...

  • Page 35: Alarms

    ATTENTION: The appearance of one of the alarms described below, does not necessarily imply a defect in the product, but simply Thermorossi S.p.A.’s intention to inform the user of the need for corrective actions in order to guarantee maximum safety, greater reliability and high performance of the appliance.

  • Page 36: Smoke Discharge Tube

    Installation, use and maintenance guide LAMBDA S29 – S35 – S46 EVO5 9 – SMOKE DISCHARGE TUBE The smoke channel, the exhaust pipe, chimney and flue outlet (defined as the system for the evacuation of combustion products), are parts of the heating system and they must comply with the legislative requirements of the Ministerial Decree DM 37/08 (ex Italian Law 46/90) and to the applicable specific installation regulations, according to the type of fuel.
  • Page 37 Installation, use and maintenance guide LAMBDA S29 – S35 – S46 EVO5 LEGENDA COMIGNOLO E CANNA FUMARIA SECONDO NORMA CHIMNEY CAP AND FLUE OUTLET ACCORDING TO UNI UNI 10683 10683 STANDARD Tutte le tubazioni devono essere termicamente isolate All the pipes must be thermally insulated ISPEZIONE INSPECTION ALTEZZA SUPERIORE A 4 metri...

  • Page 38: Room Ventilation

    Installation, use and maintenance guide LAMBDA S29 – S35 – S46 EVO5 10 – ROOM VENTILATION ATTENTION: The presence of extraction fans or similar appliances, if operating in the same room or space in which the product is installed, could cause problems for the correct operation of the product. ATTENTION: do not obstruct the vents or the air inlets on the appliance.

  • Page 39: Electrical Wiring

    Installation, use and maintenance guide LAMBDA S29 – S35 – S46 EVO5 11 – ELECTRICAL WIRING SERVOMOTORE SERVOMOTORE ARIA PRIMARIA ARIA SECONDARIA SENSORE HALL ASPIRATORE FUMI SCHEDA COMANDO 4 5 6 4 5 6 4 5 6 7 8 9 10 11 12 13 14 4 5 6 5 6 7 4 5 6 7 8...

  • Page 40: Troubleshooting Cause - Solution

    Installation, use and maintenance guide LAMBDA S29 – S35 – S46 EVO5 12 – TROUBLESHOOTING CAUSE - SOLUTION PROBLEM POSSIBLE CAUSE SOLUTION “DOOR OPEN” APPEARS ON THE DISPLAY THE CASING DOOR IS OPEN CLOSE THE DOOR THE POWER SUPPLY MAY HAVE FAILED FOR A PROLONGED PERIOD OF TIME “ALARM THERMOSTAT RESET”...
  • Page 41 Installation, use and maintenance guide LAMBDA S29 – S35 – S46 EVO5 Page 40...
  • Page 42 Installation, use and maintenance guide LAMBDA S29 – S35 – S46 EVO5 Page 41...
  • Page 43 Installation, use and maintenance guide LAMBDA S29 – S35 – S46 EVO5 Page 42...
  • Page 44 Installation, use and maintenance guide LAMBDA S29 – S35 – S46 EVO5 F ire L o v e rs Via Grumolo, 4 (Z.I.) 36011 Arsiero (VI) - ITALY Fax 0445.741657 - www.thermorossi.com - info@thermorossi.it Page 43...
