Summary of Contents for V-TAC VT-10100

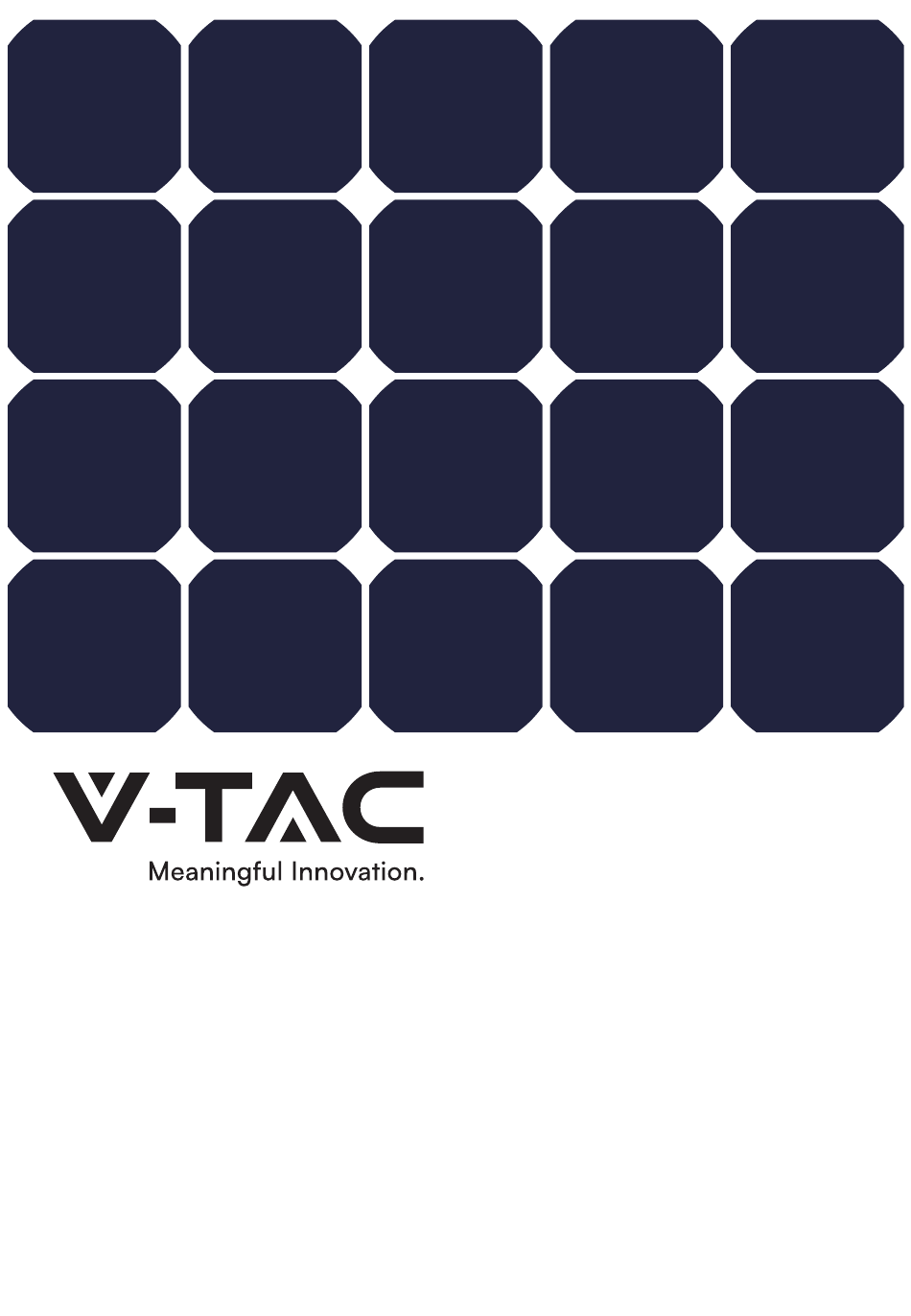

- Page 1 Flexible Solar Panel VT-10100/SKU 11568 VT-10210/SKU 11569...
-
Page 2: Table Of Contents
Contents 1 Purpose 2 Disclaimer 3 General Safety Information 4 Safety Precautions 5 Installation Procedure and Precautions 5.1 Unpacking and Precautions 5.2 Pre-installation Requirements 5.3 Installation Precautions 6 Commissioning and Troubleshooting 7 Product Specifications 8 FAQ 9 Maintenance... -
Page 3: Purpose
After reading this manual, keep it in a safe place for future reference on service and maintenance information. This document applies to the following solar component series: VT-10100/SKU 11568/VT-10210/SKU 11569 2. Disclaimer As the use of this manual as well as the conditions or methods for the installation, operation, use and maintenance... -
Page 4: Safety Precautions
4. Safety Precautions When light shines on the light-receiving surface of the solar module, the solar module will generate DC electricity with a voltage of over 24 V. If modules are connected in series, the total voltage is equal to the sum of the voltage of each module. -
Page 5: Pre-Installation Requirements
Note: Do not step, walk, stand or jump on any module, as uneven stresses may impact the micro cracks on battery cell, and ultimately the module's reliability and user experience. 2. Do not use sharp tools on the module to score, cut, slice, or slash either the front or back of the panel; 3. - Page 6 A parallel connection is shown in the diagram: It is recommended that modules with the same electrical output be connected in the same series to prevent Avoid shade, as even a small amount of shade will reduce power output; ensure that the sun will be able to shine on the module even on the shortest day of the year;...
-
Page 7: Installation Precautions
5.3 Installation Precautions All of the following installation methods are for reference only. EcoFlow only supplies some of the module installa- tion and connection accessories (see packaging list for details), but it does not supply accessories for a complete vehicle system installation. Any system installers should ensure that the installation complies with all specifications. The product panel is made of flexible material with six holes (8 mm inside diameter) arranged at its edges, and can be fixed using optional adapter bolts through the spare holes or by using a structural adhesive or gluing double- sided adhesive foam tape on the back of the panel. -
Page 8: Commissioning And Troubleshooting
6. Commissioning and Troubleshooting EcoFlow recommends that all commissioning and maintenance of the solar module system be carried out by qualified PV technicians! Test connected modules before connecting them to the system; always test all electrical and electronic components of the system before commissioning the system, and always follow the instructions supplied together with each part and piece of equipment. -
Page 9: Faq
-(0.39+/-0.02)%/k -(0.33+/-0.03)%/k +(0.06+/-0.015)%/k 8. FAQ Why does the 100 W Solar Panel fail to deliver as much as stated when in actual use? In most cases, it is normal for a solar panel not to deliver its full nominal power. Some of the reasons why this happens, as well as some suggestions for getting closer to the nominal power figure, are given below. -
Page 10: Maintenance
The panels are made of a special composite material, which is lightweight and able to bend to a certain degree, monocrystalline silicon wafers, and despite their flexibility, they should not be slammed on the ground during installation and use or stepped on or struck with foreign objects. Do not sit on the surface of the panels and do not caused by human force is not covered under the free warranty.
