Summary of Contents for TP-Link tapo T310

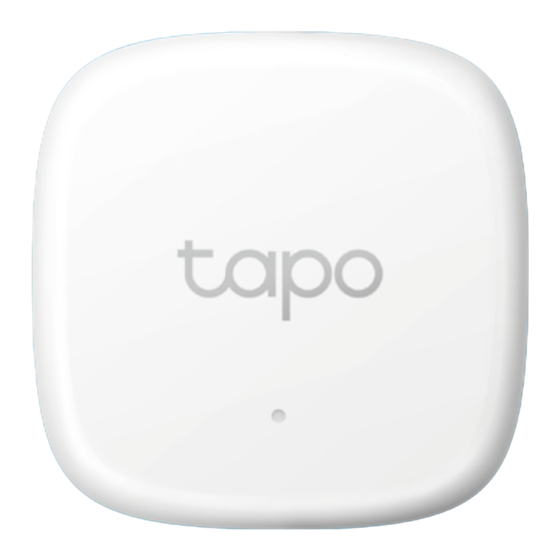

- Page 1 User Guide Tapo Smart Temperature & Humidity Sensor © 2023 TP-Link 1910013448 REV1.0.0...
-
Page 2: Table Of Contents
Contents About This Guide ···················································· 1 Introduction ······························································· 2 Tapo Smart Ecosystem ······································· 3 Automate Your Home ··········································· 4 Set Up Your Smart Sensor ································· 5 Use Your Smart Sensor ······································· 8 How to Reset Your Smart Sensor ················11 How to Replace Battery ·····································12 Authentication ························································13... -
Page 3: About This Guide
Ignoring this type of note might result in a malfunction or damage to the device. Note: More Info • Specifications can be found on the product page at https://www.tapo.com. • Our Technical Support and troubleshooting information can be found at https://www.tapo.com/support/. • The setup videos can be found at https://www.tp-link.com/support/ setup-video/#smart-sensors. -
Page 4: Introduction
Introduction The Smart Temperature and Humidity Sensor detects real-time temperature and humidity with great accuracy. Receive instant app notifications when temperature or humidity levels fall outside your customized ranges. React promptly to sudden air condition changes whenever the need arises. It is suitable for green houses, bedrooms, nursery, incubators, and wine cellars. -
Page 5: Tapo Smart Ecosystem
Tapo Smart Ecosystem Tapo is the easy way to turn your home into a smart home. With the Tapo Hub as a bridge, Tapo Smart Sensor works with a wide range of Tapo accessories. So you can easily control and monitor your home from anywhere. Motion Sensor Temperature &... -
Page 6: Automate Your Home
Send you instant app notifications when the temperature or humidity levels fall outside your preset ranges. Perfect for monitoring your green house, cigar humidors, wine cellars, instrument cases and more. Tapo T310 Tapo Hub Automate Your Appliances Monitor and adjust your home’s comfort level along with other Tapo devices. -
Page 7: Set Up Your Smart Sensor
Set Up Your Smart Sensor Watch setup videos at https://www.tp-link.com/support/download/tapo-t310/ Before You Start 1. Set Up Your Sensor 2. Power Up & Check LED A Tapo Hub is required. Make sure your Tapo Tap the button in the Tapo app, tap Remove the battery insulation tab to power up Hub is successfully added via the Tapo app. - Page 8 3. Complete Setup 4. Test Your Sensor Follow the app instructions to pair with the Take your sensor to the preferred location. hub and set up your sensor. Option 2 Option 1 Single press the Reset button. Your hub Blow on the sensor detector. The temperature and humidity displayed on the Tapo app should make a voice prompt.
- Page 9 5. Place Your Sensor Option 2: Use Adhesive Magnets Option 3: Use 3M Adhesives Option 1: Hang with the Lanyard a. Stick the included adhesive magnets to the a. Stick the included 3M adhesives to the back panel. back panel. b.
-
Page 10: Use Your Smart Sensor
Use Your Smart Sensor After you successfully set up your hub and sensor, you will see your devices listed on the home page. With the Tapo app, you can view and manage your devices and get instant notifications anytime, anywhere. Home Page Home Page Settings Status Page... - Page 11 View/Export Temperature & Humidity Data 1. On the Status page, tap View All to check all 2. Tap the Export icon on the top right corner. 3. Enter the email address you want to receive temperature and humudity data. the report. Choose the date and set the interval, tap EXPORT, then the data will be sent Note: Whenever the temperature/humidity is not to your email.
- Page 12 Featured Smart Actions Device Settings Comfort Zone The sensor can work with other Tapo devices Check/edit the basic info, set Comfort Zone, Customize the comfort zone and turn to automate your home. You can customize view User Manual and Placement Guide, or on Reminder, then you can get instant smart actions based on the templates.
-
Page 13: How To Reset Your Smart Sensor
How to Reset Your Smart Sensor Option 1. Via the Button Option 2. Via the Tapo App 1. Use a pin to press and remove the cover. Long press the card on the home page and tap or go to the Device Settings page and tap the Remove... -
Page 14: How To Replace Battery
How to Replace Battery 1. Use a pin to press and remove the cover. 2. Replace the battery with a fresh cell (battery model: CR2450). 3. Put the cover back. CR2450... -
Page 15: Authentication
Authentication FCC Compliance Information Statement Product Name: Tapo Smart Temperature & Humidity Sensor Model Number: Tapo T310 Responsible party: TP-Link USA Corporation Address: 10 Mauchly, Irvine, CA 92618 Website: http://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6804 E-mail: sales.usa@tp-link.com... - Page 16 We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.
- Page 17 The device complies with RF specifications when the device used at 20 cm from your body. Restricted to indoor use. UKCA Mark UK Declaration of Conformity TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017.
- Page 18 The original UK declaration of conformity may be found at https://www.tapo.com/support/ukca/ Korea Warning Statements: 당해 무선설비는 운용중 전파혼신 가능성이 있음. NCC Notice 注意！ 取得審驗證明之低功率射頻器材，非經核准，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。 低功率射頻器材之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。 前述合法通信，指依電信管理法規定作業之無線電通信。 低功率射頻器材須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。 Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних документів та вимогам, що...
- Page 19 • Do not ingest battery, Chemical Burn Hazard CAUTION! Risk of explosion if the battery is replaced by an incorrect type CAUTION! Avoid replacement of a battery with an incorrect type that can defeat a safeguard. Avoid disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion. Do not leave a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas.
- Page 20 In case of ingestion, consult with a doctor immediately. • Do not let leaked electrolyte come into contact with eyes or skin. In such a case, immediately wash the area of contact with clean water and seek help from a doctor. If not treated soon, prolonged contact may cause serious injury.
- Page 21 The battery employs a safety mechanism and a protecting device in order to avoid any danger. If these are damaged, heat, explosion or fire may be caused. CAUTION • Do not put the battery in a microwave or a pressure cooker. Sudden heat may damage the seal of the battery and may cause heat generation, explosion, or fire of the battery.
- Page 22 Symbol Explanation DC voltage Polarity of output terminals Indoor use only Dangerous voltage Caution, risk of electric shock Energy efficiency Marking Protective earth Earth Frame or chassis Functional earthing Caution, hot surface Caution...
- Page 23 Symbol Explanation Operator’s manual Stand-by “ON”/”OFF” (push-push) Fuse Fuse is used in neutral N RECYCLING This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.
- Page 24 Symbol Explanation ε Switch without contact gap (Semiconductor switching device)
