TP-Link tapo Quick Start Manual

Quick Start Guide

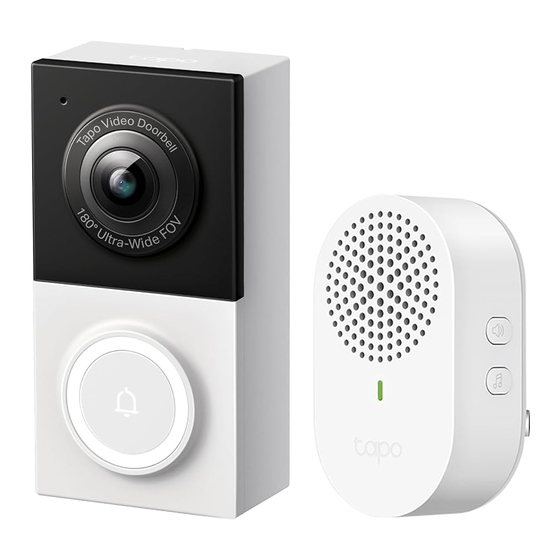

Tapo Smart Video Doorbell Wired
*Images may differ from your actual product.
©2023 TP-Link 7106510017 REV1.0.0

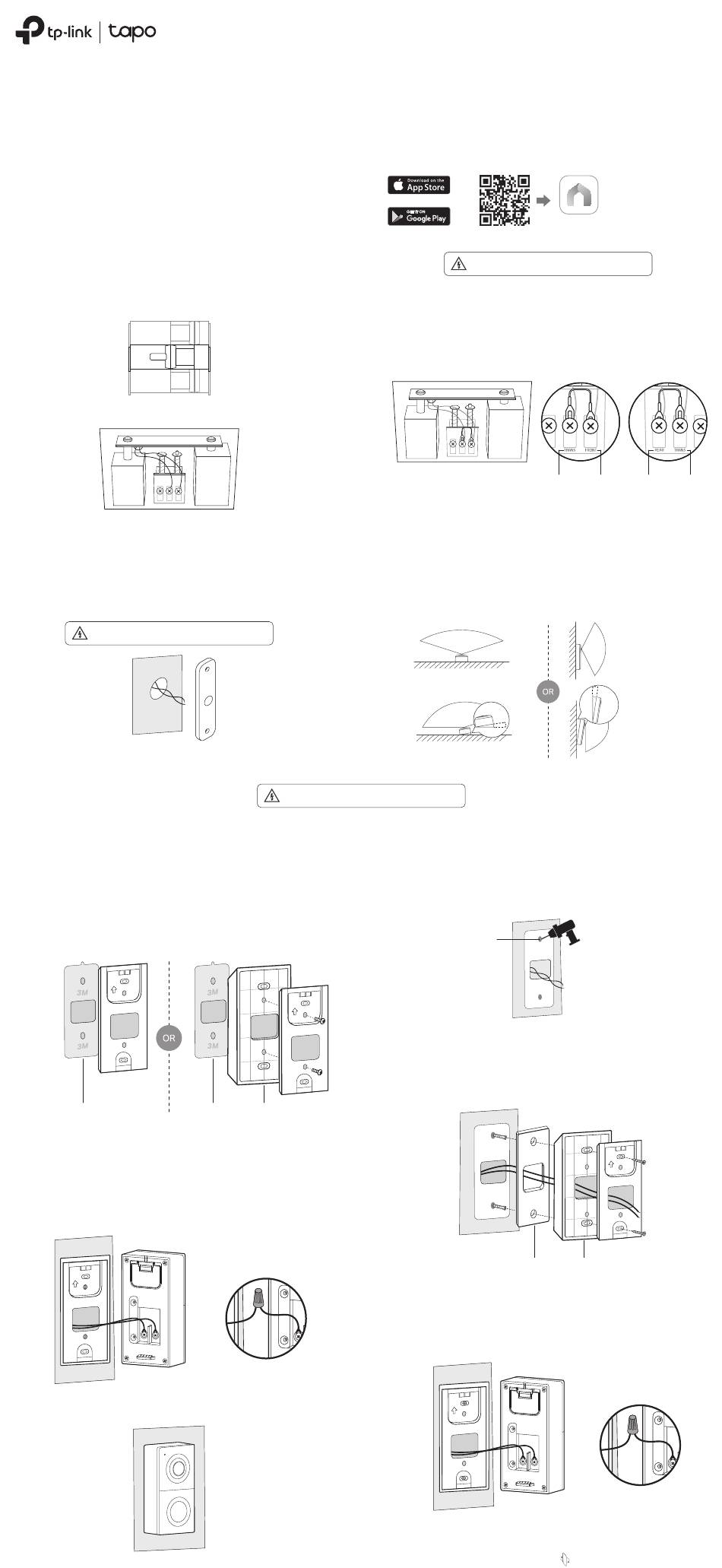

01 /
Install Jumper Wire for Your Existing Chime
1. Turn off the circuit breaker. Make sure the power is off by
ringing your doorbell a few times.
2. Remove the chime cover and take a photo of the wiring in
case you want to reconnect it.
02 /
Preparations for Installing Your Doorbell
1. Remove your existing doorbell on the door. Disconnect the
wires.
Take care to avoid electric shocks.
03 /
Install Your Doorbell
Option 1. Stick to a clean wall
*This equipment shall be installed at a height of fewer than 2 meters.
1. Attach the included adhesive to the back of the bracket or the
wedge you have selected. If you use the wedge, affix the
bracket and the wedge with screws.
Note: This is applicable with tile, glass, marble, metal, stainless steel, and
hard wall surfaces.
Adhesive
2. Route the wires through the bracket. Stick the bracket with
adhesive to a clean wall.
3. Connect the wires to the two terminals at the back of the
doorbell, and tighten the terminal screws.
Note: If the wires are too short, use the included extension wires and wire
nuts to make them longer.
4. Mount the doorbell to the bracket and turn on the circuit
breaker.
OFF
Take care to avoid electric shocks.
*Recommended Installation Height: 1.2 m (4 ft) above the ground
Adhesive Wedge
If the wires are too short:
Before You Start
WARNING: Risk of Electric Shocks
• Ensure that your existing doorbell works by ringing the
doorbell.
• Locate your existing doorbell chime.
• Make sure the doorbell is in an area with a strong Wi-Fi signal.
• Disconnect power at the fuse or circuit breaker before
installing.
• You can always find detailed wiring and installation instructions
in the Tapo app.
OR
Take care to avoid electric shocks.
3. Slightly loosen the screws for the Front and Trans of your
front doorbell or the Rear and Trans of your rear doorbell,
then insert the jumper wire.
Note: If your doorbell chime has different markings, refer to instructions in
the Tapo app or consult a licensed electrician.
4. Tighten the screws and replace the chime cover.
2. (Optional) Select the mounting wedge to adjust the viewing
angle of the doorbell.
Without Mounting Wedge
15°
With Horizontal Mounting Wedge
Option 2. Mount to the wall
1. Route the wires through the mounting template and stick the
template. Drill two holes where indicated.
Φ=6 mm (15/64 in.)
2. Route the wires through the bracket. Insert two anchors into
the holes and use the screws to affix the bracket over the
anchors.
Note: When mounting to uneven walls, stick the foam pad on the back of
the bracket or wedge.
Foam Pad
(Optional)
3. Connect the wires to the two terminals at the back of the
doorbell, then tighten the terminal screws.
Note: If the wires are too short, use the included extension wires and wire
nuts to make them longer.
4. Mount the doorbell to the bracket and turn on the circuit
breaker.
Tapo
Front Doorbell Rear Doorbell
TRANS FRONT REAR TRANS
Without
Mounting Wedge
5°
With Vertical
Mounting Wedge
Wedge
(Optional)
If the wires are too short:
Flip the page over to complete setup.
