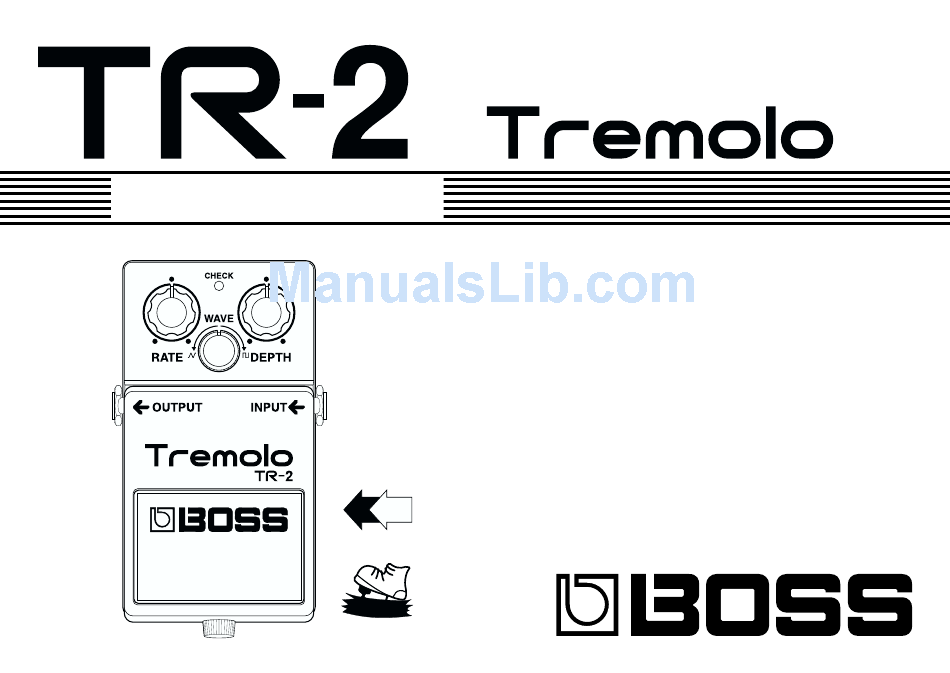

  • Page 1 Owner's Manual AC & BATTERY POWERED...
  • Page 2 Thank you, and congratulations on your choice of BOSS TR-2 Tremolo. Before using this unit, carefully read the sections entitled: “USING THE UNIT SAFELY” and “IMPORTANT NOTES” (p.16; p.4). These sections provide important information concerning the proper operation of the unit. Additionally, in order to feel assured that you have gained a good grasp of every feature provided by your new unit, this manual should be read in its entirety.
  • Page 3 FEATURES • The TR-2 is an effect that periodically changes only the volume of the sound. This means that the tone will not be altered with the TR-2. • The Wave knob allows you to select very delicate changes in the volume, or more rapid...

  • Page 4: Important Notes

    IMPORTANT NOTES In addition to the items listed under “USING THE UNIT SAFELY” on page 16, please read and observe the following: Power Supply • Do not use this unit on the same power circuit with any device that will generate line noise (such as an electric motor or variable lighting system).

  • Page 5: Maintenance

    Maintenance • For everyday cleaning wipe the unit with a soft, dry cloth or one that has been slightly dampened with water. To remove stubborn dirt, use a cloth impregnated with a mild, non- abrasive detergent. Afterwards, be sure to wipe the unit thoroughly with a soft, dry cloth.

  • Page 6: Panel Descriptions

    PANEL DESCRIPTIONS AC Adaptor Jack Accepts connection of an AC Adaptor (op- tionally available BOSS PSA-Series). By using an AC Adaptor, you can play without being concerned about how much battery power you have left. * If there are batteries in the unit while an AC adaptor is being used, normal operation will continue should the line voltage be inter- rupted (power blackout or power cord dis-...

  • Page 7: Output Jack

    Pedal Switch This switch turns the effects ON/OFF. Thumbscrew This thumbscrew is loosened to open the pedal, allowing battery replacement. For instructions on how to replace the battery, please refer to “CHANGING THE BAT- TERY (p.12).” INPUT Jack...
  • Page 8 RATE Knob DEPTH Knob CHECK WAVE RATE WAVE Knob RATE Knob This adjusts the rate of the tremolo. The further you move the knob clockwise, the faster the rate becomes. DEPTH Knob This adjusts the depth of the tremolo. When it is turned fully counterclockwise, no tremolo effect will be created.

  • Page 9: Making The Connections

    MAKING THE CONNECTIONS OUT 9V DC/200mA Guitar Amplifier AC Adaptor BOSS PSA-series (option) Electric Guitar...
  • Page 10 * Inserting a plug into the INPUT Jack will automatically switch the unit on. * To prevent malfunction and/or damage to speakers or other devices, always turn down the volume, and turn off the power on all devices before making any connections. * If there are batteries in the unit while an AC adaptor is being used, normal operation will continue should the line voltage be interrupted (power blackout or power cord disconnection).

  • Page 11: Operating The Unit

    OPERATING THE UNIT When you have made the necessary connections, set the knobs as shown in the illustration. Depress the pedal switch to turn the effect on. (Make sure the CHECK indi- cator lights.) Adjust the rate of the tremolo using the RATE knob.

  • Page 12: Changing The Battery

    9V Battery Loosen the thumbscrew at the front of the pedal, then lift the pedal upwards to open the unit. * The thumbscrew can be left in the pedal while changing the battery. Remove the old battery from the battery Thumbscrew...

  • Page 13: Setting Examples

    SETTING EXAMPLES Vintage Tremolo CHECK WAVE RATE Switching technique sound CHECK WAVE RATE Electric Piano sound DEPTH Rotary Speaker sound DEPTH CHECK WAVE RATE DEPTH CHECK WAVE RATE DEPTH...

  • Page 14: Specifications

    LFO Rate ... 90 to 900 ms Residual Noise Level ... -90 dBu (IHF-A Weighted, Typ.) Controls ... Pedal Switch, RATE Knob, DEPTH Knob, WAVE Knob Indicator ... CHECK Indicator (Serves also as battery check indicator) Connectors ... INPUT Jack, OUTPUT Jack, AC Adaptor Jack (DC 9 V) Power Supply ...
  • Page 15 Dimensions ... 73 (W) x 129 (D) x 59 (H) mm Weight ... 400 g/ 15 oz (including battery) Accessories ... Owner's Manual, Dry Battery; 6F22/ 9 V (Carbon), Options ... AC Adaptor PSA-Series * 0 dBu = 0.775 Vrms * In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.

  • Page 16: Using The Unit Safely

    Used for instructions intended to alert the user to the risk of death or severe WARNING injury should improperly. Used for instructions intended to alert the user to the risk of injury or material damage should the unit be used improperly.
  • Page 17 (except when this manual provides specific instruc- tions directing you to do so). Refer all servicing to your dealer, or qualified Roland service personnel. • Never use or store the unit in places that are: • Subject to temperature extremes (e.g., direct sunlight in an enclosed...
  • Page 18 • Use only the specified AC adaptor (PSA-Series), and make sure the line voltage at the installation matches the input voltage specified on the AC adaptor's body. Other AC adaptors may use a different polarity, or be designed for a different voltage, so their use could result in damage, malfunction, or electric shock.
  • Page 19 • Immediately turn the power off, remove the AC adaptor from the out- let, and request servicing by your dealer or qualified Roland service personnel when: • The AC adaptor or the power-sup- ply cord has been damaged; or • Objects have fallen into, or liquid has been spilled onto the unit;...
  • Page 20 • Batteries must never be recharged, heated, taken apart, or thrown into fire or water. CAUTION • The unit and the AC adaptor should be located so their location or posi- tion does not interfere with their proper ventilation. • Always grasp only the plug or the body of the AC adaptor when plug- ging into, or unplugging from, an outlet or this unit.
  • Page 21 • Try to prevent cords and cables from becoming entangled. Also, all cords and cables should be placed so they are out of the reach of children. • Never climb on top of, nor place heavy objects on the unit. •...
  • Page 22 • If used improperly, batteries may explode or leak and cause damage or injury. In the interest of safety, please read and observe the following pre- cautions (page 12). • Carefully follow the installation instructions for batteries, and make sure you observe the correct polar- ity.
  • Page 23 For EU Countries This product complies with the requirements of European Directive 89/336/EEC.
  • Page 24 G601725903...
