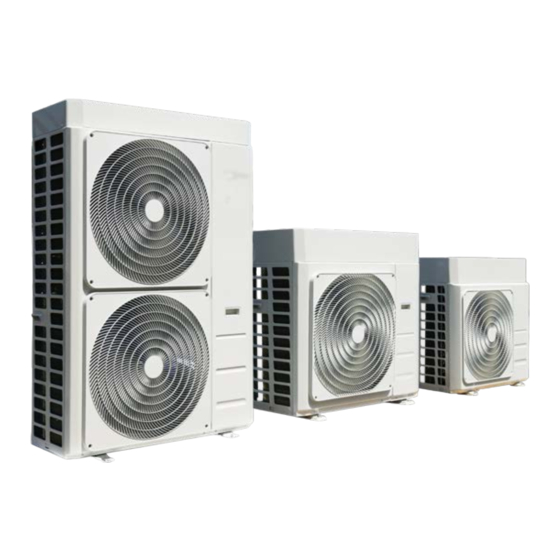

Chiller and Inverter Air/Water heat pumps with axial fan
User-Installer Manual
Model
SHP M ECO 006A
SHP M ECO 008A,
SHP M ECO 008 A SL
SHP M ECO 010
SHP M ECO 010T
SHP M ECO 012, SHP M ECO 012 SL
SHP M ECO 012T,
Fonderie SIME S.p.A.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
This manual has been created for informative purpose. The company declines any responsibility for the results of any projecting or any installation based on the explanations and/or on the
technical specifications provided in this manual. It is besides forbidden the reproduction under any form of the texts and of the figures contained in this manual.
"This manual is a translation from the official italian language version. For reasons of environmental respect the Company will not provide the hard copy in the original language which could
be directly requested or downloaded from the Company website at any time. In case of any dispute, the original language manual will be the trusted one".
SHP M ECO 012 SL T
SHP M ECO 014
SHP M ECO 014T
SHP M ECO 016, SHP M ECO 016 SL
SHP M ECO 016T,
SHP M ECO 016 SL T
SHP M ECO 018
7500612 – 05/2022 – R7
