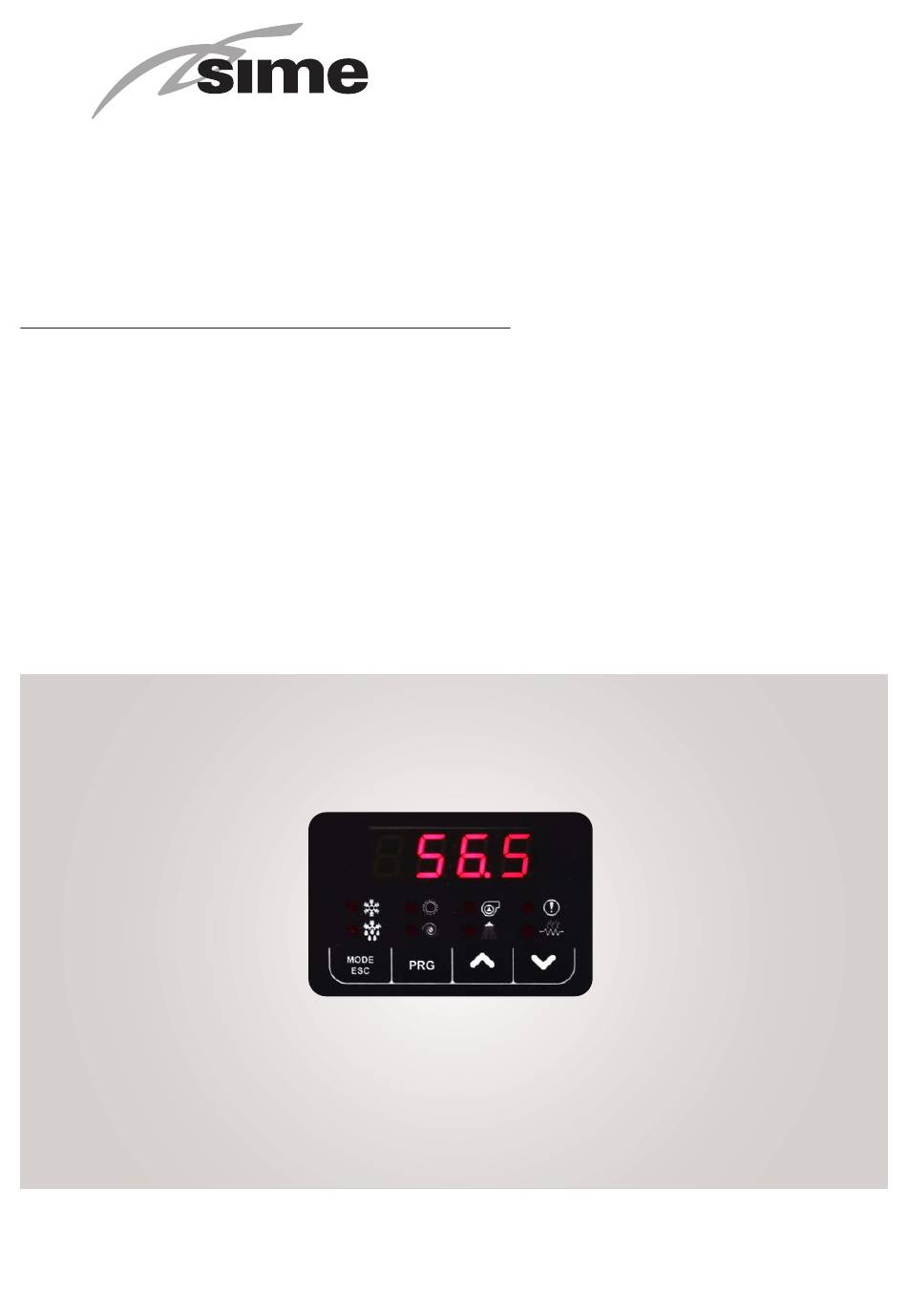

Chiller and Inverter Air/Water heat pumps with axial fans
Controller Manual
Model
SHP M ECO 006A KA
SHP M ECO 008A KA,
SHP M ECO 008 A SL KA
SHP M ECO 010 KA
SHP M ECO 010KA T
SHP M ECO 012 KA,
SHP M ECO 012 SL KA
SHP M ECO 012KA T,
Fonderie SIME S.p.A.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
This manual has been created for informative purpose. The company declines any responsibility for the results of any projecting or any installation based on the explanations and/or on the
technical specifications provided in this manual. It is besides forbidden the reproduction under any form of the texts and of the figures contained in this manual.
"This manual is a translation from the official italian language version. For reasons of environmental respect the Company will not provide the hard copy in the original language which could
be directly requested or downloaded from the Company website at any time. In case of any dispute, the original language manual will be the trusted one".
SHP M ECO 012 SL KA T
SHP M ECO 014KA
SHP M ECO 014KA T
SHP M ECO 016KA,
SHP M ECO 016 SL KA
SHP M ECO 016KA T,
SHP M ECO 016SL KA T
SHP M ECO 018KA
7500616 – 05/2022 – R7
Advertisement
Table of Contents
Related Manuals for Sime SHP M ECO 006A KA
Summary of Contents for Sime SHP M ECO 006A KA
- Page 1 Chiller and Inverter Air/Water heat pumps with axial fans Controller Manual Model SHP M ECO 006A KA SHP M ECO 012 SL KA T SHP M ECO 008A KA, SHP M ECO 014KA SHP M ECO 008 A SL KA...
- Page 2 SHP M ECO Heat pumps inverter air/water with axial fans 05-2022 E.G. A.B. 06A, 08A sizes update, GI chapter elimination 12-2021 M.S. A.B. Elimination cap. 9.1 03-2021 A.B. A.B. Update cap. 8-9.1-10.15-10.16-10.17-14.3 09-2020 M.S. A.B. Compressor shutdown activation logic update 06-2020 M.S.
-
Page 3: Table Of Contents
SHP M ECO Heat pumps inverter air/water with axial fans Contents 1.HOW TO KEEP THE MANUAL 1.1 GRAPHIC SYMBOLS USED IN THE MANUAL ...............6 2.PERMITTED USED 3.GENERAL SAFETY GUIDELINES 3.1 PERSONAL PROTECTIVE EQUIPMENT ................6 3.2 WORKERS' HEALTH AND SAFETY..................6 4.PURPOSE AND CONTENTS OF THE MANUAL 5.USER INTERFACE - CONTROLLER 5.1 MENU ............................9 5.2 SETPOINT MENU ........................9... - Page 4 SHP M ECO Heat pumps inverter air/water with axial fans 9.DISSIPATION FAN CONTROL 10.CONTROLLER FUNCTIONS 10.1 ANTIFREEZE PROTECTION HEATERS (IF KA ACCESSORY IS AVAILABLE) ....17 10.2 ENABLING DOMESTIC HOT WATER PRODUCTION ............17 10.2.1 Memorising the probe in heating mode ..............18 10.2.2 Heating mode on dhw storage tank ................
- Page 5 SHP M ECO Heat pumps inverter air/water with axial fans 11.FUNCTIONS THAT CAN BE ACTIVATED WITH HI-T2 ACCESSORY (OPTIONAL) 26 12.FUNCTIONS THAT CAN BE ACTIVATED WITH GI MODULE (OPTIONAL) 13.TABLES OF PERMITTED SETUPS FOR USER AND INSTALLER 14.ALARMS 14.1 [E006] FLOW SWITCH .......................31 14.2 [E018] HIGH-TEMPERATURE ...................31 14.3 [E020] INVERTER TRASDUCTORS ..................31 14.4 [E005] ANTIFREEZE ......................31...
-
Page 6: How To Keep The Manual
SHP M ECO Heat pumps inverter air/water with axial fans 1. HOW TO KEEP THE MANUAL The manual has to always be kept together with the unit it refers to. It has to be stored in a safe place, away from dust and moisture. It must be accessible to all users who shall consult it any time they are in doubt on how to operate the equipment. - Page 7 SHP M ECO Heat pumps inverter air/water with axial fans IT IS PROHIBITED: To remove and/or to tamper with any safety device. For unauthorised personnel to access the electric panel. To work on live systems. To touch the systems if not authorised to do so To allow children or unassisted disabled persons to use the appliance.
-
Page 8: Purpose And Contents Of The Manual
SHP M ECO Heat pumps inverter air/water with axial fans The power supply has to respect the limits shown on the unit’s technical label: failing this, the warranty will terminate imme- diately. Before beginning any type of operation, make sure that power is disconnected. Connect the conductors in order: phase, neutral and earth. -

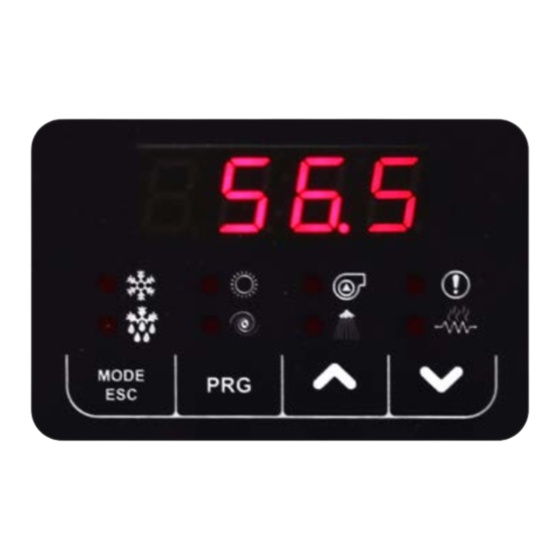

Page 9: User Interface - Controller
SHP M ECO Heat pumps inverter air/water with axial fans 5. USER INTERFACE - CONTROLLER Select the operating mode and manually reset any alarms. Each time you press the key you have the following sequence: OFF -> COOL -> HEAT -> OFF If DHW is enabled, the sequence is the following: OFF ->... -
Page 10: Password Menu [Pss]
SHP M ECO Heat pumps inverter air/water with axial fans SETPOINT DESCRIPTION UNIT DEFAULT RANGE **rHEA Mixing valve Winter setpoint °C 30.0 0.0 ÷ 80 (*) If the DHW function is enabled, see par. 10.2 (**) If Gi accessory is included, access is only possible with installer password. 5.3 PASSWORD MENU [PSS] Enter the password according to the desired access level. -
Page 11: Operating Hours Menu [Ohr]
SHP M ECO Heat pumps inverter air/water with axial fans DESCRIPTION IDENTIFICATION CODE OF THE GROUP PARAMETER INDEX VISIBILITY *Mixer valve i01- INSTALLER (*) To configure if Gi module present To access the installer parameters: PRG -> PSS -> PRG -> (enter Service password) ->PRG ->PAr -> PRG Please note that the menu is password-protected. -
Page 12: Led
SHP M ECO Heat pumps inverter air/water with axial fans 5.12.1 LED Cooling mode LED • LED ON if unit is in cooling mode. Heating mode LED • LED ON if unit is in heating mode. Pump LED • LED ON if pump running. Alarm LED •... -
Page 13: Editing Dynamic Set-Point
SHP M ECO Heat pumps inverter air/water with axial fans Example of single phase unit terminal block X-1.1 X-22.1 X-20.1 X-19.1 X-17.1 X-15.1 X-16.1 X-5.1 X-14.1 X-11.1 X-10.1 X-9.1 X-6.1 X12-2 X12-1 X-22.2 X-20.2 X-19.2 X-17.2 X-15.2 X-16.2 X-5.2 X-4.1 X-14.2 X-9.2 X-6.2... -
Page 14: Edit The Set-Point From 0-10V Input Or From Ratiometric Input
SHP M ECO Heat pumps inverter air/water with axial fans Setpoint Setpoint CURVE Heat Cool 20°C 25°C 20°C -29°C 40°C 10°C 20°C -28°C 40°C 15°C 20°C -25°C 5°C 5°C 37°C -17°C 10°C 8°C 40°C -20°C 6.2 EDIT THE SET-POINT FROM 0-10V INPUT OR FROM RATIOMETRIC INPUT Another type of adjustment allows you to edit the setpoint by adding (or subtracting) a value depending on the 0-10V input (if enabled). -
Page 15: Circulator
SHP M ECO Heat pumps inverter air/water with axial fans 7. CIRCULATOR The circulator of the heat pump can be set in the following operating modes: • operation on call by temperature controller • operating on call by temperature controller with periodic activation; •... -
Page 16: System Venting
SHP M ECO Heat pumps inverter air/water with axial fans Speed P06/P09 ΔT [°C] The circulator is at maximum speed in DHW production. Note: If the parameter r33 > 0, then the circulator can be running on call even to activate the system and/or sanitary heater, see par.10.8. 7.6 SYSTEM VENTING Function used to vent the system, with the circulator at maximum speed. -
Page 17: Dissipation Fan Control
SHP M ECO Heat pumps inverter air/water with axial fans • b05 = compressor regulation delta cut-off = 0,2°C (default) • b25 = compressor regulation delta cut-on = 2°C Tw,out,set HzMaxReg HzMin Tw,out (outlet water temp.) ∆T,set + 2°C • The compressor shutdown is regulated by parameter b05: the compressor shutdown when is regulated by parameter b05 Tw,out > Tw,out,set + b05 •... -
Page 18: Memorising The Probe In Heating Mode
SHP M ECO Heat pumps inverter air/water with axial fans Switching from utility water to domestic hot water, the working probe changes from “water outlet probe” to “DHW tank probe”. Switching from winter mode to sanitary mode, the compressor does not switch off and is brought to the maximum frequency established by the controller, whereas switching from summer mode to domestic hot water, the compressor is switched off and waits a safety time. -
Page 19: System Water Remote Probe
SHP M ECO Heat pumps inverter air/water with axial fans I/O resource - Parameter Value Function Closed contact -> active DHW call. ID9 can be activted via H53 Open contact -> inactive DHW call. The poles of the digital input can be swapped by setting H76=1 The SAN setpoint of the heat pump is not considered, the designer is in charge of managing this setpoint, taking into account domestic hot water protection and configuration of the entire system. -
Page 20: Single Plant/Dhw Integration Heater
SHP M ECO Heat pumps inverter air/water with axial fans I/O resource - Parameter Value Function Function enabling 10 minutes (default) DHW integration activation delay Type of use of heaters D03 can be activated via H81 Plant integration heater Note: The domestic hot water function must be enabled (see paragraph 10.2) 10.5.4 SINGLE PLANT/DHW INTEGRATION HEATER By configuring the DHW integration heater, it is possible to use this heater declared also as plant integration heater, setting the parameter r15=2 and r24=3. -
Page 21: Operation In Heat Pump Mode
SHP M ECO Heat pumps inverter air/water with axial fans Outside temp. Heat pump STANDARD WORKING Heat pump + Boiler/Heater JOINT OPERATION I ZONE Boiler + Heat pump/Heater JOINT OPERATION II ZONE Boiler/Heater OPERATION IN SUBSTITUTION If you need to change the values of the parameters r22, r28, r08, follow r22 ≥ r28 ≥ r08. Setting r22=r28 allows you to eliminate the zone relative to joint operation bracket I;... - Page 22 SHP M ECO Heat pumps inverter air/water with axial fans instead and therefore they are provided in the same cell separated by the symbol ”/”). TABLE 1. NORMAL OPERATION IN HEAT PUMP MODE INTEGRATIONS INTERVENTION ORDER N° STATUS OPERATION (with set-point not reached and machine blocked by alarm) HEAT/ 1) Plant integration heater...
- Page 23 SHP M ECO Heat pumps inverter air/water with axial fans TABLE 2. JOINT OPERATION, BRACKET 1 INTERVENTION ORDER N° STATUS OPERATION (with setpoint not reached) 10 1) Heat pump HEAT / Set the min- HEAT+SAN HEAT/DHW 0/1/2 2) After r12 minutes, boiler utes minutes 1) Heat pump...
-
Page 24: Auxiliary Systems Offset Management
SHP M ECO Heat pumps inverter air/water with axial fans TABLE 4. OPERATION IN SUBSTITUTION INTERVENTION ORDER N° STATUS OPERATION (with setpoint not reached) 1) Plant/DHW integration heater HEAT / Set the min- Set the min- HEAT+SAN HEAT/DHW 0/1/2 2) After r12 minutes, boiler utes utes HEAT /... -
Page 25: Warnings
SHP M ECO Heat pumps inverter air/water with axial fans 10.11 WARNINGS If the double setpoint function is not active, one of the following warnings can be configured. 10.11.1 PLANT SEASON A digital output can be configured indicating the operating season of the unit, plant side. The output is active in summer mode, while it is deactivated in OFF or heating mode. -
Page 26: Maximum Hz Functionality
SHP M ECO Heat pumps inverter air/water with axial fans Parameter VALUE Function Function not active Enabling minimum Hz Function not active Function active only in cooling mode Function active only in heating mode Function active only in sanitary mode Function active in cooling and sanitary mode Function active in heating and sanitary mode Function active in cooling and heating mode... -
Page 27: Functions That Can Be Activated With Gi Module (Optional)
SHP M ECO Heat pumps inverter air/water with axial fans • Climatic compensation; • Booster circulator management; • Management of single pump in a network; • Alarm diagnostic system. For further information, see the user-installer manual, or contact our headquarters. FUNCTIONS THAT CAN BE ACTIVATED WITH GI MODULE (OPTIONAL) The Gi module is an optional kit which allows you to manage the following functions: •... - Page 28 SHP M ECO Heat pumps inverter air/water with axial fans Allowed configurations: Parame- Description Unit Default Range Visibility Description Notes First cooling setpoint °C 25÷Coo2 First heating setpoint °C 45.0 Hea2÷H01 If sanitary function Sanitary setpoint °C 48.0 25÷H01 active. See par. 10.2 Coo2 Second cooling setpoint °C...
- Page 29 SHP M ECO Heat pumps inverter air/water with axial fans Allowed configurations: Parame- Description Unit Default Range Visibility Description Notes Output configuration 0= Output disabled Only if Gi accessory *H86 0÷47 In voltage DO1E 34= Valve open command present Output configuration 0= Output disabled Only if Gi accessory *H87...
-
Page 30: Alarms
SHP M ECO Heat pumps inverter air/water with axial fans Allowed configurations: Parame- Description Unit Default Range Visibility Description Notes Only change in the presence of glycol Antifreeze heaters delta °C 0.0÷25.5 water. Contact our headquarters. Do not modify this Operation in substitution value, as it could Respect r22 ≥... -
Page 31: E006] Flow Switch
SHP M ECO Heat pumps inverter air/water with axial fans 14.1 [E006] FLOW SWITCH The water side flow switch is already installed inside the unit and MUST NOT be tampered with or bypassed in any way. The flow switch is by- passed for 10 seconds after the unit is switched on. -
Page 32: Power Failure
SHP M ECO Heat pumps inverter air/water with axial fans 14.13 POWER FAILURE When restored: • the instrument goes back to the condition it was in prior to the power failure • if a defrost cycle is in progress, it is cancelled •... - Page 33 SHP M ECO Heat pumps inverter air/water with axial fans To configure the Modbus communication according to your requirements, you must modify the following logs: H124 : BAUD RATE 4800 9600 19200 38400 H125 : PARITY, STOP BIT NONE, 2 bit ODD, 1 bit EVEN, 1 bit NONE, 1 bit...
- Page 34 SHP M ECO Heat pumps inverter air/water with axial fans Register Format Range Name Description Note Firmaware versione Firmware release BYTE (H) Firmware sub-release Firmaware informa- tion BYTE (L) Firmware creation day BYTE (H) Firmaware creation month BYTE (L) Firmware creation year 80 ÷...
- Page 35 SHP M ECO Heat pumps inverter air/water with axial fans Register Format Range Name Description Note Only if the machine 7202 BIT MASK Forced defrosting is in heating (2-6). Defrosting Defrosting on call 7214 BIT MASK Defrosting in progress Compressor 1 Compressor 2 Compressor 3 Operating hours...
- Page 36 SHP M ECO Heat pumps inverter air/water with axial fans Register Format Range Name Description Note High temperature E018 High discharge temperature of Cp2 E019 Inverted pressure transducers E020 Compressor 3 thermal protection E023 Fan 3 thermal protection E024 Pump 2 thermal protection E026 BIT MASK Alarms ⁴...
- Page 37 SHP M ECO Heat pumps inverter air/water with axial fans Register Format Range Name Description Note Module 2 probe 11 error E713 Link inverter 1 E801 Link inverter 2 E802 Link inverter 3 E803 Hardware fault inverter 1 E851 Hardware fault inverter 2 E852 Hardware fault inverter 3 E853...
- Page 38 SHP M ECO Heat pumps inverter air/water with axial fans...
- Page 39 SHP M ECO Heat pumps inverter air/water with axial fans...
- Page 40 Fonderie Sime S.p.A - Via Garbo, 27 - 37045 Legnago (Vr) Tel. +39 0442 631111 - Fax +39 0442 631292 - www.sime.it...
