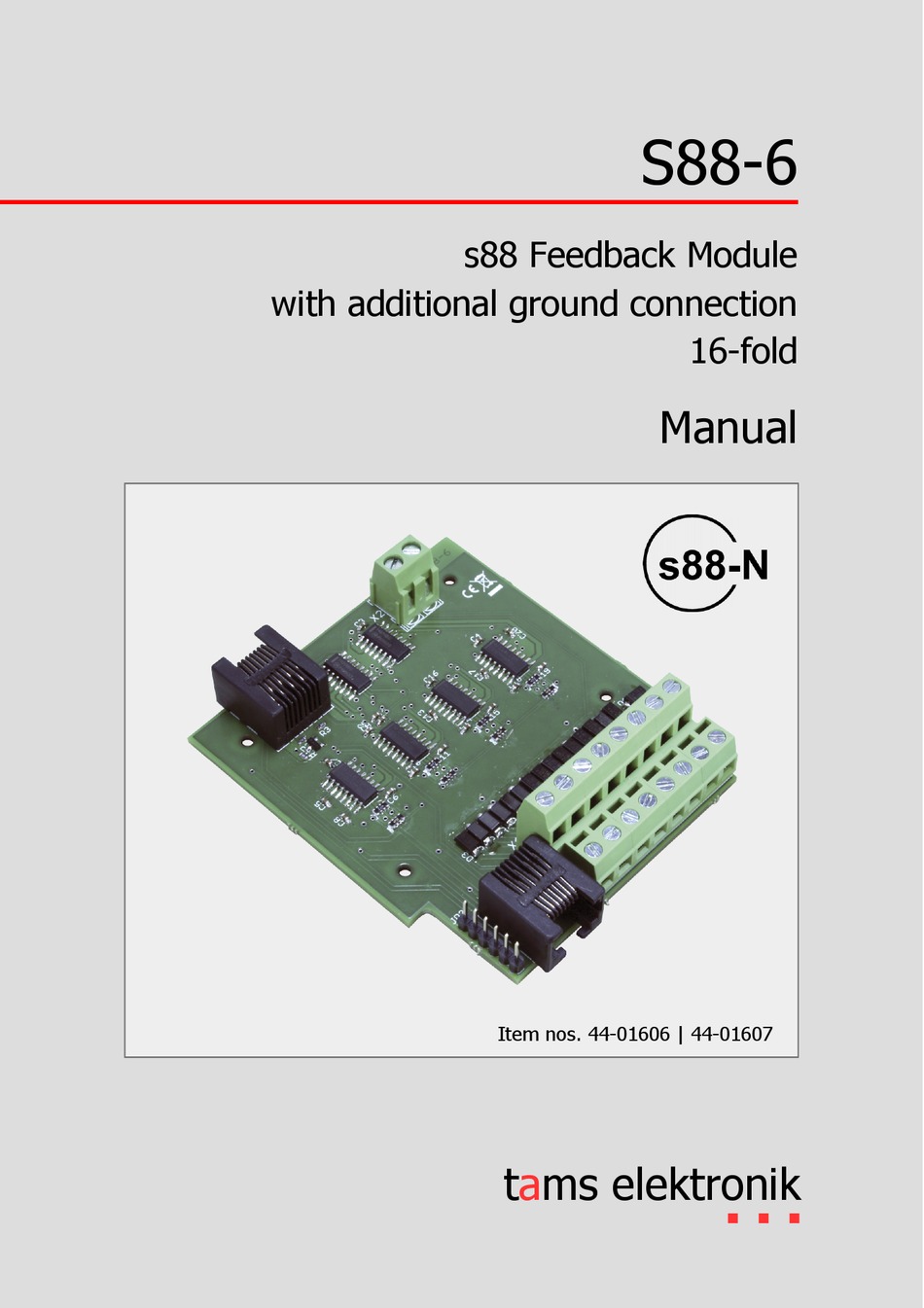

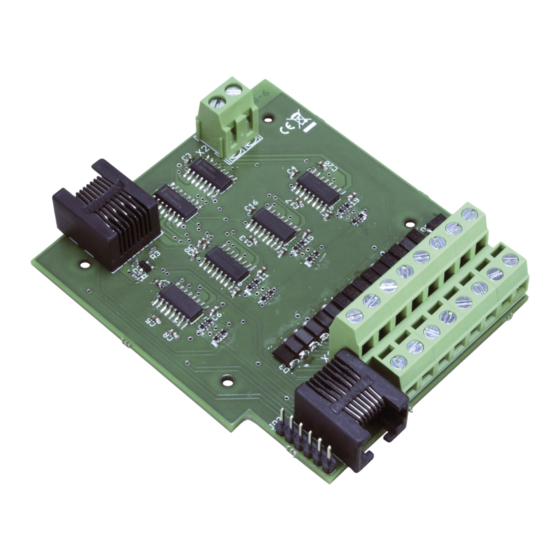

- Page 1 S88-6 s88 Feedback Module with additional ground connection 16-fold Manual Item nos. 44-01606 | 44-01607 tams elektronik n n n...
- Page 2 © Tams Elektronik GmbH All rights reserved, in particular the right of reproduction, distribution and translation. Copies, reproductions and alterations in any form require the written permission of Tams Elektronik GmbH. We reserve the right to make technical changes. Printing the manual The formatting is optimised for double-sided printing.
-
Page 3: Table Of Contents
2.1. Additional ground connection................6 2.2. Sending the feedback in the s88-bus..............6 2.3. Connection to digital devices and other feedback devices........7 2.4. Info: Versions of the adapters S88-A..............8 3. Connections S88-6......................9 4. Checklist for troubleshooting and error correction............11 4.1. Technical Hotline....................11 4.2. Repairs......................11 5. -
Page 4: Getting Started
If you pass the feedback module on to another person, also give the instructions with it. 1.1. Contents of the package 1 ready-built and tested circuit board S88-6 (item no. 44-01606-01) or 1 s88 feedback module S88-6 in housing (item no. 44-01607-01) 1 patch cable (RJ 45) 1.2. -
Page 5: Safety Instructions
S88-6 1.4. Safety instructions Note: The s88 feedback module contains integrated circuits (ICs). These are sensitive to electrostatic charging. Therefore, do not touch these components until you have "discharged" yourself. For this purpose, e.g. a grip on a radiator is sufficient. -
Page 6: Operation Overview
By installing a diode, the other half-wave is "diverted" from the isolated to the continuous rail and thus an additional ground connection is established. With the s88-6, the diodes are integrated into the circuit, so that the time- consuming retrofitting of diodes is not necessary. -
Page 7: Connection To Digital Devices And Other Feedback Devices
(interface, memory or central unit) or an upstream s88 feedback module. Connection to downstream s88 feedback module The input (IN) of the S88-6, via which the connection to a downstream s88 feedback module is established, is designed as an RJ 45 interface corresponding to S88-N. A patch cable is used for the connection to a downstream s88 feedback module with an s88-N interface at the output. -
Page 8: Info: Versions Of The Adapters S88-A
S88-6 tams elektronik 2.4. Info: Versions of the adapters S88-A S88 adapters with socket can be plugged directly onto the 6-pin connector of an S88 back module. Recommended use: Modules with connectors coming out from the side S88-A-BL S88-A-BR Item no. 44-09100 Item no. -
Page 9: Connections S88-6
Earth connection (if necessary) Connection digital devices and s88 feedback modules The S88-6 has two RJ-45 sockets (IN, OUT) to connect commercial Ethernet patch-cables (RJ- 45 cables), which allow an interference free connection to other feedback modules or digital devices in accordance with the s88-N standard. - Page 10 Functional test First connect the output "OUT" of the S88-6 to the central unit, the memory or the interface for a functional test. Fix a connecting cable to the module’s earth connection X2 and connect it one after the other to all 16 inputs.
-
Page 11: Checklist For Troubleshooting And Error Correction
S88-6 4. Checklist for troubleshooting and error correction Warning: If you notice a strong heat development, immediately disconnect the connection to the supply voltage. Fire hazard! Possible causes: One or more connections are faulty. à Check the connections. -
Page 12: Technical Data
S88-6 tams elektronik 5. Technical data Feedback log Number of mass contacts Connections to the s88-bus OUT: RJ-45 according to S88-N or 6-pole plug connector IN: RJ-45 according to S88-N Electrical characteristics Supply voltage 5 – 15 V d.c. voltage... -
Page 13: Warranty, Eu Conformity & Weee
S88-6 6. Warranty, EU conformity & WEEE 6.1. Guarantee bond For this product we issue voluntarily a guarantee of 2 years from the date of purchase by the first customer, but in maximum 3 years after the end of series production. The first customer is the consumer first purchasing the product from us, a dealer or another natural or juristic person reselling or mounting the product on the basis of self-employment. -
Page 14: Eu Declaration Of Conformity
S88-6 tams elektronik 6.2. EU Declaration of Conformity This product fulfils the requirements of the following EU directives and therefore bears the CE marking. 2001/95/EU Product Safety Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS) 2014/30/EU on electromagnetic compatibility (EMC Directive). - Page 15 S88-6...
- Page 16 Further Information and Tips: http://www.tams-online.de Warranty and Service: Tams Elektronik GmbH Fuhrberger Straße 4 DE-30625 Hannover fon: +49 (0)511 / 55 60 60 fax: +49 (0)511 / 55 61 61 e-mail: modellbahn@tams-online.de...
