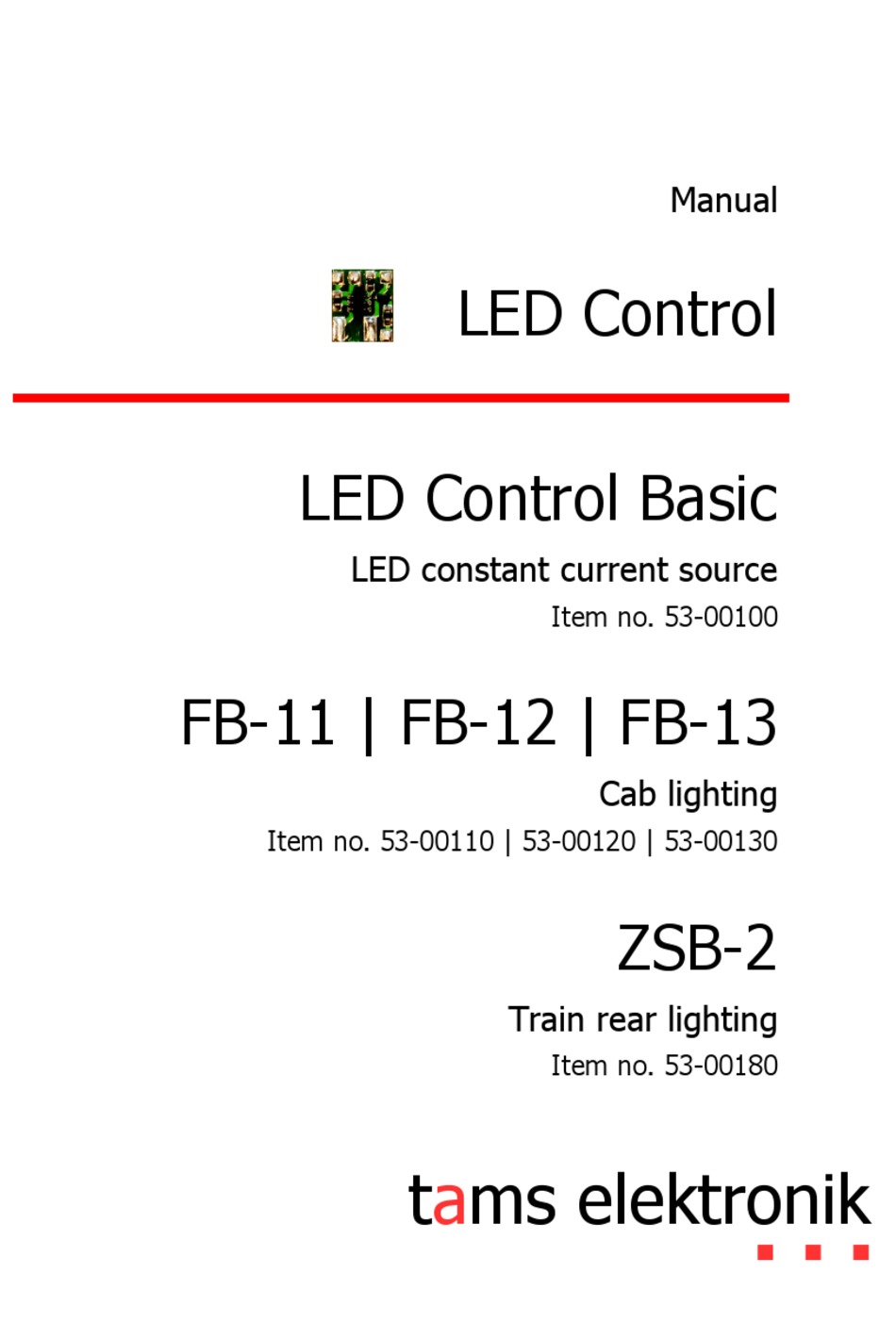

- Page 1 Manual LED Control LED Control Basic LED constant current source Item no. 53-00100 FB-11 | FB-12 | FB-13 Cab lighting Item no. 53-00110 | 53-00120 | 53-00130 ZSB-2 Train rear lighting Item no. 53-00180 tams elektronik n n n...
-
Page 2: Table Of Contents
8. Guarantee bond................18 9. Declaration of conformity............19 10. Declarations conforming to the WEEE directive......19 © 12/2015 Tams Elektronik GmbH All rights reserved. No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, without prior permission in writing from Tams Elektronik GmbH. -
Page 3: Getting Started
LED-Control English 1. Getting started This manual applies to the following lighting modules, so for: Basic LED Control train rear lighting ZSB-2, driver´s cab lighting FB-11, FB-12 and FB-13. Provided there are no other details given for particular sections, the information given applies to all modules. - Page 4 English LED-Control Checking the package contents PCBs Additional CD (containing the components, manual and further characteristics information) LED Control Basic ZSB-2 2 LEDs shaped like train rear lanterns, nominal size TT - H0 FB-11 equipped with a yellow LED FB-12 equipped with a pure white LED FB-13...
-
Page 5: Safety Instructions
LED-Control English 2. Safety instructions Mechanical hazards Cut wires can have sharp ends and can cause serious injuries. Watch out for sharp edges when you pick up the PCB. Visibly damaged parts can cause unpredictable danger. Do not use damaged parts: recycle and replace them with new ones. Electrical hazards ... - Page 6 English LED-Control Fire risk Touching flammable material with a hot soldering iron can cause fire, which can result in injury or death through burns or suffocation. Connect your soldering iron or soldering station only when actually needed. Always keep the soldering iron away from inflammable materials.
- Page 7 LED-Control English Other dangers Children can cause any of the accidents mentioned above because they are inattentive and not responsible enough. Children under the age of 14 should not be allowed to work with this kit or the ready-built module. Caution: Little children can swallow small components with sharp edges, with fatal results! Do not allow components to reach small children.
-
Page 8: Safe And Correct Soldering
English LED-Control 3. Safe and correct soldering Caution: Incorrect soldering can cause dangers through fires and heat. Avoid these dangers by reading and following the directions given in the chapter Safety instructions. Use a small soldering iron with max. 30 Watt. Keep the soldering tip clean so the heat of the soldering iron is applied to the solder point effectively. -
Page 9: Operation Overview
LED-Control English 4. Operation overview Basic LED Control On the PCB are integrated a constant current source, a rectifier and connecting points for a bridging capacitor. Constant current source: A transistor ensures, that during operation a constant current of approximately 20 mA is available. This allows LEDs to be connected directly without series resistors. - Page 10 English LED-Control Connecting train rear lanterns Basic When using the LED Control with the train rear lighting (ZSB-2) it is recommended to connect each LED (train rear lantern) via a PCB to the carriage´s back board. It is possible as well to connect several train rear lanterns or one train rear lantern and further LEDs in series to one Basic LED Control...
-
Page 11: Technical Specifications
LED-Control English 5. Technical specifications Supply voltage analogue a.c. or d.c. voltage or digital voltage Minimum voltage appr. 3 V (yellow, red, green LEDs) or 4 V (white, blue LEDs) Maximum voltage 20 V a.c. voltage or 24 V d.c. digital voltage Current consumption (appr.) 20 mA Connection for buffer capacitor... -
Page 12: Connections
English LED-Control 6. Connections Preliminary work Before mounting the PCB into the vehicle you should carry out all required soldering: wires for the connection to the power supply; if required: connecting wires for external LEDs; if required: additional bridging capacitor; ... - Page 13 LED-Control English Connection to (analogue) d.c. voltage When connecting the PCB to (analogue) d.c. voltage, you have to observe the connections´ polarity. The LEDs shine in one direction of travel only when connected to (analogue) d.c. voltage. If they have to work in both directions of travel, mount an additional bridge rectifier (e.g.
- Page 14 English LED-Control Connecting LEDs You can connect one LED or several LEDs in series directly (without Basic series resistor) to one LED Control . The maximum number of LEDs you can connect to one PCB depends on the voltage supplied and the fluorescent colour of the LEDs.
- Page 15 LED-Control English Connect the LED(s) according to the connection diagramm to the connecting points X1 and Connecting train rear lanterns: Caution: The LEDs shaped like train rear lanterns have to be mounted according to the connection diagram! The longer lead is not in general the anode (+)! Mounting the train rear lanterns In order to fix a LED shaped like a train rear lantern safely, it is...
- Page 16 English LED-Control Note: The LED should be mounted with a small distance to the back of the carriage like in reality. Use a match as a spacer while mounting the LED. Info: Electrolytic capacitors Electrolytic capacitors are often used to store energy. One of the two leads is marked with a minus sign which indicates the mounting orientation.
-
Page 17: Check List For Troubleshooting
LED-Control English 7. Check list for troubleshooting Parts are getting very hot and/or start to smoke. Disconnect the system from the mains immediately! Possible cause: The connections to the power supply are connected the wrong round. à Check the connection. In this case the PCB and the connected LEDs are probably damaged irreparably. -
Page 18: Guarantee Bond
English LED-Control 8. Guarantee bond For this product we issue voluntarily a guarantee of 2 years from the date of purchase by the first customer, but in maximum 3 years after the end of series production. The first customer is the consumer first purchasing the product from us, a dealer or another natural or juristic person reselling or mounting the product on the basis of self- employment. -
Page 19: Declaration Of Conformity
LED-Control English 9. Declaration of conformity This product conforms with the EC-directives mentioned below and is therefore CE certified. 2004/108/EG on electromagnetic. Underlying standards: EN 55014-1 and EN 61000-6-3. To guarantee the electromagnetic tolerance in operation you must take the following precautions: ... - Page 20 Information and tips: http://www.tams-online.de Warranty and service: Tams Elektronik GmbH Fuhrberger Straße 4 DE-30625 Hannover fon: +49 (0)511 / 55 60 60 fax: +49 (0)511 / 55 61 61 e-mail: modellbahn@tams-online.de...
