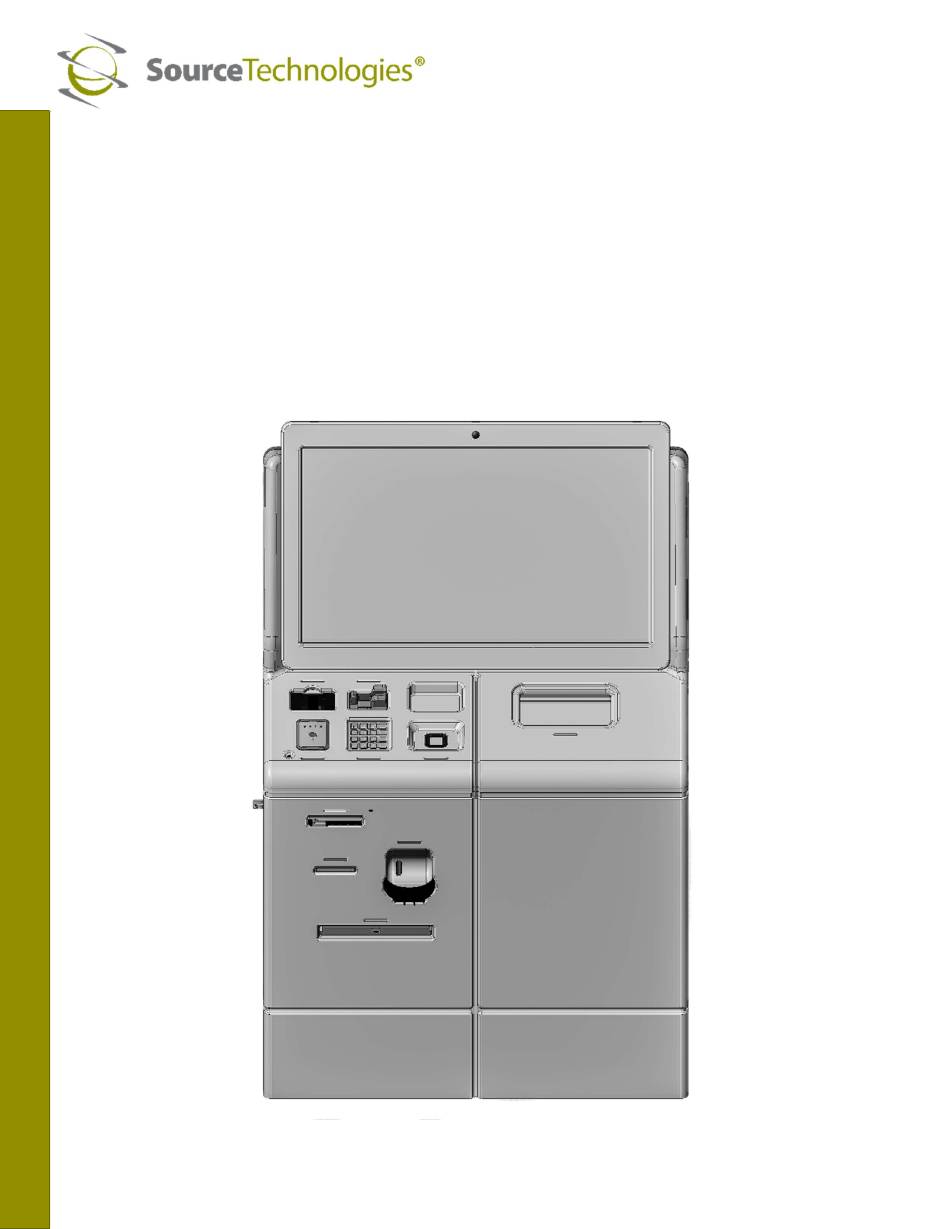

- Page 1 Series-10 Kiosk Hardware Verification Manual Series-10 Kiosk Hardware Verification Manual | Source Technologies...
-
Page 2: Notice
NOTICE Notice Copyright © 2020 by Source Technologies. All rights reserved. No part of this document may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying, recording or by any information storage and retrieval system, without permission in writing from Source Technologies. -
Page 3: Operational Safety Information
The kiosk must be properly shut down and then disconnected from the AC power supply before connecting signal cables to a host computer. This kiosk is suitable for connection to IT power systems. Series-10 Kiosk Hardware Verification Manual | Source Technologies... - Page 4 Le kiosque doit être correctement fermé puis déconnecté de l'alimentation secteur avant de connecter les câbles de signal à un ordinateur hôte. Ce kiosque est approprié pour la connexion à des systèmes d'alimentation informatique. Series-10 Kiosk Hardware Verification Manual | Source Technologies...
-
Page 5: Fcc Statement
This Class A digital apparatus complies with Canadian ICES-003. Series-10 Kiosk Hardware Verification Manual | Source Technologies... - Page 6 L'utilisation de l'équipement dans une zone résidentielle est susceptible de causer des interférences nuisibles, auquel cas l'utilisateur devra corriger ces interférences à ses propres frais. Cetappareilnumérique de la classe A estconforme à la norme NMB-003 du Canada. Series-10 Kiosk Hardware Verification Manual | Source Technologies...
-
Page 7: Important Laser Safety Notice
24, 2007, and EN60825-1:1994+A1:2002+A2:2001 and IEC60825- 1:1993+A1:1997+A2:2001. Any changes or modifications to Source Technologies equipment, not expressly approved by Source Technologies, could void the user’s authority to operate the equipment. Use of controls, adjustments or performance of procedures other than those specified... -
Page 8: Important Battery Safety Notice
Dispose of used WARNING batteries according to the battery manufacturer’s instructions. Source Technologies does not consider the battery a user- replaceable item. Battery replacement should only be performed by a Source Technologies’ authorized repair CAUTION technician at an authorized repair facility. -
Page 9: Table Of Contents
3.9 Kiosk Controller ....................23 3.10 Camera ......................24 3.11Receipt Printer ....................25 3.12 Check Printer ....................25 CHAPTER 4 – CONTACT INFORMATION ............26 Technical Support ....................26 Contact Procedure ....................26 Series-10 Kiosk Hardware Verification Manual | Source Technologies... -
Page 10: Chapter 1 - Product Overview

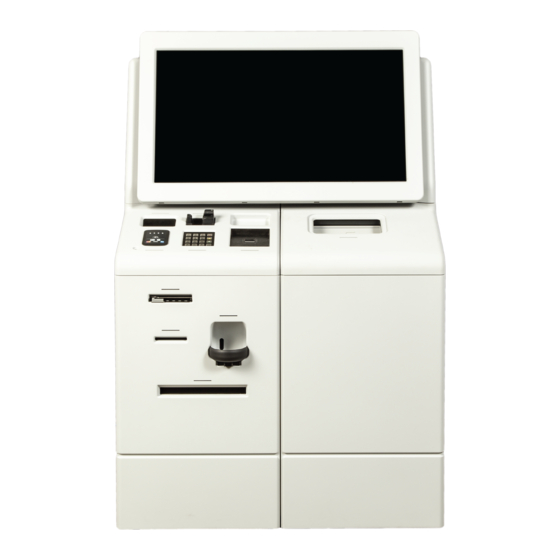

PRODUCT OVERVIEW CHAPTER 1 – PRODUCT OVERVIEW Kiosk Description Source Technologies Series-10 kiosk is a next-generation, self-service platform designed from the ground up to manage secure, distributed financial transactions and consumer banking. Kiosk Features and Options Series-10 Components Camera Receipt Printer... -
Page 11: Rear View Kiosk Features And Option
PRODUCT OVERVIEW Rear View Kiosk Features and Option Rear View Power Cord Check Printer Connect Network Connect UPS (inside) Series-10 Kiosk Hardware Verification Manual | Source Technologies... -
Page 12: Materials Needed
Test checks: one business and one personal (Provided in accessory kit) Cash and Coins to test cash handlers Test card that has chip embedded for chip card reader Paper for Laser Printer Device Tester application (Included in image) Series-10 Kiosk Hardware Verification Manual | Source Technologies... -
Page 13: Chapter 2 - Getting Started
See Operator’s Manual for powering on the unit. Not all test options are applicable for every series 10 kiosk 1. Open Device Tester located on the Desktop 2. When executed, the Device Tester application will appear as shown. Series-10 Kiosk Hardware Verification Manual | Source Technologies... -
Page 14: Chapter 3 - Verification Test
Series-10 Kiosk Hardware Verification Manual | Source Technologies... - Page 15 Enter PIN, then press ENT. Pin must be 4 digits. GetKey return= 1 len-1 flag=False * GetKey return= 1 len1= flag=False * GetKey return= 1 len=1 flag=False * GetKey return= 1 len=1 flag=False * GetKey return= 1 len=36 flag=True 6299490000000000000A5832A9E9EFCAFB9D Series-10 Kiosk Hardware Verification Manual | Source Technologies...
-
Page 16: Cryptera Pin Pad
1. Under the PIN Pads tab, tap the Cryptera button. 2. Tap the activate button to activate the pin pad. If the button is grayed out, then you can move on to the next step. Series-10 Kiosk Hardware Verification Manual | Source Technologies... -
Page 17: Mag Stripe/Chip Card Reader
3.3 Mag Stripe/Chip Card Reader 1. Under the Card Readers tab, tap Mag Stripe/Chip button. Connected to anti-skimming model Model number: ICM37A-3R1896 Serial number: B9100005 Firmware versions Supervisor: 5063-01B User: 5104-01C Emv2000: 5066-01A Series-10 Kiosk Hardware Verification Manual | Source Technologies... - Page 18 User: 5104-01C EMV2000: 5066-01A Insert card Answer to Reset: 3B 6E 00 00 80 31 80 66 B1 A3 01 01 21 0A 83 00 90 00 ICC verify command response 68 81 Series-10 Kiosk Hardware Verification Manual | Source Technologies...
-
Page 19: Nfc Reader
2. Tap the Read Card button and place any NFC compatible device over the top of the NFC reader. (Ex. Using Apply Pay) Touch card to reader ------list DataReceoved Online transaction approved Series-10 Kiosk Hardware Verification Manual | Source Technologies... -
Page 20: Check Scanner
Test 1 complete Bin not full ST 101839 BUSSINESS SIZE TEST CHECK Printer: ST9512 “12345”123456780”01234”56789” Series-10 Kiosk Hardware Verification Manual | Source Technologies... -
Page 21: Barcode/Image
Scan ID. A snapshot of the image ID will show up in the lower right box. Scanner model number: DS457-SR20004ZZWW serial number: 19058000500155 firmware: PAAD0S00-002-R06 mfg date: 28FEB19 SDK version: 3.3.12 UPC-A: 012345678905 Series-10 Kiosk Hardware Verification Manual | Source Technologies... -
Page 22: Fujutsu G750 Recycler
5. Tap the Dispense button to dispense cash out of the unit. You can change the amount of cash you want to dispense by changing the value indicated by the green box. Series-10 Kiosk Hardware Verification Manual | Source Technologies... -
Page 23: Telequip Coin Dispenser
Serial number: 31KJ422513 4. To dispense a specific amount of coins, change the cents box, indicated by the blue box change the value to the desired amount and tap the Dispense Amount button. Series-10 Kiosk Hardware Verification Manual | Source Technologies... -
Page 24: Kiosk Controller
6. Tap the Climate button to check the temp. around the kiosk controller indicated by the orange box on the next page Series-10 Kiosk Hardware Verification Manual | Source Technologies... -
Page 25: Camera
VERIFICATION TEST 3.10 Camera 1. Under the Miscellaneous tab, tap the Camera button. 2. Tap the Take Picture button to take a picture. 3. Image will be displayed in the right-hand box. Series-10 Kiosk Hardware Verification Manual | Source Technologies... -
Page 26: Receipt Printer
3. Tap the Direct to USB button to print a USB receipt. USB Driver Receipt Direct USB Receipt 3.12 Check Printer 1. Under the Printers tab, tap the Check Printer button. 2. Tap the Use Driver button to print a test page. Series-10 Kiosk Hardware Verification Manual | Source Technologies... -
Page 27: Chapter 4 - Contact Information
CONTACT INFORMATION CHAPTER 4 – CONTACT INFORMATION Source Technologies Attn.: Inside Sales 11401A Granite Street, Charlotte, NC 28273 800.922.8501 (Voice) 704.522.8579 (Fax) www.sourcetech.com Technical Support Contact Procedure Before contacting Technical Support, please gather the following information: 1. Kiosk serial number and REV level.
