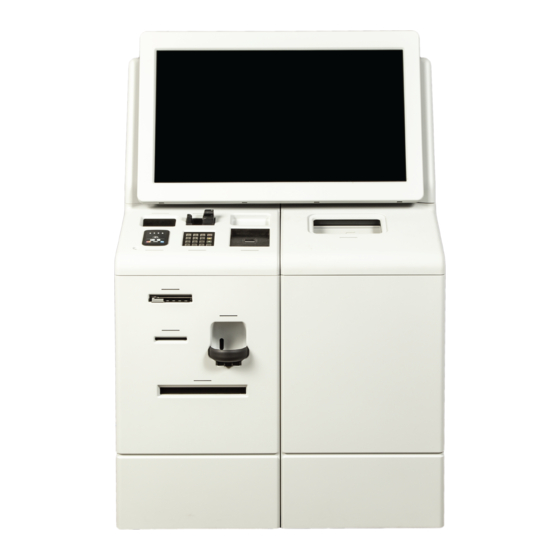

Source Technologies 10 Series Technical Bulletin
Cash recycler jam clearance
Hide thumbs
Also See for 10 Series:
- Installation manual (37 pages) ,
- Operator's manual (105 pages) ,
- Manual (27 pages)
Subscribe to Our Youtube Channel
Related Manuals for Source Technologies 10 Series
Summary of Contents for Source Technologies 10 Series
- Page 1 Technical Bulletin 10-Series Kiosk Cash Recycler Jam Clearance Revision A 10-Series Kiosk Cash Recycler Jam Clearance | Source Technologies...
- Page 2 Mention of trade names or commercial products does not constitute endorsement or recommendation for use by Source Technologies. Final determination of the suitability of any information or product for use contemplated by any user, and the manner of that use, is the sole responsibility of the user.
- Page 3 To quickly locate and clear jams, it is best to understand the bill transport layout and the various paths and directions that bills take during the different cash handling operations. • Complete Bill Path P a g e 10-Series Kiosk Cash Recycler Jam Clearance | Source Technologies...
- Page 4 2. Cash Return: If the customer decided to cancel their deposit bills are moved from the Escrow back to the Pocket for customer retrieval. P a g e 10-Series Kiosk Cash Recycler Jam Clearance | Source Technologies...
- Page 5 If the Bill Validator believes that there is a problem with a bill (two bills stuck together) it will send the suspect bills to the Reject bin. P a g e 10-Series Kiosk Cash Recycler Jam Clearance | Source Technologies...
- Page 6 Warnings alert you to possible safety risks. • Be aware of possible pinch points when working with the 24-hour safe as doors are heavy P a g e 10-Series Kiosk Cash Recycler Jam Clearance | Source Technologies...
- Page 7 Use cabinet key to unlock the component cabinet. Open the Safe Door and then top door of the 24-Hr safe. Open Both Front and Top Safe Doors P a g e 10-Series Kiosk Cash Recycler Jam Clearance | Source Technologies...
- Page 8 LATCH B-25 until it is fully extended. NOTE: HANDLE Pull unit by latch or handle only. Clearing of Jams Figure 1a: Recycler Sections P a g e 10-Series Kiosk Cash Recycler Jam Clearance | Source Technologies...
- Page 9 How To Locate And Clear Jams Figure 1b: Recycler Sections UPPER UNIT SHUTTER UNIT BILL TRANSPORT VALIDATOR ESCROW Figure 1c: Opening the Upper Unit, Shutter Unit and Escrow P a g e 10-Series Kiosk Cash Recycler Jam Clearance | Source Technologies...
- Page 10 How To Locate And Clear Jams Shutter Unit Cash Pocket 1) Turn the Shutter Door knob until the shutter door is fully open and remove jammed notes. 2) Open Shutter Unit (see Fig 1c) and remove any jammed notes. If notes are hard to remove, turn knobs (B-1, B-2) to move the note retainer until the notes are able to be removed.
- Page 11 (B-6) to feed the note. 3) Press the lever (17) and close the Bill Validator until it is locked. 10 | P a g e 10-Series Kiosk Cash Recycler Jam Clearance | Source Technologies 10-Series Kiosk Cash Recycler Jam Clearance | Source Technologies...
- Page 12 1) Open the Escrow transport lid (B-15) and removed any jammed notes. If the note is difficult to remove, turn the knob to move the note retainer. 11 | P a g e 10-Series Kiosk Cash Recycler Jam Clearance | Source Technologies...
- Page 13 Lift the middle transport (B-24) and remove any jammed notes. If the note cannot be removed, turn knob (B-6) and feed the note until it is accessible. 12 | P a g e 10-Series Kiosk Cash Recycler Jam Clearance | Source Technologies...
- Page 14 Rear Transport. (b) Lift the lock lever (62) to the arrowed direction. (c) Move the rear Transport downward slowly until it is locked. 13 | P a g e 10-Series Kiosk Cash Recycler Jam Clearance | Source Technologies...
- Page 15 3) Remove each currency cassette and align any untidy notes. Reject Bin 1) Open the Reject Bin and check for jammed notes. 14 | P a g e 10-Series Kiosk Cash Recycler Jam Clearance | Source Technologies...
- Page 16 NOTE: Cleaning and inspection of the cash recycler must be performed by properly trained and qualified service personnel. 15 | P a g e 10-Series Kiosk Cash Recycler Jam Clearance | Source Technologies...
-
Page 17: Contact Information
Contact Information CONTACT INFORMATION Source Technologies 4205B Westinghouse Commons Drive, Charlotte, NC 28273 800.922.8501 (Voice) 704.522.8579 (Fax) www.sourcetech.com TECHNICAL SUPPORT - CONTACT PROCEDURE Before contacting Technical Support, please gather the following information: 1. Kiosk serial number 2. Contact name of person at the site 3.
