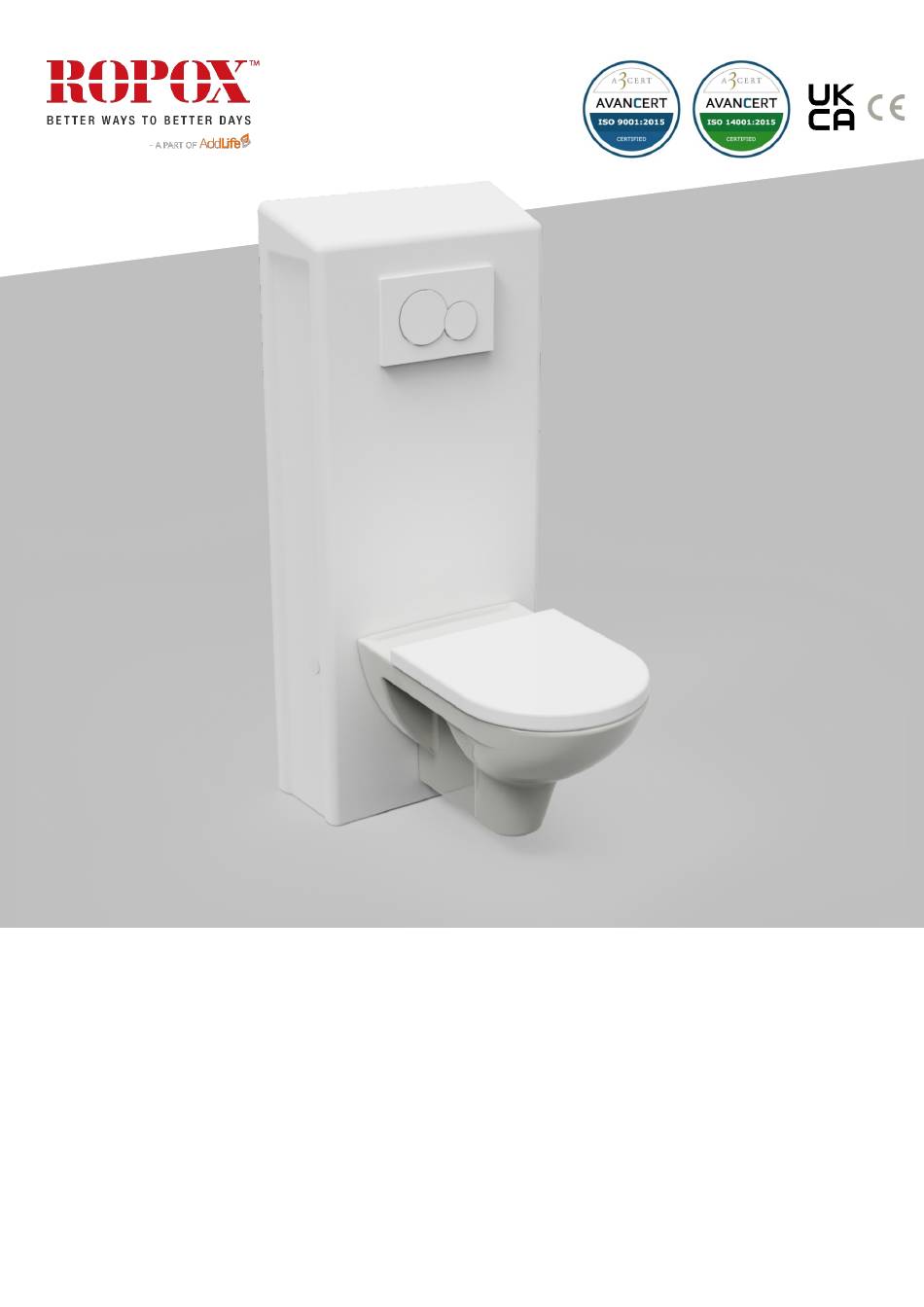

- Page 1 ROPOX Toilet lifter Electric User manual This manual should always be in close proximity of the product TF 200.11.0006 ENG / Date 03-05-2023...
-
Page 2: Table Of Contents
Table of content Symbols used in this manual ......................4 General safety ............................. 4 Product Unit label........................6 General requirements ......................... 7 3.1 Product information ........................7 3.2 Product description ........................8 3.3 Intended use ..........................8 3.4 Intended operator ........................8 3.5 Essential performance ...................... - Page 3 10.1 Suitable Environments .....................31 10.2 Adjacent and stacked use ....................31 10.3 Cables ..........................31 10.4 RF portable equipment .....................31 11. Accident reporting ..........................32 TF 200.11.0006_eng...
-
Page 4: Symbols Used In This Manual
1. Symbols used in this manual Warning! Indication of potentially hazardous situation. If not avoided, it can result in serious injury or death. Caution! Indication of potentially hazardous situation which may result in minor or moderate injury. It may also be used to alert against unsafe practices. Notification! This symbol is used to notify correct use and handling of the product. - Page 5 Do not perform repairs, disassembly or assembly operations, add-ons, re-adjustments or modification of the product beyond what is described in this manual. These must be carried out by Ropox or Ropox authorized personnel. Do not perform service while in use. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if...
-
Page 6: Product Unit Label
2.1 Product Unit label Toilet Lifter Electric Height adjustment 40-65 cm This product is UKCA-marked in accordance with: UK SI 2002 No. 618 - The Medical Devices Regulations 2002, and its amendments This product is CE-marked in accordance with: European Medical Device Regulation (EU)2017/745 Council Directive 2006/42/EC on machinery Council Directive 2011/65/EU, RoHS Manufacturer name and address... -
Page 7: General Requirements
3. General requirements 3.1 Product information Manufacturer Ropox A/S Ringstedgade 221, DK-4700 Naestved +45 55 75 05 00 Email: Info@ropox.com Product models Part number Model Configuration 40-45027 Toilet lifter Electric Floor drain 40-46027 Toilet lifter Electric Wall drain Expected service life 5 years MDR Class Class I... -
Page 8: Product Description
3.2 Product description The ROPOX toilet lifter electric can be set in heights ranging from 400-650mm by the use of the wireless handset. Height adjustment will meet different sitting height needs various patient heights. 3.3 Intended use The ROPOX height adjustable toilet lifter is intended to be used in both homecare and professional healthcare environments. -
Page 9: Instructions For Use
4. Instructions for use 4.1 Installation of product The following instructions describe how to assemble and mount the toilet lifter, as well as optimal placement of water, electrical and drain, based on whether the toilet lifter with floor drain or wall drain has been purchased. -
Page 10: Installation Interface For Wall Drain
4.1.3 Installation interface for wall drain For 40-46027 For the toilet lifter with a wall drain, it’s recommended to place the drain within the hatched area, not deviating further than the shown tolerances. This ensures the best flushing. NB! All dimensions in mm Ropox supplied toilets Shortening of ferrule Shortening of flush pipe... -
Page 11: Construction
4.1.4 Construction Note! The toilet lifter is supplied with a set of 6 screws and rawlplugs suitable for mounting in a concrete wall. The fitter should always consider the material, condition, and strength of the wall and use screws and rawlplugs suitable for the specific wall type. Caution! Maximum pulling force per screw is 44kg, at 400kg max user weight according to ISO 17966: 2016... -
Page 12: Mounting The Product
4.1.5 Mounting the product Line up frame with adjustment screws. Mark out 6 holes and drill holes for appropriate rawlplugs. Ensure that the center of the bottom 2 holes is at least 130mm above the floor Connect water hose on wall outlet and electric outlet before securing frame to the wall Secure frame to wall. - Page 13 For 40-45027 If drain is in floor, mount the drain bellow as instructed below. The examples given below to the left, are configurations that will work, but as a general rule, the installation interface in 4.1.2 should be followed. Make sure the bellow is not twisted Mount the bellow as shown below for correct flow TF 200.11.0006_eng...
- Page 14 For 40-46027 If drain is in wall, mount the drain bellow in wall drain, mount the accompanying brackets on the wall, so that the toilet flange is held in place Make sure the bellow is not twisted TF 200.11.0006_eng...
-
Page 15: Pair The Bluetooth Remote
4.1.6 Pair the Bluetooth remote Before continuing to mount the toilet lifter, it’s important to test the functionality of its travel. This is done by pressing up or down on the remote control, then drive the full stroke. If the toilet lifter doesn’t react, it means that the control must be paired to the lifter. - Page 16 4.1.5 … continued Cut threaded rods to length and secure them in the frame Mount inner cover 1 and 2 TF 200.11.0006_eng...
- Page 17 Before mounting inner cover 2, if the extension covers have been purchased, these must be mounted beforehand. See 4.4.5 Mount outer cover (if the version with fixed control in the top of the cover is being installed, please jump to section 4.4.4 – mounting of fixed control in top of cover) If the extension covers have been purchased, these must be mounted before the outer cover.
- Page 18 Shorten ferrule and flush pipe to length and mount them. Mount the toilet and press pad. Finish the installation by checking the following: 1. Rigidity test, sit on the toilet and check screw connections are firm. 2. Check that full travel of the product goes unhindered. 3.
-
Page 19: Operating The Product
4.2 Operating the product Operating the product is done by using the remote. Warning! The product should always be able to travel the full range of actuation without colliding with objects. Failing to do so will compromise the product stability. Special care should be taken in ensuring that no children or adults are sited under the product as severe injury from entrapment may occur. -
Page 20: Installation Of Accessories
4.4 Installation of accessories 4.4.1 Installation of height adjustable toilet support arms Attach housing to the profile with 3x M6x12 and 1x M6x16. Use a locking nut on M6x16. Make sure that the plastic cover is pressed as far onto the frame as possible. Mount 2x M6 buttonhead screws in the back holes on both sides. - Page 21 Slide the assembly onto the two screw heads and attach the assembly with the two M6x30 as shown. If need be, the two M6x30 can be loosened, and the support arms can be adjusted in height to better fit the user. The screws must be fastened after adjustment. TF 200.11.0006_eng...
- Page 22 Test the toilet support arms in the horizontal direction. If they can twist significantly, dismount the assembly and leave <5mm between the underside of the screw head to the plastic cover. There should be no clearance between the aluminum bracket and plastic cover. Adjust until the support arms are properly fastened.
-
Page 23: Installation Of Backrest
4.4.2 Installation of backrest If Ropox Back Support long is ordered together with Ropox Toilet Lifter, there will be pre-drilled holes in the cover cap. If the back support is ordered later for subsequent mounting, new holes must be drilled. Please see the dimension drawing for the location of holes. -
Page 24: Installation Of Bidet
4.4.3 Installation of bidet To mount Svancare Bidet Elegant, see TF 200.01.0025. 4.4.4 Mounting of fixed control in top of cover Place the cover on the floor close to the lifting unit. Certain parts of this procedure can be easier if the lifting unit is in its top position. - Page 25 Guide the cable along the front of the lifting unit and pull it behind the cross bar below the cistern, as indicated on the illustration. dismount the control box from the lifting unit and insert the plug for the fixed control. Close the lid and re-attach the controlbox Use the attached strips to secure the wire to the belt as indicated.
-
Page 26: Installation Of Extension Cover
4.4.5 Installation of extension cover Only fits outer cover with slanted top! If the extension cover has been ordered, it must be mounted prior to mounting the original covers. The extension cover comes disassembled to make transport and disposal easier. It’s mounted onto the original covers by clamping it on, then fastening it with set screws. -
Page 27: Increased Crushing Safety, Accessory
Mount the large sides Continue mounting as normal, see 4.1.5f. 4.4.6 Increased crushing safety, accessory Not for retrofitting, must be purchased with the lifter! If need be, the Toiler lifter can be ordered with increased crushing safety, such that items underneath won’t be crushed, when driving down. -
Page 28: Troubleshooting
5. Troubleshooting Check pairing of remote (4.1.6) Product doesn’t work Check that all wires are pressed into the sockets Check batteries of remote Product stopped working Check if the power is plugged in Check battery power Handcontrol doesn’t work Follow the unlocking procedure (4.1.7) Follow the pairing procedure (4.1.6) TF 200.11.0006_eng... -
Page 29: Cleaning
6. Cleaning Cleaning can be done with lukewarm water and a suitable all-purpose cleaning agent. Use a cloth or soft sponge to wash the product. Dry the product with a wrung cloth. For surface disinfection, chlorine-based disinfectants may be used in accordance with the product specification and safety precautions for these products, however, not at a solution greater than 1.000 ppm of active chlorine. -
Page 30: Maintenance
7. Maintenance Note! Failing to comply with periodic maintenance may result in degradation of the product function and safety. 7.1 Periodic maintenance Component Maintenance activity Maintenance interval Registration date of maintenance Geberit Sigma 12 Descaling / change of 6-12 months dependent cistern worn components on calcium content in... -
Page 31: Component Parts List
8. Component parts list Note! Ropox will make part lists and circuit diagrams available for extraordinary maintenance and repair beyond what is described in this manual. Repair beyond what is described in this manual may only be done by Ropox designated service personnel. 9. - Page 32 11. Accident reporting The manufacturer of this product recommends any accident with this product that meets all the following criteria reported to the appropriate authority as well as to the manufacturer. 1. There has been or could have been an accident 2.
