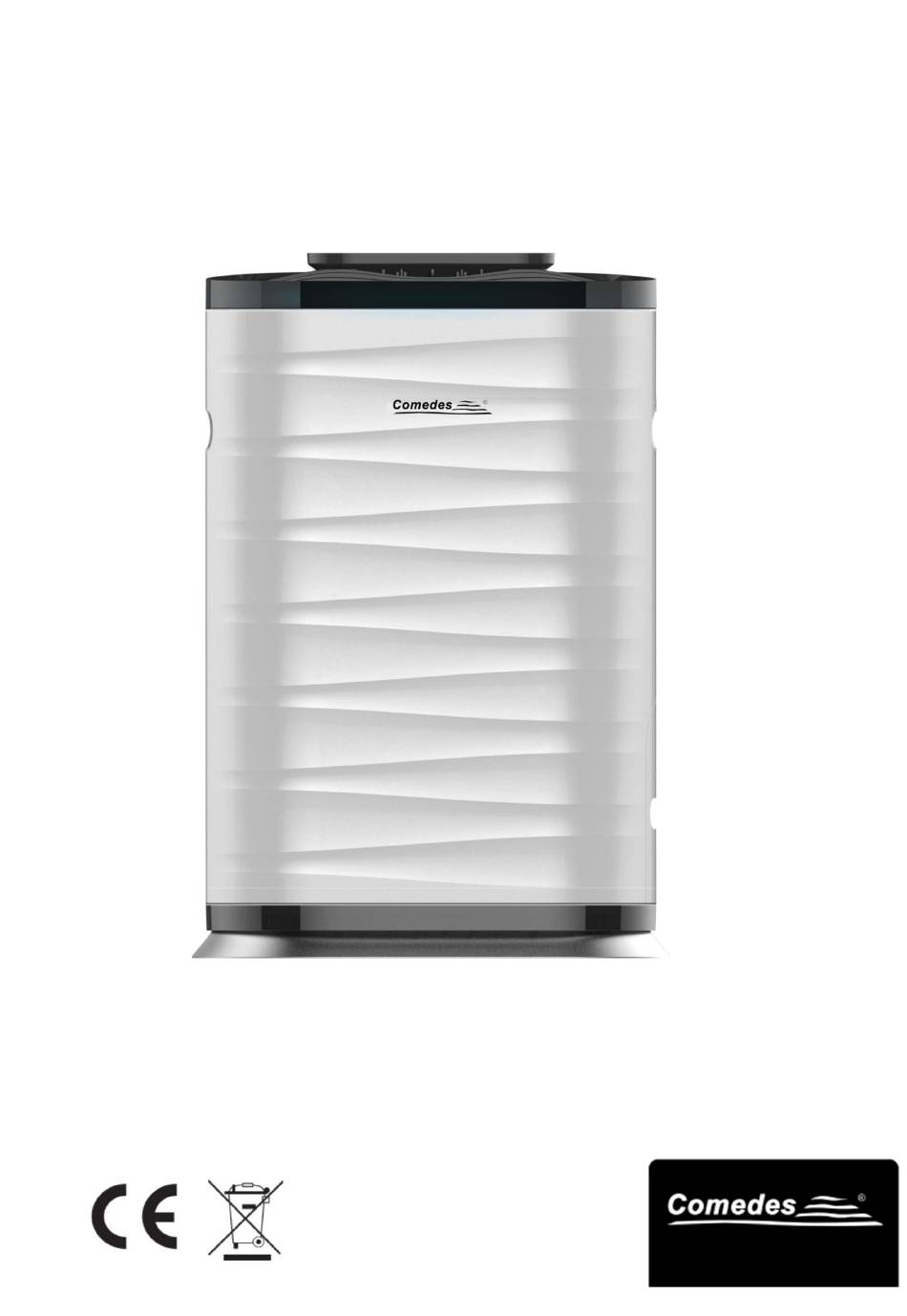

- Page 1 Lavaero 1200...
-
Page 2: Table Of Contents
table of contents foreword....................safety instructions ................Intended Use............. Technical data ..................device description ................Before commissioning................commissioning ..................filter change ................Cleaning the device................Malfunctions and remedies................Further information................ - Page 3 Dear customer, Thank you for choosing the Lavaero 1200 from Comedes GmbH. You have purchased a powerful air purifier designed to the latest technical standards. To ensure that the device will remain your faithful servant over a long period of time, we ask you to study the operating instructions, in particular the safety instructions, in detail.
-
Page 4: Safety Instructions
Read the instructions carefully before commissioning. Failure to follow the safety instructions and instructions may result in electric shock, fire and/or serious injury. Keep all safety instructions and instructions for the future. Watch your step! Do not open the device until the mains plug has been disconnected from the mains socket. - Page 5 Do not insert any objects (especially metallic objects) or your fingers into the air inlets and outlets of the device. This could result in electric shock and injury. Never use hairsprays, thinners or flammable gases in the vicinity of the device, as there is a risk of fire and explosion.
-
Page 6: Intended Use
fire hazard. ◦ Disconnect the device and clean the plug with a dry cloth. ◦ If the device will not be used for a longer period of time, disconnect it. Always disconnect the unit before moving, cleaning or cleaning/replacing the filter. ... -
Page 7: Technical Data
Technical data Product name: Comedes Lavaero 1200 Tension: 220-240V / 50/60 Hz Nominal power: Air flow rate: 600m³/h Ionization: 10,000,000 ions/cm³ Timer (hours): 1-12 Weight: 10,5 kg Dimensions (W*H*T): 479*710*269 mm Noise emission: max 69dB(A) device description... - Page 8 front view side view rear view Control panel/display display turbo mode control Optimal for panel cigarette smoke remote control A button cell Lithium Cell CR2032, 3V is required for the remote control.
-
Page 9: Before Commissioning
(Not included in delivery.) AUTO power unlock timer Speed + Speed lure Filter Reset turbo sleep Before commissioning Remove the filter element from the unit, remove the protective film and reinsert it into the unit. Follow the steps in the chapter "Filter change". The combination filter should normally be changed every 6-9 months. - Page 10 To switch from automatic mode to turbo mode, press the turbo button. PM2.5 air quality Display fan stage (µg/m³) Very good 1-70 green good 71-180 Blue normal 181-300 Yellow 301-500 timer With the timer you can set the running time of the device. Times between 1 and 12 hours can be selected.
-
Page 11: Filter Change
"UNLOCK" button. Filter change indicator and filter reset The Comedes Lavaero 1200 has a modern filter change indicator. If the corresponding symbol lights up, the filters must be checked/changed. After you have changed or cleaned the filters, you can reset the display by pressing the filter reset button. -
Page 12: Cleaning The Device
Make sure that the filter is inserted with the tab facing outwards. When inserting the prefilter, make sure that the front and rear sides of the filter are different. The filter is inserted correctly when the central handle is pointing outwards. Finally, replace the filter cover. -
Page 13: Malfunctions And Remedies
Finally, replace the cover of the air quality sensor. • Malfunctions and remedies Current operating instructions can be found at http://www.comedes.com Turn off the unit immediately and contact your dealer if any of the following problems occur: Fuse's blown. •... -
Page 14: Further Information
The device cannot be switched on: Is the plug inserted correctly? • Has the fuse blown or is there no voltage at the socket? • Isn't the device upright or has it been put down? • Is the filter cover fitted correctly? •... - Page 15 HEPA Filter The HEPA (High Efficiency Particulate Airfilter) medium is able to remove even the smallest particles from the room air. The filtration is carried out by means of mechanical filtration and particle filtration by adhesion forces. ionizer In the last step, the air finally flowing out of the device is mixed with a small quantity of negatively charged ions.
- Page 16 This product must not be disposed of with household waste. This air purifier must be disposed of at a recycling point for electronic and electrical equipment. You can obtain further information about the relevant acceptance points from your local authority or city administration, or from Comedes GmbH.
