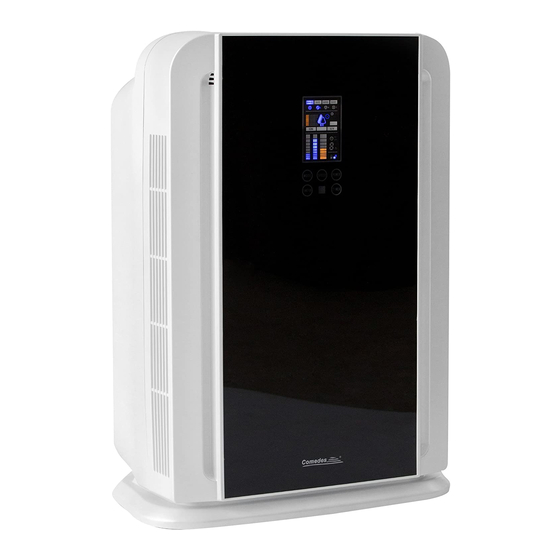

Air purifier
LR 700

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LR 700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Comedes LR 700

Summary of Contents for Comedes LR 700

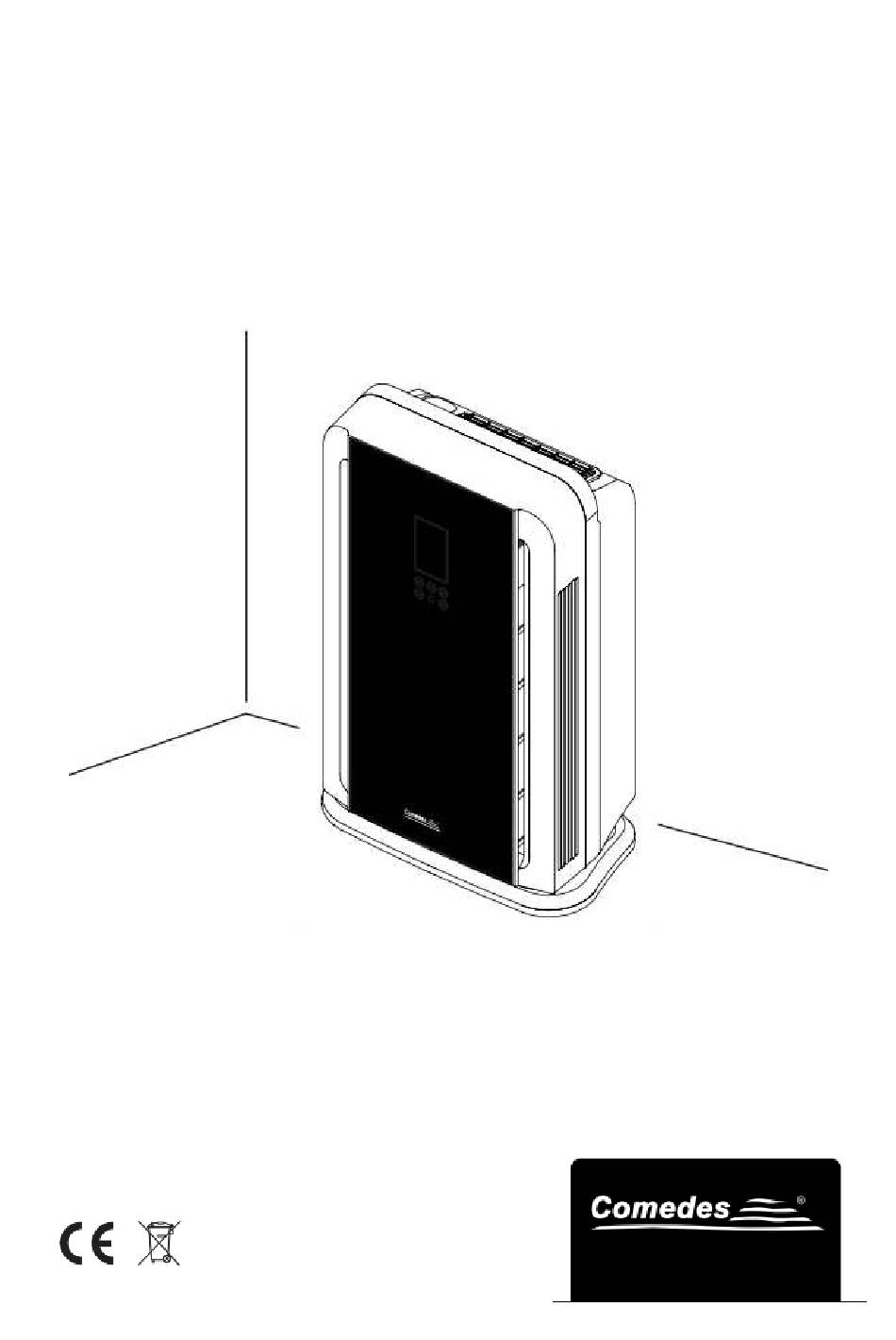

  • Page 1 Air purifier LR 700...

  • Page 2: Table Of Contents

    Table of Contents Foreword........................3 Safety information .......................4 Intended use ......................5 Technical data ......................6 Layout ........................6-7 Before starting up....................... 8 Starting up ......................8-9 Changing the filter ....................10-11 Cleaning the device ....................12 Faults and troubleshooting ..................12 Tips on purifying the air in cases of cigarette smoke and problems with pollen or household dust ..............

  • Page 3: Foreword

    Thank you, that you have chosen the Comedes LR 700 air purifier, which has been manufactured according to the newest technology available. The air purifier LR 700 is equipped with a multilevel filter system, which has been developed according to the newest technology available. The ionizer converts positive air-particle to negatives (like air is cleaned while a thunderstorm).

  • Page 4: Safety Information

    WARNING: Be sure to read the instructions before using for the first time. Any errors made in following the safety information and instructions may result in an electric shock, fire and/or serious injury. Keep all the safety information and instructions in a safe place for future use. Important: Make sure that the power plug is removed from the socket outlet before opening the device.

  • Page 5: Intended Use

    Intended use The air purifier is designed only for use for purifying the air in privately used rooms (e.g. living rooms, bedrooms, storage areas or basements). The user must observe all the operational parameters specified in this manual. The device is allowed to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse.

  • Page 6: Technical Data

    Technical data Product name: Comedes LR 700 Voltage: 220-240V ~ 50 Hz Power consumption: 100W Air throughput: 300 m³/h Timer (hours): Ionization: Ionen/cm³/s Weight: 12,5 kg Dimensions (WxHxD): 480 x 260 x 665 mm Room size: max. 50 m² Noise: l <...
  • Page 7 Control Panel Figure 3: Operating mode ON/OFF display Airflow UV-display Ion display Timer-display Sensor dislay Child-proof lock display ON/OFF Operating mode Timer setting UV/ION switch Fan speed Remote Control The remote control requires a 3 V lithium cell CR2025 button cell. (Not supplied) Sender ON/OFF Child-proof lock...

  • Page 8: Before Starting Up

    Before starting up IMPORTANT: Make sure that the power plug is removed from the socket outlet before opening the device. Electric shock can cause fatal injury. Have repairs carried out only by an authorized workshop. Take the filter out of the unit, take off the plastic sheeting and insert it back in the device. The main filter should normally be changed every 6-9 months.
  • Page 9 Function • This Switch is for switching the UV light and the ionizer on and off. You can switch the UV and the Ion on/off in manual-, sleep- and automatic mode. In super mode, both functions are automatically on. UV-light •...

  • Page 10: Changing The Filter

    Changing the filter Changing the main filter: The frequency with which the filter has to be changed depends, of course, on the amount of contamination and use. As a general rule it should normally be changed every 6-9 months. Change the filter if the following problems arise: The performance of the fan drops and the noise level increases at the same time.
  • Page 11 • If the comparison of the colors shows that the filter needs to be changed, then change the filter. Replacement filters can be ordered at www.comedes.com. • The filter change indicator only works in a normal home environment. You may have to change the filter earlier if smoke or odor levels are higher.

  • Page 12: Cleaning The Device

    For information on how to remove the filter, please refer to the section “Before starting up” at the very beginning of this manual. Faults and troubleshooting For our latest operating instructions please go to http://blog.comedes.com Switch off the device immediately and contact your dealer if any of the following problems occur: •...

  • Page 13: Tips On Purifying The Air In Cases Of Cigarette Smoke

    Tips on purifying the air in case of cigarette smoke Cigarette smoke is comprised of a large range of complex chemical compounds. For the air purifier these are essentially divided into the solid and gaseous components of the smoke. The solid smoke particles are filtered out by the HEPA filter.
