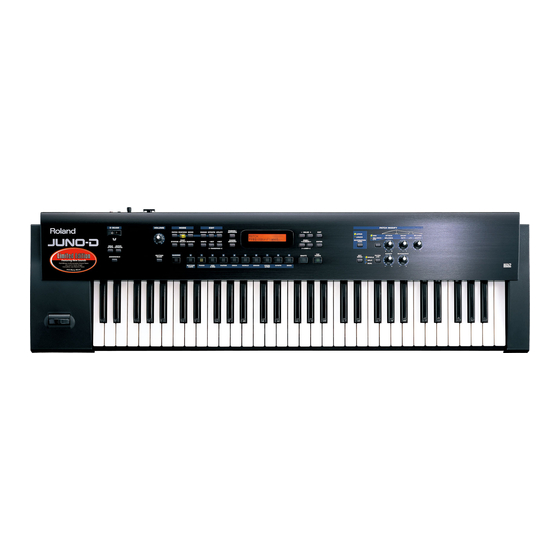

Roland Juno-D Midi Implementation Manual

Model: JUNO-D
1. Receive data
■ Channel Voice Messages
* Not received in Performance mode when the Receive Switch parameter (PERFORM
PART) is OFF.
● Note off
Status 2nd byte
8nH kkH
9nH kkH
n = MIDI channel number: 0H - FH (ch.1 - 16)
kk = note number: 00H - 7FH (0 - 127)
vv = note off velocity: 00H - 7FH (0 - 127)
● Note on
Status 2nd byte
9nH kkH
n = MIDI channel number: 0H - FH (ch.1 - 16)
kk = note number: 00H - 7FH (0 - 127)
vv = note on velocity: 01H - 7FH (1 - 127)
● Control Change
❍Bank Select (Controller number 0, 32)
Status 2nd byte
BnH 00H
BnH 20H
n = MIDI channel number: 0H - FH (ch.1 - 16)
mm, ll = Bank number: 00 00H - 7F 7FH (bank.1 - bank.16384)
* Not received in Performance mode when the Receive Bank Select (PERFORM PART) is
OFF.
* The Performances, Patches, and Rhythms corresponding to each Bank Select are as
follows.
+—————+———————————+———————————+——————————————————————+———————————+
| BANK SELECT | PROGRAM
| MSB | LSB | NUMBER
+—————+———————————+———————————+——————————————————————+———————————+
| 085 | 000 | 001 — 008 | User Performance
| | 064 | 001 — 032 | Preset Performance
| 086 | 000 | 001 — 002 | User Rhythm
| | 064 | 001 — 020 | Preset Rhythm
| 087 | 000 | 001 — 128 | User Patch
| | 064 | 001 — 128 | Preset Patch
| | : |
| | 068 | 001 — 128 | Preset Patch
| 120 | 000 | 001 — 057 | GM Rhythm
| 121 | 000 — | 001 — 128 | GM Patch
+—————+———————————+———————————+——————————————————————+———————————+
❍Modulation (Controller number 1)
Status 2nd byte
BnH 01H
n = MIDI channel number: 0H - FH (ch.1 - 16)
vv = Modulation depth: 00H - 7FH (0 - 127)
❍Portamento Time (Controller number 5)
Status 2nd byte
BnH 05H
n = MIDI channel number: 0H - FH (ch.1 - 16)
vv = Portamento Time: 00H - 7FH (0 - 127)
* The Portamento Time parameter (PATCH TONE) will change.
❍Data Entry (Controller number 6, 38)
Status 2nd byte
BnH 06H
BnH 26H
n = MIDI channel number: 0H - FH (ch.1 - 16)
mm, ll = the value of the parameter specified by RPN/NRPN
mm = MSB, ll = LSB
❍Volume (Controller number 7)
Status 2nd byte
BnH 07H
n = MIDI channel number: 0H - FH (ch.1 - 16)
vv = Volume: 00H - 7FH (0 - 127)
* In Performance mode, the Part Level parameter (PERFORM PART) will change.
Copyright © 2004 ROLAND CORPORATION
No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION.
MIDI Implementation
3rd byte
vvH
00H
3rd byte
vvH
3rd byte
mmH
llH
| GROUP | NUMBER
| |
| 001 — 008 |
| 001 — 032 |
| 001 — 002 |
| 001 — 020 |
| 001 — 128 |
| 001 — 128 |
| : |
| 001 — 128 |
| 001 — 009 |
| 001 — 256 |
3rd byte
vvH
3rd byte
vvH
3rd byte
mmH
llH
3rd byte
vvH
❍Balance (Controller number 8)
Status 2nd byte
BnH 08H
n = MIDI channel number:
vv = Balance:
* The Tone Balance parameter (PATCH COMMON) will change.
❍Panpot (Controller number 10)
Status 2nd byte
BnH 0AH
n = MIDI channel number:
vv = Panpot:
* In Performance mode, the Part Pan parameter (PERFORM PART) will change.
❍Expression (Controller number 11)
Status 2nd byte
BnH 0BH
n = MIDI channel number:
vv = Expression:
❍Effect Control 1 (Controller number 12)
Status 2nd byte
BnH 0CH
n = MIDI channel number:
vv = Control value (relative change):
❍Effect Control 2 (Controller number 13)
Status 2nd byte
BnH 0DH
n = MIDI channel number:
vv = Control value (relative change):
❍Hold 1 (Controller number 64)
Status 2nd byte
BnH 40H
n = MIDI channel number:
vv = Control value:
❍Portamento (Controller number 65)
|
Status 2nd byte
|
BnH 41H
n = MIDI channel number:
vv = Control value:
* The Portamento Switch parameter (PATCH TONE) will change.
|
❍Sostenuto (Controller number 66)
Status 2nd byte
BnH 42H
n = MIDI channel number:0H - FH (ch.1 - 16)
vv = Control value:
❍Soft (Controller number 67)
Status 2nd byte
BnH 43H
n = MIDI channel number:
vv = Control value:
❍Resonance (Controller number 71)
Status 2nd byte
BnH 47H
n = MIDI channel number:
vv= Resonance value (relative change):
* The Resonance parameter (PATCH TONE) will change.
❍Release Time (Controller number 72)
Status 2nd byte
BnH 48H
n = MIDI channel number:
vv = Release Time value (relative change):
* The Release Time parameter (PATCH TONE) will change.
❍Attack time (Controller number 73)
Status 2nd byte
BnH 49H
n = MIDI channel number:
vv = Attack time value (relative change):
* The Attack Time parameter (PATCH TONE) will change.
Date: 2004.4.1
Version: 1.00
3rd byte
vvH
0H - FH (ch.1 - 16)
00H - 7FH (0 - 127)
3rd byte
vvH
0H - FH (ch.1 - 16)
00H - 40H - 7FH (Left - Center - Right),
3rd byte
vvH
0H - FH (ch.1 - 16)
00H - 7FH (0 - 127)
3rd byte
vvH
0H - FH (ch.1 - 16)
00H - 40H - 7FH (-64 - 0 - +63)
3rd byte
vvH
0H - FH (ch.1 - 16)
00H - 40H - 7FH (-64 - 0 - +63)
3rd byte
vvH
0H - FH (ch.1 - 16)
00H - 7FH (0 - 127) 0-63 = OFF, 64-127 = ON
3rd byte
vvH
0H - FH (ch.1 - 16)
00H - 7FH (0 - 127) 0 - 63 = OFF, 64 - 127 = ON
3rd byte
vvH
00H - 7FH (0 - 127) 0 - 63 = OFF, 64 - 127 = ON
3rd byte
vvH
0H - FH (ch.1 - 16)
00H - 7FH (0 - 127) 0 - 63 = OFF, 64 - 127 = ON
3rd byte
vvH
0H - FH (ch.1 - 16)
00H - 40H - 7FH (-64 - 0 - +63),
3rd byte
vvH
0H - FH (ch.1 - 16)
00H - 40H - 7FH (-64 - 0 - +63),
3rd byte
vvH
0H - FH (ch.1 - 16)
00H - 40H - 7FH (-64 - 0 - +63),
