Roland DP-990 Assembling

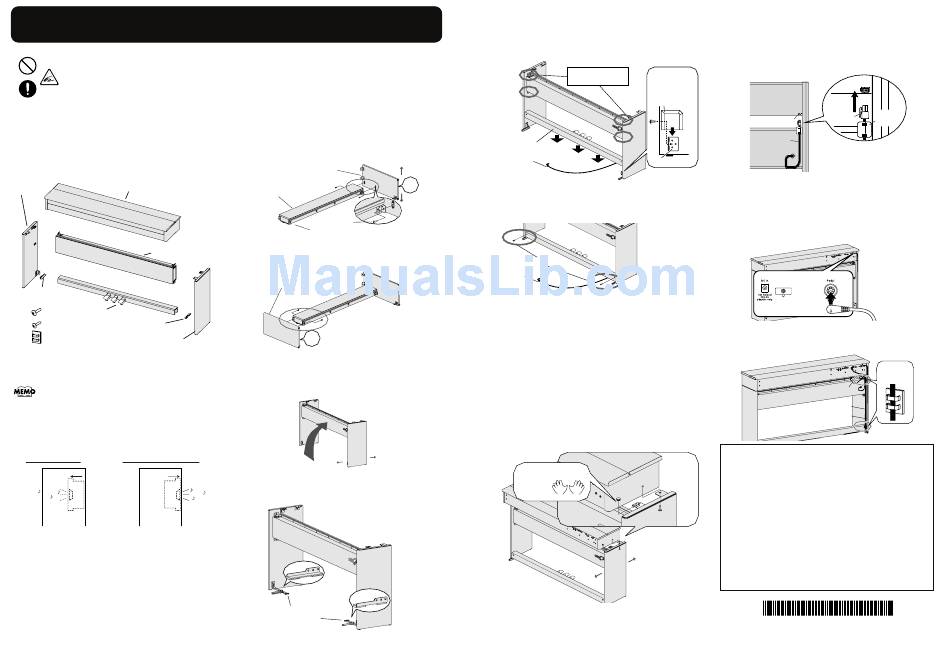

Assembling the DP-990
Make sure that another person is on hand to help with the assembly and setup.
To move the piano, lift it carefully-all the while keeping it level. Be very careful, when you assemble
and move the piano, to make sure that you do not drop it on your hands or feet.
Should you remove screws, cord clamps, or stabilizer, make sure to put them in a safe place out of
children's reach, so there is no chance of them being swallowed accidentally.
■
Check the Parts
Before you begin assembling the DP-990, check that all the
parts were supplied.
You will also need to have a Phillips screwdriver.
fig.st900parts.e
Side board
DP-990
(left)
Speaker box
Stabilizer
(left)
Pedal Board
1
Stabilizer (right)
2
3
Side board (right)
1: Attachment screw (M6 x 20 mm) x 8
2: Stabilizer screw (M4 x 16 mm) x 6
3: Cord clamp x 4
The speaker box can also be installed so that it faces toward the
rear instead of toward the front. Having the speaker box face out
the rear of the instrument allows the speakers to be directed
toward listeners when the back of the instrument faces the
audience.
fig.stsp.e
Normal direction When facing to the rear
Front Rear Front Rear
Speaker Speaker
box box
■

Assembly Procedure

• Be sure to insert the attachment screws by hand, and turn them
several times by hand before using a screwdriver to tighten
them.
• At first, assemble the entire unit in a temporary fashion,
without really tightening the screws. Then, after checking
the overall alignment of the boards (and gently shifting
certain parts where necessary), go around and tightly fasten
each of the screws.
• Be careful when assembling the DP-990, so as to avoid
scratching the parts.
1.
Secure the right side board to the speaker box with
the attachment screws (M6 x 20 mm, in two places).
Attach so that the speaker cable at the rear of the
speaker box is directed to the left.
Side board right
Front
R
Speaker box
Rear
Attachment screw
Speaker cable (rear)
2.
Secure the left side board to the speaker box with
the attachment screws (M6 x 20 mm, in two places).
fig.st1.e
Side board left
L
3.
Raise the entire assembly.
When standing the assembled unit up, grasp near the
speaker box, and gently raise the assembly.
fig.st4
Front
Rear
4.
Set the stabilizer in the holes in the side boards (M4
x 16 mm, in six places).
fig.st3.e
Right
Left
Stabilizer
screws
Take care not to attach the left and right stabilizer to the
wrong sides.
5.
Put the Pedal Board on the stabilizer.
When putting the Pedal Board on the stabilizer, first
loosen the attachment screws securing the speaker box
to the side boards.
fig.st5.e
Loosen the screws
Putting the
(in four places).
Pedal Board
(a lateral view)
Pedal Board
Pedal Board
Pedal Cable
Metal Parts
6. Secure the Pedal Board to the side boards with the
attachment screws (M6 x 20 mm, in two places).
Retighten the screws loosened in Step 5.
fig.st6.e
Attachment screws
Pedal Cable
To stabilize the pedals
Temporarily loosen the screws that fasten the pedal board.
Step on the pedal, and after verifying that the pedal is in firm
contact with the floor, re-tighten the attachment screws
firmly.
7.
Align the protruding screws (one each at right and
left) on the bottom of the piano with the openings in
the metal fittings on the side board, then slide the
piano forward until the screws are held in place.
* When handling the piano, firmly grasp it at the front and
back. Be careful, so you do not get your fingers pinched.
Place the keyboard so that it is centered, both front to
back and left to right.
Please don't get
your fingers pinched
8
7
Attachment Screw
Front (Keyboard)
Rear
8.
Fasten the piano to the stand with the attachment
screw (M6 x 20 mm) (one each for the right and left).
fig.st7.e
Copyright © 2007 ROLAND CORPORATION
DP-990
All rights reserved. No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION.
9.
Connect the speaker cable extending from the rear
of the speaker box to the DP-990's speaker
connector.
Press the speaker cable completely into the connector so
that it is securely fastened.
fig.st8.e
DP-990 Rear
Ferrite
Clip Portion
Core
Speaker Connecter
Speaker cable
Hold and insert the cable so that
the clip portion extends into the
stand and is securely connected.
* Use the speaker cable with the ferrite core left attached to the
cable. The DP-990 cannot be used with the ferrite core
removed.
10. Connect the pedal cable to the Pedal jack.
* Plug the pedal cable all the way into the Pedal jack.
11. As necessary, affix cord clamps as shown in the
diagram to fasten the pedal cable.
fig.st9.e
Cord
Clamps
Speaker Cable
Power Cord
Pedal Cable
When Moving the Instrument
Disconnect the power cord and cables from the DP-990.
Then lift the piano while keeping it level, and move it with
care, so that you do not drop it on your feet, or get your hands
caught.
Check the stability of the pedal, and make adjustments as
necessary.
When Disassembling
Disassemble the unit by carrying out assembly Steps 1-
11 in reverse order.
When Changing the Orientation of the
Speaker Box
Be sure to completely disassemble the unit, change the
speaker box orientation, then reassemble it.
