Roland DP-900 Assembling

Assembling the DP-900
Make sure that another person is on hand to help with the assembly and setup.
To move the piano, lift it carefully-all the while keeping it level. Be very careful, when you assemble and
move the piano, to make sure that you do not drop it on your hands or feet.
Should you remove screws, cord clamps, or stabilizer, make sure to put them in a safe place out of children's
reach, so there is no chance of them being swallowed accidentally.

Check the Parts

Before you begin assembling the DP-900, check that all the
parts were supplied.
You will also need to have a Phillips screwdriver.

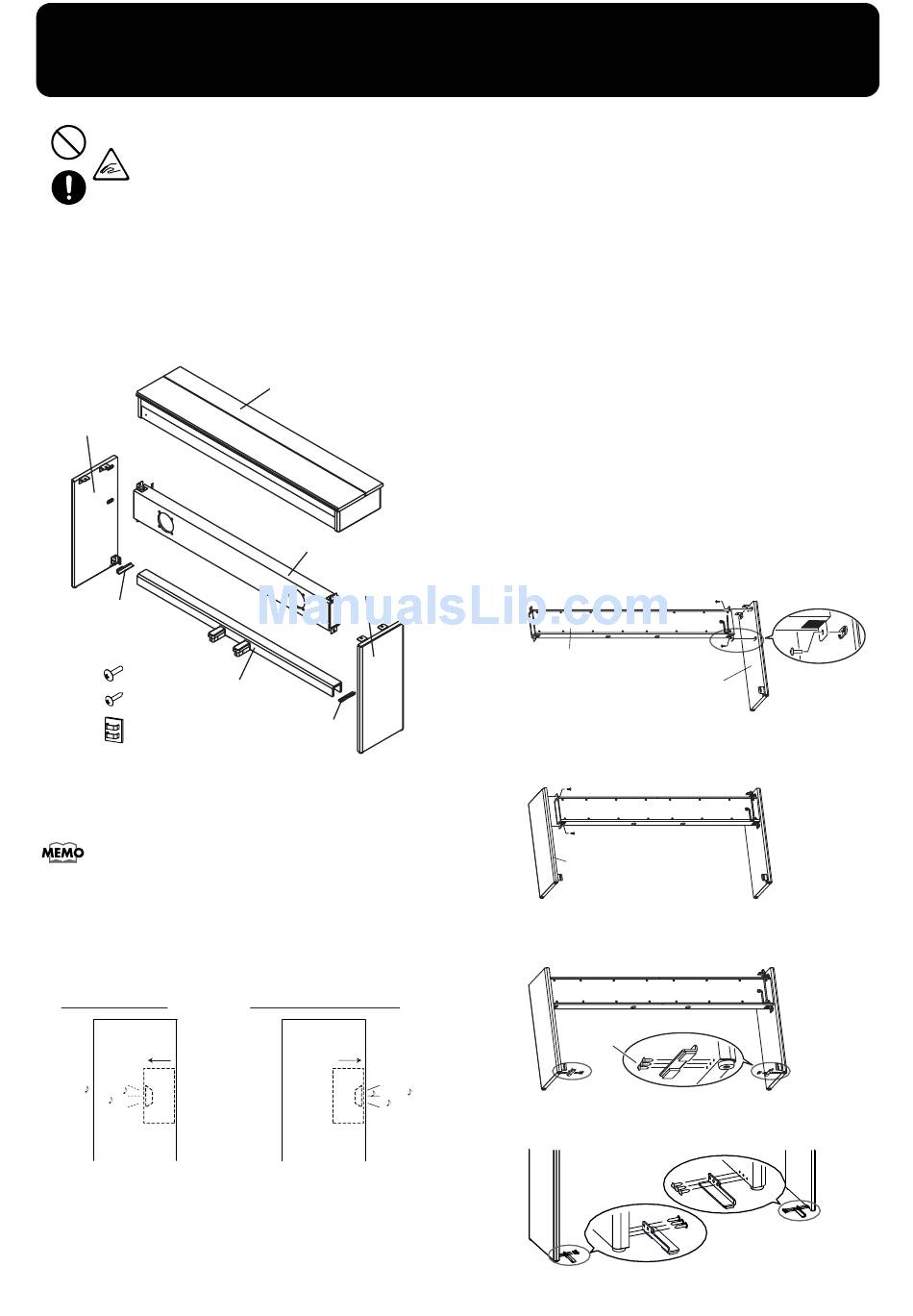

fig.st900parts.e
Side board
left
Stabilizer
(left)
1
Pedal Board
2
3
1: Attachment screw (M5 x 20mm) x10
2: Stabilizer screw (M4 x 16mm) x6
3: Cord clamp x3
The speaker box can also be installed so that it faces toward
the rear instead of toward the front. Having the speaker box
face out the rear of the instrument allows the speakers to be
directed toward listeners when the back of the instrument
faces the audience.
fig.stsp.e
Normal direction
Front Rear
Speaker
box
DP-900
DP-900
Speaker box
Side board
right
Stabilizer
(right)
When facing to the rear
Front Rear
Speaker
box

Assembly Procedure

• At first, assemble the entire unit in a temporary fashion,
without really tightening the screws. Then, after
checking the overall alignment of the boards (and gently
shifting certain parts where necessary), go around and
tightly fasten each of the screws.
• Be careful when assembling the DP-900, so as to avoid
scratching the side boards.
When securing the screws, lay the entire unit sideways with
the rear side of the DP-900 at the bottom.
1. Secure the left side board to the speaker box
with the screws (in two places).
Attach so that the speaker cable at the rear of the speaker
box is directed to the right.
fig.st1.e
Attachment screw
Speaker box
Side board left
2. Secure the right side board to the speaker box
with the screws (in two places).
fig.st2.e
Attachment screw
Side board right
3. Set the stabilizer in the holes in the side boards
(in six places).
fig.st3.e
Stabilizer
screws
Take care not to attach the left and right stabilizer to the
wrong sides.
fig.st900SAP
