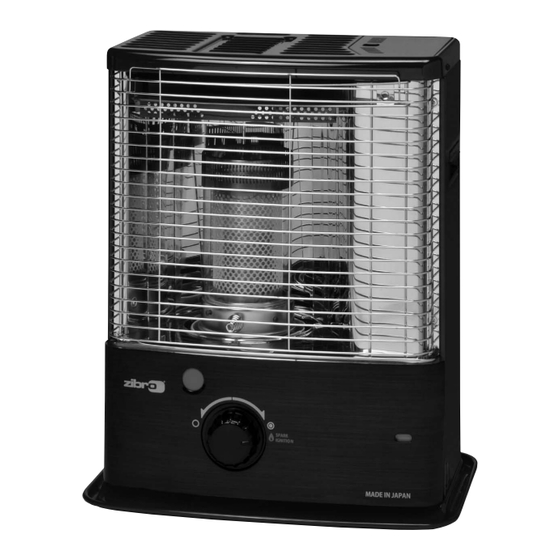

Toyotomi zibro RS-29 Operating Manual

Hide thumbs Also See for zibro RS-29:
Table of Contents

Advertisement

Quick Links

Download this manual
GB
OPERATING MANUAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 2
D
GEBRAUCHSANWEISUNG . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 16
F
MANUAL D'UTILISATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 32
NL
GEBRUIKSAANWIJZING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 46
E
INSTRUCCIONES DE USO . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 60
I
ISTRUZIONI D'USO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 74
DK
BRUGERVEJLEDNING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 88
N
BRUKERINSTRUKSEN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 102
S
INSTRUKTIONERNA INNAN ANVANDNING . . . . . . . . . . . . . . PAGE 116
FIN
KäyTTöOHJEET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 130
RS – 29

Advertisement

Table of Contents
loading

Related Manuals for Toyotomi zibro RS-29

Summary of Contents for Toyotomi zibro RS-29

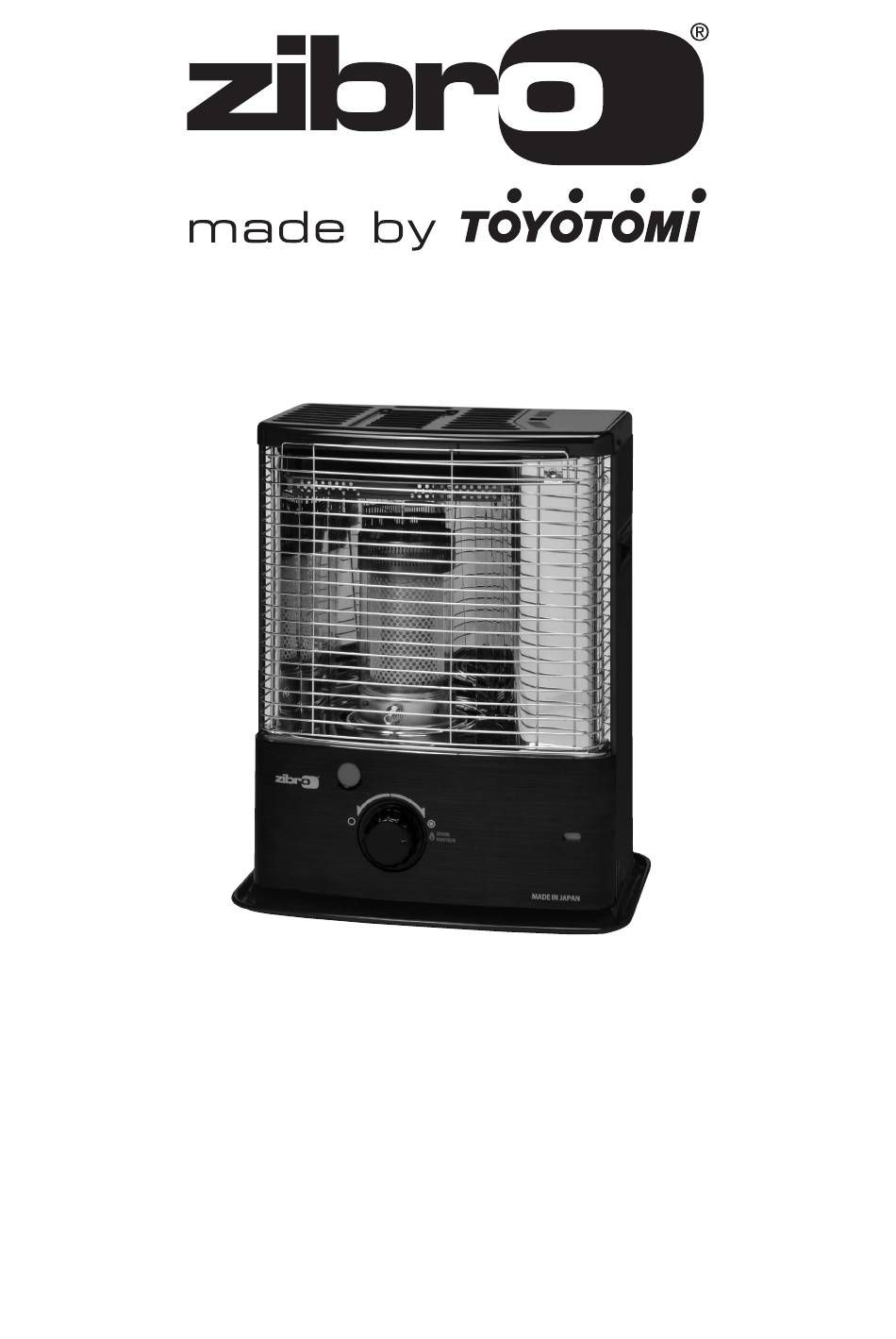

  • Page 1 RS – 29 OPERATING MANUAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 2 GEBRAUCHSANWEISUNG .
  • Page 2 We hope that you’ll enjoy your Toyotomi appliance for years to come! We invite you to read this instruction manual first, to ensure the maximum lifetime for this appliance. Get to know us better…visit us at www.toyotomi.eu for our full line of products. 1 Read the diRections foR Use fiRst.

  • Page 3: General Directions For Use

    geneRal diRections foR Use Below you will find the main steps to be taken for using your heater. For more details, please refer to the MANUAL. Remove all packaging materials (refer to Section A, Fig. A). Fill the removable tank  and wait 30 minutes before you ignite the heater (refer to Section B, Fig.

  • Page 4: What You Need To Know In Advance

    What YoU need to KnoW in adVance ALWAYS MAKE SURE THAT THERE IS SUFFICIENT VENTILATION Read this user manual carefully before using the appliance and keep it for future reference. Install this device only when it complies with local/national legislation, ordinances and standards.

  • Page 5: Installing The Heater

    manUal INSTALLINg THE HEATER 1 Carefully remove your heater from the box and check the contents. In addition to the heater you also need to have:  a manual fuel pump  a transportation cap  these directions for use Keep the box and the packaging materials (Fig.

  • Page 6: Filling Fuel

    FILLINg FUEL Fill the removable tank in a suitable place since there can always be some spillage. Follow the procedure below: 1 Make sure that the heater is switched off. 2 Open the upper lid  and lift the removable tank  out of the heater (Fig. G). Note: Some drops may leak from the tank.
  • Page 7 Before igniting the heater, always check the fuel indicator  to see whether the removable tank needs filling up (Green=full, Red=empty). Always ignite the heater with the knurled wick adjustment knob . Never use matches or a cigarette lighter. Follow the procedure below: 1 Turn the knurled wick adjustment knob ...
  • Page 8 SWITCHINg OFF THE HEATER Push the OFF-button . The flame will extinguish after a little while (Fig. M). MALFUNCTION, CAUSES ANd SOLUTIONS If any malfunctioning cannot be solved from the directions below, please contact your dealer. THE HEATER dOES NOT IgNITE ...

  • Page 9: Maintenance

    THE HEATER IS BURNINg TOO HIgH  You are using an incorrect, too volatile type of fuel. Refer to THE RIGHT FUEL (See Section ’What you need to know in advance’).  Wick position too high. Contact your dealer. MAINTENANCE Your heater needs hardly any maintenance.
  • Page 10 STORAgE (ENd OF THE HEATINg SEASON) We recommend that you burn up all the fuel in the fuel tank at the end of the heating season and store the heater properly. Follow the procedure on the next page: 1 Ignite the heater outside the living room and let it burn until all fuel is used. 2 Let the heater cool down.
  • Page 11 WARRANTY pROVISIONS Your heater comes with a 48 months warranty starting on the date of purchase. Within this period all defects in material or workmanship will be repaired without any charge. The following provisions shall apply regarding this warranty: 1 We expressly dismiss all other claims for damages, including consequential damages.
  • Page 12 14 TIpS FOR SAFE USE 1 Make sure that children are always aware of the presence of a burning heater. 2 Do not move the heater when it is burning or still hot. Do not refill nor service the heater when it is burning or still hot.
  • Page 13 Replacement of the WicK ENSURE THAT THE HEATER IS OFF ANd COMpLETELY COOL BEFORE STARTINg TO REpLACE THE WICK. Open the lid and remove the removable tank. 2 Remove the batteries from the battery holder . 3 Open the front grill. Remove the combustion chamber from the heater.
  • Page 14 12 Install the wick to the wick sleeve according to the allo- wed direction engraved on the wick sleeve. 13 Install the wick sleeve (with wick) to the primary air tube. And then turn the wick sleeve clockwise to set in the handle arm.

  • Page 15: Main Components

    MAIN COMpONENTS OFF - button  Knurled wick  adjustment knob Combustion  chamber  Combustion  chamber handle Fuel indicator grill  Lid for removable   tank  Removable tank  Fuel gauge of  removable tank  Battery holder ...
  • Page 16 In caso aveste bisogno di ulteriori informazioni o riscontraste particolari problemi che non sono presi in considerazione nel presente manuale, vi invitiamo a visitare il nostro sito www .toyotomi .eu o contattare la nostra assistenza (il cui numero di telefono é indicato nel nostro sito www .toyotomi .eu) Hvis du ønsker yderligere information eller, hvis der opstår problemer, som ikke behandles i...
