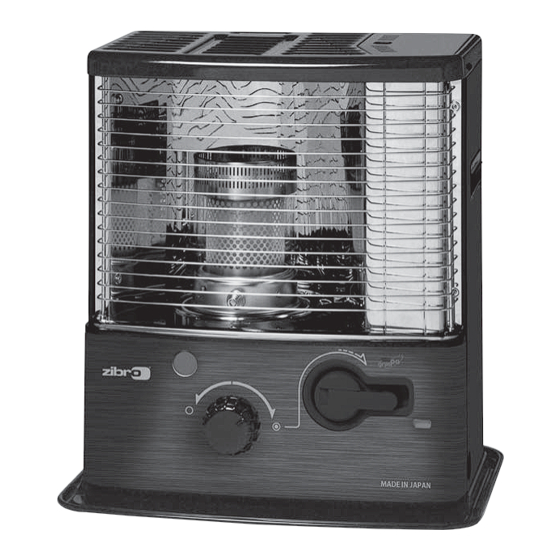

Toyotomi zibro RS-G24 Operating Manual
  1. Manuals
  2. Brands
  3. Toyotomi Manuals
  4. Heater
  5. zibro RS-G24
  6. Operating manual

Toyotomi zibro RS-G24 Operating Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
GB
OPERATING MANUAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 2
D
GEBRAUCHSANWEISUNG. . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 16
F
MANUAL D'UTILISATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 30
NL
GEBRUIKSAANWIJZING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 44
E
INSTRUCCIONES DE USO . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 58
I
ISTRUZIONI D'USO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 72
DK
BRUGERVEJLEDNING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 86
N
BRUKERINSTRUKSEN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 100
S
INSTRUKTIONERNA INNAN ANVANDNING . . . . . . . . . . . . . . PAGE 114
FIN
KÄYTTÖOHJEET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 128
RS – G24

Advertisement

Table of Contents
loading

Related Manuals for Toyotomi zibro RS-G24

Summary of Contents for Toyotomi zibro RS-G24

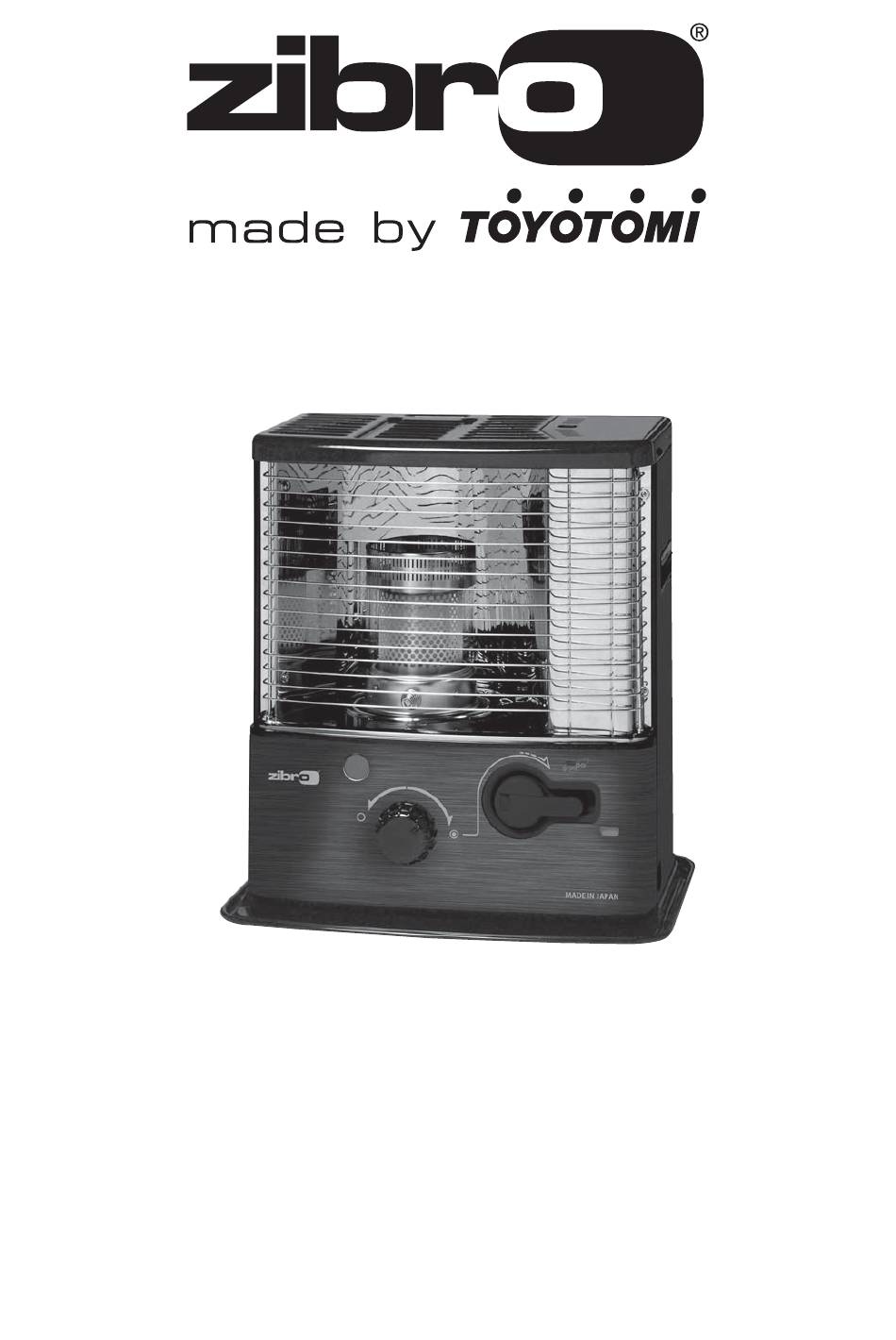

  • Page 1 RS – G24 OPERATING MANUAL ......PAGE 2 GEBRAUCHSANWEISUNG......PAGE 16 MANUAL D’UTILISATION .
  • Page 2 We hope that you’ll enjoy your Toyotomi appliance for years to come! We invite you to read this instruction manual first, to ensure the maximum lifetime for this appliance. Get to know us better…visit us at www.toyotomi.eu for our full line of products. 1 READ THE DIRECTIONS FOR USE FIRST.

  • Page 3: General Directions For Use

    GENERAL DIRECTIONS FOR USE Below you will find the main steps to be taken for using your heater. For more details, please refer to the MANUAL. Remove all packaging materials (refer to Section A, Fig. A). Fill the removable tank and wait 30 minutes before you ignite the heater (refer to Section B, Fig.

  • Page 4: What You Need To Know In Advance

    WHAT YOU NEED TO KNOW IN ADVANCE ALWAYS MAKE SURE THAT THERE IS SUFFICIENT VENTILATION Read this user manual carefully before using the appliance and keep it for future reference. Install this device only when it complies with local/national legislation, ordinances and standards.

  • Page 5: Installing The Heater

    MANUAL INSTALLING THE HEATER 1 Carefully remove your heater from the box and check the contents. In addition to the heater you also need to have: ¼ a manual fuel pump ¼ a transportation cap ¼ these directions for use Keep the box and the packaging materials (Fig.

  • Page 6: Filling Fuel

    FILLING FUEL Fill the removable tank in a suitable place since there can always be some spillage. Follow the procedure below: 1 Make sure that the heater is switched off. 2 Open the upper lid ¶ and lift the removable tank º out of the heater (Fig. G). Note: Some drops may leak from the tank.
  • Page 7 1 Turn the knurled wick adjustment knob clockwise to its stop (Fig. K). If you apply more pressure you may turn it slightly further; however, it will automatically return to the start position. When you have set the wick to its highest position, this action will automatically activate the safety device.
  • Page 8 THE HEATER DOES NOT IGNITE ¼ You have run out of fuel from the tank or the wick has been replaced. After having refilled and replaced the removable tank, wait for 30 minutes before igniting the heater. IRREGULAR FLAME AND/OR SOOT AND/OR SMELLS ¼...
  • Page 9 2. Electrodes When the electrodes gets dirty by carbon or tar, clean the electrodes following “the cleaning procedure of electrodes”. If the electrodes digs into the wick, it may cause the ignition failure. Then fix the position of the electrodes following “the fixing position procedure of the wick”.
  • Page 10 SPECIFICATIONS Ignition electrical Dimensions (mm) width Fuel paraffin (including base plate) depth Capacity (kW) * 2.40 height ) ** Suitable space (m 40-85 Accessories: transportation cap manual fuel pump Fuel consumption (l/hr) * 0.250 Fuel consumption (g/hr) * Burning time per tank (hr) * Wick type Capacity removable tank (litres) 4.0 Weight (kg)
  • Page 11 14 TIPS FOR SAFE USE 1 Make sure that children are always aware of the presence of a burning heater. 2 Do not move the heater when it is burning or still hot. Do not refill nor service the heater when it is burning or still hot.
  • Page 12 REPLACEMENT OF THE WICK ENSURE THAT THE HEATER IS OFF AND COMPLETELY COOL BEFORE STARTING TO REPLACE THE WICK. Open the lid and remove the removable tank. 2 Open the front grill. Remove the combustion chamber from the heater. Close the grill. 3 Pull the knurled wick adjustment knob off the heater.
  • Page 13 11 Install the wick to the wick sleeve according to the allo- wed direction engraved on the wick sleeve. 12 Install the wick sleeve (with wick) to the primary air tube. And then turn the wick sleeve clockwise to set in the handle arm.

  • Page 15: Main Components

    MAIN COMPONENTS ³ OFF - button · Knurled wick adjustment knob » Combustion chamber º Combustion ¶ chamber handle ¾ ´ Fuel indicator ² Grill ¶ Lid for removable tank ¿ º Removable tank ¾ Fuel gauge of  µ removable tank µ...
  • Page 16 In caso aveste bisogno di ulteriori informazioni o riscontraste particolari problemi che non sono presi in considerazione nel presente manuale, vi invitiamo a visitare il nostro sito www.toyotomi.eu o contattare la nostra assistenza (il cui numero di telefono é indicato nel nostro sito www.toyotomi.eu) Hvis du ønsker yderligere information eller, hvis der opstår problemer, som ikke behandles i...
