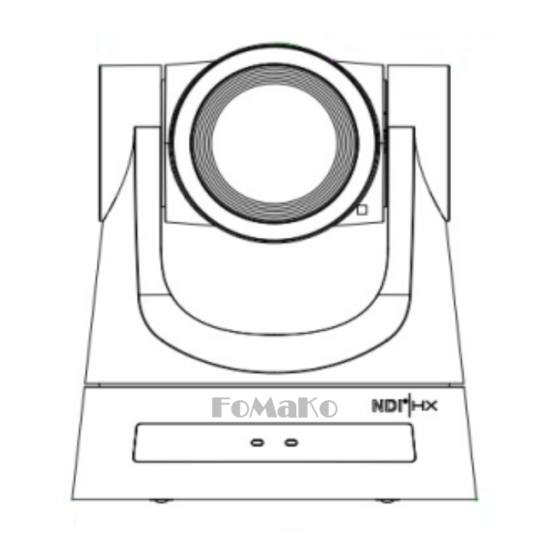

FoMaKo 12X User Manual

Ndi/sdi/hdmi/usb ptz ip camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FoMaKo -
Focus Your Streaming
www.fomako.net
FoMaKo
NDI/SDI/HDMI/USB
PTZ IP CAMERA
User Manual
（V3.0）
FoMaKo
FoMaKo
E-mail: ivan@fomako.net
Website: www.fomako.net
Phone: 0086-18565635753
Address: 10F NiuLanQian Building,Minzhi,
longhua, shenzhen, China, 518000
Please feel free to contact us if you have any questions.
Please Note: Only NDi version cameras have NDi function, other version cameras don't have NDi function.

Advertisement

Table of Contents
loading

Related Manuals for FoMaKo 12X

Summary of Contents for FoMaKo 12X

  • Page 1 FoMaKo - Focus Your Streaming www.fomako.net FoMaKo NDI/SDI/HDMI/USB PTZ IP CAMERA User Manual （V3.0） FoMaKo FoMaKo E-mail: ivan@fomako.net Website: www.fomako.net Phone: 0086-18565635753 Address: 10F NiuLanQian Building,Minzhi, longhua, shenzhen, China, 518000 Please feel free to contact us if you have any questions.
  • Page 2 FoMaKo IP Streaming Camera Quick Start Dear Friend, Thanks for ordering FoMaKo cameras. To setup your streaming system easier, please read this quick start instruction first. Video Out Methods: (1) HDMI video output: - HDMI port to HDMI TV/monitor, to preview video and change camera setting by press “menu” on remote control...
  • Page 3 (4) Add to Shortcut Keys, you can assign 7 cameras to shortcut keys CAM1~CAM7 (5) Press CAM1~CAM7 to control the camera If you need more supports, please contact us at: ivan@fomako.net, normally, we can reply you within 12hours. FoMaKo Supports Team...
  • Page 4 FoMaKo - Focus Your Streaming www.fomako.net Attentions Improper operations may damage the product structure and result in mechanical failure. Please note the following tips: Do not move the camera by grabbing the head Move the camera by holding the bottom with one or both hands.
  • Page 5 FoMaKo - Focus Your Streaming www.fomako.net This manual introduces functions, installations and operations for this PTZ camera in details. Please read this manual carefully before installation and use. 1. Cautions 1.1 Avoid damage to product caused by heavy pressure, strong vibration or immersion during transportation, storage and installation.

  • Page 6: Table Of Contents

    FoMaKo - Focus Your Streaming www.fomako.net Content 1. Camera Installation................................6 1.1 Camera Introduction..............................6 1.2 Interfaces and Connection............................6 1.3 Mounting Brackets..............................7 2. Product Overview................................11 2.1 Dimension..................................11 2.2 Accessory...................................11 2.3 RS-232 Interface................................12 2.4 Rotary DIP Switch..............................14 2.5 Main Features................................14 2.6 Technical Parameter..............................

  • Page 7: Camera Installation

    FoMaKo - Focus Your Streaming www.fomako.net 1. Camera Installation 1.1 Camera Introduction Figure 1.1 Interface of ST (standard) Model 11. USB2.0 Interface Camera Lens 12. LAN（NDI） Port Power Light 13. DC12V Input Power Supply Socket Status Light 14. Power Switch Infrared Receiver 15.

  • Page 8: Mounting Brackets

    FoMaKo - Focus Your Streaming www.fomako.net Figure 1.2 Wiring Diagram 1) After power on and self-checking, the camera will automatically return to the preset 0 position if it’s pre-set. 2) The default address for the IR remote control is 1#.
  • Page 9 FoMaKo - Focus Your Streaming www.fomako.net...
  • Page 10 FoMaKo - Focus Your Streaming www.fomako.net...
  • Page 11 FoMaKo - Focus Your Streaming www.fomako.net 2) Ceiling Mounting...

  • Page 12: Product Overview

    FoMaKo - Focus Your Streaming www.fomako.net 2. Product Overview 2.1 Dimension FoMaKo Figure 2.2 Product Dimension 2.2 Accessory...

  • Page 13: Rs-232 Interface

    FoMaKo - Focus Your Streaming www.fomako.net Please check below standard and optional accessories when unpacking the box. Standard Accessory Optional Accessory Power adapter Wall Mount IR Remote Control Ceiling Mount RS232 Cable USB2.0 Cable Cascading Cable User Manual 2.3 RS-232 Interface...
  • Page 14 FoMaKo - Focus Your Streaming www.fomako.net Connection to PC or Camera Controller Camera WindowsDB-9 IR OUT 2). RS232 Mini-DIN 8-pin Port Definition Port Definition Data Terminal Ready Data Set Ready Transmit Data Signal Ground Receive Data Signal Ground IR Commander Signal...

  • Page 15: Rotary Dip Switch

     Full HD Resolution: 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920x1080 with frame rateup to 60fps.  Multiple Optical Zoom Lens: 12X/20X/30X optical zoom lens.  Leading Auto Focus Technology: Fast, accurate and stable auto focusing technology.

  • Page 16: Technical Parameter

    FoMaKo - Focus Your Streaming www.fomako.net  Multiple Video Output Interfaces: HDMI, SDI, LAN、USB2.0; Simultaneously output audio and video signal via HDMI, SDI and LAN; SDI output could up to 100M with 1080P@60fps  Multiple Audio/Video Compression Standards: Support H.264/H.265 video compression, up to 1920×1080 resolution 60fps;...
  • Page 17 FoMaKo - Focus Your Streaming www.fomako.net Input/Output Interface HDMI、SDI、LAN(POE)、USB2.0、A-IN、RS232-IN、RS232-OUT、RS422(compatible Video Interfaces with RS485)、DC12V Power Supply、Rotary Dip Switch、Power Switch Video Output USB2.0 HDMI, SDI, LAN, Video Stream Dual stream output Video Format Main Stream: 1920×1080, 1280×720, 640×480 Sub Stream: 1280×720, 640×480, 640×360, 320×240, 320×180 Video Bitrate 64Kbps～40960Kbps...

  • Page 18: Remote Control

    FoMaKo - Focus Your Streaming www.fomako.net 3. Remote Control 3.1 Keys Introduction for IR Remote Control After camera starts normally, it receives and executes the infrared command, press the button of the remote control, the remote control receiving indicator light flashes green, release the button, the indicator light stops flashing. You can use the infrared remote control to perform operations such as preset position setting, positioning, leveling, and tilting.
  • Page 19 FoMaKo - Focus Your Streaming www.fomako.net 3. Focus Control Auto: auto focus mode Manual: manual focus mode Focus + (near):Press【FOCUS +】 key (Valid only in manual focus mode) Focus - (far): Press 【FOCUS -】 key (Valid only in manual focus mode) Press and hold the keys, the action of focus will keep continue and stop as soon as the key is released.
  • Page 20 FoMaKo - Focus Your Streaming www.fomako.net clear all presets. 6. Pan/Tilt Control Up: press Down: press Left: press Right: press Back to middle position: press“【HOME】” Press and hold the up/down/left/right key, the pan/tilt movements will keep running, from slow to fast, until it runs to the endpoint;...

  • Page 21: Menu Introduction

    FoMaKo - Focus Your Streaming www.fomako.net 9. Key Combination 1) 【#】+【#】+【#】: Clear all presets 2) 【*】+【#】+【6】: Restore factory defaults 3) 【*】+【#】+【3】: Menu set to Chinese 4) 【*】+【#】+【4】: Menu set to English 5) 【*】+【#】+【7】: Show Camera's current IP address 6) 【*】+【#】+【9】: Flip switch 7) 【*】+【#】+Auto: Enter aging mode...
  • Page 22 FoMaKo - Focus Your Streaming www.fomako.net...

  • Page 23: Network Configuration

    FoMaKo - Focus Your Streaming www.fomako.net 4. Network Configuration 4.1 Network Connection When you powered on the camera for the first time, please press “* # Manual” one by one on the remote control to restore the camera, it will be more easier to do the following settings.

  • Page 24: Streaming

    FoMaKo - Focus Your Streaming www.fomako.net Client; If login in as normal user (Default User name/Password: user1 or user2), users can only preview, playback and logout, no option for configuration. Language Selection: click Chinese/English in the upper right corner of the login page to select the language type of the web interface.
  • Page 25 FoMaKo - Focus Your Streaming www.fomako.net rtmp://192.168.0.100:1935/live/av1（av1 sub stream） Configurations > Network Configure> SRT 2） Configure the parameters according to the network environment; Camera’s example IP is 192.168.0.100, and the way to obtain the SRT video stream is as follows: srt://192.168.0.100:9000 2.

  • Page 26: Software Upgrading

    FoMaKo - Focus Your Streaming www.fomako.net Access url：rtmp://host domain name: host port/live/xxx Or (rtmp: //host IP address: host port/live/xxx) 3. NDI Configuration (for NDI camera only) Configurations -> Video Configure-> NDI Click the NDI enable switch and restart the camera to use the NDI function.

  • Page 27: Serial Port Communication And Control

    FoMaKo - Focus Your Streaming www.fomako.net 5. Serial Port Communication and Control The camera could be controlled through RS232/RS485/RS422 interface; RS232 serial parameter are as follows: Baud rate: 2400/4800/9600/115200 bits / sec; Start bit: 1; data bits: 8; Stop bit: 1; Parity: None.
  • Page 28 FoMaKo - Focus Your Streaming www.fomako.net Normal 8x 01 04 58 02 FF CAM_AFSensitivity Focus sensitivity Setting 8x 01 04 58 03 FF Front 8x 01 04 AA 00 FF Beting 8x 01 04 AA 01 FF CAM_AFZone Focus Region Setting...
  • Page 29 FoMaKo - Focus Your Streaming www.fomako.net CAM_Back Light 8x 01 04 33 02 FF Back Light Compensation 8x 01 04 33 03 FF CAM_WDRStrength Reset 8x 01 04 21 00 FF WDR Level Setting 8x 01 04 21 02 FF...

  • Page 30: Visca Protocol Inquiry Command

    FoMaKo - Focus Your Streaming www.fomako.net Flip-H 8x 01 04 A4 01 FF Flip-V 8x 01 04 A4 02 FF Flip-HV 8x 01 04 A4 03 FF P: 0~E Video format 0:1080P60 1:1080P50 2:1080i60 3:1080i50 4:720P60 Set camera video 5:720P50...
  • Page 31 FoMaKo - Focus Your Streaming www.fomako.net y0 50 03 FF One Push Mode y0 50 04 FF 5000K y0 50 05 FF Manual y0 50 06 FF 6500K y0 50 07 FF 3500K y0 50 08 FF 4500K y0 50 09 FF...

  • Page 32: Pelco-D Protocol Command List

    FoMaKo - Focus Your Streaming www.fomako.net P: 0~E Video format 0:1080P60 1:1080P50 2:1080i60 3:1080i50 4:720P60 5:720P50 VideoSystemInq 8x 09 06 23 FF y0 50 0p FF 6:1080P30 7:1080P25 A:1080P59.94 B:1080I59.94 C:720P59.94 D:1080P29.97 E:720P29.97 Pan-tiltMaxSpeedInq 8x 09 06 11 FF y0 50 ww zz FF...
  • Page 33 FoMaKo - Focus Your Streaming www.fomako.net DownRight 0xA0 Address 0x00 0x12 Pan Speed Tilt Speed 0xAF Zoom In 0xA0 Address 0x00 0x20 0x00 0x00 0xAF Zoom Out 0xA0 Address 0x00 0x40 0x00 0x00 0xAF Stop 0xA0 Address 0x00 0x00 0x00...

  • Page 34: Maintenance And Troubleshooting

    FoMaKo - Focus Your Streaming www.fomako.net 6. Maintenance and Troubleshooting 6.1 Camera Maintenance 1) Please power off the camera and disconnect the power adapter and socket, if it’s not used for a long run. 2) Use soft cloth or tissue to clean the camera cover.

  • Page 35: Example: Streaming To Facebook

    Please login the camera's webpage -> Configuration-> Audio configure -> Enable then Reboot the camera. you can also do something audio settings here. 9) Other unknown problems , please email us at: ivan@fomako.net We will help you to solve all the problems. 7. Example: Streaming to Facebook Step 1: First of all, please make sure the camera’s IP address is assigned by router, and input your PC’s DNS, if you don’t your...

  • Page 36: Example:streaming To Youtube

    FoMaKo - Focus Your Streaming www.fomako.net Facebook will give you two parameters, "stream key" and "server URL" Step 3: Fill these two parameters into the "host address" and "stream name" of the camera, and change the port to 443 8. Example:Streaming to Youtube Streaming to Youtube is similar as streaming to Facebook.

  • Page 37: Example: Streaming To Vmix

    FoMaKo - Focus Your Streaming www.fomako.net 9. Example: Streaming to Vmix (1) Click “Add Input” (2) Stream/SRT -> Choose VLC (3) Input camera’s RTSP URL: rtsp://192.168.0.100:554/live/av0 Please change the IP address to your camera’s ip address. Then,press “OK”, it will stream to Vmix successfully.
