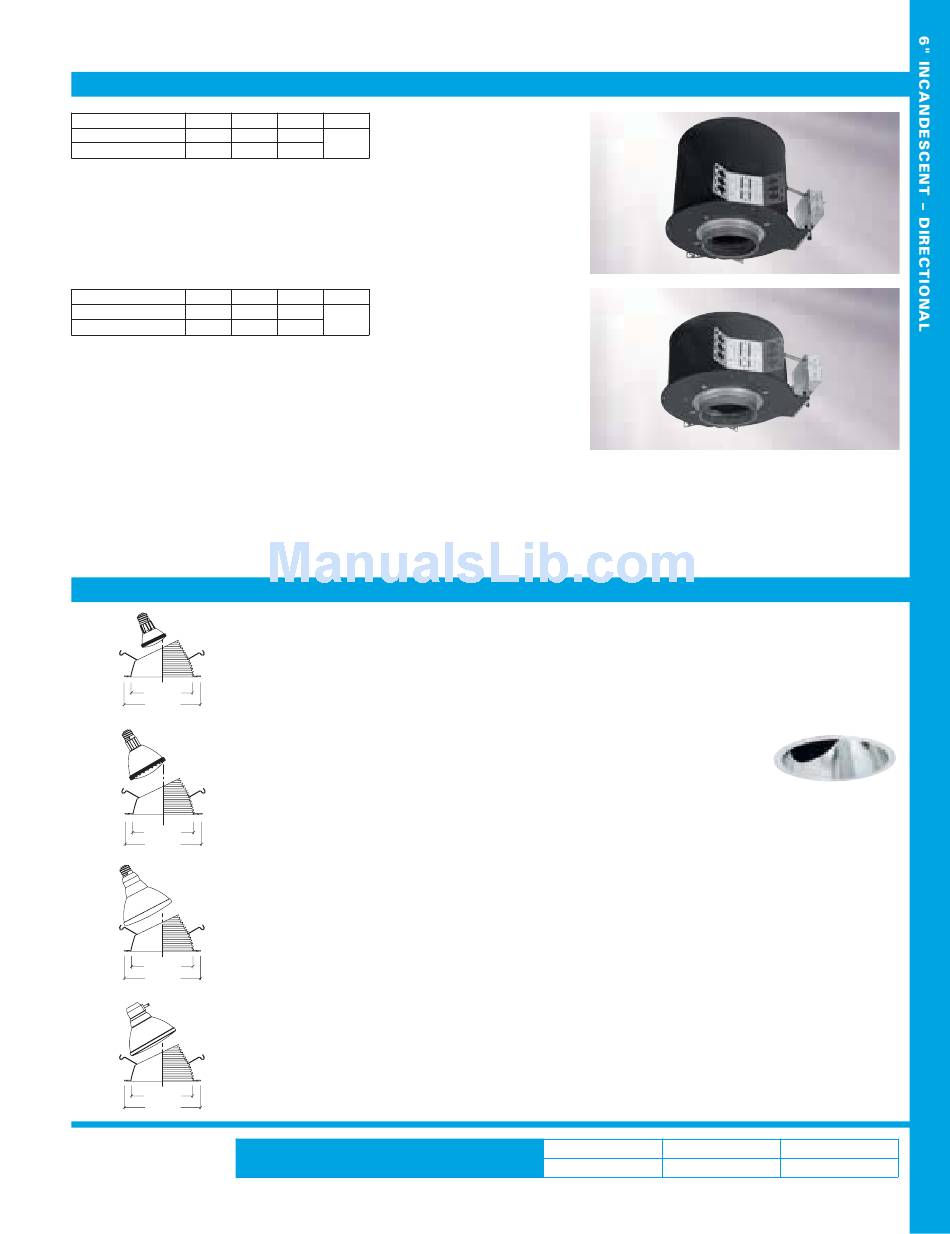

Cooper Lighting Portfolio 853 Specification Sheet

Dimensions Length Width
Standard Housing 18-1/8" 18"
Chicago Plenum 18-1/8" 18"
Dimensions Length Width
Standard Housing 18-1/8" 18"
Chicago Plenum 18-1/8" 18"
HOUSING
HA6=Directional, PAR30L, PAR38
HA6CP=6" Directional, PAR30L, PAR38, Chicago Plenum
HA6S=Directional, PAR20, PAR30, Shallow Plenum
HA6SCP=Directional, PAR20, PAR30, Shallow Chicago Plenum
HA6S3=Directional, PAR38 Side Prong, Shallow Plenum
HA6S3CP=Directional, PAR38 Side Prong, Shallow Chicago Plenum
TRIM
6471=Self Flanged
6470=Molded Trim Ring,
White
5-11/16"
7-1/4"
PAR20
5-11/16"
7-1/4"
PAR30L
5-11/16"
7-1/4"
PAR38
5-11/16"
7-1/4"
PAR38/3
Height Cutout
13-3/8"
6-3/8"
13-3/8"
Height Cutout
9"
6-3/8"
9"
OPTIONS
DR =DeRated Wattage
*
Label, Specify Wattage
FINISH
LI=Low Iridescent Clear
H=Haze
WMH=Warm Haze
G=Gold
WH=Wheat
B=Black
W=Gloss White
Ordering Example
Housing, Trim, Accessories and Lamps ordered as separate line items.
6" Directional
PAR20/30/30L
PAR38/3
PAR lamp directional with
lockable 35° tilt and 365°
rotation. Center beam
optics provide full output
with no flashback. HA6S
and HA6S3 shallow plenum
versions allow use where
vertical clearance is
limited. Housings have a
top access feature for
lamp replacement above
the ceiling.
ACCESSORIES
H277=Step Down Transformer, 300VA Max
HB26=C Channel Bar Hanger, 26" Long, Pair
HB50=C Channel Bar Hanger, 50" Long, Pair
RMB22=Wood Joist Bar Hanger, 22" Long, Pair
FK5=Field Installed Fuse Kit, 5 Amp
L200 Series=Optical Lenses for PAR Lamps, use with LC30 Lens Clip or LC38 Lens Clip
LC30=Lens Holder for PAR30 Lamps and L200 Series Lens
LC38=Lens Holder for PAR38 Lamps and L200 Series Lens
GP=Graphite
GPH=Graphite Haze
K=Cognac
KH=Cognac Haze
BB=Black Baffle (6470 only)
WB=White Baffle (6470 only)
Housing
HA6S
PORTFOLIO
HOUSING
Angle Cut
OPTIONS
WF=White
PAR20 50W Max
Painted Flange
PAR30 75W Max
(Self Flanged
PAR30L 75W Max
only)
PAR38 250W Max
PAR38/3 150W Max
Trim Accessories
6471LI HB26
COOPER LIGHTING
™
6"
HA6
HA6S
HA6S3
TRIM
853
