  • Page 1 Monoblock LNBs User Manual Gebrauchsanweisung Manuel d’installation Instrukcja Obsługi...
  • Page 2: General Information

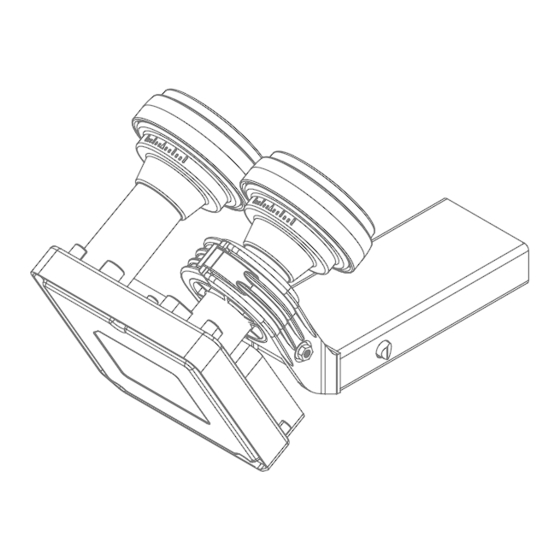

    Monoblock LNBs User Manual Models 3524 Twin Monoblock 23mm LNB, 6° for 80cm dish IDLB-TWNM21-MNOO6-8PP 3531 Quad Monoblock 23mm LNB, 4.3° for 80cm dish IDLB-QUDM21-MNO43-8PP 3532 Twin Monoblock 23mm LNB ,3° for 80cm dish IDLB-TWNM22-MNOO3-8PP 5068 Single Triple-feed 23mm LNB 13°E+16°E+19.2°E for 85cm dish...
  • Page 3 Installing the LNB on the dish antenna Place the LNB in the LNB holder/clamp of the dish antenna. Close the LNB holder handle and lightly tighten the clamp screw so that the LNB can still rotate (Fig. 1). Set the correct tilt angle of the LNB by rotating the LNB clockwise or counterclockwise: The tilt angle of the LNB (K) depends on the location of the satellite dish antenna installation and the satellite to be received.
  • Page 4: Technical Data

    - RoHS 2011/65 / EU Input DC voltage level 11 ~ 20 DC current consumption 300 max. A copy of the full text of the EU declaration of conformity can Neck diameter (Ø) 23/40 be found at: www.inverto.tv/support_dc Weight 435/485/460/367...
  • Page 5: Weee Notice

    Importer FTA Communication Technologies S.à r.l 17 Route de Luxembourg, Gonderange L-6182 Luxembourg For further details contact: sales@inverto.tv FTA Communication Technologies S.á r.l Tel. +352 264 367 1 Fax. +352 264 313 68 17 Route de Luxembourg, Gonderange, L-6182, Luxembourg...
  • Page 6 Monoblock LNBs Gebrauchsanweisung Modelle 3524 Twin Monoblock 23mm LNB, 6° for 80cm dish IDLB-TWNM21-MNOO6-8PP 3531 Quad Monoblock 23mm LNB, 4.3° for 80cm dish IDLB-QUDM21-MNO43-8PP 3532 Twin Monoblock 23mm LNB ,3° for 80cm dish IDLB-TWNM22-MNOO3-8PP 5068 Single Triple-feed 23mm LNB 13°E+16°E+19.2°E for 85cm dish...
  • Page 7 Installieren eines LNBs an dem LNB-Halter der Satel- litenantenne Platzieren Sie ein LNB in der einen Hälfte der LNB-Halterung/ Klemme der Satellitenantenne. Legen Sie die zweite Hälfte um ein LNB indem die beiden oberen Hälften zusammengesteckt werden und ziehen Sie die Klemmschraube leicht an, so dass sich ein LNB noch leicht drehen kann (Abb.
  • Page 8: Technische Daten

    - RED 2014/53 / EU Ausgänge/Impedanz -/Ω 2/4/2/1 F-type ports / 75 - RoHS 2011/65 / EU Eingangsspannung 11 ~ 20 Eine Kopie des vollständigen Textes der EU-Konformitätserklärung Stromaufnahme 300 max. finden Sie unter: www.inverto.tv/support_dc Feedhorndurchmesser (Ø) 23/40 Gewicht 435/485/460/367...
  • Page 9 Importeur FTA Communication Technologies S.à r.l 17 Route de Luxembourg, Gonderange L-6182 Luxembourg For further details contact: sales@inverto.tv Weitere Informationen unter: sales@inverto.tv FTA Communication Technologies S.á r.l FTA Communication Technologies S.á r.l Tel. +352 264 367 1 Fax. +352 264 313 68 Tel.
  • Page 10: Manuel D'installation

    Monoblock LNBs Manuel d’installation Modèles 3524 Twin Monoblock 23mm LNB, 6° for 80cm dish IDLB-TWNM21-MNOO6-8PP 3531 Quad Monoblock 23mm LNB, 4.3° for 80cm dish IDLB-QUDM21-MNO43-8PP 3532 Twin Monoblock 23mm LNB ,3° for 80cm dish IDLB-TWNM22-MNOO3-8PP 5068 Single Triple-feed 23mm LNB 13°E+16°E+19.2°E for 85cm dish IDLM-SINM20-TRPMN-8PP Informations générales...
  • Page 11 Installation du LNB sur l’antenne Placez le LNB dans le support / pince LNB de l’antenne parabolique. Fermez la poignée du support du LNB et serrez légèrement la vis de serrage pour que le LNB puisse toujours tourner (Fig. 1). Réglez l’angle d’inclinaison correct du LNB en tournant le LNB dans le sens horaire ou antihoraire: L’angle d’inclinaison du LNB (K) dépend de l’emplacement de l’installation de l’antenne...
  • Page 12: Données Techniques

    - RoHS 2011/65 / EU Niveau de tension CC d'entrée 11 ~ 20 Consommation de courant 300 max. Une copie du texte intégral de la déclaration de conformité continu Diamètre du col (Ø) 23/40 UE est disponible sur: www.inverto.tv/support_dc Poids 435/485/460/367...
  • Page 13 FTA Communication Technologies S.à r.l 17 Route de Luxembourg, Gonderange L-6182 Luxembourg For further details contact: sales@inverto.tv Pour plus de détails, contactez: sales@inverto.tv FTA Communication Technologies S.á r.l Tel. +352 264 367 1 Fax. +352 264 313 68 FTA Communication Technologies S.á r.l Tel.
  • Page 14: Instrukcja Obsługi

    Monoblock LNBs Instrukcja Obsługi Modele 3524 Twin Monoblock 23mm LNB, 6° for 80cm dish IDLB-TWNM21-MNOO6-8PP 3531 Quad Monoblock 23mm LNB, 4.3° for 80cm dish IDLB-QUDM21-MNO43-8PP 3532 Twin Monoblock 23mm LNB ,3° for 80cm dish IDLB-TWNM22-MNOO3-8PP 5068 Single Triple-feed 23mm LNB 13°E+16°E+19.2°E for 85cm dish IDLM-SINM20-TRPMN-8PP Informacje Ogólne...
  • Page 15 Instalacja konwertera na antenie Umieś c ́ konwerter w uchwycie antenowym. Zamknij uchwyt i dokrę c ́ lekko wkrę t obejmy, tak aby mó c obracać konwerterem (Fig. 1). Ustaw właściwy kąt skrętu konwertera, obracając konwerter w uchwycie w kierunku zgodnym lub przeciwnym do ruchu wskazówek zegara: kąt skrętu konwertera (K) jest zależny od miejsca instalacji anteny satelitarnej i satelity, który ma być...
  • Page 16: Dane Techniczne

    Ź r ó d ło napię c ia konwertera 11 ~ 20 Pobó r prą d u 300 max. Pełny tekst deklaracji zgodnoś c i UE jest dostę p ny pod Średnica szyjki konwertera (Ø) 23/40 nastę p ują c ym adresem internetowym: Waga 435/485/460/367 www.inverto.tv/support_dc...
  • Page 17 FTA Communication Technologies S.à r.l 17 Route de Luxembourg, Gonderange L-6182 Luxembourg więcej informacji: sales@inverto.tv For further details contact: sales@inverto.tv FTA Communication Technologies S.á r.l Tel. +352 264 367 1 Fax. +352 264 313 68 FTA Communication Technologies S.á r.l Tel.
