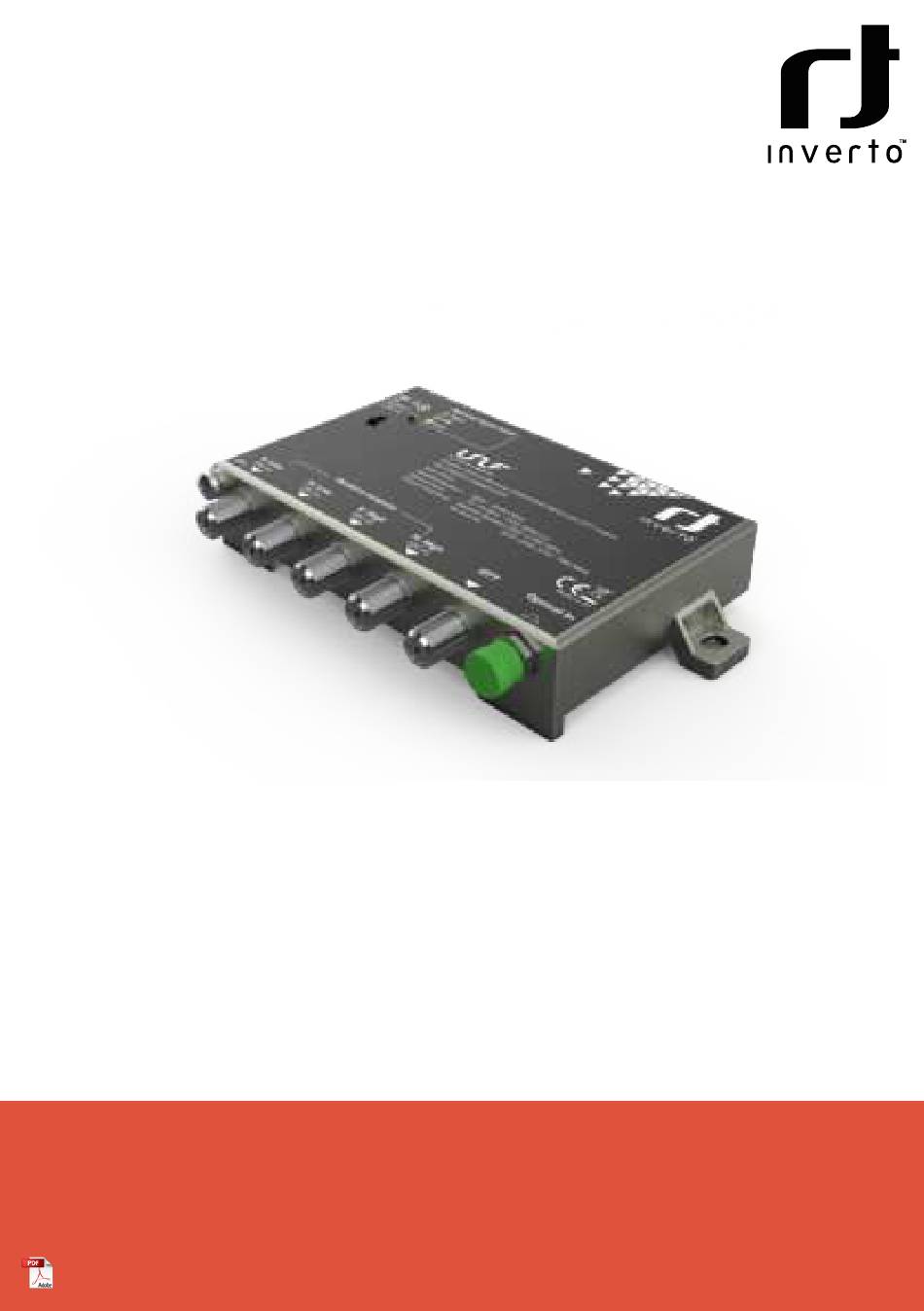

- Page 1 ™ Unifiber Quattro Optical Receivers IDLF-RXQXO1-XXXXX-OPR Item 6125, 6126, 6131, 6132 User manual...
- Page 2 The optical receivers 6125/ 6126/ 6131/ 6132 ( are intended to convert optical signals into elec- trical RF signals. The recivers are compatible with Inverto wideband SAT IF transmitting system. The receiver is equipped with AGC system based on optical input level (OLC - optical level con- trol).

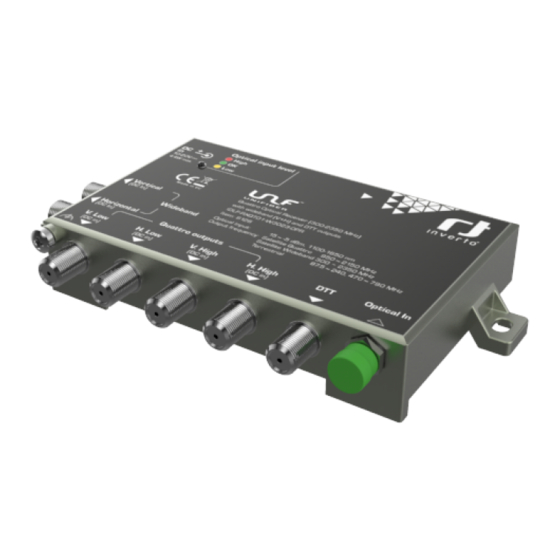

- Page 3 EXTERNAL VIEW OF THE RECEIVERS Items: 6131/6132 Items: 6125/6126 Figure 1. External view of the receivers...
- Page 4 1. OPTICAL IN Optical input. FC/UPC connector 2. DTT DTT, DAB, FM output. F-type, female 3. Horizontal High out (DC in) SAT IF horizontal high RF signal output, DC input. F socket 4. Vertical High out (DC in) SAT IF vertical high RF signal output, DC input. F socket 5.
- Page 5 Installation instructions - Read the safety instruction first. - All unused F type connectors must be terminated with 75 Ω loads. - Mount receiver in vertical position with optical connector underneath. - From top, left and right side leave 10 cm free space. - Fasten with screws.
- Page 6 Technical Specifications Item 6125 6126 6131 6132 Optical input Detection wavelength range 1100 - 1650 nm Input level (OLC range)* -15 ÷ -5 dBm Return loss > 40 dB Wideband and quattro outputs Frequency range wideband 2x (290-2340 MHz) 2x (300-2350 MHz) MHz) quattro 2 x (950-2150) &...
- Page 8 For purpose of brevity, some product descriptions in this sheet remain at platform level and may not be referred to as de- tailed datasheets of the products. Inverto Digital Labs reserves the right to amend, omit or add products, product-lines, and / or features without notice.
