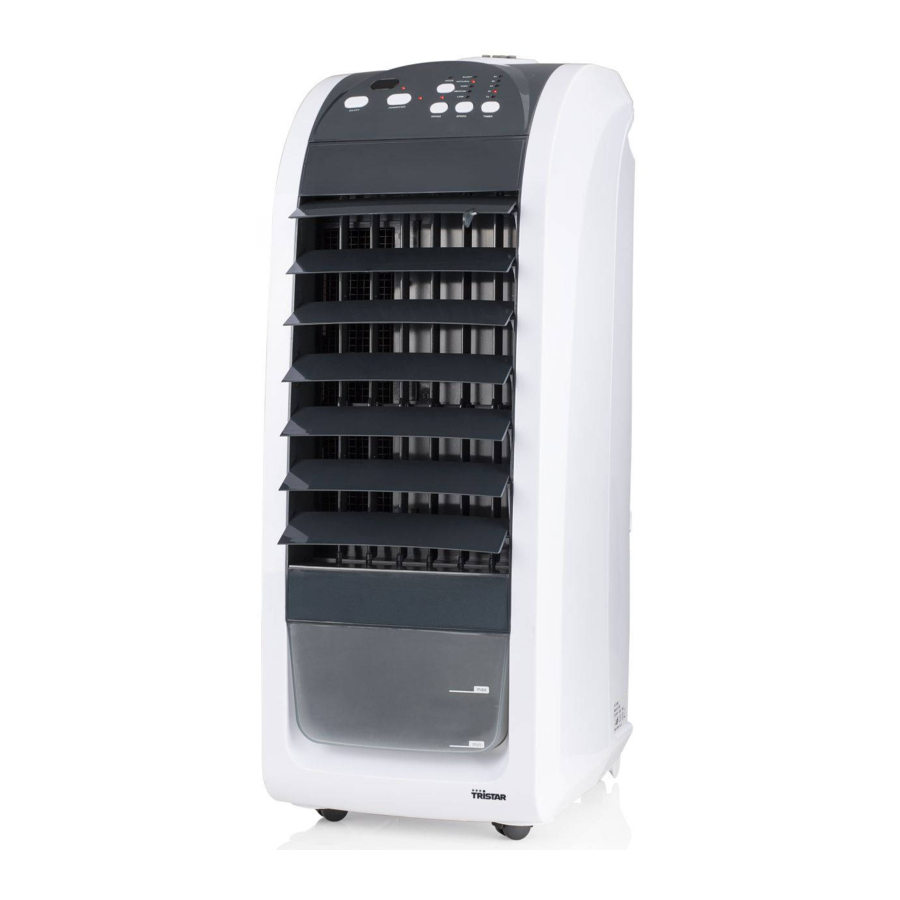

Tristar AT-5450 - Air Cooler Manual

SAFETY

• Read and save these instructions
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Never insert fingers, pencils or any other object through the holes of the plastic shell.
• To prevent risk of fire and electric shock. Do not use the unit near windows.
• Power plug must be removed from power socket before cleaning, serving, maintenance and move from one location to another.
• The fan should be placed on a flat and stable surface when operating to avoid overturning.
• Do not put on the product in wet place. For example, bathroom etc.
• Don't use it in the cook-room in order that keeping the plastic part away from greasy dirt.
• If the power cord is damaged, it must be replaced by the manufacturer or its service agent or similar qualified person in order to avoid a hazard.
• Keep electrical appliances out of read from children or confirm persons, Do not let them use the appliances without supervision.
• This appliance is not adapt for use by persons (children) with reached physical sensory or mental capabilities, or lack of experience and know ledge unless they have been given supervision concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

Specifications

• Rated Voltage: 220-240V~
• Rated Frequency: 50Hz
• Input Power: 70W

PART NAME

1. Body
2. Horizontal leaf
3. Rear grill
4. Pilot lamp
5. Receive window
6. Button
7. Remote controller
8. Power cord
9. Water tank
10. Front wheel
11. Locking nut of water tank

ASSEMBLAGE

Disassemble method of rear grille and curtain

1. Take the rear grille out off the back of the air cooler (Pic.1)

2. Loosen one screw to disassemble the curtain bracket. (Pic.2)

3. Disassemble the curtain from the bracket. (Pic.3)


Method of watering

1. Release the locking nut of the water tank, pull out the tank and fill it with water into. (Pic.4)


OPERATION

Function of the control panel

Air Cooler/ Humidifier

• Press once: the motor starts to operate.
• Press twice: the motor stops working.

Mode

Press button "MODE" when air cooler is working, you can choose below different mode

1. NATURAL (Indicator light on), it is natural wind
2. SLEEP (Indicator light on), it is sleep wind
3. NATURAL (Indicator light off) and SLEEP (Indicator light off), it is regular wind

• When NATURAL (Indicator light on), press button "HIGH", the operation rules is as below:
  High-stop-medium-high-low-high-medium-high-Stop-medium-high-low-highmedium-low-high-medium (it keeps 4 to 14 seconds for every changes)
• When NATURAL (Indicator light on), press button "MEDIUM", the operation rules is as below:
  Low-medium-low-high-stop-medium-low-medium-low-medium-low-highstop-medium-low-high-stop-medium-high(it keeps 2 to 12 seconds for every changes
• When NATURAL (Indicator light on), press button "LOW", the operation rules is as below:
  Stop-medium-low-medium-stop-high-low-medium-low-medium-low-medium-low-stop-high-low-medium-low(it keeps 2 to 12 seconds for every changes
• When SLEEP (Indicator light on), press button "HIGH", the operation rules is as below:
  30 minutes high natural wind and then change to 30 minutes medium natural wind, Then to change 30 minutes low natural wind till power off.
• When SLEEP (Indicator light on), press button "MEDIUM", the operation rules is as below:
  30 minutes medium natural wind then to change low natural wind till power off
• When SLEEP (Indicator light on), press button "LOW", the operation rules is as below:
  Low natural wind till power off

CLEANING

• To reduce the risk of fire or electrical shock, do not use this fan with any solid state speed control device, unplug or disconnect this fan from the power supply before servicing. Unplug the fan before cleaning.
• The appliances have to be cleaned before use, and after a long period of inoperative.
• Clean the body with a soft cloth or soft thin paper. If the dust is uneasy to wipe away, rub it with soapy water. Don't use gasoline, diluents and other solvents.
• Clean the curtain with water.
• Disregarding of the cleaning instructions can cause dangers.
