Breo iPalm520S - Hand Massager Manual

Introduction

Thank you for purchasing Breo iPalm520S. Please read the manual carefully before using the product, and keep it in a safe place for future reference.

iPalm52DS adopts air pressure, point, and hot compress massaging technology. lt relaxes the hands by rubbing and kneading the pressure points of the pal ms and fingers.

lnside the Package

1 Main Unit,
1 AC Adapter,
4 Batteries,
1 User Manual

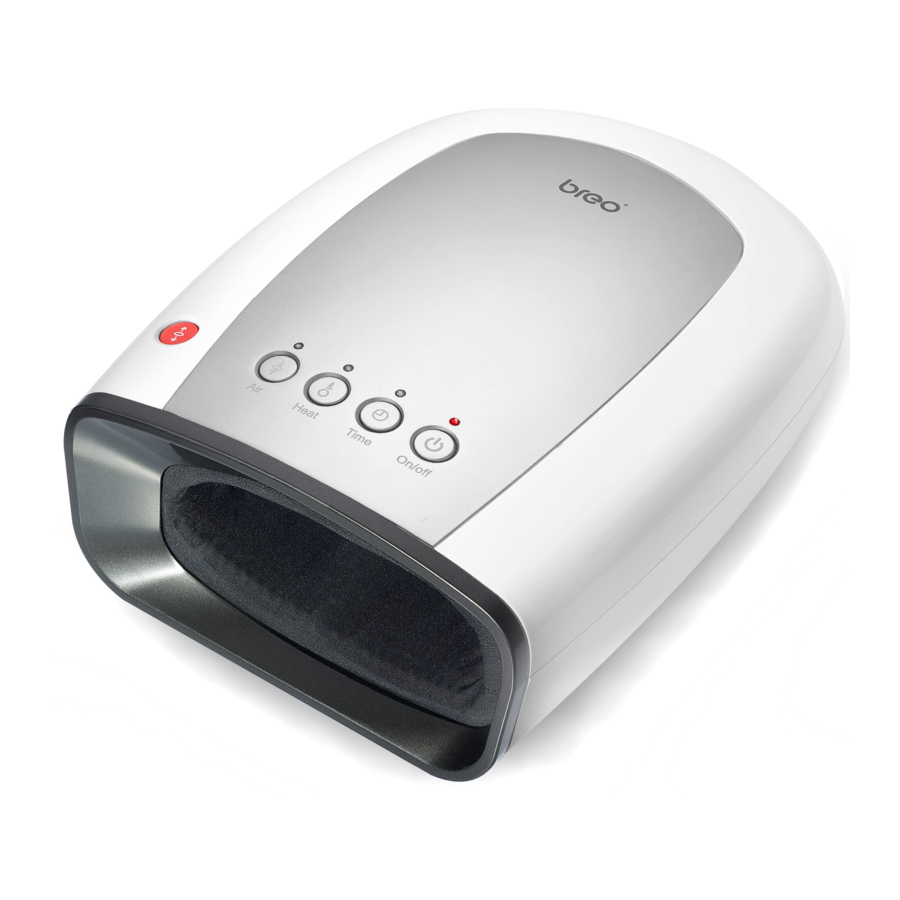

Functions Deployment

Functions Deployment

  1. Operating Buttons
    From left to right:
    Air Pressure,
    Heat
    Time,
    On/Off
  2. Air Pressure Reduction Valve
  3. 6V DC Power Port

Preparation

Prior to use, check the condition of the machine and accessories:

  1. Battery power is sufficient
  2. No damage on AC adapter

Power Options

  1. Batteries
    1. Open the battery caver on the back of the main unit.
    2. lnstall 4 AA batteries in accordance with the positive and negative polarity.
    3. Close the battery caver.
  2. AC Adapter
    1. lnsert the plug of AC adapter in the main unit's DC port.
    2. Connect the other end to AC power socket.

* Choose power option #1 OR #2.

Operation

Use

  • Place hand (palm down) into the massager.
  • Turn the power on, select function key, and set air pressure & heat to preference.

Manual Mode

Power On/Off

Power On - Press and hold On/Off Button until the light turns on Preset default is air pressure(circulating from low to high)/heating massage/5 minutes duration.
Manually operate related function buttons to switch between air pressure and hot compress modes.

Power Off - Press and hold On/Off Button
warning *Note: After turning off the unit, allow approximately 40 seconds for air pressure to be released. During this period, the unit will not start when the On/Off button is pressed.

Time

Press the Time Button to select massage duration (5 min/10 min/15 min)

The LED light for Time flashes and the massage du ration circulates among these three modes:

  1. 5 minutes (default): the LED light flashes once
  2. 10 minutes: the LED light flashes twice
  3. 15 minutes: the LED light flashes three times

Heat

Press the Heat Button to select temperature (Low-Off-High). The LED light for Heat flashes and the temperature circulates among these three modes:

  1. High(default): the LED light flashes twice
  2. Law: the LED light flashes once
  3. Off: the LED light turns off.

Air pressure

Press the Air Pressure Button to select mode (Default-Standard-Powerful-Soft)

The LED light for Air Pressure flashes and the setting circulates among these four modes:

  1. Circulating from low-high (default): the LED light flashes once
  2. Standard: the LED light flashes twice
  3. Powerful: the LED light flashes three times
  4. Soit the LED light flashes four times

*Important Tip: When you feel the air pressure is tao much and/or uncomfortable, press the Pressure Reduction Valve (red button) to release air.

Precautions

Please read this User Manual carefully for correct and safe use of this massager.

  1. Do not use while walking or driving.
  2. Keep the massager away from humidity, heat, and/or corrosive gas.
  3. lndividuals with indisposed symptoms like inflammation, blood stasis or have undergone hand operation should not use this product.
  4. Do not wear hand ornaments and/or jewelry when using this massager.
  5. Don't apply nail polish within 1 hour before using this massager.
  6. Put hand into the unit BEFORE turning the power on. This also prevents damage to the air bag due to tao much pressure.
  7. If the massager will not be used for a long time, remove the batteries to avoid battery leakage.
  8. To clean, wipe with aseptic cotton and alcohol. Do not wash or immerse in water.
  9. Only use the supplied 6V DC power adapter (included).
  10. If an individual has soft, tender or delicate hands, set themachine on low pressure to avoid pain or discomfort.
  11. The machine could feel like it is too hot on the highest heat and pressure settings because the added pressure intensifies the heat.
  12. lt is normal for the userto have dimples on their skin alter using the massager. The dimples will gradually disappear within approximately 15 minutes.
  13. This product is not a substitute for healthcare professionals' advice and treatment. ln case of doubt or if necessary, please consult your healthcare professional.
  14. This massager features heat compression. lndividuals who are incapable of or do not ordinarily feel heat / cold sensation should use this device with caution.
  15. This device complies with Part 15 of the FCC Rul es. Dperation is subject to the following two conditions:
    1. this device may not cause harmful interference, and
    2. this device must accept any interference received, including interference that may cause undesired operation.
  16. Please note that changes or modifications not expressly approved by the party responsible for compliance couI d void the user's authority to operate the equipment.
  17. This equipment has been tested and found to comply with the limits for aClass B digital device, pursuant to Part 15 of the FCC Ru les. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio ommunications. However, there is no guarantee that interference will not occur in a will not occur in a particular installation. If this equipment does cause harrnful interference to radio or television reception, which can be determined by turning the equipment off and on.the user is encouraged to ry to correct the interference by one or more of the following measures:
    • Reorient or relocate the receiving antenna.
    • lncrease the separation between the equipment and receiver.
    • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
    • Consult the dealer or an experienced radio/TV technician for help

Troubleshooting

When operational problems occur, please refer to the chart below. Do not disassemble the machine or try to repair it by yourself.

Problem Possible Reason Possible Solution

Power-ON failure
 Batteries are low / out Change batteries
Batteries are nat installed correctly Check if positive/negative pales of batteries are positioned right
Make sure the batteries are snug in place.
AC adapter is not connected properly Check the connection of the AC adapter to the power socket
Weak heat or air pressure Batteries are low / out Change batteries
Make sure the batteries are installed correctly and snug in place

Technical parameters

Pover DC 6V
Ideal environment Temperature: 5 C-40 C Relative Humidity::o;;BO%
Atmospheric pressure: 860hpa-1060hpa
Dimension Main unit: Length265mm x Width201mm x Height 90mm
Net Weight 1129g
Power 6W

Made in China
Manufactured by: Body Source Technology (ShenZhen) Co. LTD
Address: 8th Floor, Building H, GangZhilong Technology Park
Bao'an district, ShenZhen, China
