Item No. / Artículo No : 3732

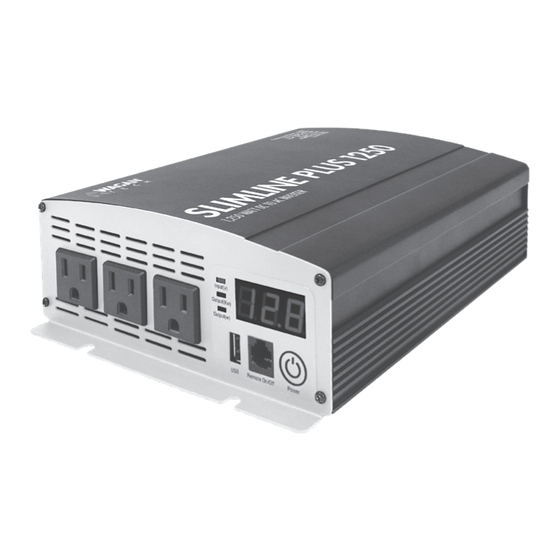

Slimline Plus
1250
User's Manual / Manual de Usuario
Please visit our website for the latest information on this product.
Visite nuestro sitio web para obtener la información más reciente sobre este producto.
RoHS
compliant

Advertisement

loading
Need help?

Need help?

Do you have a question about the Slimline Plus 1250 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Wagan Slimline Plus 1250

  • Page 1 Item No. / Artículo No : 3732 Slimline Plus 1250 ™ User’s Manual / Manual de Usuario Please visit our website for the latest information on this product. Visite nuestro sitio web para obtener la información más reciente sobre este producto. RoHS compliant...
  • Page 2 Plus 1250 Power Inverter. With ® ™ minimal care and proper treatment, it will provide years of reliable service. In an industry where the actual wattage output varies so greatly, Wagan Tech is proud to introduce TrueRated Power technology. All our inverters feature ™...
  • Page 3 Input/Output Display – Displays the input or output of inverter, or the corresponding Error Code in the event of malfunction. Display cycles between input and output approximately every 5 seconds. ©2022 Wagan Corporation. All Rights Reserved. Wagan Tech and wagan.com are trademarks of Wagan Corporation.
  • Page 4 Slimline Plus 1250 Power Inverter by Wagan Tech ™ ® ERROR CODES See Troubleshooting section in the event of malfunction. Low battery voltage (less than 9.5V) Over voltage (greater than 15V) Overload Over temperature Short circuit REAR PANEL All inverters described in this manual have two terminals for connecting battery cables.
  • Page 5 MSW voltage, and will display about 20 to 30 volts too low. Any multi-meter identified as “TRUE RMS” will accurately read MSW correctly. PRODUCT USAGE FUSE ©2022 Wagan Corporation. All Rights Reserved. Wagan Tech and wagan.com are trademarks of Wagan Corporation.
  • Page 6 Slimline Plus 1250 Power Inverter by Wagan Tech ™ ® BASIC OPERATION • Press the ON/OFF Switch that is located at the front of the inverter, the Input/Output Display will light up as an indicator that the unit is working.
  • Page 7 • Temperature of the batteries (colder batteries provide fewer amps) • Age and condition of the batteries (older batteries lose Ah capacity) • Compliance with turning off unnecessary AC loads ©2022 Wagan Corporation. All Rights Reserved. Wagan Tech and wagan.com are trademarks of Wagan Corporation.
  • Page 8 Slimline Plus 1250 Power Inverter by Wagan Tech ™ ® • Use of DC appliances and compliance with turning off unnecessary DC loads • If the inverter is installed in a vehicle and the alternator output in Amps cannot supply enough current for the inverter, additional batteries are required to supply the required current.
  • Page 9 In the unlikely event of a short circuit, operating the inverter without proper grounding can result in electrical shock. Do not directly connect this ground to the negative terminal on the inverter. ©2022 Wagan Corporation. All Rights Reserved. Wagan Tech and wagan.com are trademarks of Wagan Corporation.
  • Page 10 Slimline Plus 1250 Power Inverter by Wagan Tech ™ ® INSTALLATION PROCEDURE 1. Mount the inverter in a secure location. If the inverter is to be mounted on a wall, mount it horizontally. Make sure that the front and rear of the inverter has free air flow.
  • Page 11 2 to 3 twists per foot. This minimizes radiated interference from the cables. • Ferrite beads may be installed around battery cables and AC appliance cords to reduce noise. ©2022 Wagan Corporation. All Rights Reserved. Wagan Tech and wagan.com are trademarks of Wagan Corporation.
  • Page 12 Slimline Plus 1250 Power Inverter by Wagan Tech ™ ® MAINTENANCE Very little maintenance is required to keep the inverter operating properly. Periodically check to ensure all terminals and connectors are secure and tight. HEAT DISPERSAL The inverter generates heat while it is working. This is not a malfunction. However, if the inverter gets too hot while working, it will turn off by itself.
  • Page 13 Keep cable length as short as possible. DISPOSAL/RECYCLING OF INVERTER Electronic products are known to contain materials that are toxic if improperly disposed. Contact local authorities for disposal and recycling information. ©2022 Wagan Corporation. All Rights Reserved. Wagan Tech and wagan.com are trademarks of Wagan Corporation.
  • Page 14 Slimline Plus 1250 Power Inverter by Wagan Tech ™ ® SPECIFICATIONS All specifications are typical at nominal line, half load and 77ºF unless otherwise noted. Specifications are subject to change without notice. Name Description Input 11-15V DC Input AC Output...
  • Page 15 Product is warranted to the original purchaser for a period of two (2) years from the original purchase date, to be free of defects in material and workmanship. WAGAN Corporation disclaims any liability for consequential damages. In no event will WAGAN Corporation be responsible for any amount of damages beyond the amount paid for the product at retail.
  • Page 16 Con unos cuidados mínimos y un tratamiento adecuado le ofrecerá años de servicio fiable. En una industria en la que varía tanto la salida de vatios real, Wagan Tech se enorgullece en presentar la tecnología TrueRated Power . Los cuatro inversores ™...
  • Page 17 ∗ Invertir la polaridad conectando los cables CC a los terminales incorrectos. ∗ Conectar el inversor a una fuente de alimentación mayor a 15V CC © Corporación Wagan 2022. Todos los derechos reservados. Wagan Tech y wagan.com son marcas registradas de la Corporación Wagan.
  • Page 18 Inversor de Energía Slimline Plus 1250 de Wagan Tech ® ™ PANEL DELANTERO Rejilla de ventilación Luces LED de entrada (V) Luces LED de salida (kW) Luces LED de salida (W) Pantalla de entrada/salida Interruptor de encendido/apagado Puerto de conexión de control remoto...
  • Page 19 © Corporación Wagan 2022. Todos los derechos reservados. Wagan Tech y wagan.com son marcas registradas de la Corporación Wagan.
  • Page 20 Inversor de Energía Slimline Plus 1250 de Wagan Tech ® ™ MEDICIÓN DE TENSIÓN CA La salida CA de este inversor es una onda sinusoidal modificada (MSW) de 115 voltios CA. La salida CA doméstica es una onda sinusoidal pura. La comparación de la onda sinusoidal modificada y la CA doméstica se muestra en la imagen...
  • Page 21 "vatios totales". Recuerde tener en cuenta la subida de arranque que causarán los aparatos motorizados. No exceda la clasificación de subida del inversor. © Corporación Wagan 2022. Todos los derechos reservados. Wagan Tech y wagan.com son marcas registradas de la Corporación Wagan.
  • Page 22 Inversor de Energía Slimline Plus 1250 de Wagan Tech ® ™ Podría provocar un apagado inmediato por sobrecarga. Con la potencia continua máxima, este inversor requiere una fuente de alimentación de CC (banco de baterías) que pueda suministrar continuamente 125 amperios a 12 V durante el tiempo de ejecución.
  • Page 23 De nuevo, ambos ritmos de descarga, altos, son más rápidos que el ritmo de 20 horas por lo que la capacidad parece menor. © Corporación Wagan 2022. Todos los derechos reservados. Wagan Tech y wagan.com son marcas registradas de la Corporación Wagan.
  • Page 24 Inversor de Energía Slimline Plus 1250 de Wagan Tech ® ™ INSTALACIÓN Una instalación segura, precisa de la instalación de un fusible de protección de batería a menos de un pie (30 cm) del terminal positivo (+) de la batería [rojo].
  • Page 25 10. Apague (O) el inversor. El LED de error puede parpadear brevemente; es normal. La alarma acústica también puede sonar brevemente; es normal. © Corporación Wagan 2022. Todos los derechos reservados. Wagan Tech y wagan.com son marcas registradas de la Corporación Wagan.
  • Page 26 Inversor de Energía Slimline Plus 1250 de Wagan Tech ® ™ 11. Cuando haya confirmado que el aparato que se va a usar esté apagado, enchufe el aparato a una de las tomas CA del panel delantero del inversor. 12. Encienda el inversor.
  • Page 27 La protección térmica del inversor evita que funcione cuando la temperatura exceda los 55ºC ± 5ºC. © Corporación Wagan 2022. Todos los derechos reservados. Wagan Tech y wagan.com son marcas registradas de la Corporación Wagan.
  • Page 28 Inversor de Energía Slimline Plus 1250 de Wagan Tech ® ™ SOLUCIÓN DE PROBLEMAS CÓDIGOS DE ERROR Código Causa Solución Baja tensión de la batería (menos Recargue o cambie la batería. de 9,5 V): estado de la batería deficiente o débil Sobretensión (superior a 15 V)
  • Page 29 Alarma de batería baja 10.5V ± 0.5V CC Apagado por batería baja 9.5V ± 0.5V CC Alarma y apagado térmico 55ºC ± 5º © Corporación Wagan 2022. Todos los derechos reservados. Wagan Tech y wagan.com son marcas registradas de la Corporación Wagan.
  • Page 30 Inversor de Energía Slimline Plus 1250 de Wagan Tech ® ™ Nombre Descripción Enchufes CA 3 NEMA 5-15 EE. UU. Conexiones USB 2.0A Dimensiones (L x P x A) cm 30.5 × 17.8 × 7.4 Peso neto 2.72 kg Longitud del cable del control remoto MEDIDAS DE CABLE SEGÚN LONGITUDES DE RECORRIDO DE CABLE...
  • Page 31 Se extiende la garantía del producto para el comprador original por el periodo de dos (2) años a partir de la fecha de compra original, que declara que está libre de defectos de materiales y mano de obra. WAGAN Corporation no asume ninguna responsabilidad por daños consecuentes. Bajo ninguna circunstancia WAGAN Corporation asumirá...
  • Page 32 U.S. & Canada Toll Free: +1.800.231.5806 customerservice@wagan.com www.wagan.com ©2022 Wagan Corporation. All Rights Reserved Wagan Tech and wagan.com are trademarks of Wagan Corporation © Corporación Wagan 2022. Todos los derechos reservados Wagan Tech y wagan.com son marcas registradas de la Corporación Wagan REV20220308-ES...
