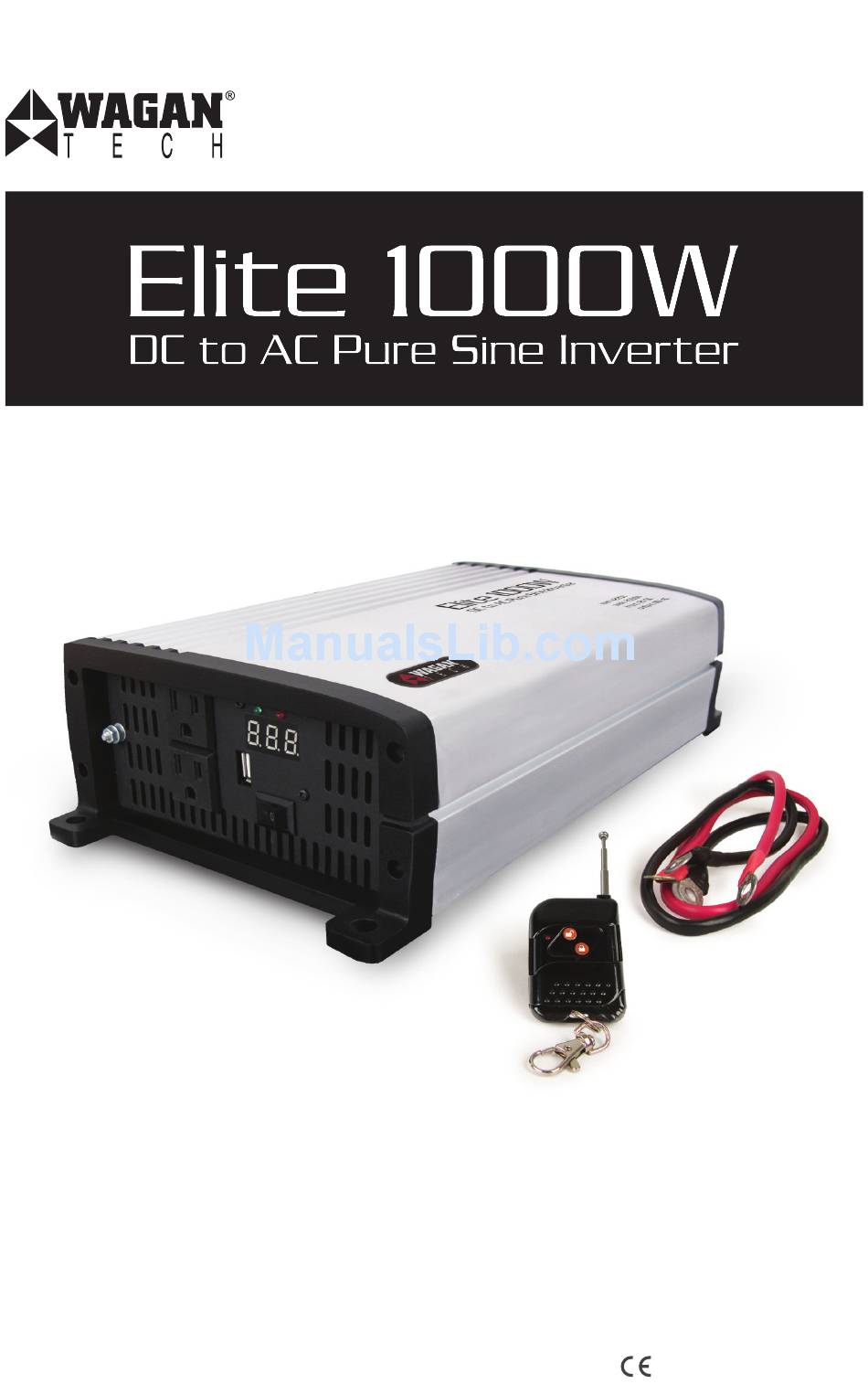

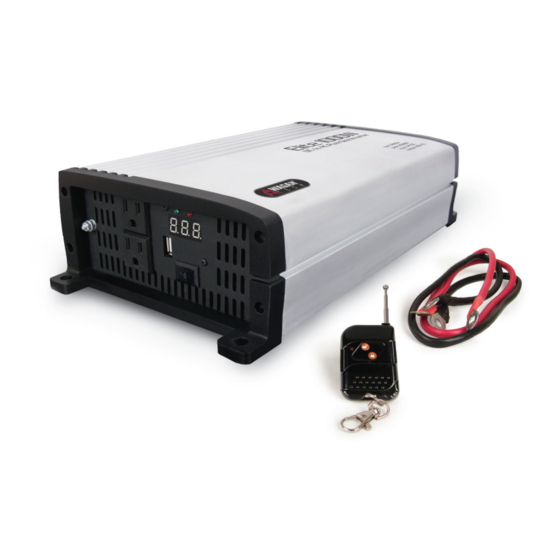

- Page 1 item #2203 User’s Manual SHEMO080100244TXC...
-
Page 2: General Instructions
Elite 1000W—Pure Sine Inverter by Wagan Tech User’s Manual—Read before using this equipment Introduction General Instructions: Thank you for purchasing this Wagan Pure Sine Wave DC to AC Power • Keep the inverter away from any direct heat source or combustible Inverter. -
Page 3: Front Panel
Elite 1000W—Pure Sine Inverter by Wagan Tech User’s Manual—Read before using this equipment Product Features low battery condition. The user should reduce the AC load, charge the battery, and check the DC cable or excessive losses. Front Panel • Ground Terminal... -
Page 4: Remote On/Off Switch
Elite 1000W—Pure Sine Inverter by Wagan Tech User’s Manual—Read before using this equipment Remote On/OFF Switch Rear Panel This inverter is supplied with a 100-foot range battery-powered wireless • Positive Terminal: Positive DC Input remote ON/OFF feature. To enable the Remote Switch, the front panel On/Off •... -
Page 5: Load Considerations
Elite 1000W—Pure Sine Inverter by Wagan Tech User’s Manual—Read before using this equipment Load Considerations Determining Maximum Appliance Wattage When an appliance with a motor starts, it requires a momentary surge of Microwave oven specifications list cooking power (watts) and appliance power. -
Page 6: Derating The Battery Bank
Elite 1000W—Pure Sine Inverter by Wagan Tech User’s Manual—Read before using this equipment will need 50 amps at 12 volts DC. Using the 500 watts (or 50 amps) for 10 Configuring the battery bank hours example as above, then 50 amps is needed for 10 hours. This provides Batteries that are used indoors or inside a vehicle or vessel, should be deep- us with the basic amp-hours (AH) of battery that is required. -
Page 7: Dc Cable Gauge
Elite 1000W—Pure Sine Inverter by Wagan Tech User’s Manual—Read before using this equipment DC Cable Gauge 5. Locate the ground lug terminal on the inverter. Connect an insulated 10 gauge copper wire to the terminal. The other end of the ground wire Minimize cable losses by using the thickest wire available and the shortest is connected to a “proper”... -
Page 8: Charging The Battery Bank
Elite 1000W—Pure Sine Inverter by Wagan Tech User’s Manual—Read before using this equipment 10. Make certain that the green Operating LED is lit and the FAULT LED Replacement of battery energy always requires more than was taken from indicator is not lit. -
Page 9: Troubleshooting
Elite 1000W—Pure Sine Inverter by Wagan Tech User’s Manual—Read before using this equipment Troubleshooting PROBLEM: Continuous Buzzing Sound – Display Shows Low Voltage Reason Solution PROBLEM: Low or No Output Voltage – Fault LED Lit Input voltage below 10.5 Volts Keep input voltage above 10.5 Volts... -
Page 10: Specifications
Elite 1000W—Pure Sine Inverter by Wagan Tech WAGAN Corp. Limited Warranty Specifications All WAGAN Corporation products are warranted to the original purchaser of this product. • Output Waveform: True Sine Waveform Warranty Duration: This product is warranted to the original purchaser for a period of two (2) years from the original purchase date, to be free of defects in material and workmanship. - Page 11 www.wagan.com customerservice@wagan.com Toll Free: 1.800.231.5806 31088 San Clemente Street Hayward, CA 94544 U.S.A. ©2010 Wagan Corporation All Rights Reserved Wagan and wagan.com are trademarks used by Wagan Corporation Revised Jan2010...
