Grundig GCI-G1536F Owner's Manual

Grundig GCI-G1536F Owner's Manual

5 mp 360 fisheye ip camera icr ir 6 led
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Owner's Manual
IP Cameras
GCI-G1536F
GCI-G1536F.75.1.11.07.2014
© ASP AG
5 MP 360° Fisheye IP Camera ICR IR 6 LED

Advertisement

Table of Contents
loading

Related Manuals for Grundig GCI-G1536F

Summary of Contents for Grundig GCI-G1536F

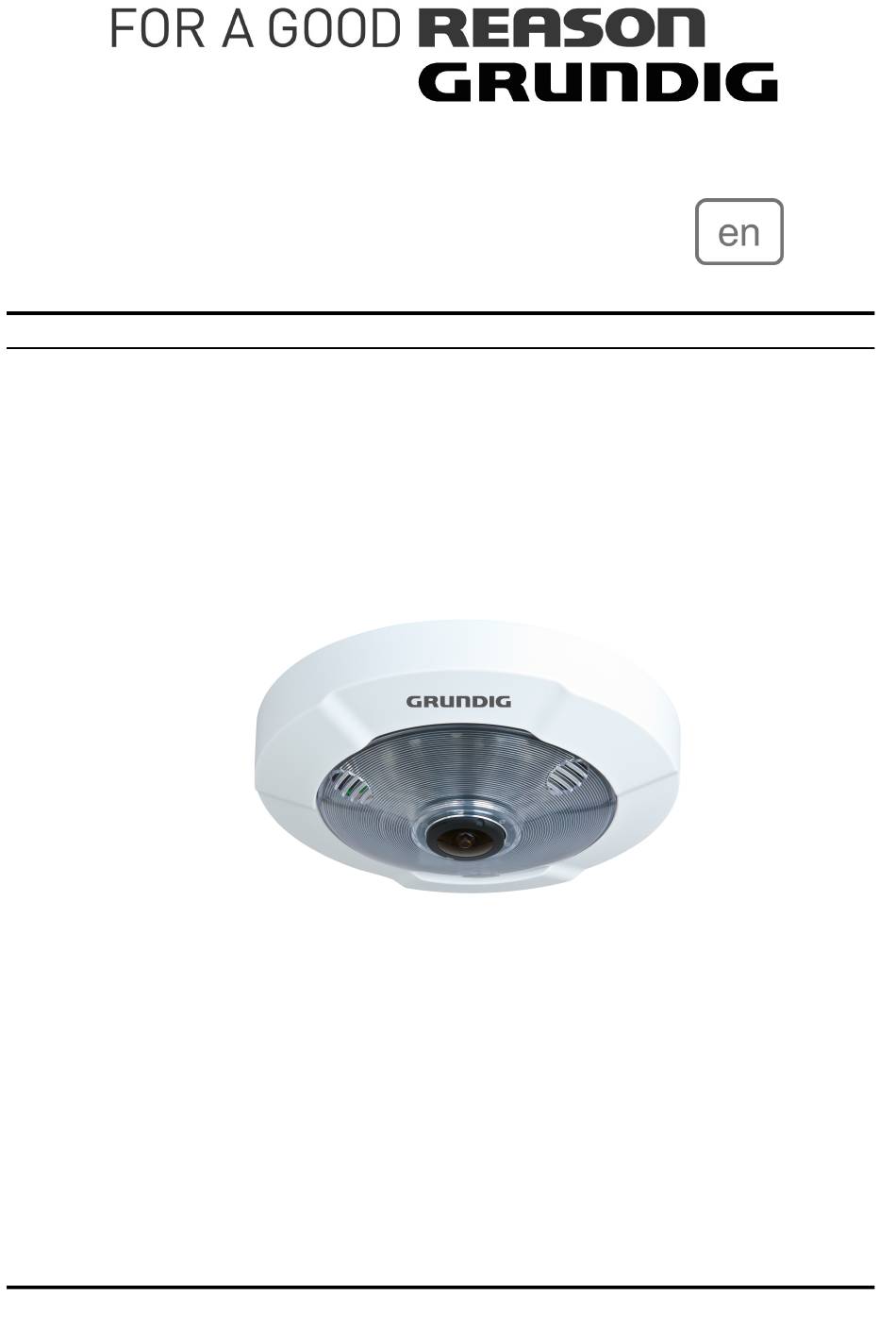

  • Page 1 Owner's Manual IP Cameras GCI-G1536F 5 MP 360° Fisheye IP Camera ICR IR 6 LED GCI-G1536F.75.1.11.07.2014 © ASP AG...

  • Page 3: Table Of Contents

    6. FTP 15. GRUNDIG Viewer Download Procedure 7. HTTP 16. Install UPnP Components 8. Application (Alarm Settings) 17. Deleting the Existing GRUNDIG Viewer 9. Motion Detection 10. Network Failure Detection 11. Tampering 12. Storage Management (on Camera) 13. Recording (on Camera) 14.

  • Page 4: Introduction

    If this product fails to operate normally, contact the nearest service center. Never disassemble or modify this product in any way. (GRUNDIG is not liable for problems caused by unauthorised modifications or attempted repair.) To prevent fire or electric shock, do not expose the inside of this device to rain or moisture.

  • Page 5: Installation

    4. Installation Do not install the product in a location subject to high temperature (over 50°C), low temperature (below -10°C), or high humidity. Doing so may cause fire or electric shock. Keep out of direct sunlight and heat radiation sources. This may cause fire. Avoid aiming the camera directly towards extremely bright objects such as the sun, as this may damage the image sensor.

  • Page 6: Definition Of The All-In-One Cable

    4.2. Definition of the All-In-One Cable (optional) First, cut the DC Jack Connector off the cable to get a cut end. Then cut only the black insulation cover at a point of about 3 cm from the cut end, so that you can remove the 3cm long insulation cover easily to make the wiring. English...

  • Page 7: System Requirements

    4.3. System Requirements To perform the IP Camera via web browser, please ensure your PC is in good network connection, and meets the system requirements as described below. Personal Computer : 1.) Intel Pentium M, 2.16 GHz or Intel Core 2 Duo, 2.0 GHz 2.) 2 GB RAM or more Operating System : Windows XP / Windows VISTA / Windows 7...

  • Page 8: Accessing The Camera

    Finder.exe, which can be found on the supplied CD. GRUNDIG Finder Software Setup : Step 1: Double-click on the program GRUNDIG Finder.exe (see the desktop icon below). Its window will appear as shown below. Then click on the “Find Device” button.
  • Page 9 Step 4: Double-click or right-click and select “Browse” to access the camera directly via the web browser. Step 5: Then the dialogue box for entering the default user name and password (as shown below) will appear for login to the IP Dome Camera. The default login ID and password for the Administrator are: Login ID: admin Password: 1234...
  • Page 10 Step 1: In the finding device list, click on the IP Camera of which you would like to change the network property. Right-click on the selected item, and select “Network Setup”. Meanwhile, record the IP Camera’s MAC address for future identification. Step 2: The “Network Setup”...
  • Page 11 15. GRUNDIG Viewer Download Procedure. NOTE: If the Live Video Pane on the Home Page cannot be shown to the users who have installed the GRUNDIG Viewer on the PC previously, please refer to the procedure in chapter 17. Delete the Existing GRUNDIG Viewer.

  • Page 12: Video Resolution Setup

    6. Video Resolution Setup The users can set up the Video Resolution on the Video Format page of the user-friendly browser-based configuration interface. The page “Video Format” can be found in the IP camera menu under the path: Streaming > Video Format. Under the Video Resolution section in the menu page “Video Format”, please select your preferred resolution setting.
  • Page 13 English...
  • Page 14 NOTE: The Resolution 1920 x 1080 (30 fps) Low Latency does not support 3DNR, Motion Detection and Digital Zoom. For more streaming combinations with several streams, please refer to "Streaming" > "Video Format" in the camera menu. English...

  • Page 15: Browser-Based Viewer Introduction

    7. Browser-based Viewer Introduction The picture below shows the Home page of the IP Camera’s viewer window. There are four tabs on the left (System, Streaming, Camera and Logout) and one tab on the right (Languages). System setting : The administrator can set host name, system time, admin password, network related settings, etc. Further details will be interpreted in chapter 9.

  • Page 16: Home Page

    8. Home Page In the Home page, there are several function buttons that are specified below. Display Mode (Screen Size Adjustment) : The display size of the image can be adjusted here to x1/2 and x1 size. Talk Button (on/off) : Talk function allows the local site to talk to the remote site.
  • Page 17 Video Streaming Pause/Restart Button (pause/restart) : If you click on the stop button to disable video streaming, the live video will be displayed as black. Click on the restart button to show the live video again. Recording Button (on/off) : When you click on this button, the recordings from the Live View will be saved to the location specified in the “File Location”...
  • Page 18 Wall Mount Installed Camera: When you set the Installation type to "Wall Mount" in "System" > "Fisheye Setting" and press the "Save" button, the following buttons will replace the buttons <Quad View>, <360° Panoramic View> and <Single ePTZ View> in the Main menu page: - 180°...

  • Page 19: System Related Settings

    9. System Related Settings The picture below shows all categories under the “System” tab. Each category in the left column will be explained in the following sections. NOTE: The “System” configuration page is only accessible by the Administrator. 9.1. Host Name & System Time Setting Click on the first category <System>...

  • Page 20: Security

    Host Name : The name is for camera identification (max. 30 characters). If the alarm function (see section 9.8. 'Application (Alarm Settings)') is enabled and is set to send an alarm message by Mail/FTP, the host name entered here will be displayed in the alarm message.
  • Page 21 Admin Password : Change the administrator’s password by putting in the new password in the “Admin password” and “Confirm password” text boxes. The input characters/numbers will be displayed as dots for security purposes. After clicking <Save>, the web browser will ask the Administrator for the new password for access. The maximum length of the password is 14 digits.
  • Page 22 <HTTPS> : <HTTPS> allows secure connections between the IP Camera and the web browser using the <Secure Socket Layer (SSL)> or the <Transport Layer Security (TLS)>, which prevent others from snooping on your camera settings or Username/Password. It is required to install a self-signed certificate or a CA-signed certificate for implemention of <HTTPS>.
  • Page 23 Create self-signed certificate : Before a CA-issued certificate is obtained, users can create and install a self-signed certificate first. Click on the <Create> button under “Create self-signed certificate” and provide the requested information to install a self-signed certificate for the IP Camera. Please refer to the last part of this section: "Provide the Certificate Information"...
  • Page 24 Install signed certificate : Click on the “Create Certificate Request” button to create and submit a certificate request in order to obtain a signed certificate from the CA (Certificate Authority). Provide the requested information in the Create Dialog. Please refer to the section "Provide the Certificate Information"...
  • Page 25 When the signed certificate is returned, install it by uploading the signed certificate. Provide the Certificate Information : To create a Self-signed HTTPS Certificate or a Certificate Request to CA, please enter the information as requested: English...
  • Page 26 - Country: Enter a 2-letter combination code to indicate the country the certificate will be used in. For instance, type in “GB” to indicate Great Britain. - State or province: Enter the local administrative region. - Locality: Enter other geographical information. - Organisation: Enter the name of the organisation to which the entity identified in “Common Name”...
  • Page 27 <IP Filter> : When using the IP filter, access to the IP Camera can be restricted by denying/allowing specific IP addresses. General : - Enable IP Filter: Check the box to enable the IP Filter function. Once enabled, access to the IP Camera will be allowed/denied for the listed IP addresses (IPv4).
  • Page 28 <IEEE 802.1X> : The IP Camera can access a network protected by 802.1X/EAPOL (Extensible Authentication Protocol over LAN). To do this, users need to contact the network administrator to receive certificates, user IDs and passwords. CA Certificate : The CA certificate is created by the Certification Authority for the purpose of validating itself. Upload the certificate for checking the server’s identity.

  • Page 29: Network

    9.3. Network When you click on the category <Network>, there will be a drop-down menu with several tabs including <Basic>, <QoS>, <SNMP>, and <UPnP>. <Basic> : Users can choose to connect to the IP Camera through a fixed or dynamic (DHCP) IP address. The IP Camera also provides PPPoE (Point-to-Point Protocol over Ethernet) support for users who connect to the network via PPPoE.
  • Page 30 192.168.44.1. Click on “Save” to confirm the new setting. When using a static IP address to login to the IP Camera, users can access it either through the “GRUNDIG Finder” software (see 6. Accessing the Camera) or input the IP address in the URL bar and click on “Enter”.
  • Page 31 - Secondary DNS: Secondary DNS is a secondary domain name server that backs up the primary DNS. Use PPPoE : The PPPoE users need to enter the PPPoE Username and Password into the fields, and need to click on the “Save”...
  • Page 32 DSCP Settings : The DSCP value range is from 0 to 63. The default DSCP value is 0, which means that DSCP is disabled. The IP Camera uses the following QoS Classes: Video, Audio and Management. - Video DSCP: This class consists of applications such as MJPEG over HTTP, RTP/RTSP and RTSP/HTTP. - Audio DSCP: This setting is only available for the IP Cameras which support audio.
  • Page 33 Traps for SNMP v1/v2 : Traps are used by the IP Camera to send messages to a management system about important events or status changes. - Enable Traps: Check the box to activate trap reporting. - Trap address: Enter the IP address of the management server. - Trap community: Enter the community to use when sending a trap message to the management system.
  • Page 34 UPnP Setting : - Enable UPnP: When UPnP is enabled, whenever the IP Camera is presented to LAN, the icon of the connected IP Cameras will appear in My Network Places to allow for direct access as shown below. NOTE: To enable this function, please make sure the UPnP component is installed on your computer. Please refer to chapter 16.

  • Page 35: Ddns

    9.4. DDNS The Dynamic Domain Name System (DDNS) allows a host name to be constantly synchronised with a dynamic IP address. In other words, it allows those using a dynamic IP address to be associated to a static domain name so that others can connect to it through this name.

  • Page 36: Mail

    9.5. Mail The Administrator can can set up the sending of an e-mail via Simple Mail Transfer Protocol (SMTP) when an event is triggered. SMTP is a protocol for sending e-mail messages from server to server. SMTP is a relatively simple, text-based protocol, where one or more recipients of a message are specified and to whom the message text is transferred.

  • Page 37: Ftp

    9.6. FTP The Administrator can set the sending of alarm messages to a specific File Transfer Protocol (FTP) site when an event is detected. Users can assign an alarm message to up to two FTP sites. The FTP setting page is shown below.

  • Page 38: Http

    9.7. HTTP A HTTP Notification server can listen for notification messages from IP Cameras by triggered events. The HTTP setting page is shown below. Enter the HTTP details, which include the server name (for instance, http://192.168.1.1/admin.php), user name, and password into the fields. <Alarm> triggered and <Motion Detection>...

  • Page 39: Application (Alarm Settings)

    9.8. Application (Alarm Settings) The IP Camera is equipped with one alarm input and one relay output for cooperation with the alarm system to catch event images. Please refer to the alarm pin definition below to connect alarm devices to the IP Camera if needed.
  • Page 40 - Send Message by E-Mail: The Administrator can choose to send an alarm message by E-Mail when an alarm is triggered. - Upload Image by FTP: After selecting this item, the Administrator can assign a FTP site and configure various parameters as shown in the figure below.
  • Page 41 - Upload Image by E-Mail: After selecting this item, the Administrator can assign an e-mail address and configure various parameters as shown in the figure below. When the alarm is triggered, event images will be sent to the appointed e-mail address.
  • Page 42 - Send HTTP notification: Check this item, select the destination HTTP address, and specify the parameters for event notifications when an <Alarm> is triggered. As soon as an alarm is triggered, the notification will be sent to the specified HTTP server. For instance, if the custom parameter is set as ”action=1&group=2”, and the HTTP server’s name is ”http://192.168.1.200/admin.php”, the notification will be sent to the HTTP server as ”http://192.168.1.200/admin.php? Action=1&group=2”...
  • Page 43 - Record Stream to SD Card: After selecting this item, the alarm-triggered recording will be saved on your Micro SD card. The pre-trigger buffer recording function allows users to check what happened to trigger the alarm. The pre- trigger buffer time range is from 1 to 3 seconds. Select <Upload for __ sec>...
  • Page 44 Save : After completing all the settings mentioned above, please click on the Save button to save all the settings in this page. 9.9. Motion Detection The Motion Detection function allows detecting suspicious motion and triggers alarms when motion volume in the detected area reaches/exceeds the determined sensitivity threshold value.

  • Page 45: Motion Detection

    When a motion is detected, the signals will be displayed in the Motion window as shown below: The detailed settings of Motion Detection are described as follows: Motion Detection : You will be able to turn the Motion Detection on/off in the System section "Motion Detection". The default setting is: Off.
  • Page 46 - Record Stream to SD Card: When you select this item, the Motion Detection recording will be stored on your Micro SD/SDHC card when motion is detected. The pre-trigger buffer recording function allows users to check what happened to trigger the alarm. The pre- trigger buffer time range is from 1 to 3 seconds.
  • Page 47 - Upload Image by E-Mail: After selecting this item, the Administrator can assign an e-mail address and configure various parameters as shown in the picture below. When a motion is detected, event images will be sent to the appointed e-mail address. The <Pre-trigger buffer>...

  • Page 48: Network Failure Detection

    9.10. Network Failure Detection The Network Failure Detection function allows the IP Camera to ping another IP device (e.g. NVR, VSS, Video Server, etc.) within the network periodically and generates some actions in case of network failure occurance, for instance, when a Video Server is somehow disconnected. Being capable of implementing local recording (through Micro SD card) when a network failure happens, the IP Camera can be a backup recording device for the surveillance system.

  • Page 49: Tampering

    Select <Upload for __ sec> to set the recording duration after the alarm is triggered. The setting range is from 1 to 99999 seconds. Select <Upload while trigger is active> to record the triggered video until the trigger is turned off. NOTE: Please make sure that the local recording (with Micro SD/ SDHC card) is activated so that this function can be implemented.
  • Page 50 Triggered Action (Multi-option) : The Administrator can specify alarm actions that will take place when tampering is detected. All options are listed as follows: - Enable Alarm Output: Check this item and select the predefined type of alarm output to enable alarm relay output when tampering is detected.
  • Page 51 The <Pre-trigger buffer> recording function allows users to check what happened to trigger the alarm. The pre- trigger buffer time range is from 1 to 20 frames. On the other hand, the <Post-trigger buffer> is for uploading a certain amount of images after the alarm input is triggered.

  • Page 52: Storage Management (On Camera)

    File Name : The uploaded image’s filename format can be set in this section. Please select the one that meets your requirements (please see the section "File Name" in 9.8. 'Application (Alarm Settings)'). Save : Click the Save button to save all the Tampering Alarm settings mentioned above. 9.12.
  • Page 53 Recording List : Each video file on the Micro SD/SDHC card will be listed in the Recording list as shown below. The maximum file size is 60 MB (60 MB per file). If the recording modus is set to "Always" and at the same time the event recording (when a motion detection or an alarm takes place) is also turned on, in this case, when an event occurs, the event will be recorded first, afterwards the camera will return to normal recording mode.

  • Page 54: Recording (On Camera)

    9.13. Recording (on Camera) In the Recording setting page, the Micro SD Card recording schedule supports up to ten sets of time frames. Users can specify the recording schedule to fit their present surveillance requirements. Activating Micro SD/SDHC Card Recording : Two types of schedule mode are offered: "Always"...

  • Page 55: File Location (On Pc)

    9.14. File Location (on PC) Users can specify a storage location for the snapshots and the live video recording. The default setting is: C:\. Once the setting is confirmed, click on “Save,” and all the snapshots and recordings will be saved in the designated location.

  • Page 56: Fisheye Setting

    9.15. Fisheye Setting Users can setup the Camera’s installation type to apply different dewarping methods, and to calibrate the image dewarping via Horizontal Calibration when installing the Camera by Wall Mount. Installation: There are different dewarping methods according to the installation of the Camera. Please select <Ceiling Mount>...

  • Page 57: View Information

    9.16. View Information <Log File>: Click on the link to view the system log file. The content of this file provides useful information about configuration and connections after system boot-up. English...
  • Page 58 <User Information>: The Administrator can view each user’s login information and their privileges (see section 9.2. Security). View User Login Information : All the users in the network will be listed in the “User Information” zone, as shown below. The picture below shows: User: 4321 This indicates that one user’s login username is: User, and the password is: 4321 English...
  • Page 59 View User Privilege : If you click on “Get user privacy” at the bottom of the page, the Administrator will be able to view each user’s privileges. As the picture above shows: User: 1:1:0:1 1:1:0:1 = I/O access : Camera control : Talk : Listen (see 9.2. Security) This denotes that the user has been granted the privileges of I/O access, Camera control and Listen.

  • Page 60: Factory Default

    <Parameters>: Click on this item to view the entire system’s parameter setting. 9.17. Factory Default The factory default setting page is shown below. Follow the instructions to reset the IP Camera to factory default setting if needed. English...

  • Page 61: Software Version

    Full Restore : Click on the “Full Restore” button to recall the factory default settings. After 30 seconds the system will restart. Partial Restore : Click on the “Partial Restore” button to recall the factory default settings, except for the network settings. NOTE: The IP address will also be restored to default (192.168.1.1).

  • Page 62: Software Upgrade

    Step 5: Go to “Start” on your Windows desktop, activate “Control Panel”, and then double-click on ”Add or Remove Programs“. In the “Currently installed programs” list, select “GRUNDIG Viewer” and click on the button “Remove” to uninstall the existing GRUNDIG Viewer.

  • Page 63: Maintenance

    9.20. Maintenance Users can export configuration files to a specified location and retrieve data by uploading an existing configuration file to the IP Camera. This is especially convenient if you want to have the same configuration for multiple cameras. Export: Users can save the system settings by exporting the configuration file (.bin) to a specified location for future use.

  • Page 64: Streaming Settings

    10. Streaming Settings 10.1. Video Format Video Resolution : Under the Video Resolution section, the available video resolution formats include MJPEG and H.264. Please refer to Chapter 6. Video Resolution Setup for combination details. Click on “Save” to confirm the setting. Text Overlay Settings : Users can select these items to display data (date/time/text) on the live video pane.
  • Page 65 To rotate the image, users can select “Flip video”, for instance. Then the displayed image will be reversed as shown below. The following are descriptions of different video rotation types. - Flip video: If you select <Flip video>, the image will be rotated horizontally. - Mirror video: If you select <Mirror video>, the image will be rotated vertically.

  • Page 66: Video Compression

    10.2. Video Compression Users can specify the values for MJPEG/H.264 compression mode in the video compression page (see the picture below), depending on the application. MJPEG compression setting (MJPEG Q (Quality) factor): A higher value implies higher bit rates and a higher visual quality. The default setting is 35; the setting range is from 1 to 70.

  • Page 67: Video Ocx Protocol

    10.3. Video OCX Protocol In the Video OCX protocol setting page, users can select RTP over UDP, RTP over TCP, RTSP over HTTP or MJPEG over HTTP, for streaming media over the network. In the case of multicast networking, users can select the Multicast mode.

  • Page 68: Video Frame Rate

    10.4. Video Frame Rate Video frame skipping is for saving bandwidth if necessary. The setting page is shown below. MJPEG / H.264-1 / H.264-2 / H.264-3 / H.264-4 Frame Rate: The default setting of MJPEG/H.264-1/H.264-2/H.264-3/H.264-4 Frame Rate is 25 fps. The setting range is from 1 to 25.

  • Page 69: Video Mask

    10.5. Video Mask There are five video masks which can be set by the users. Active Mask Function : - Add a Mask: When you check a Video Mask checkbox, a red frame will come out in the Live Video pane at the right side. Use the mouse to adjust the mask’s size and drag and drop the frame to place it on the target zone.

  • Page 70: Audio (Audio And Bit Rate Settings)

    10.6. Audio (Audio and Bit Rate Settings) The audio setting page is shown below. In the Audio page, the Administrator can select one transmission mode and the audio bit rate. Transmission Mode : - Full-duplex (Talk and Listen simultaneously): In the Full-duplex mode, the local and remote sites can communicate with each other simultaneously, i.e. both sites can speak and be heard at the same time.

  • Page 71: Camera Settings

    11. Camera Settings The picture below is the camera configuration page. Details of each parameter setting are described in the following subsections. 11.1. Exposure Setting Display of the Exposure pull-down menu: The exposure is the amount of light received by the image sensor and is determined by the width of lens diaphragm opening, the amount of exposure by the sensor (shutter speed) and other exposure parameters.

  • Page 72: White Balance Setting

    Manual Mode: - Fixed Shutter Mode: In this mode, a fixed shutter speed can be selected from the drop-down menu. The shutter speed range is from 1/10000 to 1/1.5 sec. With 18 options depending on the camera model. Users can choose a suitable shutter speed according to the environmental illumination.

  • Page 73: Picture Adjustment

    11.3. Picture Adjustment Display of the Picture Adjustment pull-down menu: Brightness: The users can adjust the image’s brightness by adjusting the item. Please select a number from the range of -12 to +13. To increase the video brightness, select a bigger number. Click on <...

  • Page 74: Ir Function

    11.6. IR Function With the IR cut filter, the Camera can still catch a clear image at night time or in low light conditions. Auto/On/Off Mode: With the IR cut filter, the Dome Camera can still catch a clear image at night time or in low light conditions. Smart Mode: The Smart Mode enhances the monochrome/night mode stability in ascenario where IR illumination is dominant.

  • Page 75: Logout

    The GRUNDIG CMS Software gives the user access to monitor multiple IP Cameras and Video Servers, and allows the user to monitor simultaneously 16 sites per group (up to 10 groups) within several clicks.

  • Page 76: Internet Security Settings

    14. Internet Security Settings If the ActiveX control installation is blocked, please either set the Internet security level to default or change ActiveX controls and plug-in settings. Internet Security Level : Default Step 1: Start the Internet Explorer. Step 2: Select <Tools> from the main menu of the browser. Then click on <Internet Options>. Step 3: Click on the <Security>...
  • Page 77 Step 4: Down the page, click on “Default level…” and then click “OK” to confirm the setting. Close the browser window, and open a new one later when accessing the IP Camera. ActiveX Controls and Plug-in Settings : Step 1~3: Please refer to the previous section above. Step 4: Down the page, click on “Custom level…”...

  • Page 78: Grundig Viewer Download Procedure

    Step 8: Close the browser window, and open a new one later for accessing the IP Camera. 15. GRUNDIG Viewer Download Procedure The procedure of the GRUNDIG Viewer software download is specified as follows: Step 1: In the GRUNDIG Viewer installation page, click “Next” to start the installation. English...
  • Page 79 Step 2: Setup starts. Please wait for a while until the loading bar runs out. Step 3: Click on “Finish” to close the GRUNDIG Viewer installation page. English...
  • Page 80 Then, the IP Camera’s Home page will be displayed as follows: NOTE: Please note that the function buttons may vary depending on the camera model. Step 5: Under “ActiveX controls and plug-ins”, set ALL items (as listed below) to <Enable> or <Prompt>. Please note that the items may vary depending on the Internet Explorer version you are using.

  • Page 81: Install Upnp Components

    16. Install UPnP Components Please follow the instructions below to install UPnP components. (The procedure is for Windows XP, for other systems please refer to the corresponding manuals.) Step 1: Go to “Start”, click on “Control Panel”, and then double-click on “Add or Remove Programs”. Step 2: Click on “Add/Remove Windows Components”...
  • Page 82 Step 3: Select “Networking Services” from the Components list in the Windows Components Wizard window, and then click on “Details”. Step 4: Select “UPnP User Interface” in the Networking Services’ subcomponents list and then click on “OK”. Step 5: Click on “Next” in the Windows Components Wizard page. English...

  • Page 83: Deleting The Existing Grundig Viewer

    Step 6: Click on “Finish” to complete the installation. 17. Deleting the Existing GRUNDIG Viewer Users who have installed the GRUNDIG Viewer for 1.3 Megapixel Series IP Cameras on the PC need to delete the existing GRUNDIG Viewer first from the PC before accessing this IP Camera.
  • Page 84 STEP 1: Click on the “Tools” tab and select the option “Internet Options”. STEP 2: Click on “Delete” in the first pop-up window. Then tap “Delete Files” in the “Temporary Internet files” section in the next pop-up window. English...
  • Page 85 Specifications GCI-G1536F Image Sensor Progressive Scan CMOS, 5 Megapixel Pixels - Total 2592 (H) x 1944 (V) Col/B&W On/Off/SMART, IR-cut filter removable (ICR) Sensitivity Colour 0.2 Lux@F2.8 Sensitivity B&W 0.02 Lux@F2.8 Shutter Speed 1 ~ 1/10,000 sec PTZ Control digital Pan/Tilt/Zoom...
  • Page 86 EC Declaration of Conformity GCI-G1536F 5 MP 360° Fisheye IP Camera ICR IR 6 LED It is hereby certified that the products meet the standards in the following relevant provisions: EC EMC Directive 2004/108/EC Applied harmonised standards and technical specifications:...
