Page 1 DOL 100 digital box Technical User Guide 604336 • 2023-05-31...
Page 2 The date of change appears from the front and back pages. Note • All rights belong to SKOV A/S. No part of this manual may be reproduced in any manner whatsoever without the expressed written permission of SKOV A/S in each case.
Page 3 4.3.1 LED indication on the CAN bus coupler.................. 10 Nano I/O module digital...................... 11 Connection in DOL 100 ...................... 12 Setting up the DOL 100 in the controller ................ 13 Cable Plan.......................... 14 Circuit diagram......................... 15 4.8.1 DOL 100 and water meter...................... 15 4.8.2...

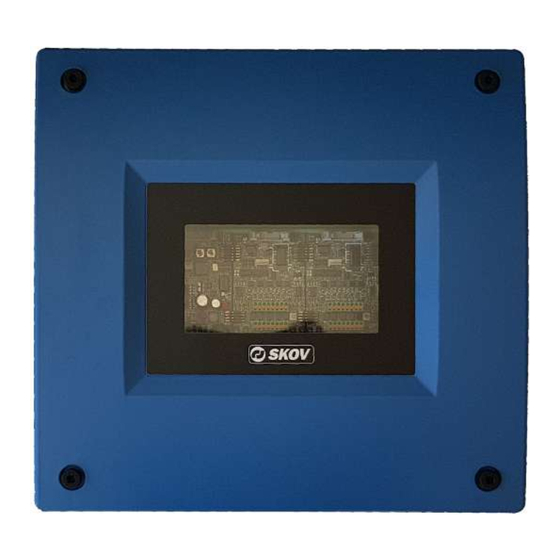

Page 4 DOL 100 Digital 8I/16I/24I/32I box is used to connect water meter, egg counter, and capacitive sensor to the CAN bus communication and thereby avoid numerous cables to the climate controller. The DOL 100 converts the signal into digital signals and transmits them to the controller using CAN bus commu- nication.
Page 5 External I/O box for connection of water meter, egg counter, or capacitive sensor. The DOL 100 converts the signals into digital signals and transmits them to the production controller using CAN bus communication. The standard software/hardware of the BlueControl series supports 13 I/O modules in total.
Page 6 DOL 100 digital box 3 Mounting guide 3.1 Recommended tools Below follows a list of tools recommended for installation of the DOL 100. Item Description Cordless drill Screwdriver bits Utility knife Multimeter Tape measure Side cutter Pointed pliers Ladder Screwdriver...
Page 7 DOL 100 digital box 3.2 Mounting on wall Mount the DOL 100 digital box on the wall us- ing 4 screws. Technical User Guide...
Page 8 DOL 100 digital box 4 Installation guide 4.1 Electrical connection Installation, servicing and troubleshooting of all electrical equipment must be carried out by quali- fied personnel in compliance with the applicable national and international standard EN 60204-1 and any other EU standards that are applicable in Europe.
Page 9 Technical | Setup | Installation | I/O Modules | Additional I/O Modules The address switches X10 is set to 5 in connection with DOL 100 water and 3 in connection with DOL 100 digi- tal. The address switches X01 are set to the displayed number or letter after the figure 5 or 3 in the controller.
Page 10 DOL 100 digital box 4.3.1 LED indication on the CAN bus coupler Item Function LED color Description 24 V IN ON: 24 V DC power supply OK. 24 V Log ON: 24 V DC Internal OK. Green 24 V I/O ON: 24 V DC I/O fuse F1 OK.
Page 11 DOL 100 digital box 4.4 Nano I/O module digital Nano I/O module # 1 Nano I/O module # 2 Nano I/O module # 3 Nano I/O module # 4 Item Function Description TERM CAN bus termination. The jumper is mounted on the I/O module furthest away from the CAN bus coupler.
Page 12 DOL 100 digital box 4.5 Connection in DOL 100 24 V DC power supply CAN bus connection, see dimensions below. CAN_H = brown CAN_L = white CAN GND = green. Strip the cable so the shield can be connected to the DOL 100 when mounting in the connection terminal.
Page 13 Technical | Installation | Manual installation | Protcol Select number of DOL 100. The DOL 100 8I box supports up to 8 items (water meters, egg coun- ters or capacitive sensor). The DOL 100 16I box supports up to 16 items.
Page 14 (A) Power supply to the controller two-wire cable including earthing contact. (B) Max. 400 m CAN bus communication cable between the DOL 100 digital 8l/16l box and the controller. The CAN bus cable connecting all units of the system may not exceed 400 m.
Page 15 DOL 100 digital box 4.8 Circuit diagram 4.8.1 DOL 100 and water meter External digital box Water Water Water Water meter meter meter meter 4.8.2 DOL 100 and capacitive sensor External digital box Technical User Guide...
Page 16 DOL 100 digital box 4.8.3 DOL 100 and DOL 192 24 V External digital box Egg counter 24 Egg counter 24 Egg counter 24 Egg counter 24 4.8.4 DOL 100 and DOL 192 230 V External digital box Egg counter...
Page 17 DOL 100 digital box 5 Cleaning The DOL 100 box is maintenance-free but should be kept free of litter and dirt. Clean the product with a cloth that has been wrung out almost dry in water and avoid using: • high-pressure cleaner •...
Page 18 Check the 24 V DC power supply to the DOL 100. pler. Check that you have installed the DOL 100 digital 8I/16I/24I/32I box and water meter/egg counter/capacitive sensor in the controller, see section- Setting up the DOL 100 in the controller [} 13] No CAN bus communication con- Check resistance between CAN H and CAN L;...
Page 19 DOL 100 digital box 7 Technical data Electrical V AC 90 - 264 Operating voltage Max. power Max. power consumption CAN bus CANopen in accordance with CiA301 and CiA401 Protocol Baud rate (fast) Max. cable length Input terminals 8 digital <...
Page 20 SKOV A/S • Hedelund 4 • Glyngøre • DK-7870 Roslev Tel. +45 72 17 55 55 • www.skov.com • E-mail: skov@skov.dk...
