DOL 100 digital box
Technical User Guide
English For other language variants of this document we refer to:
Español Para otras variantes del idioma de este documento, visite:
Français Pour les versions dans d'autres langues de ce document veuillez consulter:
http://docs.skov.com/1174
604336 • 2018-08-07
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Skov DOL 100
Summary of Contents for Skov DOL 100

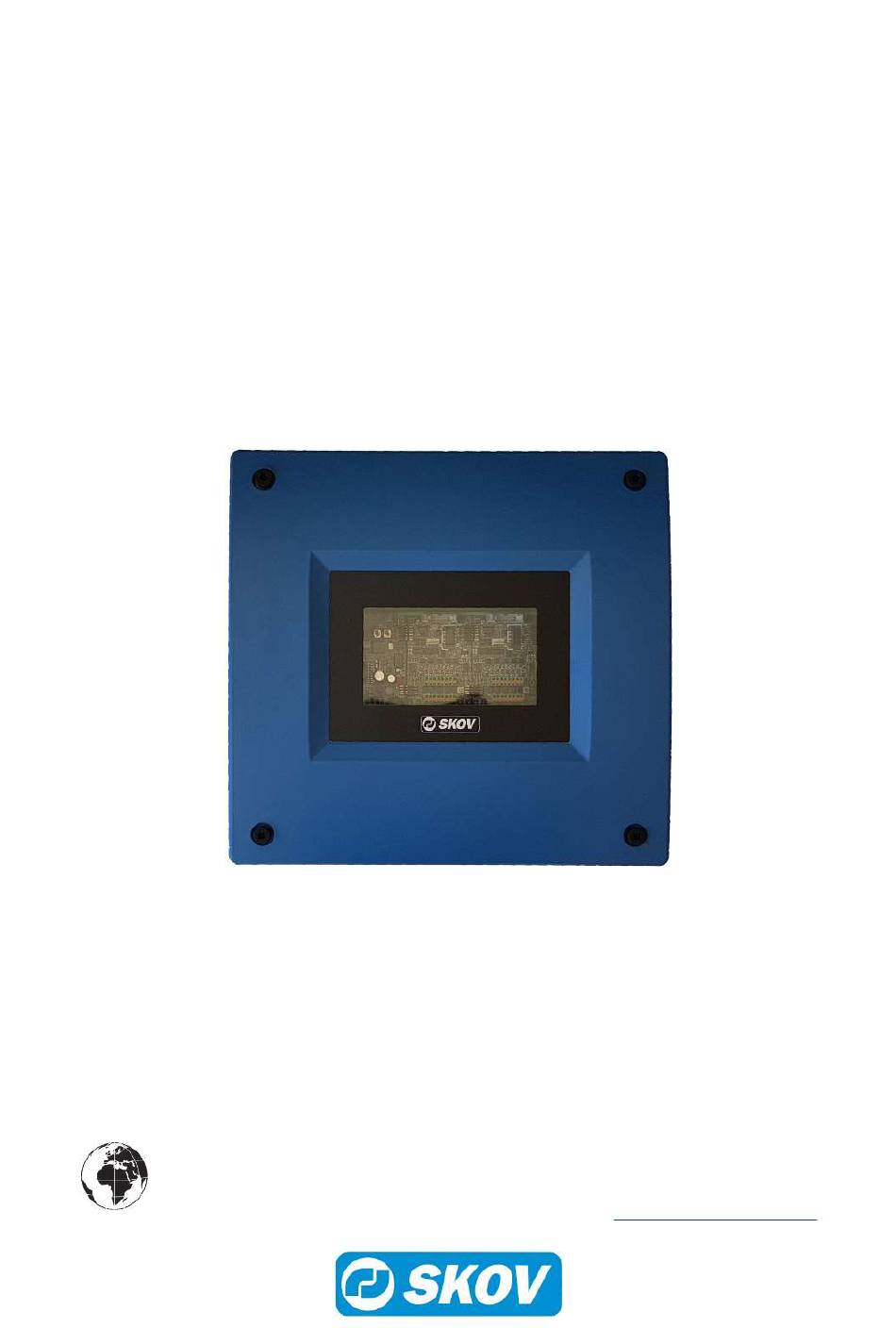

- Page 1 DOL 100 digital box Technical User Guide English For other language variants of this document we refer to: Español Para otras variantes del idioma de este documento, visite: Français Pour les versions dans d'autres langues de ce document veuillez consulter: http://docs.skov.com/1174...
- Page 3 SKOV A/S would appreciate being notified thereof. • Irrespective of the above, SKOV A/S shall not accept any liability with regard to loss or damage caused or alleged to be caused by reliance on any information contained herein.
-
Page 4: Table Of Contents
4.3.1 LED indication on the CAN bus coupler.................. 11 Nano I/O module digital 8l...................... 12 Connection in DOL 100...................... 13 Setting up the DOL 100 in the controller.................. 14 Cable Plan .......................... 15 Circuit Diagram .......................... 16 4.8.1 DOL 100 and water meter...................... 16 4.8.2... -
Page 5: Product Description

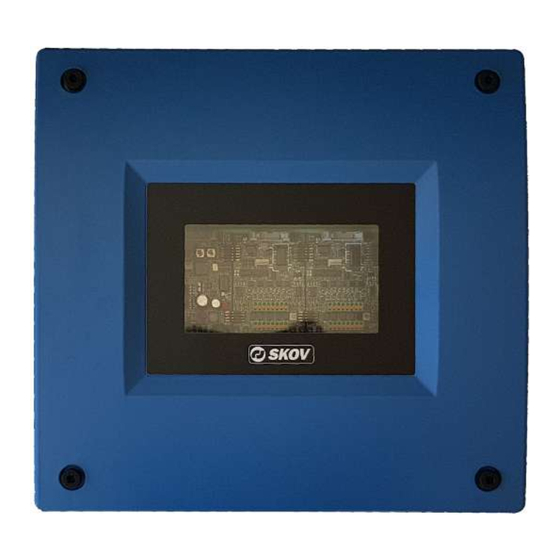

DOL 100 digital box 1 Product description DOL 100 Digital 8I/16I box is used to connect water meter, egg counter, and capacitive sensor to the CAN bus communication and thereby avoid numerous cables to the climate controller. The DOL 100 converts the signal into digital signals and transmits them to the controller using CAN bus commu- nication. -
Page 6: Product Survey
External I/O box for connection of of water meter, egg counter or capacitive sensor. The DOL 100 converts the signal into digital signals and transmits them to the controller using CAN bus communication. Standard software / hardware of the DOL 530/630 series supports 13 I/O modules in total. -
Page 7: Mounting Guide
DOL 100 digital box 3 Mounting Guide 3.1 Recommended tools Below follows a list of tools recommended for installation of the DOL 100. Item Description Cordless drill Screwdriver bits Utility knife Multimeter Tape measure Side cutter Pointed pliers Ladder Screwdriver... -
Page 8: Mounting On Wall
DOL 100 digital box 3.2 Mounting on Wall Mount the DOL 100 digital box on the wall us- ing four screws. Technical User Guide... -
Page 9: Installation Guide
EU standards that are applicable in Europe. The installation of a power supply isolator is required for each motor and power supply to facilitate voltage-free work on the electrical equipment. SKOV does not supply the power supply isolator. 4.2 Cable routing... -
Page 10: Nano Can Bus Coupler
CAN bus address (CAN ID). The address switches are used for setting the CAN ID. The DOL 100 must have a specific CAN ID for the controller to communicate with it. The address of the individual DOL 100 corresponds to the address in the controller in... -
Page 11: Led Indication On The Can Bus Coupler
DOL 100 digital box 4.3.1 LED indication on the CAN bus coupler Item Function LED col- Description 24 V IN ON: 24 V DC power supply OK. 24 V Log ON: 24 V DC Internal OK. Green 24 V I/O ON: 24 V DC I/O fuse F1 OK. -
Page 12: Nano I/O Module Digital 8L
DOL 100 digital box 4.4 Nano I/O module digital 8l Nano I/O module # 2 Nano I/O module # 1 Item Function Description TERM CAN bus termination. The jumper is mounted on the I/O module furthest away from the CAN bus coupler. -
Page 13: Connection In Dol 100
DOL 100 digital box 4.5 Connection in DOL 100 24 V DC power supply CAN bus connection, see dimensions below. CAN_H = brown CAN_L = white CAN GND = green. Strip the cable so the shield can be connected to the DOL 100 when mounting in the connection terminal. -
Page 14: Setting Up The Dol 100 In The Controller
Technical | Setup | Installation | I/O Modules | CAN protocol Select number of DOL 100. The DOL 100 8I box supports up to 8 water meters, egg counters or capacitive sensor. The DOL 100 16I box supports up to 16 water meters, egg counters or capacitive sensors. -
Page 15: Cable Plan
(A) Power supply to the controller, two-wire cable including earthing contact. (B) Max. 400 m CAN bus communication cable between the DOL 100 digital 8l/16l box and the controller. The CAN bus cable connecting all units of the system may not exceed 400 m. -
Page 16: Circuit Diagram
DOL 100 digital box 4.8 Circuit Diagram 4.8.1 DOL 100 and water meter Technical User Guide... -
Page 17: Dol 100 And Dol 192 12
DOL 100 digital box 4.8.2 DOL 100 and DOL 192 12 4.8.3 DOL 100 and DOL 192 20 Technical User Guide... -
Page 18: Dol 100 And Dol 192 30-75
DOL 100 digital box 4.8.4 DOL 100 and DOL 192 30-75 4.8.5 DOL 100 and capacitive sensor Technical User Guide... -
Page 19: Cleaning
DOL 100 digital box 5 Cleaning The DOL 100 box is maintenance-free but should be kept free of litter and dirt. Clean the product with a cloth that has been wrung out almost dry in water and avoid using: • high-pressure cleaner •... -
Page 20: Troubleshooting Guide
Check the 24 V DC power supply to the DOL 100. coupler. Check that you have installed the DOL 100 digital 8I/16I box and water meter/egg counter/capacitive sensor in the controller, see section Setting up the DOL 100 in the controller [} 14] No CAN bus communication con- Check resistance between CAN H and CAN L;... -
Page 21: Technical Data
DOL 100 digital box 7 Technical Data Electrical Setup V AC 90 – 264 Operating voltage Max. power Max. power consumption CAN bus CANopen in accordance with CiA301 and CiA401 Protocol Baud rate (fast) Max. cable length Input terminals 8 digital <... - Page 24 SKOV A/S • Hedelund 4 • Glyngøre • DK-7870 Roslev Tel. +45 72 17 55 55 • www.skov.com • E-mail: skov@skov.dk...
