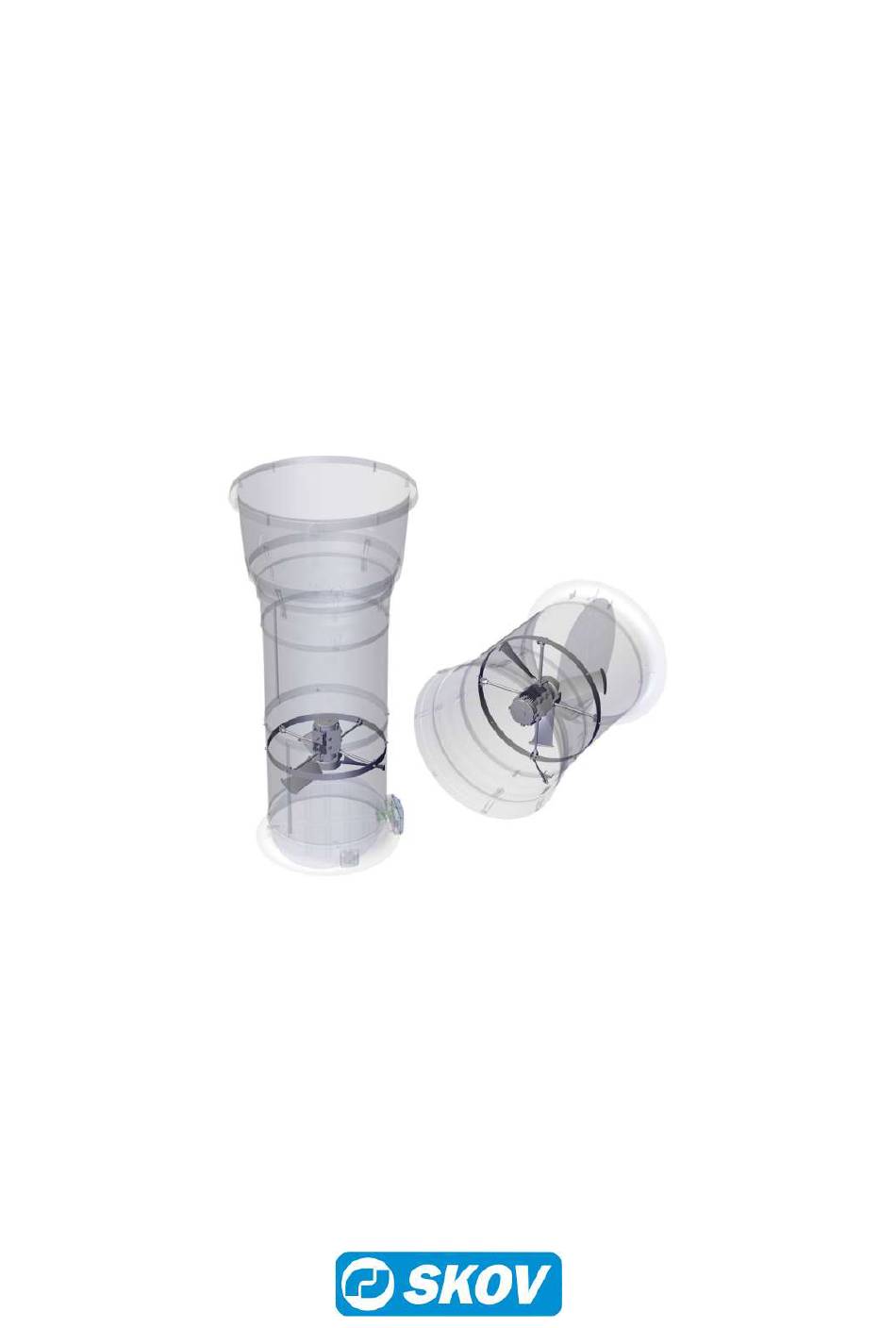

- Page 1 DA 820F VFD Fan High Pressure Technical User Guide 604474 • 2022-05-23...
- Page 3 Note • All rights belong to SKOV A/S. No part of this manual may be reproduced in any manner whatsoever without the expressed written permission of SKOV A/S in each case.
-
Page 4: Table Of Contents
Power supply isolator......................... 23 4.6.3 Letter Code .......................... 23 Cable plans and circuit diagrams................... 24 4.7.1 DA 820F VFD 400 V with DA 74CO ON/OFF ................ 24 4.7.1.1 Cable plan.......................... 24 4.7.1.2 Terminals in VFD 400 V fan....................... 24 4.7.1.3 Terminals in DA 74CO ....................... - Page 5 Recycling/Disposal ........................ 32 6 Troubleshooting guide .......................... 33 7 Technical data .............................. 35 DA 820F VFD 3x400 V ...................... 35 7.1.1 Erp/Ecodesign DA 820F VFD 3x400 V .................. 37 Dimensioned sketch ........................ 38 7.2.1 DA 820F VFD .......................... 38 Technical User Guide...
-
Page 6: Product Description
DA 820F VFD 1 Product description The ON/OFF fan is controlled with a sturdy frequency converter for three-phase fans. The frequency converter is controlled by a 10-0 V signal from a cli- mate controller. The fans are designed for mounting in exhaust units and wall exhaustion in livestock houses where the ventila- tion system operates in the high pressure range. -
Page 7: Product Survey
2 Product survey 2.1 DA 820F VFD high pressure 445040 DA 820F VFD fan high pressure 400V3 50/60Hz This product consists of a 3x400 V fan and a frequency converter. The frequency converter is controlled via a 10-0 V signal. -
Page 8: Mounting Guide
DA 820F VFD 3 Mounting guide 3.1 Recommended tools A list of the recommended tools for mounting purposes can be seen below. Item Description Cordless drill Screwdriver bits Drill kit Multimeter Utility knife Side cutter Pointed pliers Screwdriver Allen key kit... -
Page 9: Mounting The Ring With Fan Suspension In The Exhaust Unit
DA 820F VFD 3.2 Mounting the ring with fan suspension in the exhaust unit Place the ring with fan suspension 200 mm from the top 200 mm edge. Mark up the 8 holes. Drill the 8 holes at the markings with an ø8 drill bit. -
Page 10: Mounting The Fan In The Exhaust Unit
DA 820F VFD 3.3 Mounting the fan in the exhaust unit The fans must face the fan blades downward. Position the legs of the fan in the 4 fan suspension units. Attach the fan suspension at all 4 legs using: •... -
Page 11: Mounting The Fan In The Wall Exhaustion
DA 820F VFD 3.4 Mounting the fan in the wall exhaustion When the fan is used as wall exhaustion, the terminal box on the fan must turn as shown in the picture and the drain screw must be removed. The fan must face the fan blades inwards. -
Page 12: Mounting Support Kit
DA 820F VFD 3.4.1 Mounting support kit Mount bracket (A) on fan duct using: • 1 x M6x30 screw • 1 x M6 self-locking nut Replace the M8x20 screw in the fan suspension with M6x30. Mount threaded rod (B) in bracket (A). -
Page 13: Safety Distance
DA 820F VFD 3.5 Safety distance If the distance from the floor to the fan blade is less than 270cm, mounting a protective mesh in the inlet bell mouth may be required to meet the statutory require- ments. 3.6 Position of motor controller/frequency converter... -
Page 14: Position Of Frequency Converter
DA 820F VFD 3.8 Position of frequency converter The frequency converter is positioned so that the ambi- ent temperature is between ÷ 40 °C and + 40°C and pro- tected against direct sunlight. Temperature, operating ÷ 40 °C to + 40. -
Page 15: Installation Guide
4.1.3 Overvoltage protection SKOV A/S equipment are protected for high level of surge transient, but in some cases, specially in areas with frequent lightning strikes and power outage, additional protection is necessary. To reduce the risk of damaging the electronic equipment by large surge overvoltage, it is therefore recommended, always to install Surge Pro- tection Devices (SPD) in the mains supply. -
Page 16: Cabling In The Exhaust Unit
DA 820F VFD 4.1.4 Cabling in the exhaust unit Drill a hole in the exhaust unit duct for the fan cable and pull it along a support to the same side as the motor con- troller/frequency converter. 4.1.5 Cabling into the motor controller/frequency converter... -
Page 17: Connection In The Lpc Motor Controller
DA 820F VFD 4.2 Connection in the LPC motor controller Motor connection terminals (U, V, W, PE) Connection terminals for braking resistor (not used) Connector for optional module Terminal block for programming interface RJ12 programming connector (2 x slave / 1 x master) -
Page 18: Terminals For Power Supply
DA 820F VFD 4.2.1 Terminals for power supply Power supply 3 x 400 V / 3 x 230 V. Power supply 1 x 230 V. Technical User Guide... -
Page 19: Terminals For Power Supply Of Fan
DA 820F VFD 4.2.2 Terminals for power supply of fan Remember to strip the cable so that the protective shield from the fan can be connected to the motor controller during mounting under the rail. Connection from motor controller to fan motor. -
Page 20: Terminals On Relay Module
DA 820F VFD 4.2.4 Terminals on relay module Relay module 445076 can be purchased as accessories. Ground Normal = open Reverse = GND (Short-circuit connection between terminal 15 and GND) Not in use Alarm NO Max. 30 V DC / 24 V AC Alarm NC Mount the relay module as shown in the picture. -
Page 21: Led Indication On The Motor Controller/Frequency Converter
DA 820F VFD 4.3 LED indication on the motor controller/frequency converter The motor controller/frequency converter is equipped with a two-color LED for indication of different operating modes. LED is located on the underside next to the cable glands. • Constantly green when mains voltage is connected. -
Page 22: Adjusting The Jumper And Connecting The Shutter
DA 820F VFD Alarm overview External 24V DC supply over- loaded Supply voltage too high 4.5 Adjusting the jumper and connecting the shutter Set the jumper on the PCB to give actuator the desired function. LED indication OK = slow flashing... -
Page 23: General Information About Circuit Diagrams
DA 820F VFD 4.6 General information about circuit diagrams Symbols are in accordance with the IEC/EN 60617 standard. The classification of the symbols ("letter codes") on the symbols is in accordance with the IEC/EN 81346-2 stan- dard. Reference designations are in accordance with IEC/EN 81346-1:2001 structuring principles and reference des- ignations. -
Page 24: Cable Plans And Circuit Diagrams
DA 820F VFD 4.7 Cable plans and circuit diagrams 4.7.1 DA 820F VFD 400 V with DA 74CO ON/OFF 4.7.1.1 Cable plan 4.7.1.2 Terminals in VFD 400 V fan Technical User Guide... -
Page 25: Terminals In Da 74Co
DA 820F VFD 4.7.1.3 Terminals in DA 74CO 4.7.1.4 Circuit diagram Power supply from emergency opening V0 = Q1 terminal in controller. Power supply from emergency opening 24V-1 = Q2, Q3, Q4 and Q5 terminal in controller. Power supply from emergency opening 24V-12 = F6 terminal in emergency opening. -
Page 26: 820F Vfd 400 V With Da 74Cv Stepless
DA 820F VFD 4.7.2 DA 820F VFD 400 V with DA 74CV stepless 4.7.2.1 Cable plan 4.7.2.2 Terminals in VFD 400 V fan Technical User Guide... -
Page 27: Terminals In Da 74Cv
DA 820F VFD 4.7.2.3 Terminals in DA 74CV 4.7.2.4 Circuit diagram Power supply from emergency opening V0 = Q1 terminal in controller. Power supply from emergency opening 24V-1 = Q2, Q3, Q4 and Q5 terminal in controller. Power supply from emergency opening 24V-12 = F6 terminal in emergency opening. -
Page 28: 820F Vfd/Da 74Cv Stepless With Reverse
DA 820F VFD 4.7.3 DA 820F VFD/DA 74CV stepless with reverse 4.7.3.1 Cable plan Technical User Guide... -
Page 29: Circuit Diagram
DA 820F VFD 4.7.3.2 Circuit diagram Power supply from emergency opening V0 = Q1 terminal in controller. Power supply from emergency opening 24V-1 = Q2, Q3, Q4 and Q5 terminal in controller. Power supply from emergency opening 24V-12 = F6 terminal in emergency opening. -
Page 30: 820F Vfd/Dada 74Cv Stepless With Alarm Relay
DA 820F VFD 4.7.4 DA 820F VFD/DADA 74CV stepless with alarm relay 4.7.4.1 Cable plan Technical User Guide... -
Page 31: Circuit Diagram
DA 820F VFD 4.7.4.2 Circuit diagram Power supply from emergency opening V0 = Q1 terminal in controller. Power supply from emergency opening 24V-1 = Q2, Q3, Q4 and Q5 terminal in controller. Power supply from emergency opening 24V-12 = F6 terminal in emergency opening. -
Page 32: Maintenance Instructions
When washing the inside of the ducts, fan blades must stand still. Remember that fans do not stand high-pressure cleaning. If the inside of the duct needs to be cleaned extra thoroughly SKOV A/S recommends washing from above. When washing the fan, the fan must run around. -
Page 33: Troubleshooting Guide
DA 820F VFD 6 Troubleshooting guide Remember to shut the fan off at the power supply isolator prior to troubleshooting. Troubleshooting shutter system LPC/motor response Status LED Error Solution Shutter touches the ventilation Remedy the damage. duct (obstructed). Flashing quickly** Linkage between shutter and Replace defective parts. - Page 34 DA 820F VFD Troubleshooting frequency converter Fault symptom Status LED Error Solution Supply voltage too high. Measure the supply voltage. Power consumption of the mo- Check for motor errors. tor too high. Phase errors; one or more Measure the voltage between the Stopped after 5 restart phases interrupted (L1, L2, L3).
-
Page 35: Technical Data
DA 820F VFD 7 Technical data 7.1 DA 820F VFD 3x400 V 445040 DA 820F VFD 3x400V Electrical V AC 3x400 +/- 10% Rated voltage V AC 280 – 485 Operating voltage For supply voltages below the rated voltage range, a reduction of the fan’s RPM may occur depending on the load and ambient... - Page 36 DA 820F VFD 445040 DA 820F VFD 3x400V 32900 Air output at -20 Pa 32500 Air output at -30 Pa 31900 Air output at -40 Pa 31300 Air output at -50 Pa 30700 Air output at -60 Pa 30100 Air output at 70 Pa...
-
Page 37: 820F Vfd 3X400 V
DA 820F VFD 7.1.1 Erp/Ecodesign DA 820F VFD 3x400 V Fan type DA 820F VFD 3x400 V ErP 2015 (N58) Ecodesign 68.3 Efficiency classification 64.5 Efficiency (η) Measurement setup Total Efficiency category VSD required 2022 Year of production SKOV A/S... -
Page 38: Dimensioned Sketch
DA 820F VFD 7.2 Dimensioned sketch 7.2.1 DA 820F VFD Frequency converter Technical User Guide... - Page 40 SKOV A/S • Hedelund 4 • Glyngøre • DK-7870 Roslev Tel. +45 72 17 55 55 • www.skov.com • E-mail: skov@skov.dk...
