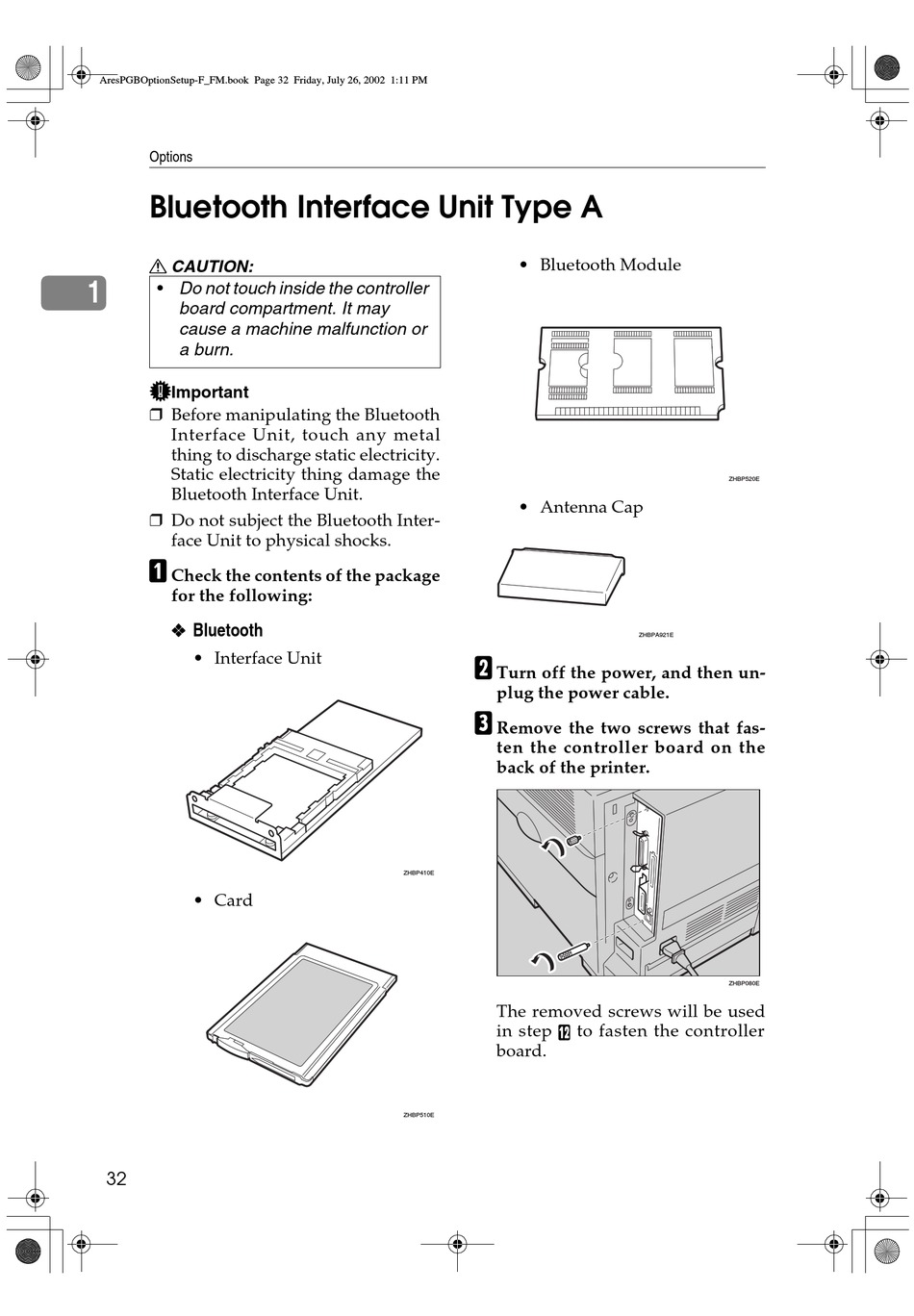

AresPGBOptionSetup-F_FM.book Page 32 Friday, July 26, 2002 1:11 PM
Options
Bluetooth Interface Unit Type A
R CAUTION:
1
• Do not touch inside the controller
board compartment. It may
cause a machine malfunction or
a burn.
Important
❒ Before manipulating the Bluetooth
Interface Unit, touch any metal
thing to discharge static electricity.
Static electricity thing damage the
Bluetooth Interface Unit.
❒ Do not subject the Bluetooth Inter-
face Unit to physical shocks.
A A A A
Check the contents of the package
for the following:
❖ ❖ ❖ ❖ Bluetooth
• Interface Unit
• Card
32
• Bluetooth Module
• Antenna Cap
B B B B
Turn off the power, and then un-
plug the power cable.
C C C C
Remove the two screws that fas-
ten the controller board on the
back of the printer.
ZHBP410E
The removed screws will be used
L
in step
to fasten the controller
board.
ZHBP510E
ZHBP520E
ZHBPA921E
ZHBP080E
