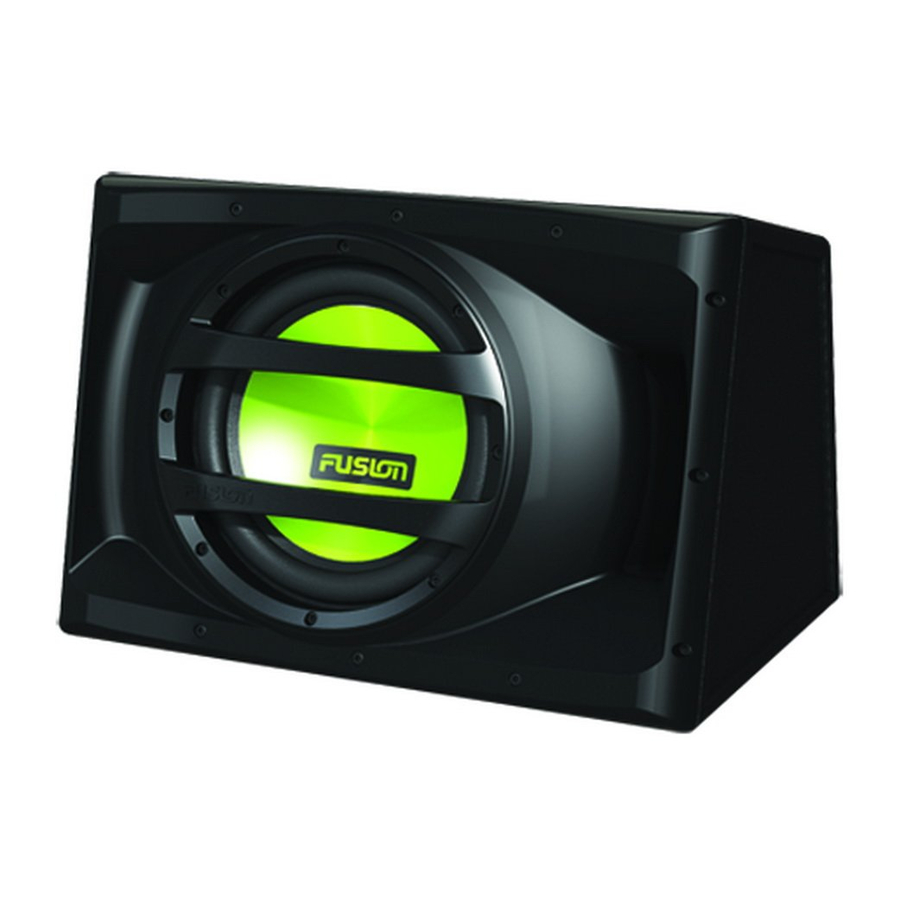

Fusion EN-AW1121 - Encounter Active Wedge Subwoofer Manual

SPECIFICATIONS

EN-AW1121

Power (Watts) 1000

Rated Amplifier Power (Watts) 150

Frequency Response 34Hz - 250Hz

Low Pass Filter (Variable) 40Hz - 250Hz

Tuning Bass Reflex

Woofer Size 12"

Fuse 25A

Dimensions (mm) 567(l) x 400(w) x 389(h)
22-5/16" x 15-6/8 x 15-11/32"

DISCLAIMER

Always ensure the Active Wedge is securely attached, to avoid movement. FUSION accepts no responsibility for damage or injury in relation to inappropriate securing of this product.

CONTROL DESCRIPTIONS

LEVEL

This allows the adjustment of the amplifier level of the subwoofer. Turn clockwise to increase the level. If the sound becomes distorted reduce the level.

LOW PASS FILTER (LPF)

This allows the adjustment of the highest frequency the Active Wedge will produce. This should be adjusted to blend with your main speakers. Typically, this will be set to around 100Hz (approximately the central position of the control knob).

BASS REMOTE CONTROLLER

This control can be mounted in the front of the vehicle to give you control of your Subwoofer's output level.

INSTALLATION

Make sure the Active Wedge is firmly fixed in your vehicle. Check before drilling or cutting holes. DO NOT work near gas tanks, fuel lines, hydraulic lines or electrical wiring.

DO NOT mount the Active Wedge in such a way as to pinch or damage the wires.

Make sure everything is firmly connected, before attaching the +12V wire. Ensure the +12V wire is fused as close as possible to the battery. Always use a fuse with the recommended rating.

WIRING

• Connect the ground wire to the vehicle first (clean dirt and paint to bare metal).
• Connect the remote on (blue wire).
• Connect the RCA cables if applicable, OR
• Connect the speaker level wire by splicing into the head unit's speaker wires. See Note 1.
• Connect the remote level controller with the supplied lead.
• Connect the 12 volt (red wire) to the positive battery terminal.
• Check all connections.

REGISTER YOUR PRODUCT ONLINE

For your own peace of mind, register your product purchase online at www.fusionelectronics.com

We'll keep you up to date with any news related to your product, and any new accessories to help you get the most from your product.

This product is backed by a 1 Year Limited Consumer Warranty and by registering your product you can be assured that if the unexpected occurs we'll have your details and be ready to help.

For further product and installation information, please visit www.fusionelectronics.com

Audio Systems can produce sound levels over 135dB. Continuous exposure to sound pressure levels over 100dB may cause permanent hearing loss! Please watch for emergency vehicles as warning signals may not be heard. USE COMMON SENSE!
