U S E R / I N STA L L AT I O N M A N U A L

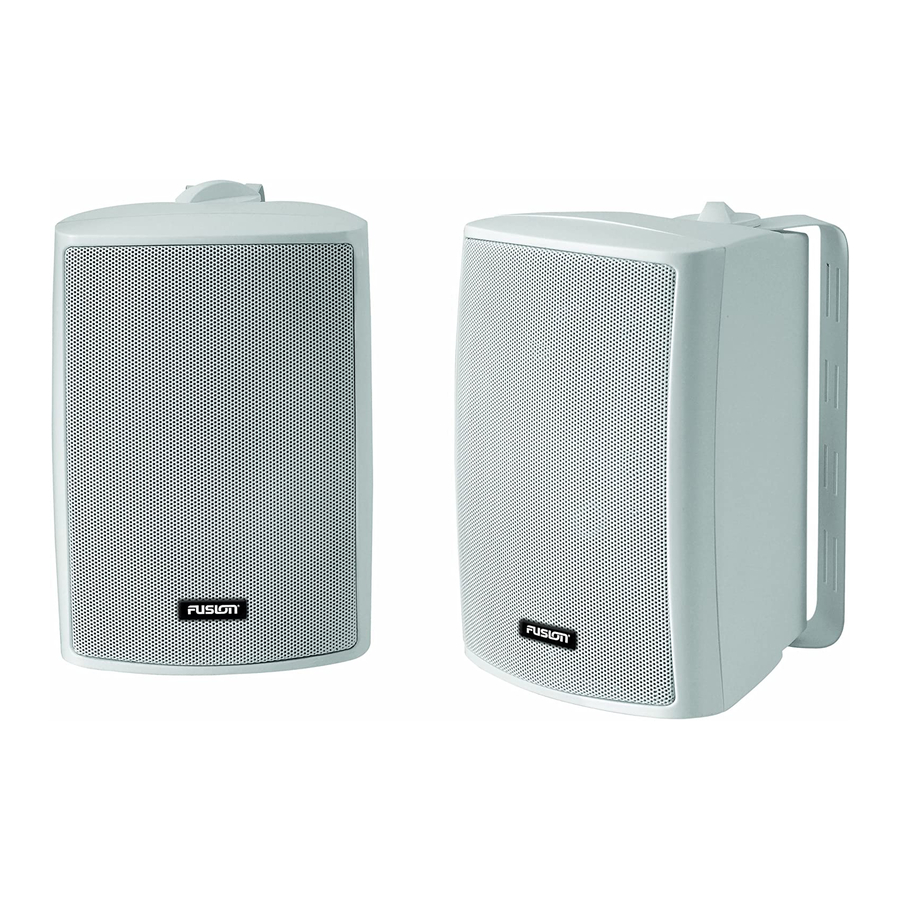

M S - OS42 0
4 " 2 WA Y M A R I N E
BOX S P EAK E R S

INSTALLATION TIPS

Any speaker will perform to its best capabilities, when correctly placed in
the listening area. FUSION Engineers recognise that unlike a home or motor
vehicles installation, there are an extremely wide range of marine environments
where speakers may be placed. FUSION Marine Speakers are optimised to
perform in the widest possible range of mounting locations, but a little thought
and care with placement will always be rewarded with better sound.
• High frequencies are directional. Placing the speakers low down in
the boar will lose some of this information.
• Speakers should be placed to simulate "sound stage", by being
placed where you are able to hear both speakers in a stereo situation.

TROUBLESHOOTING

Before you contact your FUSION dealer or service centre, FUSION requires that
you do some simple trouble shooting to help diagnose the problem.
Problem Solution
No sound Check all connections from the
source unit amplifi er to the speaker
terminals are connected correctly
System lacks in bass Check the connections from the
source unit/amplifi er to the speaker.
Ensure the positive wire from the
source is connected to the positive
of the speaker.
System lacks in Check polarity
high frequencies
Check the bass / treble control
settings on the source unit
Distorted sound Check all wiring
Check that it is not the surrounding
panels of the craft rattling.
Check connections from the source
to the speaker.
YOU CAN HELP PROTECT THE ENVIRONMENT
Please remember to respect the local regulations:
Hand in the non-working electrical equipment to an appropriate waste disposal centre.
