Fusion ENCOUNTER EN-CM5250 Manual

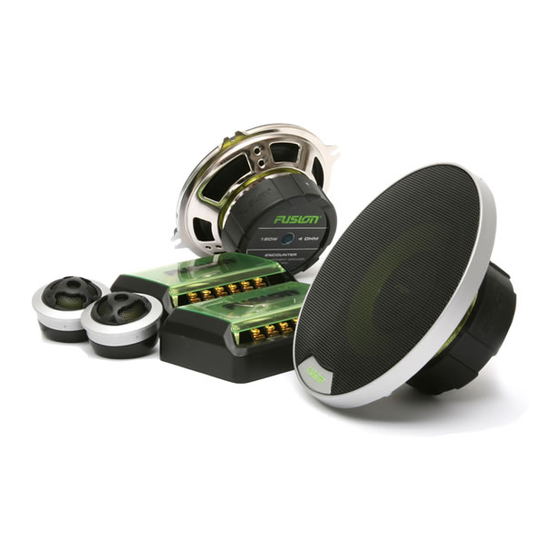

ENCOUNTER
COMPONENT SPEAKERS
EN-CM5250, EN-CM650

Speaker Parameters

Max Power Rating
RMS Power Rating
Frequency Response
Impedance
Sensitivity
Mounting Depth
Mounting Diameter

Crossover Specifications

2-way passive butterworth crossover network
12 dB / octave
Adjustable three point tweeter level
High pass: 3.5kHz
Low pass: 4.5kHz

Installation Guidelines

Ensure the audio system is turned off before making any connections to the amplifier, speakers or source unit.
Failure to do so could result in permanent damage to the audio system.
When wiring the speakers ensure that the wire is protected from sharp objects and always use rubber grommets
when wiring through metal panels. Ensure all terminals and connections are protected from the vehicle chassis and
from each other as failure to do so could result in permanent damage to the audio system.
When connecting the source unit and speakers ensure you connect the positive and negative output wire from the
source unit to the corresponding speaker terminals. This will ensure the audio system will be in phase.

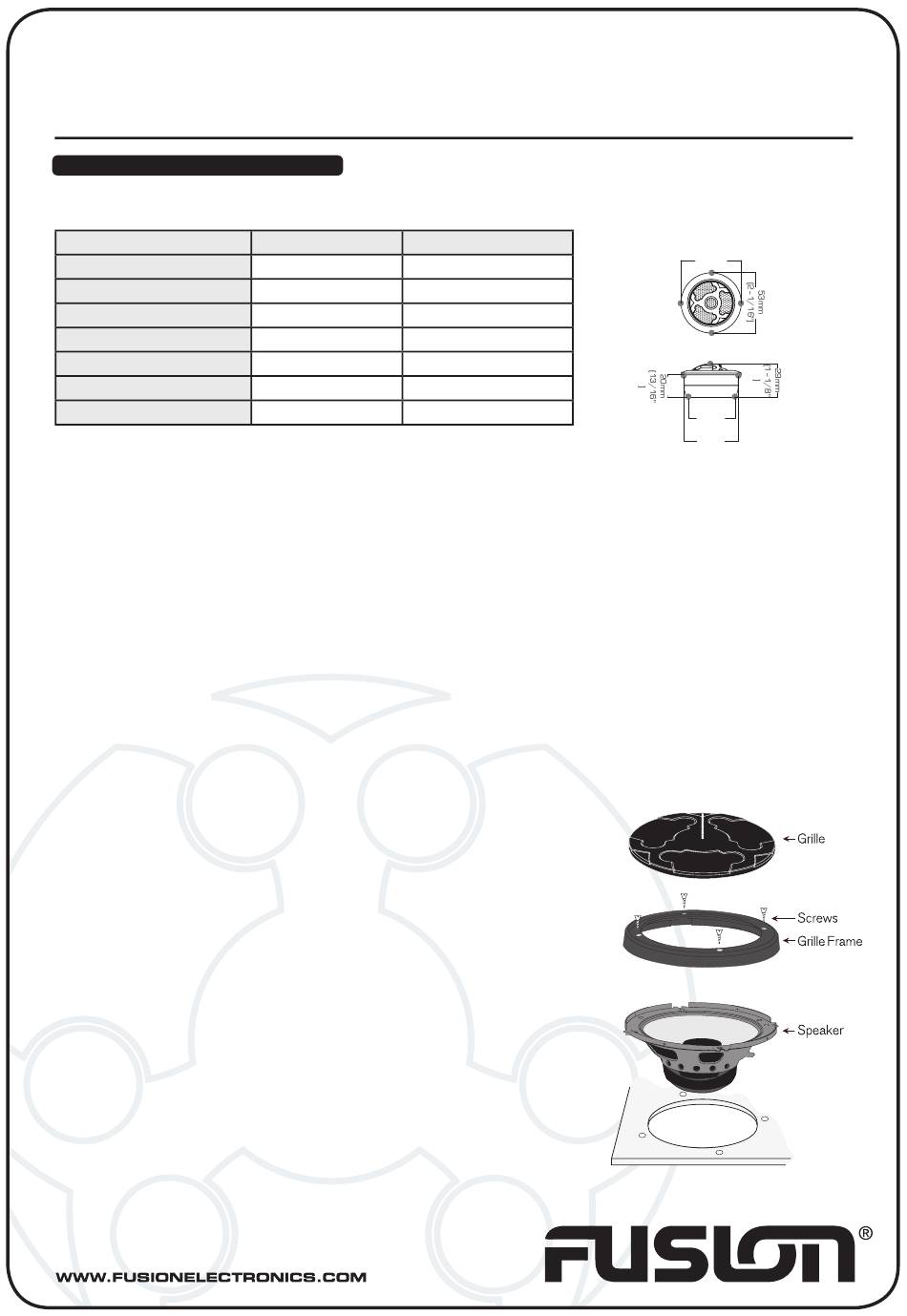

Installation Guidelines
1) Ensure there is adequate clearance and depth for the speaker to be mounted
2) Use the supplied template to mark out and cut the correct diameter hole
3) Drill four holes for the mounting screws
4) Separate the grille from the frame
5) Insert the speaker and grille frame and affix with the screws provided
6) Complete installation by replacing the grille into the grille frame
EN-CM5250 EN-CM650
180 Watts 240 Watts
50 Watts 70 Watts
64Hz - 22kHz 53Hz - 22kHz
4 Ohms 4 Ohms
86 dB 86 dB
54mm (2- ") 65mm (2-
1/8
119mm (4- ") 122mm (4-
11/16
TWEETER
")
9/16
")
13/16
53mm
(2–1/16")
43mm
(1–11/16")
47mm
(1–7/8")
