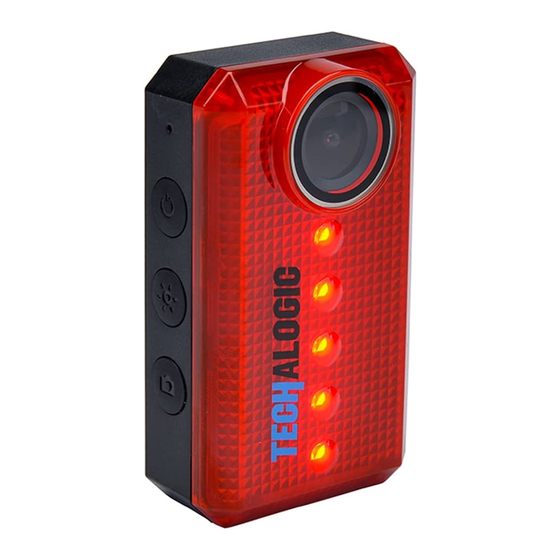

Cycle Rear Light with Integrated Full HD 1080P Wide Angle Camera
Model CR-1
Quick Start Guide
1 Microphone
2 Power Button
3 Light Mode Button
4 Photo Button/Wifi On/Off
5 FHD Camera
6 LED Lights
nd
7 Status Indicators – Charging/Low Battery (Top Led/Red) and Recording (2
Led/Yellow)
8 Micro SD Card Slot
9 Micro USB Charging Port
Note – Please insert Micro SD Card (Max 128gb) before using
Power On/Off
Power ON. Press and hold the power button to turn the camera on. You will hear 3 beeps
when successfully turned on, followed by a further one beep to confirm recording
7. Status indicators.
Advertisement
Related Manuals for Techalogic CR-1
Summary of Contents for Techalogic CR-1
- Page 1 Cycle Rear Light with Integrated Full HD 1080P Wide Angle Camera Model CR-1 Quick Start Guide 1 Microphone 2 Power Button 3 Light Mode Button 4 Photo Button/Wifi On/Off 5 FHD Camera 6 LED Lights 7 Status Indicators – Charging/Low Battery (Top Led/Red) and Recording (2...
- Page 2 Charging/Low Battery (Top Led/Red) - Will flash 0.5s when being charged and also when the camera is being used and battery is getting low Recording (2 Led/Yellow) – This flash 1.0s to indicate recording is in progress Power Off. Press and hold the power button. You will hear 5 beeps and the camera will power down Video Mode The camera is automatically set to loop recording continuously in 5 minute segments, at a...
- Page 3 Turn on your mobile phone, and search networks for a name similar to T03_xxxxxxxxx. Connect to this network by entering password "12345678" . (If you do not see the network, refresh your phone network listings) Click and open the RICAM APP icon on your mobile phone. Within Recording instrument select white button to connect camera You will now see a live view of the camera.
- Page 4 Language. Select required WDR (Wide Dynamic Range). On/Off Light Freq. Select 50Hz for UK Parking Monitor. Off, Low, Middle or High Total Capacity of SD Card Available Capacity left on SD card Restore Factory Settings Firmware Version. T04 etc Charging Connect to USB charging (Mains or Powerbank) Will not fully charge connected to any laptop or computer.
- Page 5 A Appx 4 hours in Led and Recording Mode Here to Help Our friendly customer service team are available to help Online Support https://techalogic.co.uk/support/ Tel 0330 2233108 What's in the box 1 x Bike Rear Light Cam 1 x Mount...
